CLASS RU 450 Xtra 3-Tip Skid Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD

Description

CLASS RU 450 Xtra 3-Tip Skid Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD

DESCRIPTION:

CLASS RU 450 Xtra 3-Tip Skid Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD

INTRODUCTION :

These instructions describe the safe and time-efficient working procedure for fitting the mounting kit Spare
Part No. 0489 717.0.
Please read this manual thoroughly before starting work! Pay particular attention to the »General instructions
« section.
The following machines can be modified:
CLAAS maize header:
RU 450 Xtra
The shipping package is shown on page 4.3. Before starting work make sure that the mounting kit is complete. The “Shipping package” list is also considered a supplement to the spare parts list. Retain the old parts for later use!

General instructions OF SPECIAL IMPORTANCE :

The instructions set forth in this manual must be read carefully and followed by all persons concerned with the operation, maintenance, repair or inspection of this machine/front attachment in order to prevent accidents. Read and understand especially the »General instructions« section and the chapter on »Safety« in your operator’s manual.

• Observe the pertinent accident prevention regulations of your country. Clean the machine before starting work. Welding and grinding work on the machine may cause fire if accumulated vegetation, grease and dirt is not removed.
• Before starting work make sure that all necessary tools and devices are at hand. Make a comparison between the present type of machine/ implement, the list in section “Shipping package” and the delivered kit.

TABLE OF CONTENTS:

CLASS RU 450 Xtra 3-Tip Skid Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Table of contents
3 General instructions
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32
4 Shipping package
Shipping Package for RU 450 Xtra 43
Mounting Kit 3-Tip Skid 0498 7170 43
5 Dismantling 4-Tip Skid
Dismantling in the case of front attachments with autopilot
or down maize tips 52
Dismantling Tips 54
6 Fitting 3-Tip Skid
Fitting holder 61
RU 450 Xtra up to serial No 660 0 5023
(Holder soldered) 61
RU 450 Xtra as from serial No 660 0 5024
(Holder bolted) 62
Fitting support 62
Fitting skids 62
Assembly in the case of front attachments with autopilot
and / or down maize tips 63
Fitting tube 63
Fitting bracket 63
Assembling intermediate tip 64
Assembling tips 65
Check and observe the following before putting into operation 66

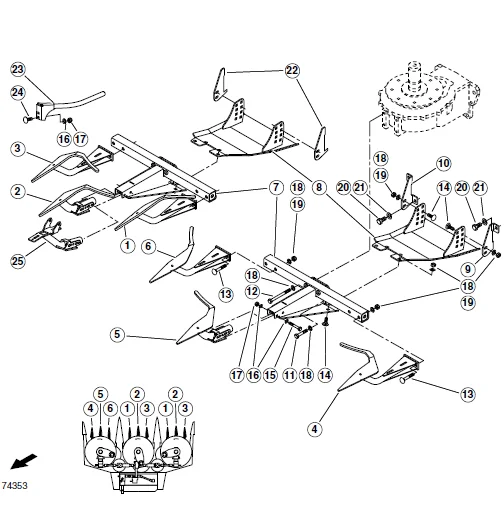

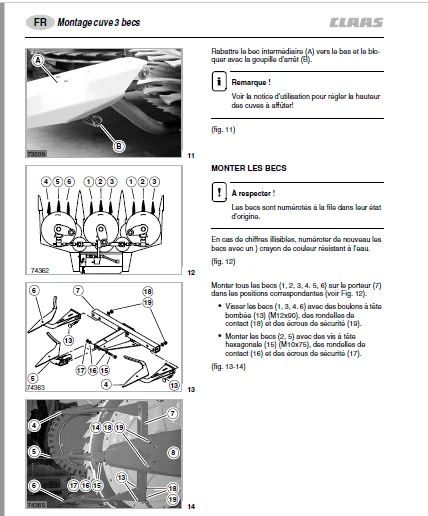

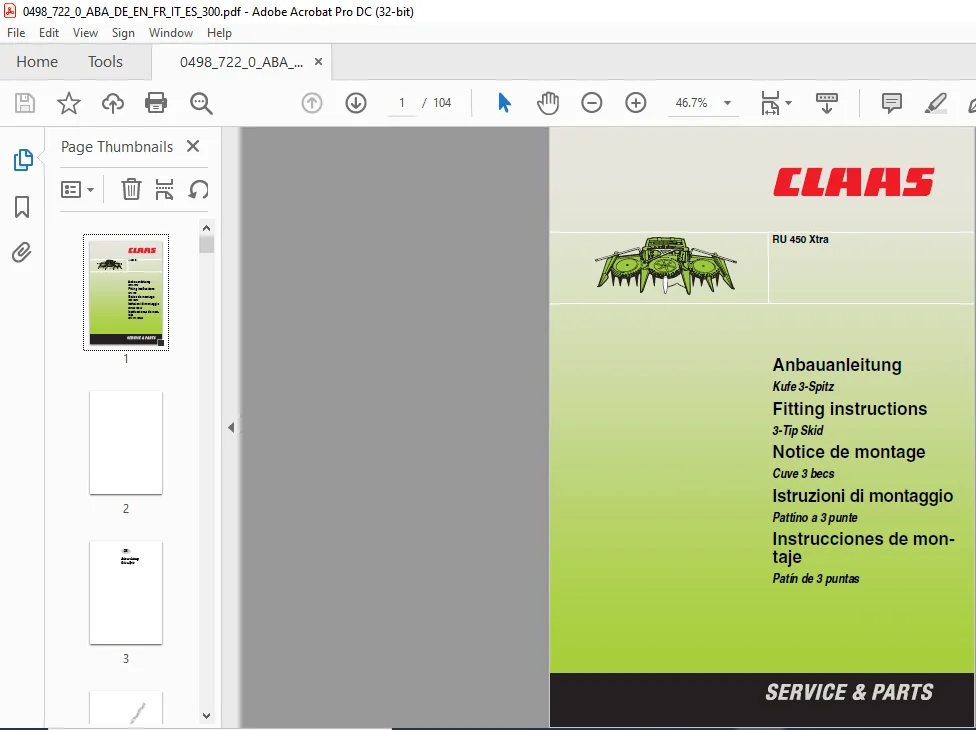

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
