CLASS RU 600 Contour RU 600 Auto Contour RU 600 Xtra Wear floor Fitting Instructions Manual DE_EN_FR_IT_ES

Description

CLASS RU 600 Contour RU 600 Auto Contour RU 600 Xtra Wear floor Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD

DESCRIPTION:

CLASS RU 600 Contour RU 600 Auto Contour RU 600 Xtra Wear floor Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD

INTRODUCTION :

These instructions describe the safe and time-efficient working procedure for fitting the mounting kit Spare
Part No. 0932 455.0.
Please read this manual thoroughly before starting work! Pay particular attention to the »General instructions « section.
The following machines can be modified:
CLAAS maize header:
RU 600 Contour
RU 600 Auto Contour
RU 600 Xtra

• The shipping package is shown on page 4.1. Before starting work make sure that the mounting kit is complete.
• The “Shipping package” list is also considered a supplement to the spare parts list.

The instructions set forth in this manual must be read carefully and followed by all persons concerned with the operation, maintenance, repair or inspection of this machine/front attachment in order to prevent accidents. Read and understand especially the »General instructions« section and the chapter on »Safety« in your operator’s manual.

• Observe the pertinent accident prevention regulations of your country. Clean the machine before starting work. Welding and grinding work on the machine may cause fire if accumulated vegetation, grease and dirt is not removed.
• Before starting work make sure that all necessary tools and devices are at hand. Make a comparison between the present type of machine/ implement, the list in section “Shipping package” and the delivered kit.
• For the specification of parts, e.g. screws, see the “Shipping package”.In this list every mounting part has an item number. Further details regarding these parts are the part no., the quantity, the dimensions, the ISO/DIN and the use.

TABLE OF CONTENTS:

CLASS RU 600 Contour RU 600 Auto Contour RU 600 Xtra Wear floor Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Table of contents
3 General instructions
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32
4 Shipping package
Shipping package for RU 600 Contour / RU 600 Auto Contour /
RU 600 XTRA 41
Installation kit wear floor 0932 4550 41
5 Fitting the wear floor
Release the tension springs 52
Removing the wear floor 53
Fitting the wear floor 54
Tighten the tension springs 55
6 Fitting the coupler
Dismantling the coupler 61
Fitting the coupler 62
Check and observe the following before putting into operation 62

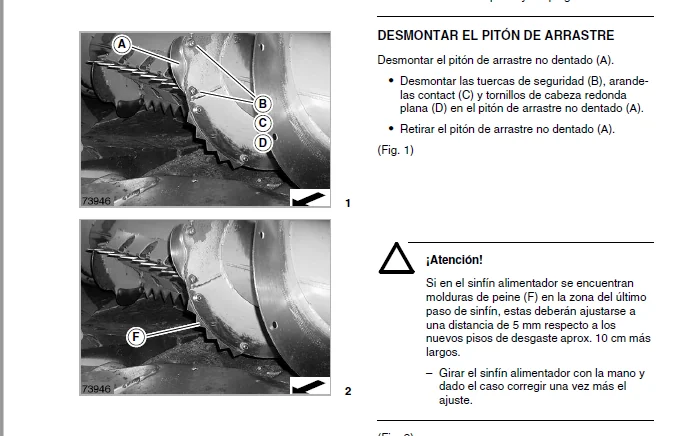

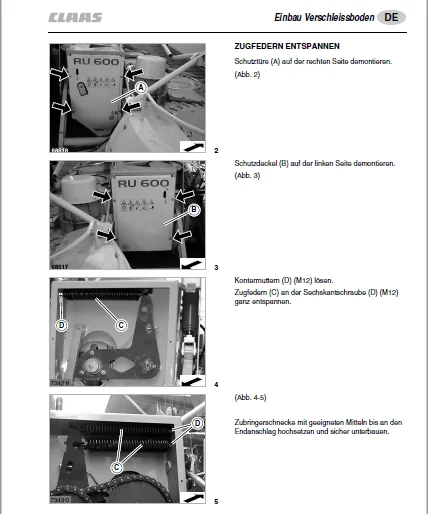

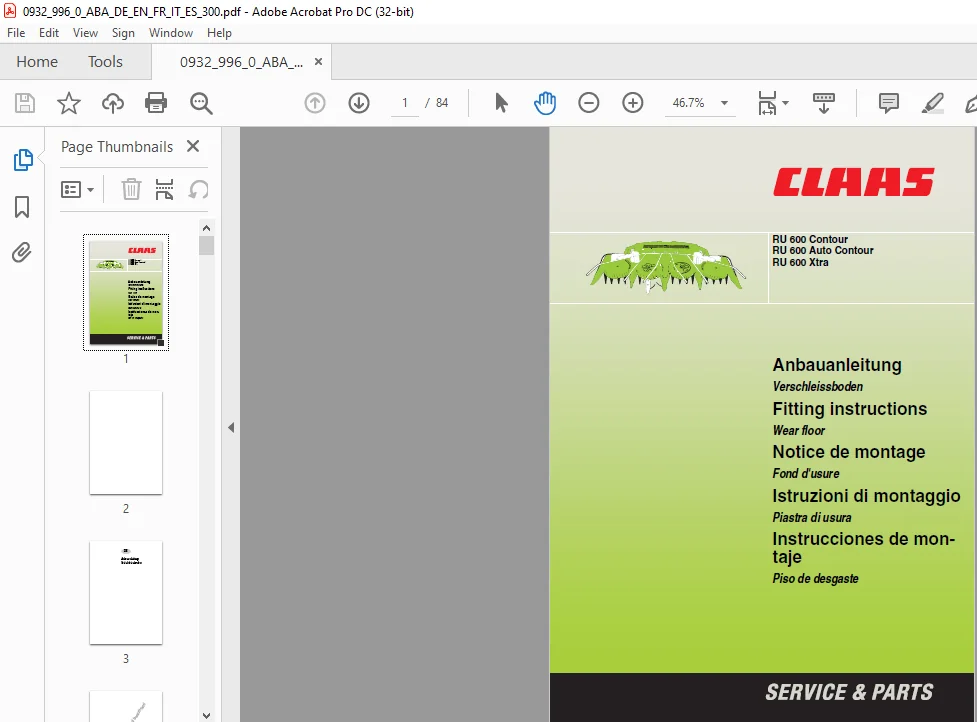

IMAGES PREVIEW OF THE MANUAL:
