CLASS RU 600 Contour RU 600 Xtra RU 450 Xtra Autopilot (3 deflector fingers) Fitting Instructions Manual DE_EN_FR_IT_ES
$86.95 Original price was: $86.95.$25.95Current price is: $25.95.
CLASS RU 600 Contour RU 600 Xtra RU 450 Xtra Autopilot (3 deflector fingers) Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD
Description
CLASS RU 600 Contour RU 600 Xtra RU 450 Xtra Autopilot (3 deflector fingers) Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD
DESCRIPTION:
CLASS RU 600 Contour RU 600 Xtra RU 450 Xtra Autopilot (3 deflector fingers) Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD
INTRODUCTION :
- This manual describes the safe and time-saving method of mounting with the mounting kit, part no. 0498 764.0 (autopilot).
- Please read this manual thoroughly before starting work! Pay particular attention to the ยปGeneral instructions ยซ section.
The following machines and devices can be converted:
CLAAS maize headers:
RU 600 Contour
RU 600 Xtra
RU 450 Xtra
- The shipping package is listed on page 4.3. Before starting work make sure that the mounting kit is complete. The “Shipping package” list is also considered a supplement to the spare parts list.
- Dispose of old parts that are not required for the assembly in an environmentally correct manner.
TABLE OF CONTENTS:
CLASS RU 600 Contour RU 600 Xtra RU 450 Xtra Autopilot (3 deflector fingers) Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD
1 Introduction
Introduction 11
2 Table of contents
3 General instructions
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32

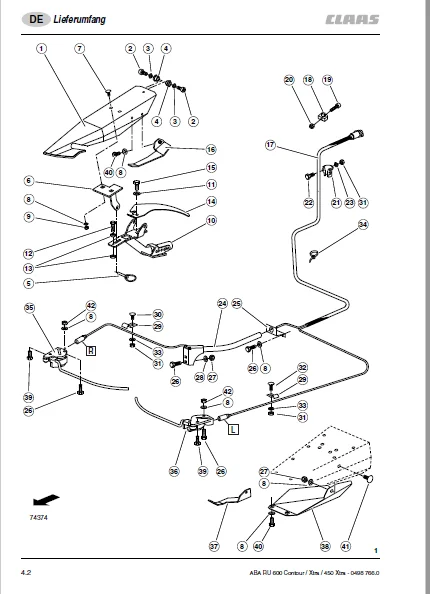

4 Shipping package
Shipping package for autopilot mounting kit for RU 600 Contour /
Xtra and RU 450 Xtra 43
Mounting kit: 0498 7640 43
5 Mounting autopilot
Removing deflector fingers 51
Installation of wiring harness 53
Mounting intermediate tip 54
Mounting right maize sensor 55
Mounting left maize sensor 56

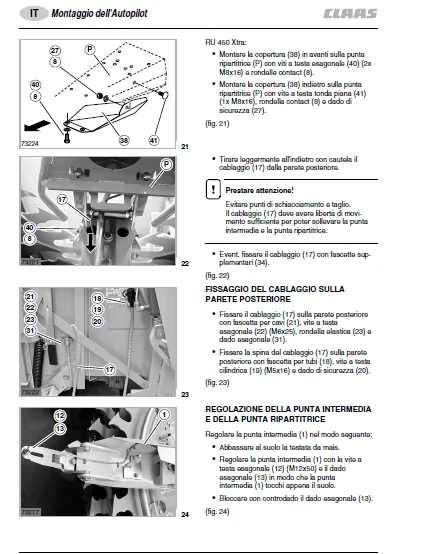

Fixing wiring harness to rear panel 57
Adjusting intermediate tip and divider tip 57
Transport on public roads 58
Check and observe the following before putting into operation 59
