DESCRIPTION:

CLASS TARGO K-SERIE Reverse Fan Drive Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD

General information:

IMPORTANT :

The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the »Safety Rules« in the operator’s manual should be read with the utmost care and adhered to. In addition, please also observe the accident prevention regulations that apply for your own country. Before commencing with the job, ensure that all the tools and service aids are available.

• Compare existing machine type/front attachment type with the list in the chapter »Shipping Package « and the parts kit supplied. The specification of the components, e.g. bolts, is shown on the shipping package. The shipping package shows the position number (pos. no.) of the components.
• Parts such as nuts and contact washers do not have a position number but belong to the bolt listed above which does have a position number. Additional part specifications are the part no., description, measurements, DIN and the quantity. In order to help with the assembly, existing components in the instructions are identified with letters, whereas new parts have been identified with a number (position number).
• Texts and pictures apply, in general, to all machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text. Technical data, dimensions and weights are given as an indication only. CLAAS reserve the right to make changes subsequently as technical developments continue. Responsibility for errors or omissions not accepted.

TABLE OF CONTENTS:

CLASS TARGO K-SERIE Reverse Fan Drive Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD

1 Introduction
Introduction 11
2 General
information
Important 21
Identification of warnings and danger signs 22
Correct use 22
3 Contents
Contents 31
4 Shipping Package
Shipping Package 41
Supplementary kit 311 1081 41
5 Fitting
Fitting the reverse fan drive 51
Preparing the fitting 51
Removing the hydraulic motor and the
associated hose lines 51
Preparing the hydraulic motor (1) for mounting 53
Pre-assembling and fitting the reversing valve (4) 54
Turning the leakage oil line 55
Routing the hose lines and fitting the hydraulic motor (1) 56
Routing and connecting the wiring loom (14) 511
Pre-assembling and fitting the louvered plate (17) 516
Preparing and performing the test run 517

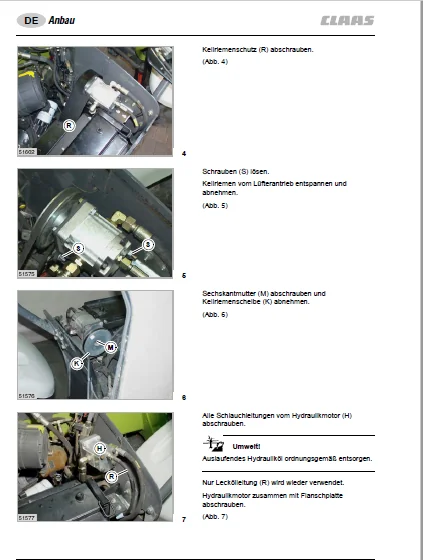

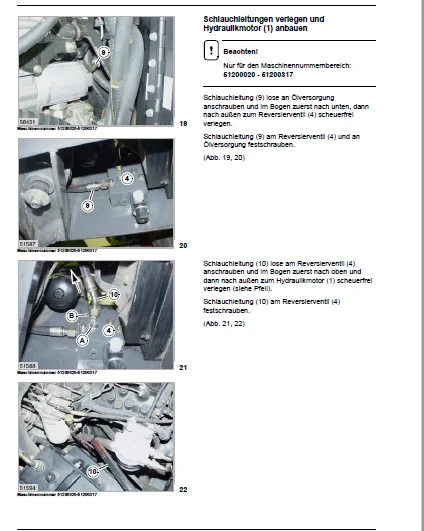

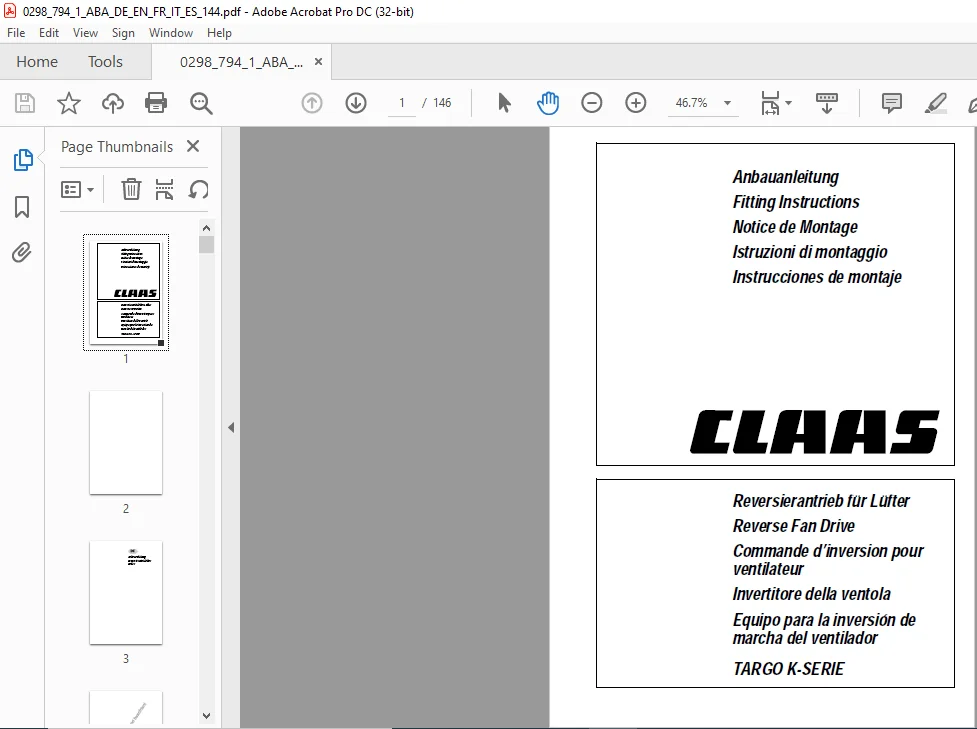

IMAGES PREVIEW OF THE MANUAL:
