GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and letters in these
instructions are the same as those used in the
illustrations.
Special torque settings are shown in these
instructions. If a torque setting is not shown, use the
standard torque setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and lower
it to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH ASSEMBLY INSTRUCTIONS FOR THE BREAKER OR HIGH FLOW KITS ON CX225SR EXCAVATOR MANUAL – PDF DOWNLOAD

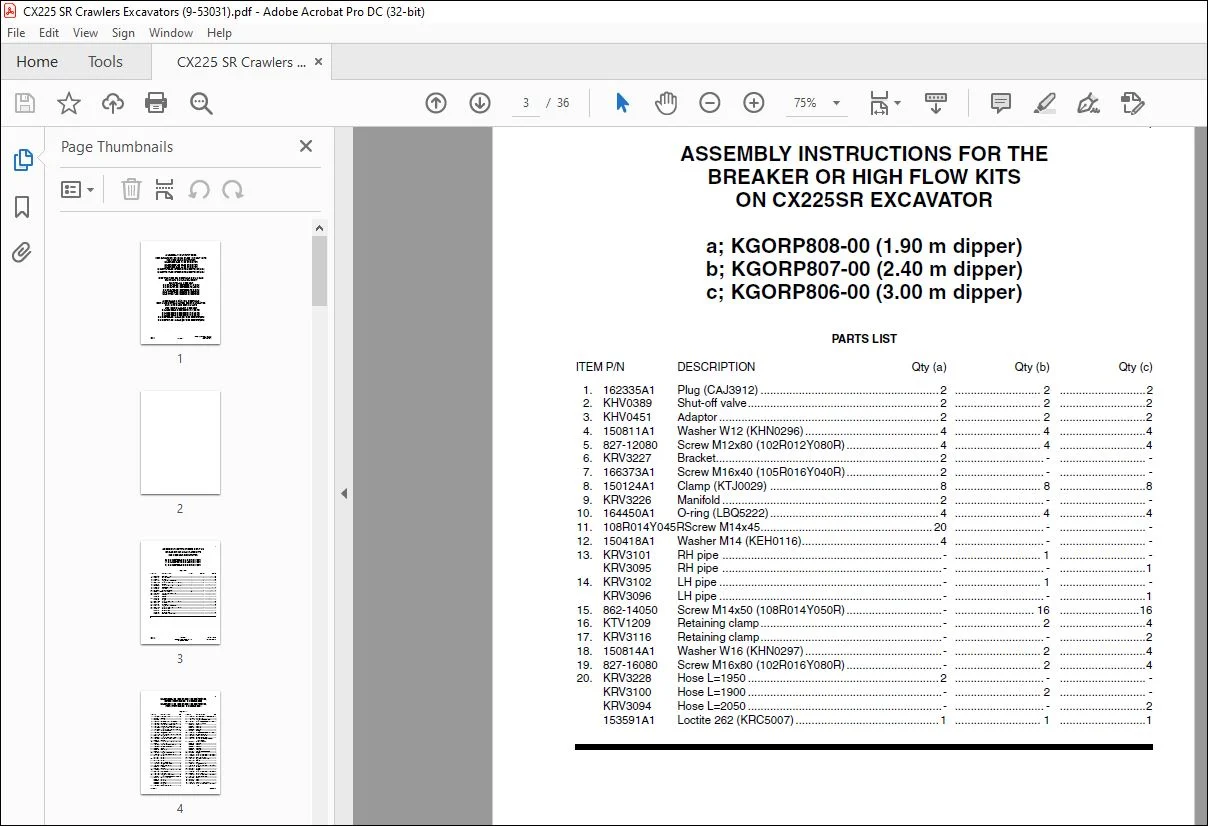

1. 162335A1 Plug (CAJ3912) ……………………………………………….. 2 ……………………… 2 ………………………2
2. KHV0389 Shut-off valve…………………………………………………… 2 ……………………… 2 ………………………2
3. KHV0451 Adaptor …………………………………………………………… 2 ……………………… 2 ………………………2
4. 150811A1 Washer W12 (KHN0296) …………………………………… 4 ……………………… 4 ………………………4
5. 827-12080 Screw M12x80 (102R012Y080R)……………………….. 4 ……………………… 4 ………………………4
6. KRV3227 Bracket……………………………………………………………. 2 ………………………. – ……………………… –
7. 166373A1 Screw M16x40 (105R016Y040R)……………………….. 2 ………………………. – ……………………… –
8. 150124A1 Clamp (KTJ0029) …………………………………………….. 8 ……………………… 8 ………………………8
9. KRV3226 Manifold ………………………………………………………….. 2 ………………………. – ……………………… –
10. 164450A1 O-ring (LBQ5222) …………………………………………….. 4 ……………………… 4 ………………………4
11. 108R014Y045RScrew M14x45……………………………………………… 20 ………………………. – ……………………… –
12. 150418A1 Washer M14 (KEH0116)……………………………………. 4 ………………………. – ……………………… –
13. KRV3101 RH pipe ……………………………………………………………- ……………………… 1 ……………………… –
KRV3095 RH pipe ……………………………………………………………- ………………………. – ………………………1
14. KRV3102 LH pipe …………………………………………………………….- ……………………… 1 ……………………… –
KRV3096 LH pipe …………………………………………………………….- ………………………. – ………………………1
15. 862-14050 Screw M14x50 (108R014Y050R)…………………………- ……………………. 16 …………………….16
16. KTV1209 Retaining clamp…………………………………………………- ……………………… 2 ………………………4
17. KRV3116 Retaining clamp…………………………………………………- ………………………. – ………………………2
18. 150814A1 Washer W16 (KHN0297) …………………………………….- ……………………… 2 ………………………4
19. 827-16080 Screw M16x80 (102R016Y080R)…………………………- ……………………… 2 ………………………4
20. KRV3228 Hose L=1950 …………………………………………………… 2 ………………………. – ……………………… –
KRV3100 Hose L=1900 …………………………………………………….- ……………………… 2 ……………………… –
KRV3094 Hose L=2050 …………………………………………………….- ………………………. – ………………………2
153591A1 Loctite 262 (KRC5007) ……………………………………… 1 ……………………… 1 ………………………1
