ASSEMBLY INSTRUCTIONS FOR THE
LOW FLOW CIRCUIT KITS
a; KGORP812-00 (1.90 m dipper)
b; KGORP811-00 (2.40 m dipper)
c; KGORP810-00 (3.00 m dipper)
ON CX225SR EXCAVATOR

GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and letters in these
instructions are the same as those used in the
illustrations.
Special torque settings are shown in these
instructions. If a torque setting is not shown, use the
standard torque setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and lower
it to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH ASSEMBLY INSTRUCTIONS FOR THE LOW FLOW CIRCUIT KITS ON CX225SR EXCAVATOR MANUAL 47380893 – PDF DOWNLOAD

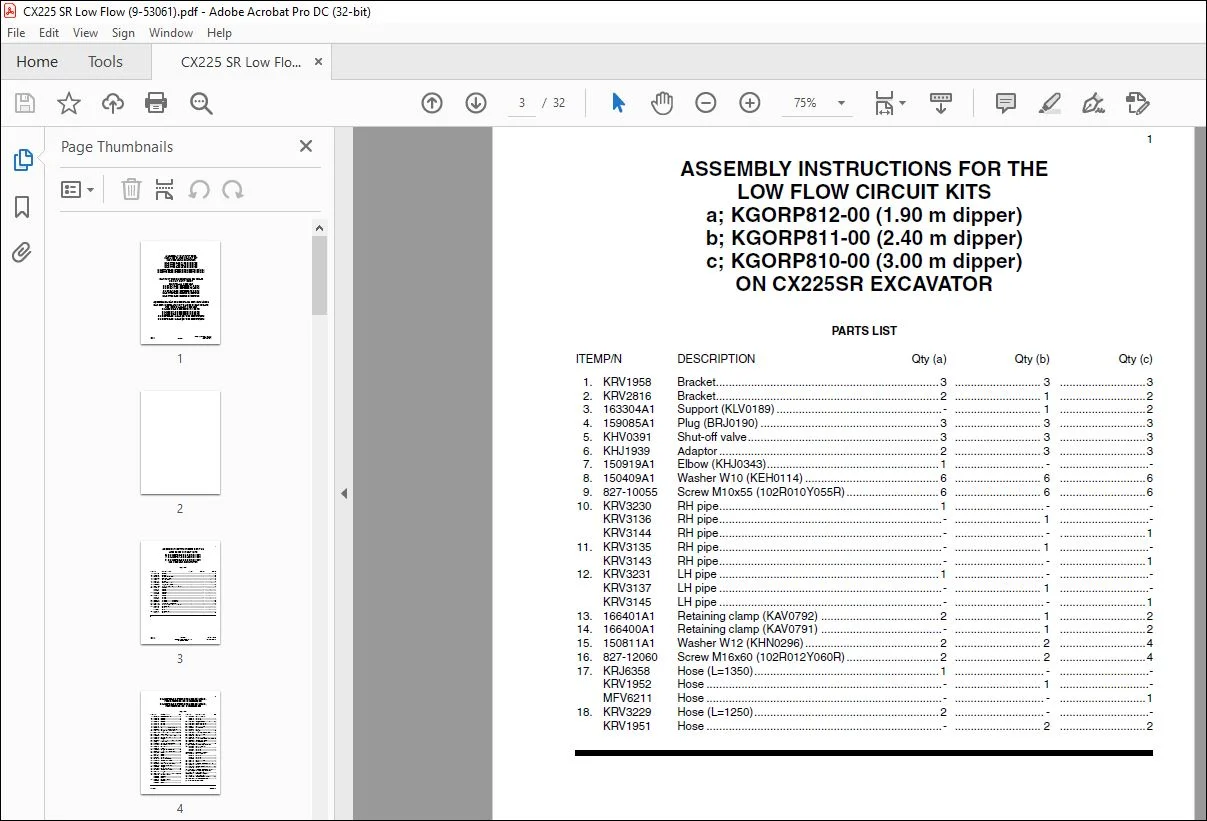

1. KRV1958 Bracket……………………………………………………………. 3 ……………………… 3 ………………………3
2. KRV2816 Bracket……………………………………………………………. 2 ……………………… 1 ………………………2
3. 163304A1 Support (KLV0189) …………………………………………….- ……………………… 1 ………………………2
4. 159085A1 Plug (BRJ0190) ……………………………………………….. 3 ……………………… 3 ………………………3
5. KHV0391 Shut-off valve…………………………………………………… 3 ……………………… 3 ………………………3
6. KHJ1939 Adaptor …………………………………………………………… 2 ……………………… 3 ………………………3
7. 150919A1 Elbow (KHJ0343)……………………………………………… 1 ………………………. – ……………………….-
8. 150409A1 Washer W10 (KEH0114) …………………………………… 6 ……………………… 6 ………………………6
9. 827-10055 Screw M10x55 (102R010Y055R)……………………….. 6 ……………………… 6 ………………………6
10. KRV3230 RH pipe…………………………………………………………… 1 ………………………. – ……………………….-
KRV3136 RH pipe…………………………………………………………….- ……………………… 1 ……………………….-
KRV3144 RH pipe…………………………………………………………….- ………………………. – ………………………1
11. KRV3135 RH pipe…………………………………………………………….- ……………………… 1 ……………………….-
KRV3143 RH pipe…………………………………………………………….- ………………………. – ………………………1
12. KRV3231 LH pipe …………………………………………………………… 1 ………………………. – ……………………….-
KRV3137 LH pipe …………………………………………………………….- ……………………… 1 ……………………….-
KRV3145 LH pipe …………………………………………………………….- ………………………. – ………………………1
13. 166401A1 Retaining clamp (KAV0792) ………………………………. 2 ……………………… 1 ………………………2
14. 166400A1 Retaining clamp (KAV0791) ………………………………..- ……………………… 1 ………………………2
15. 150811A1 Washer W12 (KHN0296) …………………………………… 2 ……………………… 2 ………………………4
16. 827-12060 Screw M16x60 (102R012Y060R)……………………….. 2 ……………………… 2 ………………………4
17. KRJ6358 Hose (L=1350)…………………………………………………. 1 ………………………. – ……………………….-
KRV1952 Hose ………………………………………………………………..- ……………………… 1 ……………………….-
MFV6211 Hose ………………………………………………………………..- ………………………. – ………………………1
18. KRV3229 Hose (L=1250)…………………………………………………. 2 ………………………. – ……………………….-
KRV1951 Hose ………………………………………………………………..- ……………………… 2 ………………………2
