CNH BREAKER OR HIGH FLOW CIRCUIT KIT ASSEMBLY INSTRUCTIONS Manual (84133107) _EN_FR_DE – PDF DOWNLOAD

Description

CNH BREAKER OR HIGH FLOW CIRCUIT KIT ASSEMBLY INSTRUCTIONS Manual (84133107) _EN_FR_DE – PDF DOWNLOAD

FILE DETAILS:

CNH BREAKER OR HIGH FLOW CIRCUIT KIT ASSEMBLY INSTRUCTIONS Manual (84133107) _EN_FR_DE – PDF DOWNLOAD

GENERAL INFORMATION

The illustrations for these assembly instructions will be found in the last pages. Separate the last pages to consult the illustrations while reading the text. The reference numbers and letters in these instructions are the same as those used in the illustrations. Special torque settings are shown in these instructions. If a torque setting is not shown, use the standard torque setting shown in the Service Manual.

PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).
TABLE OF CONTENTS:

CNH BREAKER OR HIGH FLOW CIRCUIT KIT ASSEMBLY INSTRUCTIONS Manual (84133107) _EN_FR_DE – PDF DOWNLOAD

ITEMP/N DESCRIPTION Qty (a) Qty (b)
1 153754A1 Bracket (KRV1282) 2 2
2 163304A1 Bracket (KLV0189) 4 4
3 151655A1 Adaptor (KNJ0606) 2 2
4 KBA0377 Elbow2 2
5 153684A1 Plug (KHJ0482) 2 2
6 KHV10690 Shut-off valve2 2
7 KHJ1349 Adaptor 2 2
8 183-112VR Washer SW128 8
9 827-12080 Screw M12x80 (102R012Y080R) 4 4
10 KMV2678 Pipe2 –
KMV2681 Pipe 2
11 KHJ1361 O-ring4 4
12 153731A1 Retaining clamp (KRJ2422)4 4
13 827-12070 Screw M12x70 (102R012Y070R) 4 4
14 KRV2780 Hose 2 –
KLV0392 Hose – 2
153591A1 Loctite 262 (KRC5007) 1 1
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1 KMV10740 RH pipe 1
2 KMV10750 LH pipe 1
3 153731A1 Retaining clamp (KRJ2422) 7
4 150811A1 Washer (KHN0296) 14
5 827-12070 Screw M12x70 (102R012Y070R) 12
6 152924A1 Plug (BRJ1286) 2
7 KMV10760 RH pipe 1
8 KMV10770 LH pipe 1
9 KSV1849 Hose L = 1350 2
10 KHJ1361 O-ring 2
11 KMV10780 Bracket 1
12 627-12030 Screw M12x30 (102R012Y030R) 2
13 162308A1 Retaining clamp (KTJ0358) 1
14 KMV10620 Retaining clamp 2
15 KHJ1995 Control pedal 1
16 150604A1 Washer W10 (KHJ0183)2
17 150548A1 Screw M10x20 (KHJ0161)2
18 KHJ2568 Bracket 1
19 166346A1 Screw M10x16 (105R010Y016R)2
20 KHJ2231 Pedal bolt1
21 157558A1 Washer WW8 (KHN0518) 2
22 157770A1 Nut M8 (KHR0086) 2
23 KHJ2571 Cover 1
24 KHJ18750 Floor carpet 1
25 KHJ2229 Pedal 1
26 159500A1 Washer W8 (KHN0420)2
27 162571A1 Screw M8x16 (KHN1642)2
28 KMP11010 Decal 1
29 KHJ2130 T-piece 3
30 161841A1 Adaptor (CNA0584) 1
31 152127A1 Adaptor (KNJ0758) 7
32 KMJ2987 Set of 5 hoses
KHJ2240 Hose P5 1
KHJ2180 Hose T5 1
KHJ2088 Hose Y1 1
KHJ2036 Hose Y2 1
KHJ2195 Hose D5 1
33 162538A1 Solenoid valve block (KRJ3557) 1
34 895-11006 Washer W6 (182-006SR) 2
35 183-106VR Washer SW6 2
36 627-6020 Screw B M6x20
(102R006Y020R 2
37 KHJ17100 Shuttle block 1
38 153081A1 Washer W M8 (KAJ1500) 4
39 827-8060 Screw B M8x60 (102R008Y060R) 2
40 150933A1 Elbow (KHJ0348) 3
41 150913A1 Elbow (KHJ0341) 5
42 KMJ2778 Set of 4 hoses
KHJ2074 Hose Y1 1
KHJ2244 Hose Y3 1
KHJ2174 Hose Y2 1
KHJ2074 Hose Y5 1
43 KHJ1473 Flow re-injection block 1
44 150409A1 Washer W M10 (KEH0114) 2
45 827-10080 Screw B M10x60 (102R010Y080R) 2
46 159497A1 T-piece (KHJ0869) 1
47 KHJ2092 Hose 1
48 KHJ2245 Hose 1
49 KHJ11460 Adaptor 1
50 KHR10820 Pressure switch 1
51 150496A1 Clip L=250 (KHH0142)xx
52 KMR10530 Electrical harness 1
53 KHR2948 Switch 1
54 KHR19620 Indicator lamp 1
55 KHR19630 Indicator lamp base 1
56 KHJ11730 Manifold 1
57 827-8055 Screw B M8x55 (102R008Y055R) 2
58 KHR14470 Pressure switch 1
59 KHJ1178 Elbow1
60 KMJ11400 Set of 2 hoses
KHJ2351 Hose F1 1
KHJ2238 Hose F2 1
61 KHJ1495 Adaptor 1
62 KHJ1348 Adaptor 3
63 167645A1 Adaptor (KAJ2238) 1
64 150919A1 Right-angle (KHJ0343) 1
65 KHJ2020 Selector block 1
66 157580A1 Elbow (KHJ0344)1
67 KHJ1804 Elbow2
68 KMJ2866 Bracket1
69 166351A1 Screw M10x20 (105R010Y020R)6
70 KMJ2868 Hose 1
71 KHJ1360 O-ring 8
72 KMJ11330 Hose 1
73 KHJ2021 Protective sheath2
74 KHJ2022 Protective sheath1
75 KMJ3013 Hose 1
76 168988A1 Adaptor (KHJ1778)1
77 KHJ2243 Elbow1
78 KMJ2764 Hose 1
79 KHJ2023 Hose clamp2
80 KMJ10580 Set of 2 hoses
KMJ10570 Hose Y11
KMJ10570 Hose Y21
81 150498A1 Clip L=300 (KHH0143) xx
82 KHJ1855 T-piece 1
83 KMJ11340 Hose 1
84 KMJ2914 Secondary relief 2
85 KHJ2024 Protective sheath1
153591A1 Loctite 2621
xx According to requirement

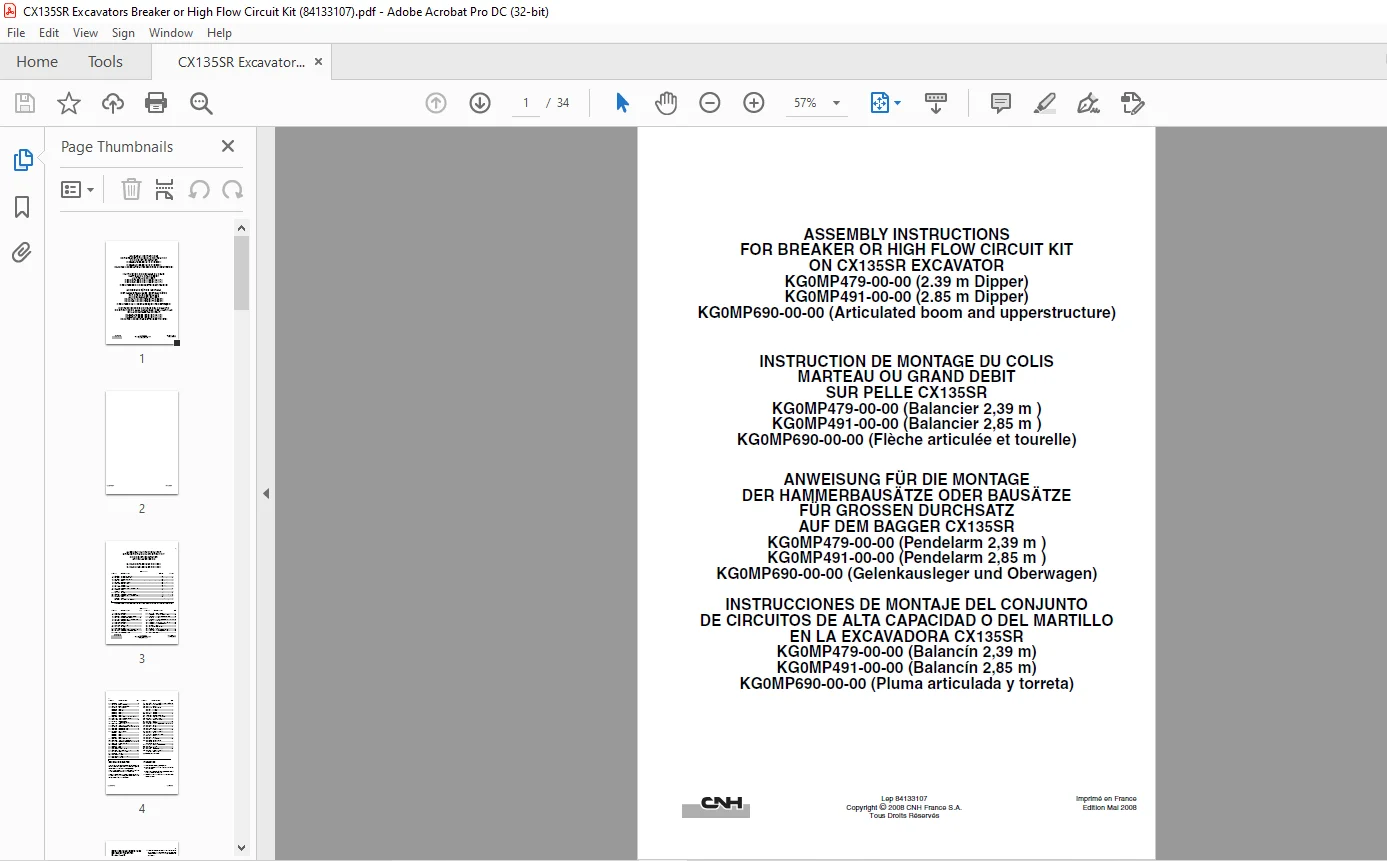

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME manual used by dealers to troubleshoot faults in your vehicle. It can be yours in 2 minutes after payment.
• Contact us at [email protected] if you have any questions before your purchase or if you need any other service/repair/parts user manual.
