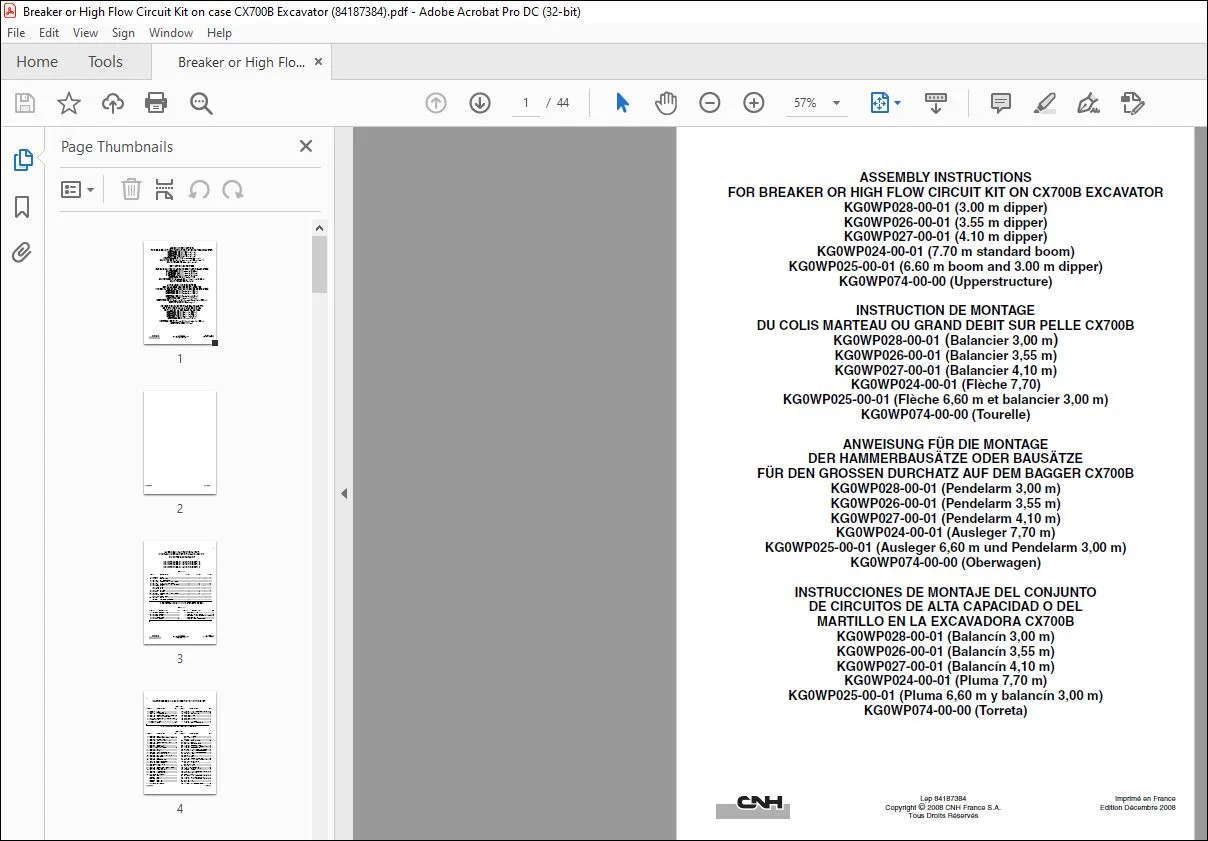

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CNH Breaker or High Flow Circuit Kit on case CX700B Excavator Assembly Instructions Manual 84187384 EN_FR_DE_IT_ES – PDF DOWNLOAD

ASSEMBLY INSTRUCTIONS
FOR BREAKER OR HIGH FLOW CIRCUIT KIT ON CX700B EXCAVATOR
KG0WP028-00-01 (3.00 m dipper)
KG0WP026-00-01 (3.55 m dipper)
KG0WP027-00-01 (4.10 m dipper)
KG0WP024-00-01 (7.70 m standard boom)
KG0WP025-00-01 (6.60 m boom and 3.00 m dipper)
KG0WP074-00-00 (Upperstructure)

GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to consult
the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

TABLE OF CONTENTS:

CNH Breaker or High Flow Circuit Kit on case CX700B Excavator Assembly Instructions Manual 84187384 EN_FR_DE_IT_ES – PDF DOWNLOAD

ITEMP/N DESCRIPTION Qty (a) Qty (b) Qty (c)
1. KUP0008 Plug ……………………………………………………………….. 2 ……………………….2 ……………………… 2
2. KUV0311 Shut-off valve…………………………………………………… 2 ……………………….2 ………………………2
3. 168211A1 O-ring (LBQ5225)…………………………………………….. 8 ……………………….8 ………………………8
4. 862-16050 Screw M16x50 (108R016Y050R)……………………… 32 ……………………..32 …………………….32
5. 150814A1 Washer W16 (KHN0297)…………………………………… 4 ……………………….4 ………………………4
6. 827-16130 Screw M16x130 (102R016Y130R)……………………… 4 ……………………….4 ………………………4
7. KWV10520 Pipe ……………………………………………………………….. 2 ………………………..- ……………………….-
KWV11340 Pipe ……………………………………………………………….. – ……………………….2 ……………………….-
KWV11450 Pipe ………………………………………………………………… – ………………………..- ………………………2
8. KWV11560 Protector…………………………………………………………. 2 ……………………….2 ………………………4
9. KWV0089 Clamp…………………………………………………………….. 4 ……………………….4 ………………………8
10. 165929A1 Screw M16x50 (105R016Y050R)……………………….. 4 ……………………….4 ………………………8
11. KWV11770 Hose ……………………………………………………………… 2 ………………………..- ……………………….-
KWV11360 Hose L=2500……………………………………………………. – ……………………….2 ………………………2
12. KTJ0169 Half-clamp ………………………………………………………. 8 ……………………….8 ………………………8
153591A1 Loctite 262 (KRC5007)……………………………………… 1 ……………………….1 ………………………1
KG0WP024-00-01 (7.70 m standard boom)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. 162659A1 Plug (BRJ0174) ………………………… 4
2. KWV0063 RH pipe……………………………………. 1
3. KWV0062 LH pipe ……………………………………. 1
4. KWV11560 Protector ………………………………… 10
5. KWV0089 Clamp ……………………………………. 20
6. KWV11330 RH pipe …………………………………….1
7. 168211A1 O-ring (LBQ5225)……………………….2
8. 862-16050 Screw M16x50 (108R016Y050R)….8
9. KWV11320 LH pipe ……………………………………..1
153591A1 Loctite 262 (KRC5007)………………..1
2
Lep 84187384 Issued 12-08
KG0WP025-00-01 (6.60 m boom and 3.00 m dipper)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. KUP0008 Plug…………………………………………. 2
2. KUV0311 Shut-off valve ……………………………. 2
3. 168211A1 O-ring (LBQ5225) ……………………. 10
4. 862-16050 Screw M16x50 (108R016Y050R) . 40
5. 150814A1 Washer W16 (KHN0297) ……………. 4
6. 827-16130 Screw M16x130 (102R016Y130R) . 4
7. KWV10520 Pipe…………………………………………. 2
8. KWV11560 Protector ………………………………… 12
9. KWV0089 Clamp…………………………………….. 24
10. 165929A1 Screw M16x50 (105R016Y050R)….4
11. KWV11770 Hose …………………………………………2
12. 162659A1 Plug (BRJ0174) ………………………….4
13. KWV10260 RH pipe……………………………………..1
14. KWV10250 LH pipe ……………………………………..1
15. KWV10280 RH pipe……………………………………..1
16. KWV10270 LH pipe ……………………………………..1
17. KTJ0169 Half-clamp …………………………………8
153591A1 Loctite 262 (KRC5007) ………………..1
KG0WP074-00-00 (upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. KHJ10450 Control pedal…………………………….. 1
2. 166052A1 Screw M10x25 (105R010Y025R) … 2
3. KHJ10691 RH pedal bracket ………………………. 1
4. 150604A1 Washer W10 (KHJ0183) …………….. 6
5. 165404A1 Screw M10x20 (KHJ1104) …………. 2
6. KHJ13850 Pedal ……………………………………….. 1
7. KHJ1820 Screw M10 x 25 ………………………… 2
8. KHJ10711 Lock bracket……………………………… 1
9. 108R010Y016RScrew M10x16 ………………………. 2
10. KHJ10701 Pedal stop ………………………………… 1
11. KHJ10721 Spring ……………………………………… 1
12. 159500A1 Washer W8 (KHN0420) ……………… 1
13. 157740A1 Nut M8 (KHJ0091) …………………….. 1
14. 163782A1 Pedal protection (KHP0912) ……….. 1
15. KHJ15020 Floor carpet………………………………. 1
16. KHP1484 Decal……………………………………….. 1
17. 150913A1 Elbow (KHJ0341) ………………………. 5
18. 152127A1 Adaptor (KNJ0758) ……………………. 7
19. 161841A1 Adaptor (CNA0584) …………………… 1
20. KHR10820 Pressure switch…………………………. 1
21. KHJ11510 Bracket …………………………………….. 1
22. 166351A1 Screw M10x20 (105R010Y020R) … 4
23. KHJ14780 Solenoid valve block ………………….. 1
24. 167321A1 T-piece (KHJ1382) …………………….. 1
25. 159002A1 Plug (KHJ0363)…………………………. 1
26. 159497A1 T-piece (KHJ0869) …………………….. 1
27. KWJ11750 Set of 5 hoses
KHJ14800 Hose Y1 …………………………………… 1
KHJ2244 Hose Y3 …………………………………… 1
KHJ14790 Hose Y2 …………………………………… 1
KHJ2085 Hose YP5…………………………………. 1
KHJ2194 Hose YT5…………………………………. 1
28. KWJ11760 Set of 3 hoses
KHJ2047 Hose P5…………………………………….1
KHJ17790 Hose Y5…………………………………….1
KHJ2087 Hose T5 …………………………………….1
29. 156554A1 Elbow (KHJ0640)………………………..2
30. KHJ1178 Elbow………………………………………..1
31. KHR15960 Electrical harness ……………………….1
32. 158962A1 Bracket (KHR1317)……………………..4
33. 166345A1 Screw M8x16 (105R008Y016R)……4
34. 150860A1 Base (KHR0319) ………………………..7
35. 840-168 Screw M6x8 (145T006S008R) ……..7
36. 150496A1 Plastic clip L250 (KHH0142)………. xx
37. 150498A1 Plastic clip L300 (KHH0143)………. xx
38. KHR14450 Switch……………………………………….1
39. KHR14460 Switch……………………………………….1
40. KHJ11730 Manifold …………………………………….1
41. 153081A1 Washer W8 (KAJ1500) ………………..2
42. 827-8055 Screw M8x55 (102R008Y055R)……2
43. KWJ11320 Set of 2 hoses
KHJ2238 Hose F1 …………………………………….1
KHJ15120 Hose F2 …………………………………….1
44. KWJ0060 Pipe ………………………………………….1
45. 108R014Y045RScrew M14x45………………………32
46. 164450A1 O-ring (LBQ5222) ……………………..10
47. KTJ2220 Bracket………………………………………1
48. 165929A1 Screw M16x50 (105R016Y050R)….7
49. KHJ17370 Shut-off valve……………………………..1
50. KSJ2740 Manifold …………………………………….1
51. 862-16030 Screw M16x30 (108R016Y030R)….4
52. 162656A1 Safety valve (KSJ2292) ……………….1
53. 166373A1 Screw M16x40 (105R016Y040R)….4
54. KWJ0057 Pipe ………………………………………….1
55. KWJ0059 Hose …………………………………………1
56. 150124A1 Half-clamp (KTJ0029)………………..10
