CNH Cursor® 9 Tier 4B (final) & Stage IV Engine Service Manual 48076851 – PDF DOWNLOAD

Description

CNH Cursor® 9 Tier 4B (final) & Stage IV Engine Service Manual 48076851 – PDF DOWNLOAD

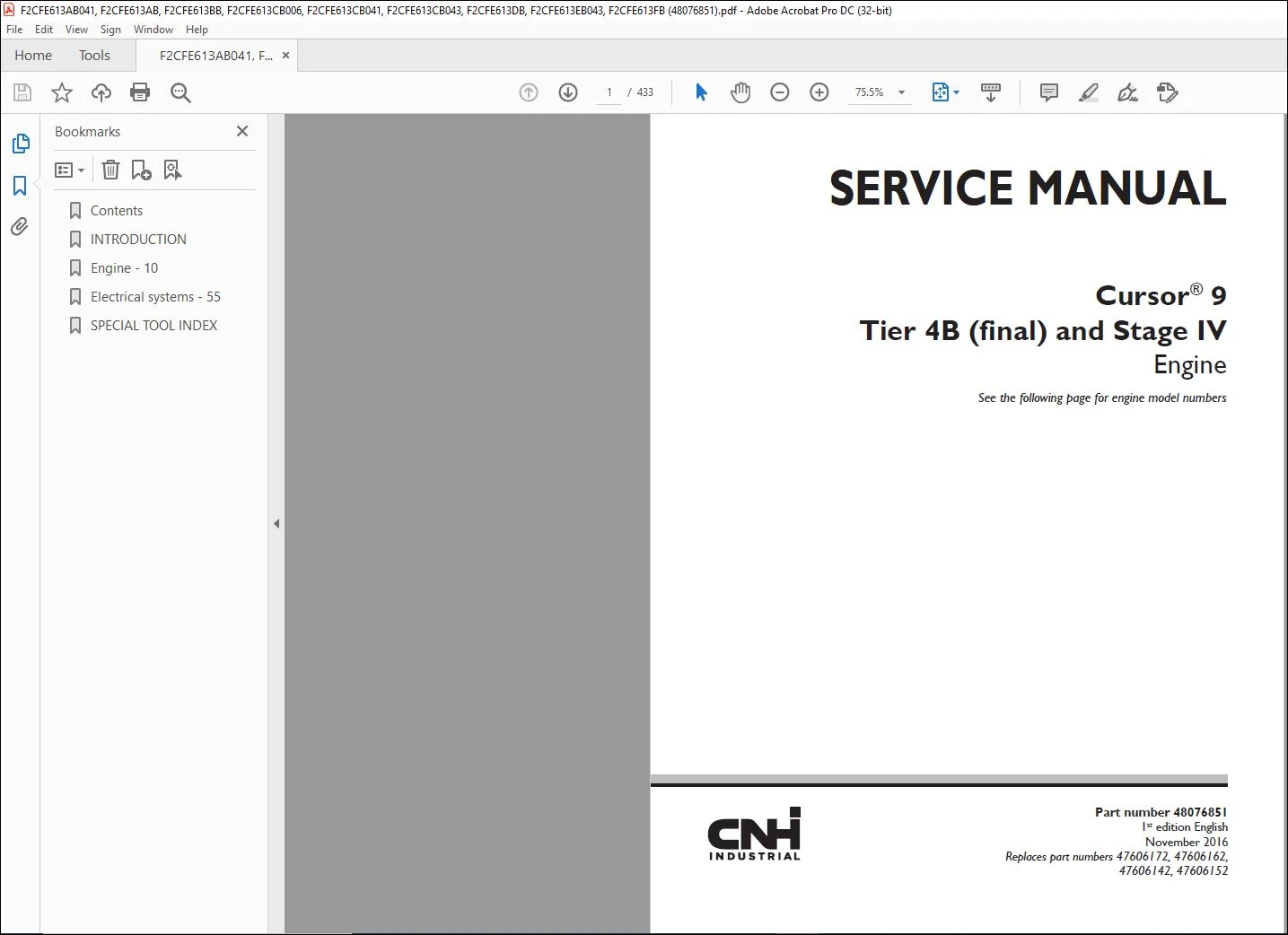

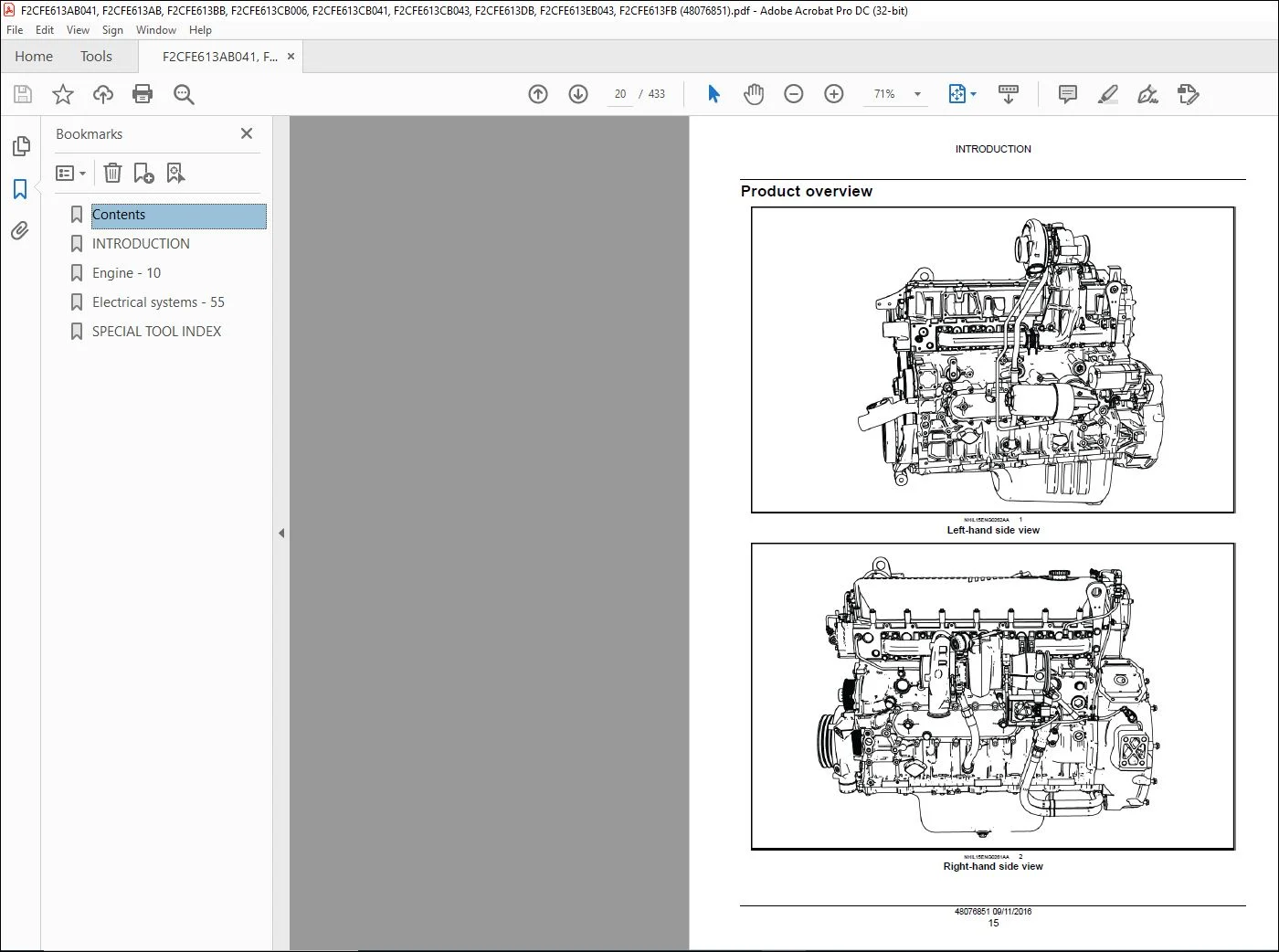

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CNH Cursor® 9 Tier 4B (final) & Stage IV Engine Service Manual 48076851 – PDF DOWNLOAD

F2CFE613A*B041, F2CFE613A*B, F2CFE613B*B, F2CFE613C*B006,
F2CFE613C*B041, F2CFE613C*B043, F2CFE613D*B, F2CFE613E*B043 ,
F2CFE613F*B003, F2CFE613F*B041 , F2CFE613G*B001, F2CFE613G*B002,
F2CFE614A*B002, F2CFE614A*B003, F2CFE614A*B, F2CFE614B*B006,
F2CFE614C*B002, F2CFE614C*B003, F2CFE614D*B002, F2CFE614D*B003,
F2CFE614E*B006, F2CFE614F*B004, F2CFE614F*B005, F2CFE614G*B002,
F2CFE614G*B003, F2CFE614H*B004, F2CFE614H*B005

INTRODUCTION:
Foreword – Important notice regarding equipment servicing:

• All repair and maintenance work listed in this manual must be carried out only by qualified dealership personnel,
  strictly complying with the instructions given, and using, whenever possible, the special tools.
• Anyone who performs repair and maintenance operations without complying with the procedures provided herein
  shall be responsible for any subsequent damages.
• The manufacturer and all the organizations of its distribution chain, including – without limitation – national, regional, or local dealers, reject any responsibility for damages caused by parts and/or components not approved by the manufacturer, including those used for the servicing or repair of the product manufactured or marketed by the manufacturer.
• In any case, no warranty is given or attributed on the product manufactured or marketed by the manufacturer in case
  of damages caused by parts and/or components not approved by the manufacturer.
• The manufacturer reserves the right to make improvements in design and changes in specifications at any time without
  notice and without incurring any obligation to install them on units previously sold. Specifications, descriptions, and
  illustrative material herein are as accurate as known at time of publication but are subject to change without notice.
• In case of questions, refer to your CNH Sales and Service Networks.

INTRODUCTION:
Safety rules – Ecology and the environment:
Soil, air, and water quality is important for all industries and life in general. When legislation does not yet rule the
treatment of some of the substances that advanced technology requires, sound judgment should govern the use and
disposal of products of a chemical and petrochemical nature.
Familiarize yourself with the relative legislation applicable to your country, and make sure that you understand this
legislation. Where no legislation exists, obtain information from suppliers of oils, filters, batteries, fuels, anti-freeze,
cleaning agents, etc., with regard to the effect of these substances on man and nature and how to safely store, use,
and dispose of these substances.
Helpful hints:
• Avoid the use of cans or other inappropriate pressurized fuel delivery systems to fill tanks. Such delivery systems
may cause considerable spillage.
• In general, avoid skin contact with all fuels, oils, acids, solvents, etc. Most of these products contain substances
that may be harmful to your health.
• Modern oils contain additives. Do not burn contaminated fuels and or waste oils in ordinary heating systems.
• Avoid spillage when you drain fluids such as used engine coolant mixtures, engine oil, hydraulic fluid, brake fluid,
etc. Do not mix drained brake fluids or fuels with lubricants. Store all drained fluids safely until you can dispose of
the fluids in a proper way that complies with all local legislation and available resources.
• Do not allow coolant mixtures to get into the soil. Collect and dispose of coolant mixtures properly.
• The air-conditioning system contains gases that should not be released into the atmosphere. Consult an air-conditioning
specialist or use a special extractor to recharge the system properly.
• Repair any leaks or defects in the engine cooling system or hydraulic system immediately.
• Do not increase the pressure in a pressurized circuit as this may lead to a component failure.
• Protect hoses during welding. Penetrating weld splatter may burn a hole or weaken hoses, allowing the loss of oils,
coolant, etc.

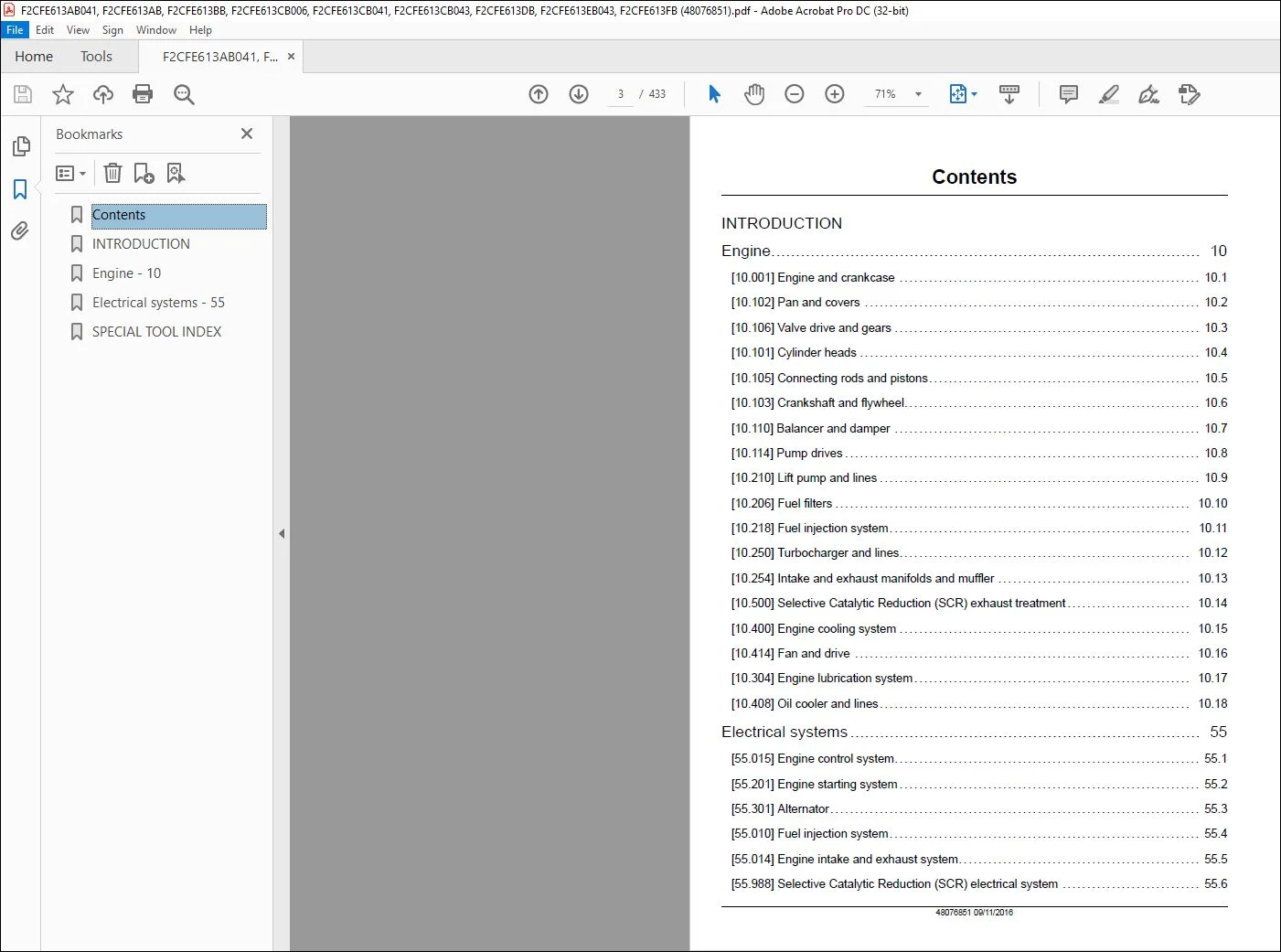

TABLE OF CONTENTS:

CNH Cursor® 9 Tier 4B (final) & Stage IV Engine Service Manual 48076851 – PDF DOWNLOAD

INTRODUCTION
Engine 10
[10 001] Engine and crankcase 10 1
[10 102] Pan and covers 10 2
[10 106] Valve drive and gears 10 3
[10 101] Cylinder heads 10 4
[10 105] Connecting rods and pistons 10 5
[10 103] Crankshaft and flywheel 10 6
[10 110] Balancer and damper 10 7
[10 114] Pump drives 10 8
[10 210] Lift pump and lines 10 9
[10 206] Fuel filters 10 10
[10 218] Fuel injection system 10 11
[10 250] Turbocharger and lines 10 12
[10 254] Intake and exhaust manifolds and muffler 10 13
[10 500] Selective Catalytic Reduction (SCR) exhaust treatment 10 14
[10 400] Engine cooling system 10 15
[10 414] Fan and drive 10 16
[10 304] Engine lubrication system 10 17
[10 408] Oil cooler and lines 10 18
Electrical systems 55
[55 015] Engine control system 55 1
[55 201] Engine starting system 55 2
[55 301] Alternator 55 3
[55 010] Fuel injection system 55 4
[55 014] Engine intake and exhaust system 55 5
[55 988] Selective Catalytic Reduction (SCR) electrical system 55 6
48076851 09/11/2016
[55 012] Engine cooling system 55 7
[55 013] Engine oil system 55 8
[55 640] Electronic modules 55 9

CNH CURSOR® 9 TIER 4B (FINAL) & STAGE IV ENGINE SERVICE MANUAL 48076851 – PDF DOWNLOAD:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
