ASSEMBLY INSTRUCTIONS
FOR SAFETY VALVES KIT
ON CX135 ARTICULATED BOOM EXCAVATORS
KGOMP569-00-01 (Without blade)
KGOMP570-00-01 (With blade)

GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and letters in these
instructions are the same as those used in the
illustrations.
Special torque settings are shown in these
instructions. If a torque setting is not shown, use the
standard torque setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Extend the attachment to the maximum and lower
it to the ground. Stop the engine.
3. Release pressure in the hydraulic system (see
Service Manual).

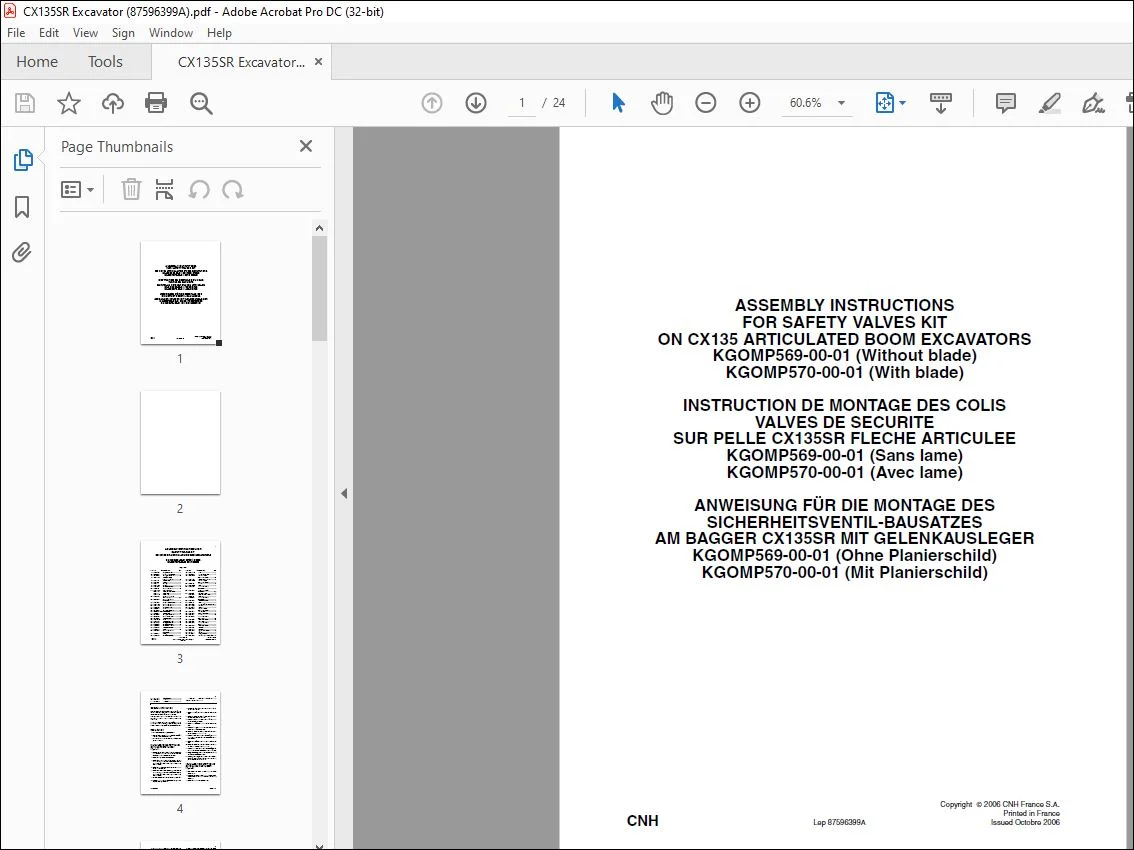

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX135 ARTICULATED BOOM EXCAVATORS SAFETY VALVES KIT ASSEMBLY INSTALLATION INSTRUCTIONS MANUAL 87596399A EN_DE_FR – PDF DOWNLOAD

ITEM P/N DESCRIPTION Qty ITEM P/N DESCRIPTION Qty
1. 159085A1 Plug (BRJ0190) ………………..1
2. 163448A1 Manifold (KMV1490) ………….1
3. 154529A1 O-ring (LBQ0303) ……………..2
4. 862-10085 Screw M10x85
(108R010Y085R) ……………..16
5. KNV1307 Safety valve ……………………..1
6. KHJ1349 Union ………………………………1
7. KHJ1361 O-ring………………………………1
8. KNV12220 Pipe…………………………………1
9. 150916A1 Elbow (KHJ0342)………………3
10. KHV0490 Protective sheath ………………2
11. KNV11600 Set of 3 hoses
168614A1 Hose A6 (KHJ1652)…………..1
KHJ13110 Hose D13 ………………………..1
KMV11610 Hose T13 …………………………1
12. 150067A1 Plastic clip L =150
(KAR0016) …………………….. xx
13. 169296A1 Protective sheath
(KHV0378) ………………………..1
14. 150919A1 Right-angle (KHJ0343) ………3
15. KHV10220 Protective sheath ………………1
16. KHV10230 Protective sheath ………………1
17. 153105A1 Plug (BRJ1545) ………………..4
18. KMV2325 Manifold …………………………..1
19. 154499A1 O-ring (LBQ0222) ……………..2
20. 108R008Y045R Screw M8x45 ……………………8
21. KMV2850 Safety valve ……………………..2
22. 154529A1 O-ring (LBQ0303) ……………..4
23. 163705A1 Plate (KNV0887)……………….2
24. 151650A1 Union (KNJ0604) ………………2
25. KMV10910 Pipe…………………………………1
26. 152747A1 Union (KNJ1106) ………………2
27. 161087A1 Elbow (KHJ0605)………………2
28. 159373A1 Elbow (KHJ0792)………………2
29. 159933A1 Elbow (KHR1561) ……………..1
30. 152127A1 Union (KNJ0758) ………………1
31. KMV2330 Hose ……………………………….2
32. 150770A1 Protective sheath
(KRH0275) ………………………..4
33. KMV2330 Hose ……………………………….1
34. 157937A1 Elbow (KHJ0643)………………1
35. KMV11590 Pipe ………………………………..1
36. 169149A1 Bracket (KAV1844) ……………1
37. 627-12030 Screw M12x30
(102R012Y030R) ……………….2
38. 150811A1 Washer (KHN0296) …………..3
39. 827-12050 Screw M12x50
(102R012Y050R) ……………….1
40. KHJ2234 T-piece …………………………….3
41. KMJ10850 Hose ……………………………….1
42. 150774A1 Protective sheath
(KRH0279) ………………………..1
43. 150496A1 Plastic clip L=250
(KHH0142) ……………………… xx
44. KMJ3045 Batch of 2 hoses……………….1
159216A1 Hose CL (KRJ4133) ………….1
KHJ2413 Hose V1…………………………..1
45. 150768A1 Protective sheath
(KRH0274) ………………………..1
46. 153526A1 Elbow (KRJ3357)………………1
47. KHJ2289 Clip …………………………………1
48. 168135A1 Pressure switch (KHR2914) .1
49. KMR0905 Harness …………………………..1
50. KHR2585 Clip …………………………………1
51. 166052A1 Screw M10x25
(105R010Y025R) ……………….1
52. KMV2553 RH cylinder ………………………1
53. 150913A1 Adaptor (KHJ0341)……………4
54. KHJ1381 T-piece …………………………….2
55. 151942A1 Protective sheath
(KTJ0686) …………………………2
56. 159004A1 Hose (KBJ2439) ……………….2
57. KMV2554 LH cylinder……………………….1
58. 169253A1 Protective sheath
(KRH1381) ………………………..1
59. 169252A1 Hose (KNJ2782) ……………….1
60. KMV2634 Skid plate…………………………1
61. KMV2635 Skid plate…………………………1
62. 167893A1 Screw (KHN1804)……………..8
63. KHR3183 Switch……………………………..1
64. KHR4016 Overload indicator …………….1
65. 162056A1 Screw M6x12 (KHR1256)…..6
2
Lep 87596399A Issued 10-06
66. KHR3890 Audible alarm ………………….. 1
67. KNV1395 Manifold………………………….. 1
68. KMN1947 Grommet ………………………… 1
153591A1 Loctite 162 (KRC5007) …… 1
xx According to requirement
