CNH CX135SR EXCAVATOR BREAKER OR HIGH FLOW KITS ASSEMBLY INSTRUCTIONS MANUAL 9-44321 EN_DE_FR – PDF DOWNLOAD

Description

CNH CX135SR EXCAVATOR BREAKER OR HIGH FLOW KITS ASSEMBLY INSTRUCTIONS MANUAL 9-44321 EN_DE_FR – PDF DOWNLOAD

DESCRIPTION:

CNH CX135SR EXCAVATOR BREAKER OR HIGH FLOW KITS ASSEMBLY INSTRUCTIONS MANUAL 9-44321 EN_DE_FR – PDF DOWNLOAD

ASSEMBLY INSTRUCTIONS
FOR BREAKER OR HIGH FLOW KITS
ON CX135SR EXCAVATOR
KGOMP479-00 (2.39 M Dipper)
KGOMP491-00 (2.85 M Dipper)
KGOMP484-00 (Monobloc boom with blade
and upperstructure)
KGOMP457-00 (Monobloc boom without blade
and upperstructure)

GENERAL INFORMATION
The illustrations for these assembly instructions will
be found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and let ters in these
instructions are the same as those used in the
illustrations.
Special torque set t ings are shown in these
instructions. If a torque setting is not shown, use the
standard torque setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and
lower it to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

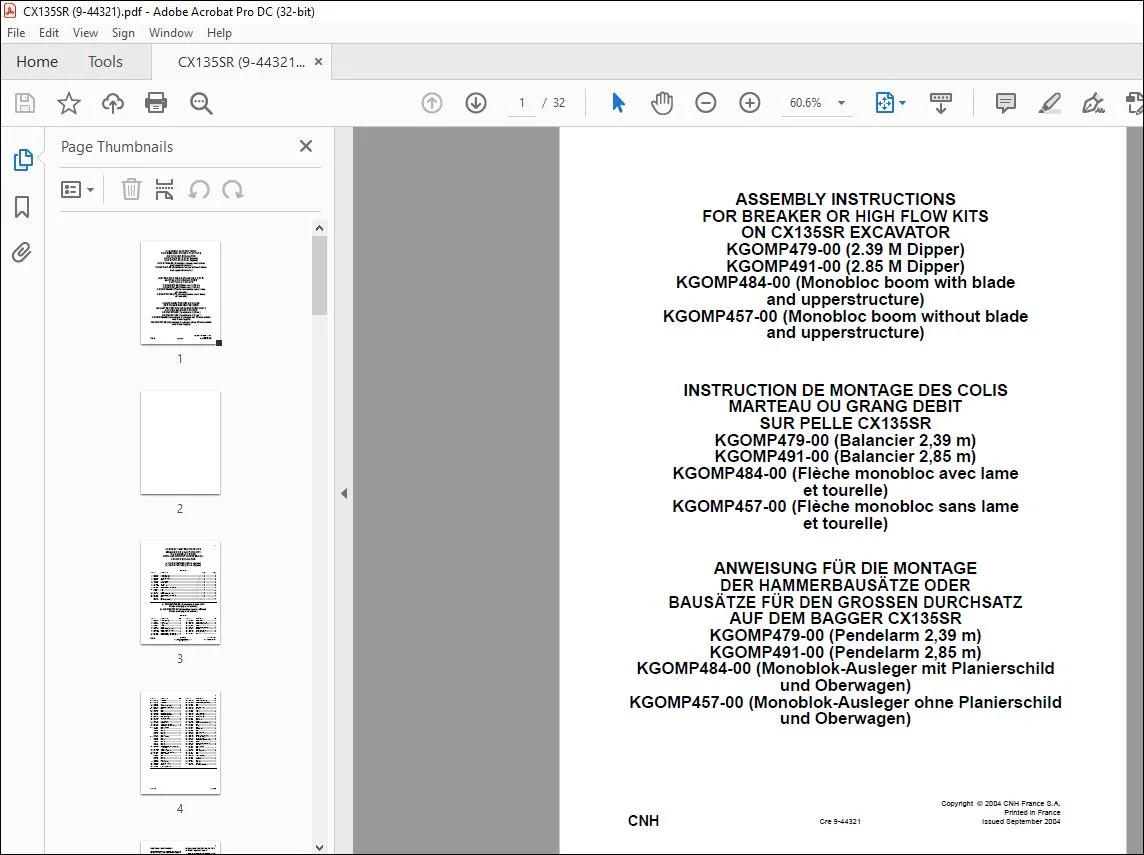

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX135SR EXCAVATOR BREAKER OR HIGH FLOW KITS ASSEMBLY INSTRUCTIONS MANUAL 9-44321 EN_DE_FR – PDF DOWNLOAD

ITEM P/N DESCRIPTION Qty (a) Qty (b)
1. 153754A1 Bracket (KRV1282) ……………………………………………………………………………………………………. 2 …………………………. 2
2. 163304A1 Bracket (KLV0189) …………………………………………………………………………………………………….. 4 …………………………. 4
3. 151655A1 Adaptor (KNJ0606) ……………………………………………………………………………………………………. 2 …………………………. 2
4. KBA0377 Elbow ………………………………………………………………………………………………………………………. 2 …………………………. 2
5. 153684A1 Plug (KHJ0482)…………………………………………………………………………………………………………. 2 …………………………. 2
6. KUV0452 Shut-off valve ……………………………………………………………………………………………………………. 2 …………………………. 2
7. KHJ1349 Adaptor…………………………………………………………………………………………………………………….. 2 …………………………. 2
8. 183-112VR Washer SW12 …………………………………………………………………………………………………………… 8 …………………………. 8
9. 827-12080 Screw M12x80 (102R012Y080R) ………………………………………………………………………………… 4 …………………………. 4
10. KMV2678 Pipe…………………………………………………………………………………………………………………………. 2 ………………………….. –
KMV2681 Pipe………………………………………………………………………………………………………………………….. – …………………………. 2
11. KHJ1361 O-ring ………………………………………………………………………………………………………………………. 4 …………………………. 4
12. 153731A1 Retaining clamp (KRJ2422) ………………………………………………………………………………………… 4 …………………………. 4
13. 827-12070 Screw M12x70 (102R012Y070R) ………………………………………………………………………………… 4 …………………………. 4
14. KRV2780 Hose………………………………………………………………………………………………………………………… 2 ………………………….. –
KLV0392 Hose…………………………………………………………………………………………………………………………. – …………………………. 2
153591A1 Loctite 262 (KRC5007)……………………………………………………………………………………………….. 1 …………………………. 1
a; KGOMP484-00 (Monobloc boom with
blade and upperstructure)
b; KGOMP457-00 (Monobloc boom without
blade and upperstructure)
PARTS LIST
ITEM P/N DESCRIPTION Qty ITEM P/N DESCRIPTION Qty
1. 163304A1 Bracket (KLV0189) ……………………………..8
2. KMV2429 Bracket ……………………………………………..1
3. 152924A1 Plug (BRJ1286)………………………………….2
4. KMV2748 RH pipe …………………………………………….1
5. KMV2677 LH pipe……………………………………………..1
6. 153731A1 Retaining clamp (KRJ2422) …………………8
7. 162308A1 Retaining clamp (KTJ0358)………………….1
8. 183-112VR Washer SW12 ……………………………………9
9. 827-12070 Screw M12x70 (102R012Y070R) …………8
10. 827-12080 Screw M12x80 (102R012Y080R) …………1
11. KHJ1995 Control pedal ……………………………………. 1
12. 150604A1 Washer W10 (KHJ0183)…………………….. 2
13. 150548A1 Screw M10x20 (KHJ0161)………………….. 2
14. KHJ2568 Bracket ……………………………………………. 1
15. 166346A1 Screw M10x16 (105R010Y016R)………… 2
16. KHJ2231 Pedal bolt…………………………………………. 1
17. 157558A1 Washer WW8 (KHN0518)…………………… 2
18. 157770A1 Nut M8 (KHR0086) ……………………………. 2
19. KHJ2571 Cover ………………………………………………. 1
2
Cre 9-44321 Issued 09-04
ITEM P/N DESCRIPTION Qty ITEM P/N DESCRIPTION Qty
20a. KHJ2120 Floor carpet ……………………………………….1
20b. KHJ2119 Floor carpet ……………………………………….1
21. KHJ2229 Pedal ………………………………………………..1
22. 159500A1 Washer W8 (KHN0420)……………………….2
23. 162571A1 Screw M8x16 (KHN1642) ……………………2
24a. KHP1511 Decal ………………………………………………..1
24b. KHP1484 Decal ………………………………………………..1
25. KMP1183 Decal ………………………………………………..1
26. 150913A1 Elbow union (KHJ0341) ………………………5
27. 150933A1 Elbow union (KHJ0348) ………………………3
28. 161841A1 Union (CNA0584)……………………………….1
29. 152127A1 Adaptor (KNJ0758) …………………………….7
30. KHJ2130 T-fitting ……………………………………………..3
31. 150821A1 Plug (KHJ0300)………………………………….1
32. KHJ1655 Manifold block ……………………………………1
33. 153081A1 Washer WM8 (KAJ1500)……………………..2
34. 827-8060 Screw M8x60 (102R008Y060R) …………..2
35a. KMJ2987 Batch of 5 hoses
KHJ2088 Hose Y1 ……………………………………………1
KHJ2036 Hose Y2 ……………………………………………1
KHJ2240 Hose P5 ……………………………………………1
KHJ2180 Hose T5…………………………………………….1
KHJ2195 Hose D5 ……………………………………………1
35b. KMJ2777 Batch of 5 hoses
KHJ2058 Hose Y1 ……………………………………………1
KHJ2036 Hose Y2 ……………………………………………1
KHJ2238 Hose P5 ……………………………………………1
KHJ2180 Hose T5…………………………………………….1
KHJ2090 Hose D5 ……………………………………………1
36. 162538A1 Solenoid operated control valve block
(KRJ3557)…………………………………….1
37. 183-106VR Washer SW6 ……………………………………..2
38. 895-11006 Washer W6 (182-006SR)…………………….2
39. 627-6020 Screw M6x20 (102R006Y020R) …………..2
40. KMJ2778 Batch of 4 hoses
KHJ2074 Hose Y1 ……………………………………………1
KHJ2244 Hose Y3 ……………………………………………1
KHJ2174 Hose Y2 ……………………………………………1
KHJ2074 Hose Y5 ……………………………………………1
41. 159497A1 T-piece (KHJ0869) ……………………………..1
42. 168988A1 Adaptor (KHJ1778) …………………………….1
43. KHJ2243 Elbow ……………………………………………….1
44. KHJ1473 Flow re-injection block…………………………1
45. 150409A1 Washer W10 (KEH0114) ……………………. 2
46. 827-10080 Screw M10x80 (102R010Y080R)………… 2
47. KHJ2092 Hose ……………………………………………….. 1
48. KHJ2245 Hose ……………………………………………….. 1
49. KMR0889 Electrical harness ……………………………… 1
50. KHR3121 Switch ……………………………………………… 1
51. KHJ1495 Adaptor ……………………………………………. 1
52. KHJ1348 Adaptor ……………………………………………. 3
53. 167645A1 Adaptor (KAJ2238) ……………………………. 1
54. 150919A1 Elbow (KHJ0343)………………………………. 1
55. 157580A1 Elbow (KHJ0344)………………………………. 3
56. KHJ1804 Elbow………………………………………………. 2
57. KHJ2020 Selector block …………………………………… 1
58. KMJ2866 Bracket ……………………………………………. 1
59. 166351A1 Screw M10x20 (105R010Y020R)………… 8
60. KMJ2868 Hose ……………………………………………….. 1
61. KHJ1360 O-ring………………………………………………. 8
62. KMJ2867 Hose ……………………………………………….. 1
63. KHJ2021 Retaining clamp………………………………… 2
64. KMJ3013 Hose ……………………………………………….. 1
65. 150496A1 Clip L=250 (KHH0142) …………………….. 10
66. KMJ2764 Hose ……………………………………………….. 1
67. 163275A1 Hydraulic clamp (KLJ0275) ………………… 2
68. 163278A1 Oil filter (KHJ0778) ……………………………. 1
69. 154569A1 O-ring (LBQ0403) ……………………………… 2
70. 862-8035 Screw M8x35 (108R008Y035R)………….. 8
71. KMJ2865 Bracket ……………………………………………. 1
72. 166052A1 Screw M10x25 (105R010Y025R)………… 4
73. KHJ2023 Hose clamp………………………………………. 2
74. KMJ2872 Batch of 2 hoses
KMJ2869 Hose Y1…………………………………………… 1
KMJ2869 Hose Y2…………………………………………… 1
75. 150498A1 Clip L=300 (KHH0143) ………………………. 6
76. KMJ2871 Hose ……………………………………………….. 1
77. KMJ2870 Hose ……………………………………………….. 1
78. 151654A1 Adaptor (KNJ0605)……………………………. 1
79. KHJ1855 T-piece…………………………………………….. 1
80. KMJ2914 Secondary relief………………………………… 2
81. KHP1821 Decal ………………………………………………. 1
82. KHJ2024 Hose clamp………………………………………. 1
83. KHJ2022 Hose clamp………………………………………. 1
153591A1 Loctite 262 (KRC5007) ………………………. 1
