ASSEMBLY INSTRUCTIONS
FOR HYDRAULIC HAMMER KIT
ON CX135SR EXCAVATOR
KG0MP479-00-00 (2.39 m Dipper)
KG0MP491-00-00 (2.85 m Dipper)
KG0MP689-00-00 (Articulated boom and upperstructure)

GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

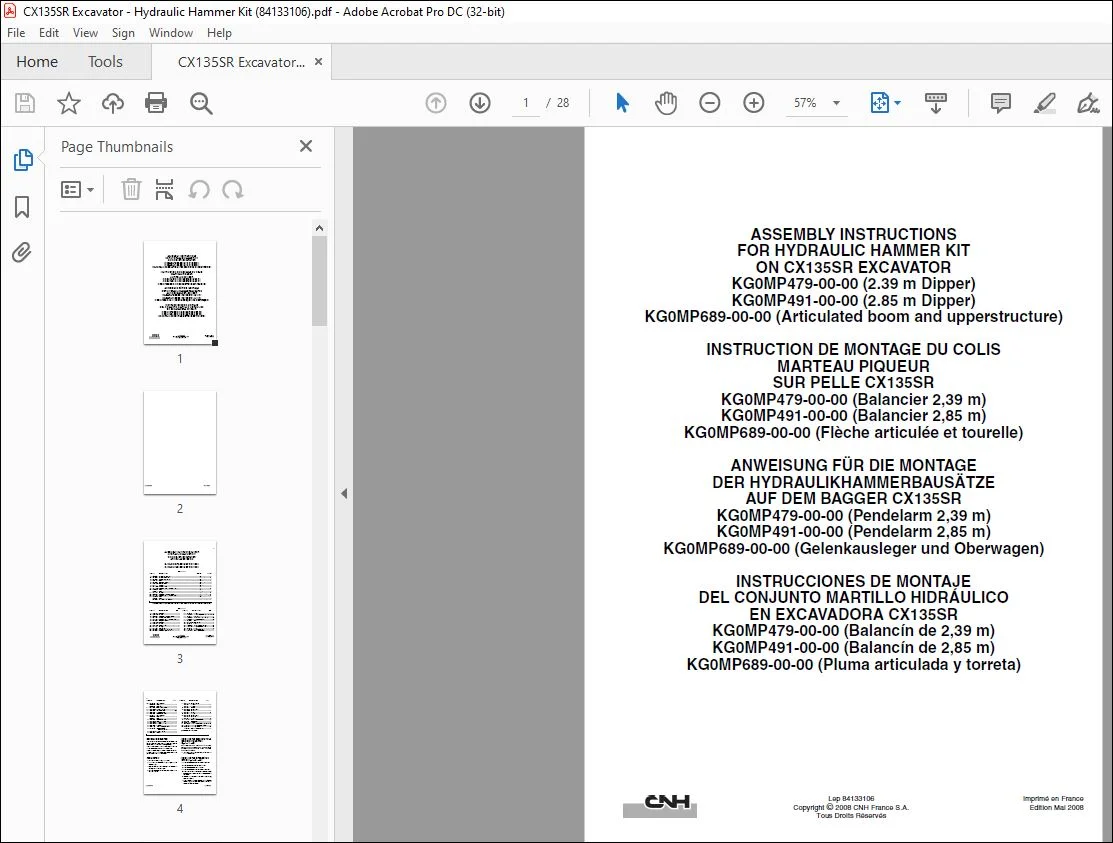

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX135SR EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 84133106 EN_DE_FR_ES – PDF DOWNLOAD

ITEMP/N DESCRIPTION Qty (a) Qty (b)
1. 153754A1 Bracket (KRV1282) ……………………………………………………………………………..2 ……………………. 2
2. 163304A1 Bracket (KLV0189) ………………………………………………………………………………4 ……………………. 4
3. 151655A1 Adaptor (KNJ0606) ……………………………………………………………………………..2 ……………………. 2
4. KBA0377 Elbow………………………………………………………………………………………………..2 ……………………. 2
5. 153684A1 Plug (KHJ0482) ………………………………………………………………………………….2 ……………………. 2
6. KHV10680 Shut-off valve……………………………………………………………………………………..2 ……………………. 2
7. KHJ1349 Adaptor ……………………………………………………………………………………………..2 ……………………. 2
8. 183-112VR Washer SW12…………………………………………………………………………………….8 ……………………. 8
9. 827-12080 Screw M12x80 (102R012Y080R) ………………………………………………………….4 ……………………. 4
10. KMV2678 Pipe…………………………………………………………………………………………………..2 …………………….. –
KMV2681 Pipe………………………………………………………………………………………………….. – ……………………. 2
11. KHJ1361 O-ring………………………………………………………………………………………………..4 ……………………. 4
12. 153731A1 Retaining clamp (KRJ2422)………………………………………………………………….4 ……………………. 4
13. 827-12070 Screw M12x70 (102R012Y070R) ………………………………………………………….4 ……………………. 4
14. KRV2780 Hose …………………………………………………………………………………………………2 …………………….. –
KLV0392 Hose ………………………………………………………………………………………………… – ……………………. 2
153591A1 Loctite 262 (KRC5007) ………………………………………………………………………..1 ……………………. 1
KG0MP689-00-00 (Articulated boom and upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. KMV10740 RH pipe……………………………………. 1
2. KMV10750 LH pipe ……………………………………. 1
3. 153731A1 Retaining clamp (KRJ2422)………… 7
4. 150811A1 Washer (KHN0296)………………….. 14
5. 827-12070 Screw M12x70 (102R012Y070R) . 12
6. 152924A1 Plug (BRJ1286) ………………………… 2
7. KMV10760 RH pipe……………………………………. 1
8. KMV10770 LH pipe ……………………………………. 1
9. KSV1849 Hose L = 1350 ………………………….. 2
10. KHJ1361 O-ring………………………………………. 2
11. KHJ1995 Control pedal ……………………………. 1
12. 150604A1 Washer W10 (KHJ0183) …………….. 2
13. 150548A1 Screw M10x20 (KHJ0161) ………….. 2
14. KHJ2568 Bracket ……………………………………..1
15. 166346A1 Screw M10x16 (105R010Y016R)….2
16. KHJ2231 Pedal bolt…………………………………..1
17. 157558A1 Washer WW8 (KHN0518) ……………2
18. 157770A1 Nut M8 (KHR0086) ……………………..2
19. KHJ2571 Cover ………………………………………..1
20. KHJ18750 Floor carpet ……………………………….1
21. KHJ2229 Pedal ………………………………………..1
22. 159500A1 Washer W8 (KHN0420)……………….2
23. 162571A1 Screw M8x16 (KHN1642)…………….2
24. KHJ2130 T-piece………………………………………3
25. 161841A1 Union (CNA0584) ……………………….1
26. 152127A1 Adaptor (KNJ0758)……………………..1
2
Lep 84133106 Issued 05-08
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
27. KMJ2994 Set of 2 hoses
KHJ2240 Hose P5 …………………………………… 1
KHJ2240 Hose T5 …………………………………… 1
28. 167666A1 Adaptor (KAJ3807) ……………………. 1
29. KHR10820 Pressure switch…………………………. 1
30. 150496A1 Clip (KHH0142)…………………………xx
31. 159002A1 Plug (KHJ0363)…………………………. 1
32. 150933A1 Elbow (KHJ0348) ………………………. 1
33. KMJ2991 Set of 2 hoses
KHJ2046 Hose D7…………………………………… 1
KHJ2341 Hose Y1 …………………………………… 1
1. 150913A1 Elbow (KHJ0341) ………………………. 3
1. KRR13860 Electrical harness ……………………… 1
1. KHR19620 Indicator lamp …………………………… 1
1. KHR19630 Indicator lamp base……………………. 1
1. KHJ11730 Manifold …………………………………… 1
1. 153081A1 Washer W8 (KAJ1500) ………………. 2
1. 827-8055 Screw B M8x55
(102R008Y055R)…………………… 2
1. KHR14470 Pressure switch…………………………. 1
1. KHJ1178 Elbow ………………………………………. 1
1. KMJ11400 Set of 2 hoses
KHJ2351 Hose F1 …………………………………….1
KHJ2238 Hose F2 …………………………………….1
2. KHJ1348 Adaptor ……………………………………..1
3. KMJ10930 Set of 1 hose
KMJ10910 Hose Y1 ……………………………………1
4. KHJ1360 O-ring ……………………………………….3
5. KHJ1855 T-piece ………………………………………1
6. KMJ12410 Set of 1 hose
KMJ12400 Hose Y2 ……………………………………1
7. KHJ2023 Hose ring …………………………………..3
8. 150498A1 Clip L=300 (KHH0143) ……………… xx
9. KMJ2917 Secondary relief …………………………1
10. KMV10780 Bracket………………………………………1
11. 627-12030 Screw M12x30 (102R012Y030R)….2
12. 162308A1 Retaining clamp (KTJ0358) ………….1
13. KMV10620 Retaining clamp………………………….2
153591A1 Loctite 262 (KRC5007) ………………..1
xx According to requirement
