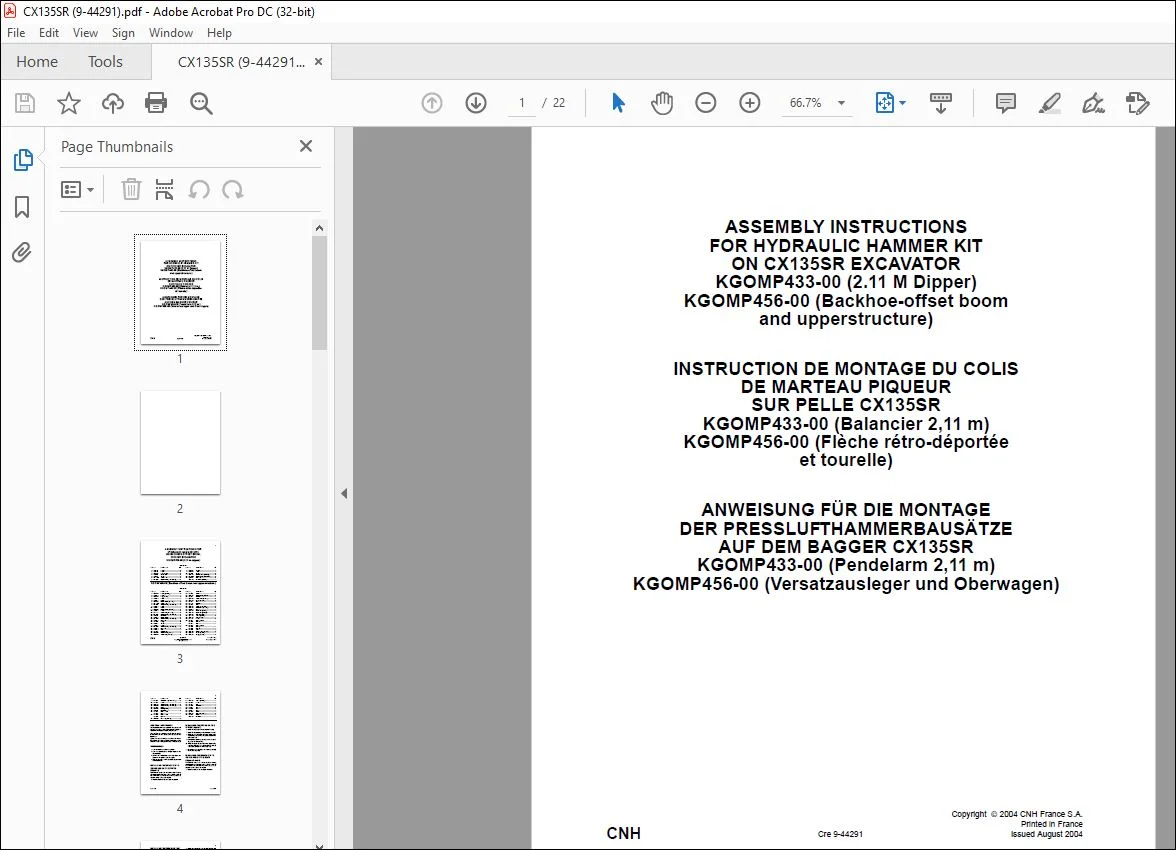

ASSEMBLY INSTRUCTIONS
FOR HYDRAULIC HAMMER KIT
ON CX135SR EXCAVATOR
KGOMP433-00 (2.11 M Dipper)
KGOMP456-00 (Backhoe-offset boom
and upperstructure)

GENERAL INFORMATION
The illustrations for these assembly instructions will
be found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and let ters in these
instructions are the same as those used in the
illustrations.
Special torque set t ings are shown in these
instructions. If a torque setting is not shown, use the
standard torque setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and
lower it to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX135SR EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 9-44291 EN_DE_FR – PDF DOWNLOAD

ITEM P/N DESCRIPTION Qty ITEM P/N DESCRIPTION Qty
1. KNV1134 Bracket ……………………………………………..4
2. KNV1158 Bracket ……………………………………………..2
3. 152924A1 Plug (BRJ1286)………………………………….2
4. KHV0453 Shut-off valve …………………………………….2
5. KHV0325 Adaptor……………………………………………..2
6. 183-112VR Washer SW12 ……………………………………8
7. 827-12070 Screw M12x70 (102R012Y070R) …………4
8. KMV2477 RH pipe……………………………………………. 1
9. KMV2476 LH pipe ……………………………………………. 1
10. KHJ1360 O-ring………………………………………………. 4
11. 151486A1 Retaining clamp (KRV0548) ……………….. 4
12. 827-12060 Screw M12x60 (102R012Y060R)………… 4
13. KMV2478 Hose L=2700 ……………………………………. 2
153591A1 Loctite 262 (KRC5007) ………………………. 1
KGOMP456-00 (Backhoe-offset boom and upperstructure)
PARTS LIST
ITEM P/N DESCRIPTION Qty ITEM P/N DESCRIPTION Qty
1. 151255A1 Bracket (KRV0482) …………………………….4
2. KMV2485 Bracket ……………………………………………..1
3. 152924A1 Plug (BRJ1286)………………………………….2
4. KMV2486 RH pipe …………………………………………….1
5. KMV2487 LH pipe……………………………………………..1
6. 152085A1 Retaining clamp (KRJ0727) …………………4
7. 183-112VR Washer SW12 ……………………………………6
8. 827-12060 Screw M12x60 (102R012Y060R) …………8
9. KMV2480 RH pipe …………………………………………….1
10. KMV2479 LH pipe……………………………………………..1
11. 151486A1 Retaining clamp (KRV0548)…………………2
12. KMV2961 Bracket ……………………………………………..2
13. 896-11012 Washer W12 (182-012SR)…………………..8
14. 627-12030 Screw M12x30 (102R012Y030R) …………2
15. KHJ2023 Hose clamp ……………………………………….2
16. KMV2491 Retaining clamp …………………………………2
17. 827-12080 Screw M12x80 (102R012Y080R) …………2
18. KMV2306 Hose L=900……………………………………….2
19. KHJ1360 O-ring ……………………………………………..10
20. KHJ2041 Adaptor……………………………………………..2
21. KMV2489 Bracket ……………………………………………..1
22. 627-12025 Screw M12x25 (102R012Y025R) …………2
23. KMV2275 Hose L=600……………………………………….2
24. KMV2490 Cover………………………………………………..1
25. KHJ1995 Control pedal……………………………………..1
26. 150548A1 Screw M10x20 (KHJ0161) …………………..2
27. 150604A1 Washer W10 (KHJ0183) ……………………..2
28. KHJ2568 Bracket ……………………………………………. 1
29. 166346A1 Screw M10x16 (105R010Y016R)………… 2
30. KHJ2231 Pedal bolt…………………………………………. 1
31. 157558A1 Washer WW8 (KHN0518)…………………… 2
32. 157770A1 Nut M8 (KHR0086) ……………………………. 2
33. KHJ2571 Cover ………………………………………………. 1
34. KHJ2120 Floor carpet ……………………………………… 1
35. KHJ2229 Pedal ………………………………………………. 1
36. 159500A1 Washer W8 (KHN0420) ……………………… 2
37. 162571A1 Screw M8x16 (KHN1642) …………………… 2
38. KHP1741 Decal ………………………………………………. 1
39. 150913A1 Elbow union (KHJ0341)……………………… 1
40. 150933A1 Elbow union (KHJ0348)……………………… 1
41. 161841A1 Union (CNA0584) ……………………………… 1
42. 152127A1 Adaptor (KNJ0758)……………………………. 2
43. 159002A1 Plug (KHJ0363) ………………………………… 1
44. KHJ2130 T-fitting…………………………………………….. 3
45. KMJ2991 Batch of 2 hoses
KHJ2046 Hose D7…………………………………………… 1
KHJ2341 Hose Y1…………………………………………… 1
46. KMJ2994 Batch of 2 hoses
KHJ2240 Hose P5…………………………………………… 1
KHJ2240 Hose T5 …………………………………………… 1
47. KHJ1348 Adaptor ……………………………………………. 1
48. 163275A1 Hydraulic clamp (KLJ0275) ………………… 2
49. 163278A1 Oil filter (KHJ0778) ……………………………. 1
50. 154569A1 O-ring (LBQ0403) ……………………………… 2
2
Cre 9-44291 Issued 08-04
ITEM P/N DESCRIPTION Qty ITEM P/N DESCRIPTION Qty
51. 862-8035 Screw M8x35 (108R008Y035R) …………..8
52. KMJ2865 Bracket ……………………………………………..1
53. 166351A1 Screw M10x20 (105R010Y020R) …………2
54. 166052A1 Screw M10x25 (105R010Y025R) …………4
55. KHJ1804 Elbow ……………………………………………….1
56. 157580A1 Elbow (KHJ0344) ……………………………….1
57. KHJ2023 Hose clamp ……………………………………….2
58. KMJ2992 Batch of 1 hose
KMJ2874 Hose Y1 ……………………………………………1
59. KMJ2990 Batch of 1 hose
KMJ2876 Hose Y2 ……………………………………………1
60. 150498A1 Clip L=300 (KHH0143)………………………..4
61. 151654A1 Adaptor (KNJ0605)……………………………. 1
62. KHJ1855 T-piece…………………………………………….. 1
63. KMJ2871 Hose ……………………………………………….. 1
64. KMJ2917 Secondary relief………………………………… 1
65. KAV2641 Decal ………………………………………………. 2
66. KAV2640 Decal ………………………………………………. 7
67. KHP1821 Decal ………………………………………………. 1
68. KHJ2024 Clamp ……………………………………………… 1
69. 150496A1 Clip L=250 (KHH0142) ………………………. 4
70. KHJ2022 Clamp ……………………………………………… 1
153591A1 Loctite 262 ……………………………………….. 1
