DESCRIPTION:

CNH CX135SR EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL EN_DE_FR – PDF DOWNLOAD

ASSEMBLY INSTRUCTIONS
FOR HYDRAULIC HAMMER KIT
ON CX135SR EXCAVATOR
KGOMP479-00 (2.39 M Dipper)
KGOMP491-00 (2.85 M Dipper)
KGOMP455-00 (Monobloc boom with blade
and upperstructure)
KGOMP483-00 (Monobloc boom without blade
and upperstructure)

GENERAL INFORMATION
The illustrations for these assembly instructions will
be found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and let ters in these
instructions are the same as those used in the
illustrations.
Special torque set t ings are shown in these
instructions. If a torque setting is not shown, use the
standard torque setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and
lower it to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

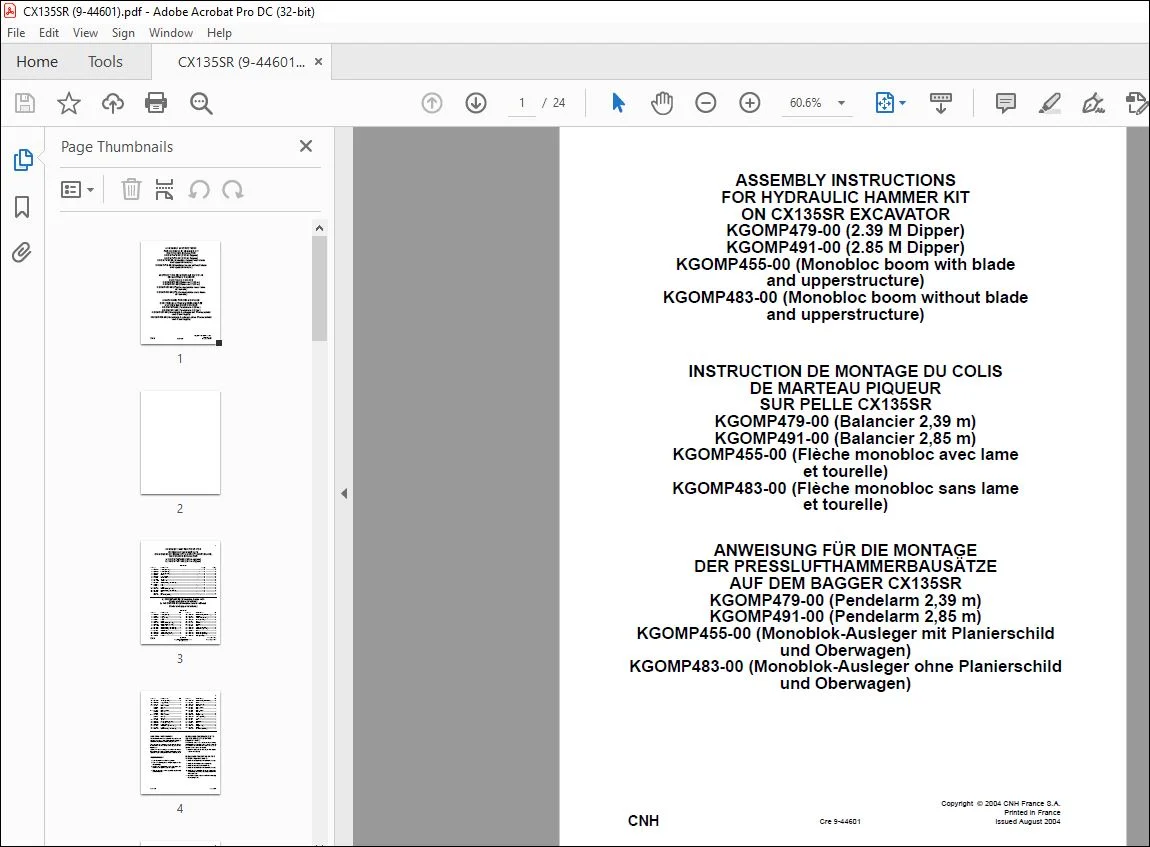

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX135SR EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL EN_DE_FR – PDF DOWNLOAD

ITEM P/N DESCRIPTION Qty (a) Qty (b)
1. 153754A1 Bracket (KRV1282) ……………………………………………………………………………………………………. 2 …………………………. 2
2. 163304A1 Bracket (KLV0189) …………………………………………………………………………………………………….. 4 …………………………. 4
3. 151655A1 Adaptor (KNJ0606) ……………………………………………………………………………………………………. 2 …………………………. 2
4. KBA0377 Elbow ………………………………………………………………………………………………………………………. 2 …………………………. 2
5. 153684A1 Plug (KHJ0482)…………………………………………………………………………………………………………. 2 …………………………. 2
6. KUV0452 Shut-off valve ……………………………………………………………………………………………………………. 2 …………………………. 2
7. KHJ1349 Adaptor…………………………………………………………………………………………………………………….. 2 …………………………. 2
8. 183-112VR Washer SW12 …………………………………………………………………………………………………………… 8 …………………………. 8
9. 827-12080 Screw M12x80 (102R012Y080R) ………………………………………………………………………………… 4 …………………………. 4
10. KMV2678 Pipe…………………………………………………………………………………………………………………………. 2 ………………………….. –
KMV2681 Pipe………………………………………………………………………………………………………………………….. – …………………………. 2
11. KHJ1361 O-ring ………………………………………………………………………………………………………………………. 4 …………………………. 4
12. 153731A1 Retaining clamp (KRJ2422) ………………………………………………………………………………………… 4 …………………………. 4
13. 827-12070 Screw M12x70 (102R012Y070R) ………………………………………………………………………………… 4 …………………………. 4
14. KRV2780 Hose………………………………………………………………………………………………………………………… 2 ………………………….. –
KLV0392 Hose…………………………………………………………………………………………………………………………. – …………………………. 2
153591A1 Loctite 262 (KRC5007)……………………………………………………………………………………………….. 1 …………………………. 1
a; KGOMP455-00 (Monobloc boom with
blade and upperstructure)
b; KGOMP483-00 (Monobloc boom without
blade and upperstructure)
PARTS LIST
ITEM P/N DESCRIPTION Qty ITEM P/N DESCRIPTION Qty
1. 163304A1 Bracket (KLV0189) ……………………………..8
2. KMV2429 Bracket ……………………………………………..1
3. 152924A1 Plug (BRJ1286)………………………………….2
4. KMV2748 RH pipe …………………………………………….1
5. KMV2677 LH pipe……………………………………………..1
6. 153731A1 Retaining clamp (KRJ2422) …………………8
7. 162308A1 Retaining clamp (KTJ0358)………………….1
8. 183-112VR Washer SW12 ……………………………………9
9. 827-12070 Screw M12x70 (102R012Y070R) …………8
10. 827-12080 Screw M12x80 (102R012Y080R) …………1
11. KHJ1995 Control pedal……………………………………..1
12. 150604A1 Washer W10 (KHJ0183) ……………………..2
13. 150548A1 Screw M10x20 (KHJ0161) …………………..2
14. KHJ2568 Bracket ……………………………………………..1
15. 166346A1 Screw M10x16 (105R010Y016R)………… 2
16. KHJ2231 Pedal bolt…………………………………………. 1
17. 157558A1 Washer WW8 (KHN0518)…………………… 2
18. 157770A1 Nut M8 (KHR0086) ……………………………. 2
19. KHJ2571 Cover ………………………………………………. 1
20a KHJ2120 Floor carpet ……………………………………… 1
20b KHJ2119 Floor carpet ……………………………………… 1
21. KHJ2229 Pedal ………………………………………………. 1
22. 159500A1 Washer W8 (KHN0420) ……………………… 2
23. 162571A1 Screw M8x16 (KHN1642) …………………… 2
24. KHP1484 Decal ………………………………………………. 1
25. 150913A1 Elbow union (KHJ0341)……………………… 1
26. 150933A1 Elbow union (KHJ0348)……………………… 1
27. 161841A1 Union (CNA0584) ……………………………… 1
2
Cre 9-44601 Issued 08-04
ITEM P/N DESCRIPTION Qty ITEM P/N DESCRIPTION Qty
28. 152127A1 Adaptor (KNJ0758) …………………………….2
29. 159002A1 Plug (KHJ0363)………………………………….1
30. KHJ2130 T-fitting ……………………………………………..3
31. KMJ2991 Batch of 2 hoses
KHJ2046 Hose D7 ……………………………………………1
KHJ2341 Hose Y1 ……………………………………………1
32a. KMJ2994 Batch of 2 hoses
KHJ2240 Hose P5 ……………………………………………1
KHJ2240 Hose T5…………………………………………….1
32b. KMJ2993 Batch of 2 hoses
KHJ2238 Hose P5 ……………………………………………1
KHJ2179 Hose T5…………………………………………….1
33. KHJ1348 Adaptor……………………………………………..1
34. 163275A1 Hydraulic clamp (KLJ0275) ………………….2
35. 163278A1 Oil filter (KHJ0778)……………………………..1
36. 154569A1 O-ring (LBQ0403)……………………………….2
37. 862-8035 Screw M8x35 (108R008Y035R) …………..8
38. KMJ2865 Bracket ……………………………………………..1
39. 166351A1 Screw M10x20 (105R010Y020R) …………2
40. 166052A1 Screw M10x25 (105R010Y025R)………… 4
41. KHJ1804 Elbow………………………………………………. 1
42. 157580A1 Elbow (KHJ0344)………………………………. 1
43. KHJ2023 Hose clamp………………………………………. 2
44. KMJ2992 Batch of 1 hose
KMJ2874 Hose Y1…………………………………………… 1
45. KMJ2990 Batch of 1 hose
KMJ2769 Hose Y2…………………………………………… 1
46. KHJ1360 O-ring………………………………………………. 4
47. 150498A1 Clip (KHH0143) ………………………………… 4
48. 151654A1 Adaptor (KNJ0605)……………………………. 1
49. KHJ1855 T-piece…………………………………………….. 1
50. KMJ2871 Hose ……………………………………………….. 1
51. KMJ2917 Secondary relief………………………………… 1
52. KHP2821 Decal ………………………………………………. 1
53. KHJ2024 Clamp ……………………………………………… 1
54. 150496A1 Clip (KHH0142) ………………………………… 4
55. KHJ2022 Clamp ……………………………………………… 1
153591A1 Loctite 262 (KRC5007) ………………………. 1
