ASSEMBLY INSTRUCTIONS
FOR HYDRAULIC HIGH FLOW KIT
ON CX160B EXCAVATOR
KG0LP209-00-00 (2.23 M Dipper)
KG0LP207-00-00 (2.62 M Dipper)
KG0LP208-00-00 (3.05 M Dipper)
KG0LP229-00-01 (Articulated boom and upperstructure)

GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

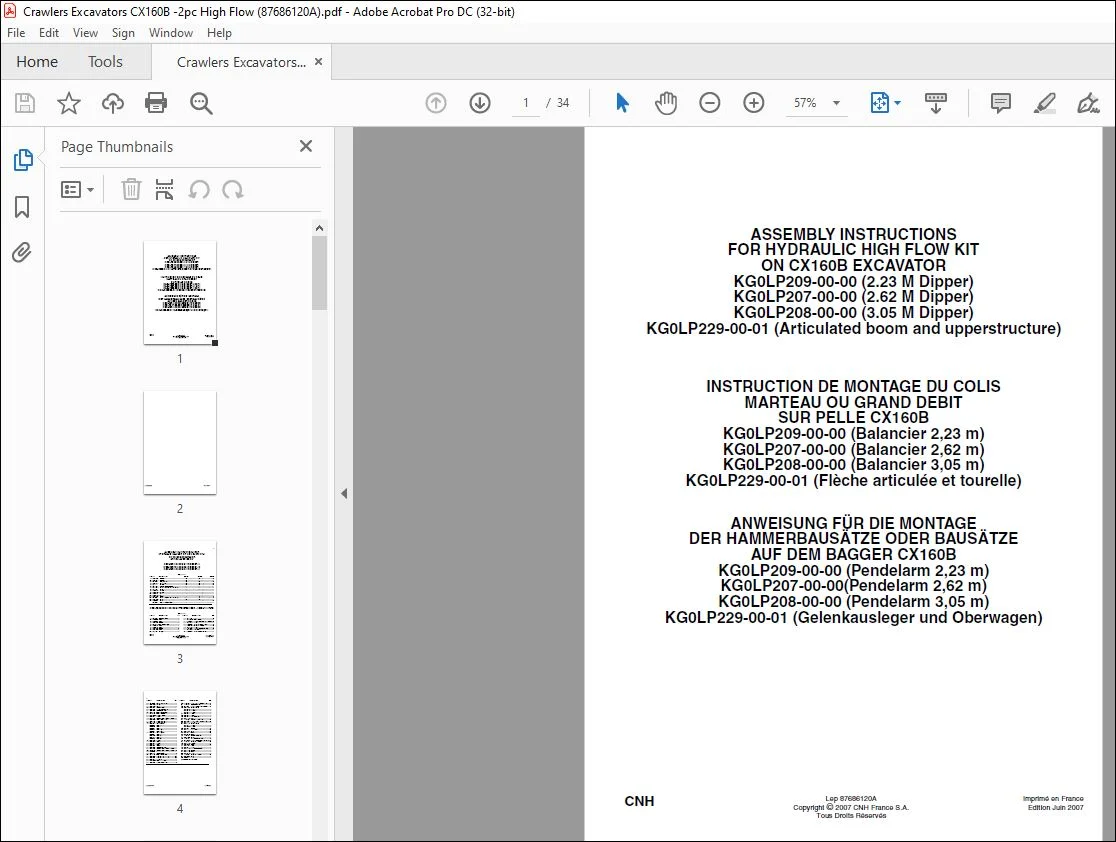

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX160B EXCAVATOR HYDRAULIC HIGH FLOW KIT ASSEMBLY INSTRUCTIONS MANUAL 87686120A – PDF DOWNLOAD

ITEMP/N DESCRIPTION Qty (a) Qty (b) Qty (c)
1. KHV10930 Bracket……………………………………………………….2.. …………………………….2 ………………………………. 2
2. KHV10540 Bracket……………………………………………………….2.. …………………………….4 ………………………………. 4
3. 152924A1 Plug (BRJ1286) …………………………………………..2.. …………………………….2 ………………………………. 2
4. KHV10710 Shut-off valve………………………………………………2.. …………………………….2 ………………………………. 2
5. KHJ1348 Adaptor ………………………………………………………2.. …………………………….2 ………………………………. 2
6. 150811A1 Washer W12 (KHN0296) ………………………………4.. …………………………….4 ………………………………. 4
7. 827-12075 Screw M12x75 (102R012Y075R) …………………..4.. …………………………….4 ………………………………. 4
8. KHJ1360 O-ring…………………………………………………………4.. …………………………….4 ………………………………. 4
9. KLV12730 RH pipe………………………………………………………1.. ……………………………. – ……………………………….. –
9. KLV12410Y2 RH pipe……………………………………………………….- …………………………….1 ………………………………. 1
10. KLV12720 LH pipe ………………………………………………………1.. ……………………………. – ……………………………….. –
10. KLV12400Y2 LH pipe ……………………………………………………….- …………………………….1 …………………………….. 1
11. KHV10460 Clamp ………………………………………………………..4.. …………………………….8 ………………………………. 8
12. 166352A1 Screw M12x30 (105R012Y030R) …………………..4.. …………………………….8 ………………………………. 8
13. KNV13720 Hose ………………………………………………………….2.. …………………………….2 ……………………………….. –
13. KLV12920 Hose …………………………………………………………..- ……………………………. – ………………………………. 2
153591A1 Loctite 262 (KRC5007) …………………………………1 …………………………….1 ………………………………. 1
KG0LP229-00-01 (CX160B articulated boom – upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. 152924A1 Plug (BRJ1286) ………………………… 2
2. KLV13270 Pipe…………………………………………. 1
3. KLV13260 Pipe…………………………………………. 1
4. KHV10990 Clamp ……………………………………… 6
5. 105R012Y030R Screw M12x30 ……………………. 8
6. KLV13130 Pipe…………………………………………. 1
7. KLV13120 Pipe…………………………………………. 1
8. KHV10460 Clamp ……………………………………… 4
9. KNV13720 Hose ……………………………………….. 2
10. KHJ1360 O-ring…………………………………….. 12
11. KHJ1898 Plug ………………………………………….2
12. KHJ10450 Control pedal ……………………………..1
13. 166052A1 Screw M10x25 (105R010Y025R)….2
14. KHJ10711 Bracket ……………………………………..1
15. 150604A1 Washer W10 (KHJ0183)………………6
16. 108R010Y016R Screw M10x16 ……………………..2
17. KHJ10691 Bracket ……………………………………..1
18. 165404A1 Screw M10x20 (KHJ1104) …………..2
19. KHJ10701 Pedal stop………………………………….1
20. 159500A1 Washer W8 (KHN0420)……………….1
2
Lep 87686120A Issued 06-07
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
21. 157740A1 Nut M8 (KHJ0091) …………………….. 1
22. KHJ10721 Spring ……………………………………… 1
23. KHJ13850 Pedal ……………………………………….. 1
24. KHJ1820 Screw M10x25 ………………………….. 2
25. 163782A1 Protection (KHP0912) ………………… 1
26. 150913A1 Elbow (KHJ0341) ………………………. 6
27. 152127A1 Adaptor (KNJ0758) ……………………. 8
28. 161841A1 Adaptor (CNA0584) …………………… 1
29. KHR10820 Pressure sensor………………………… 1
30. KHJ11510 Bracket …………………………………….. 1
31. 166351A1 Screw M10x20 (105R010Y020R) … 4
32. KHJ14780 Solenoid valve block ………………….. 1
33. 159497A1 T-piece (KHJ0869) …………………….. 3
34. 167321A1 T-piece (KHJ1382) …………………….. 1
35. KLJ11450 Set of 5 hoses
KHJ2198 Hose Y1 …………………………………… 1
KHJ2340 Hose Y2 …………………………………… 1
KHJ2244 Hose Y3 …………………………………… 1
KHJ2085 Hose YP5…………………………………. 1
KHJ2194 Hose YT5…………………………………. 1
36. KLJ11460 Set of 4 hoses
KHJ2047 Hose P5 …………………………………… 1
KHJ16300 Hose Y4 …………………………………… 1
KHJ16310 Hose Y5 …………………………………… 1
KHJ2086 Hose T5 …………………………………… 1
37. KRJ16050 Bracket …………………………………….. 1
38. KHJ10420 Selector……………………………………. 1
39. KRJ11470 Bracket …………………………………….. 1
40. KHJ10410 Selector……………………………………. 1
41. KHJ1178 Elbow ………………………………………. 1
42. 150933A1 Elbow (KHJ0348) ………………………. 1
43. 166352A1 Screw M12x30 (105R012Y030R) . 14
44. 166347A1 Screw M10x30 (105R010Y030R) … 2
45. KHR2584 Tie …………………………………………… 3
46. KHJ1215 Screw M8x25 ……………………………. 3
47. 151654A1 Adaptor (KNJ0605) ……………………. 1
48. 150496A1 Plastic clip (KHH0142) ……………….xx
49. 150498A1 Plastic clip (KHH0143) ……………….xx
50. KHJ14640 Protection…………………………………. 1
51. KHR15960 Electrical harness ……………………… 1
52. 158962A1 Bracket (KHR1317) ……………………. 3
53. 166345A1 Screw M8x16 (105R008Y016R)……3
54. 150860A1 Base (KHR0319) ………………………..7
55. 840-168 Screw M6x8 (145T006S008R) ……..7
56. KLJ11390 Set of 3 hoses
KHJ16860 Hose Y4…………………………………….1
KHJ16880 Hose D11…………………………………..1
KHJ2049 Hose D12…………………………………..1
57. KHR14460 Switch……………………………………….1
58. KHR14450 Switch……………………………………….1
59. KHR14470 Pressure sensor …………………………1
60. KHJ11730 Manifold …………………………………….1
61. 153081A1 Washer M8 (KAJ1500) ………………..2
62. 827-8055 Screw M8x55 (102R008Y055R)……2
63. KHJ2773 T-piece ………………………………………1
64. KNJ14030 Set of 2 hoses
KHJ2292 Hose F1 …………………………………….1
KHJ16270 Hose F2 …………………………………….1
65. KHJ1941 Adaptor ……………………………………..3
66. KNJ2732 Safety valves ……………………………..2
67. KLJ11690 Hose …………………………………………2
68. KHJ2243 Elbow………………………………………..2
69. KHJ16290 Elbow………………………………………..1
70. 169040A1 Adaptor (KAJ2434) ……………………..1
71. KLJ11350 Hose …………………………………………1
72. 153458A1 Half-clamp (KRJ2681) …………………4
73. 862-10030 Screw M10x30 (108R010Y030R)….8
74. 155210A1 O-ring (LBQ6214) ……………………….2
75. KNJ14020 Bracket………………………………………1
76. KLJ10730 Clamp ……………………………………….2
77. KRH10210 Plate …………………………………………1
78. KBJ1683 Hose …………………………………………1
79. KHJ14720 Non-return check valve………………..1
80. KHJ14710 Adaptor ……………………………………..1
81. KHJ14690 Elbow………………………………………..1
82. KNJ12880 Hose …………………………………………1
83. 155204A1 O-ring (LBQ6014) ……………………….2
84. KLJ10980 Hose …………………………………………1
85. KAJ2882 Hose …………………………………………1
