CNH CX225SR FR EN DE HYDRAULIC HAMMER KIT FOR ASSEMBLY INSTRUCTIONS Manual (9-44981) – PDF DOWNLOAD (EN-IT-ES-DE-FR-PT-NL-DAN-AR)

Description

CNH CX225SR FR EN DE HYDRAULIC HAMMER KIT FOR ASSEMBLY INSTRUCTIONS Manual (9-44981) – PDF DOWNLOAD (EN-IT-ES-DE-FR-PT-NL-DAN-AR)

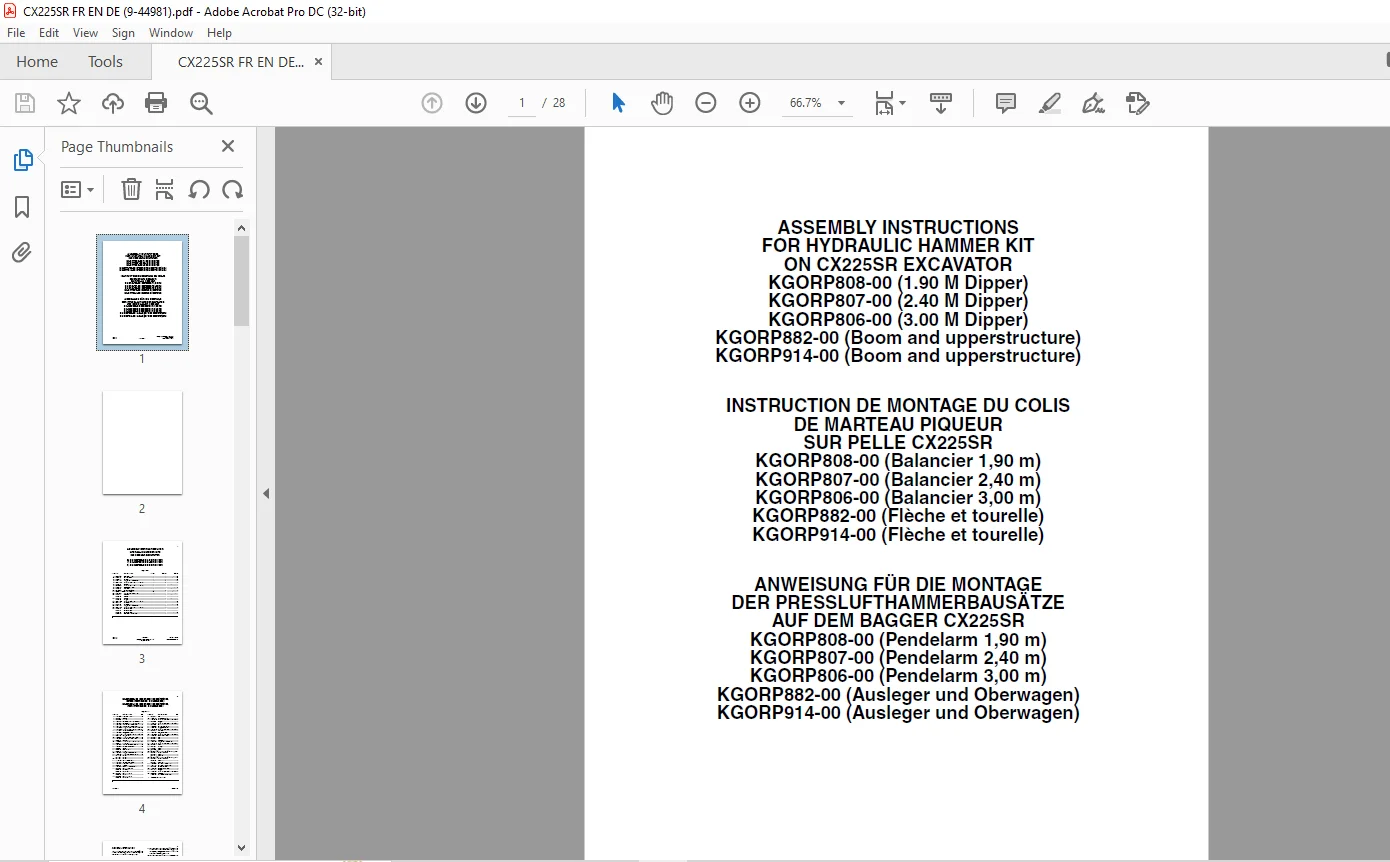

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX225SR FR EN DE HYDRAULIC HAMMER KIT FOR ASSEMBLY INSTRUCTIONS Manual (9-44981) – PDF DOWNLOAD (EN-IT-ES-DE-FR-PT-NL-DAN-AR)

PARTS LIST
ITEMP/N DESCRIPTION Qty (a) Qty (b) Qty (c)
1. 162335A1 Plug (CAJ3912) ……………………………………………….. 2 ……………………… 2 ………………………2
2. KHV0389 Shut-off valve…………………………………………………… 2 ……………………… 2 ………………………2
3. KHV0451 Adaptor …………………………………………………………… 2 ……………………… 2 ………………………2
4. 150811A1 Washer W12 (KHN0296) …………………………………… 4 ……………………… 4 ………………………4
5. 827-12080 Screw M12x80 (102R012Y080R)……………………….. 4 ……………………… 4 ………………………4
6. KRV3227 Bracket……………………………………………………………. 2 ………………………. – ……………………… –
7. 166373A1 Screw M16x40 (105R016Y040R)……………………….. 2 ………………………. – ……………………… –
8. 150124A1 Clamp (KTJ0029) …………………………………………….. 8 ……………………… 8 ………………………8
9. KRV3226 Manifold ………………………………………………………….. 2 ………………………. – ……………………… –
10. 164450A1 O-ring (LBQ5222) …………………………………………….. 4 ……………………… 4 ………………………4
11. 108R014Y045RScrew M14x45……………………………………………… 20 ………………………. – ……………………… –
12. 150418A1 Washer M14 (KEH0116)……………………………………. 4 ………………………. – ……………………… –
13. KRV3101 RH pipe ……………………………………………………………- ……………………… 1 ……………………… –
KRV3095 RH pipe ……………………………………………………………- ………………………. – ………………………1
14. KRV3102 LH pipe …………………………………………………………….- ……………………… 1 ……………………… –
KRV3096 LH pipe …………………………………………………………….- ………………………. – ………………………1
15. 862-14050 Screw M14x50 (108R014Y050R)…………………………- ……………………. 16 …………………….16
16. KTV1209 Retaining clamp…………………………………………………- ……………………… 2 ………………………4
17. KRV3116 Retaining clamp…………………………………………………- ………………………. – ………………………2
18. 150814A1 Washer W16 (KHN0297) …………………………………….- ……………………… 2 ………………………4
19. 827-16080 Screw M16x80 (102R016Y080R)…………………………- ……………………… 2 ………………………4
20. KRV3228 Hose L=1950 …………………………………………………… 2 ………………………. – ……………………… –
KRV3100 Hose L=1900 …………………………………………………….- ……………………… 2 ……………………… –
KRV3094 Hose L=2050 …………………………………………………….- ………………………. – ………………………2
153591A1 Loctite 262 (KRC5007) ……………………………………… 1 ……………………… 1 ………………………1
2
Lep 9-44981 Issued 11-05
KGORP882-00 (boom and upperstructure,
before machine No. DCH22U0126)
KGORP914-00 (boom and upperstructure,
from machine No. DCH22U0126)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. 152924A1 Plug (BRJ1286) ……………………… 2
2. KRV3503 RH pipe ………………………………… 1
3. KRV3504 LH pipe …………………………………. 1
4. 150777A1 Retaining clamp (KSV0282) …….. 6
5. 152498A1 Retaining clamp (KSJ0899)……… 1
6. 150814A1 Washer W16 (KHN0297) …………. 6
7. 150811A1 Washer W12 (KHN0296) …………. 1
8. 827-16070 Screw M16x70 (102R016Y070R) 6
9. 827-12070 Screw M12x70 (102R012Y070R) 1
10. 164450A1 O-ring (LBQ5222) …………………… 2
11. 150124A1 Clamp (KTJ0029) …………………… 4
12. 862-14050 Screw M14x50 (108R014Y050R) 8
13. KHJ1995 Control pedal …………………………. 1
14. 150548A1 Screw M10x20 (KHJ0161)……….. 2
15. 150604A1 Washer W10 (KHJ0183)………….. 2
16. KHJ2568 Bracket………………………………….. 1
17. 166346A1 Screw M10x16 (105R010Y016R) 4
18. KHJ2231 Pedal bolt………………………………. 1
19. 157558A1 Washer WW8 (KHN0518)………… 2
20. 157770A1 Nut M8 (KHR0086) …………………. 2
21. KHJ2571 Cover ……………………………………. 1
22. KHJ2119 Floor carpet …………………………… 1
23. KHJ2229 Pedal…………………………………….. 1
24. 159500A1 Washer W8 (KHN0420) …………… 2
25. 162571A1 Screw M8x16 (KHN1642) ………… 2
26. KHP1484 Decal ……………………………………. 1
KHP1511 Decal ……………………………………. 1
27. KHP1821 Decal ……………………………………. 1
28. 161841A1 Union (CNA0581) …………………… 1
29. 152127A1 Adaptor (KNJ0758)…………………. 3
30. 159002A1 Plug (KHJ0363) ……………………… 1
31. KHJ2130 T-piece ………………………………….. 3
32. 150913A1 Elbow union (KHJ0341)…………… 1
33. KRJ6970 Batch of 2 hoses
KHJ2084 Hose P5………………………………… 1
KHJ2084 Hose T5 ………………………………… 1
34. KRJ6971 Batch of 1 hose
KHJ2313 Hose Y1………………………………… 1
35. KRJ6972 Batch of 1 hose
KHJ2090 Hose Y2………………………………… 1
36. KRJ6832 Pipe ……………………………………… 1
37. 154548A1 O-ring (LBQ0352)…………………… 1
38. 862-10035 Screw M10x35 (108R010Y035R) 4
39. KRJ6967 Bracket …………………………………. 1
40. 166052A1 Screw M10x25 (105R010Y025R) 2
41. KRJ5954 Hydraulic clamp……………………… 1
42. 159704A1 Oil filter (KRJ3546) …………………. 1
43. 154625A1 O-ring (LBQ0553)…………………… 2
44. 862-10025 Screw M10x25 (108R010Y025R) 4
45. KRJ6835 Manifold ………………………………… 1
46. 159085A1 Plug (BRJ0190) ……………………… 1
47. 862-10070 Screw M10x70 (108R010Y070R) 4
48. 157581A1 Elbow (KHJ0345) …………………… 2
49. KRJ6965 Pipe ……………………………………… 1
50. KRJ6966 Pipe ……………………………………… 1
51. KRJ6930 Retaining clamp……………………… 1
52. 150811A1 Washer W12 (KHN0296)…………. 1
53. 827-12080 Screw M12x80 (102R012Y080R) 1
54. KRJ6969 Hose …………………………………….. 1
55. KHJ1361 O-ring …………………………………… 5
56. KAJ3851 Hose …………………………………….. 1
57. KRJ5924 Hose …………………………………….. 1
Reference mark 60 below only for kit KGORP882
60. KRJ7209 Batch of 2 hoses
KRJ7005 Hose Y1………………………………… 1
KRJ1789 Hose Y2………………………………… 1
Reference mark 60 below only for kit KGORP914
60. KRJ7210 Batch of 2 hoses
KRJ7134 Hose Y1………………………………… 1
KRJ7211 Hose Y2………………………………… 1
61. 150071A1 Clip L=380 (KAR0017) …………….**
62. 150496A1 Clip L=250 (KHH0142) …………….**
63. KRJ7014 Secondary relief …………………….. 1
64. 162261A1 Bracket (KRV1646)…………………. 6
65. KRV3330 Bracket …………………………………. 1
66. 166351A1 Screw M10x20 (105R010Y020R) 4
67. KHJ2679 Retaining clamp……………………… 2
153591A1 Loctite 262 (KRC5007)……………. 1

DESCRIPTION:

CNH CX225SR FR EN DE HYDRAULIC HAMMER KIT FOR ASSEMBLY INSTRUCTIONS Manual (9-44981) – PDF DOWNLOAD (EN-IT-ES-DE-FR-PT-NL-DAN-AR)

GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and letters in these
instructions are the same as those used in the
illustrations.
Special torque settings are shown in these
instructions. If a torque setting is not shown, use the
standard torque setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and lower
it to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).
