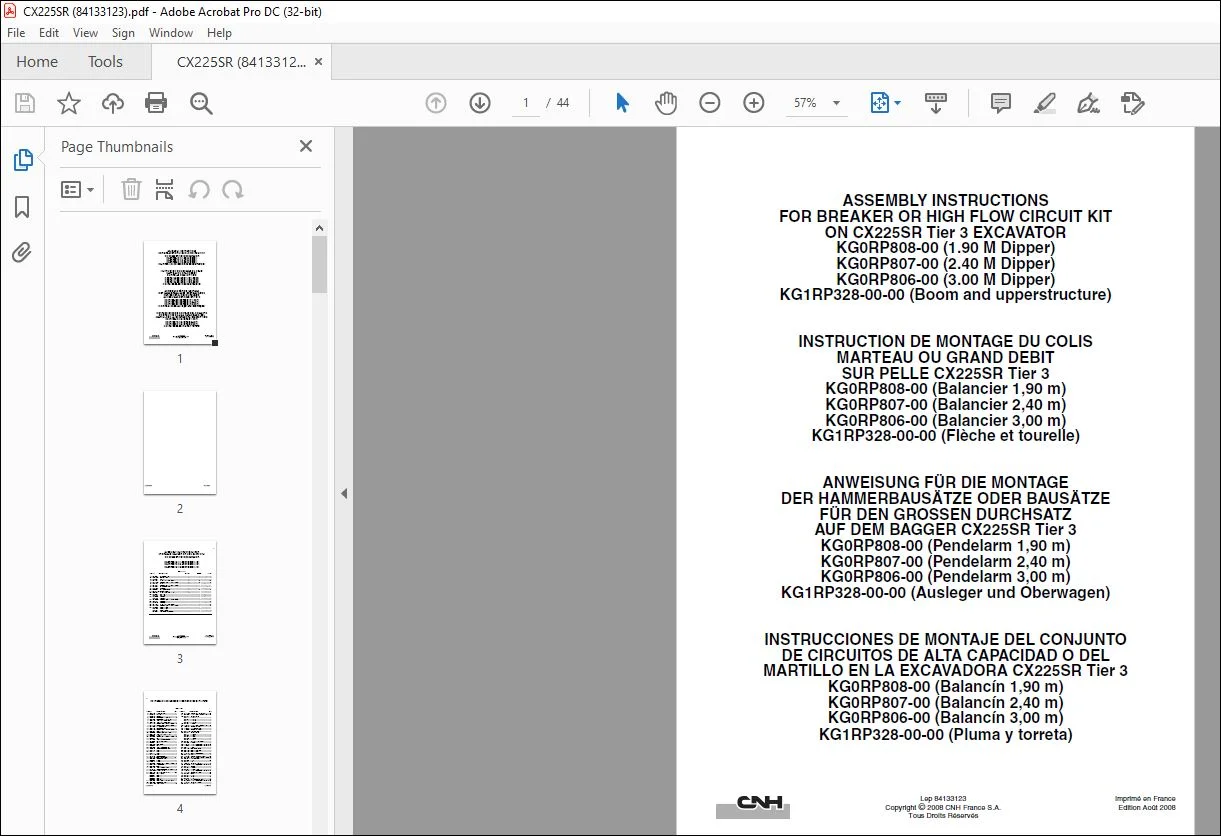

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CNH CX225SR Tier 3 EXCAVATOR BREAKER OR HIGH FLOW CIRCUIT KIT ASSEMBLY INSTRUCTIONS MANUAL 84133123 EN_FR_DE_ES – PDF DOWNLOAD

ASSEMBLY INSTRUCTIONS
FOR BREAKER OR HIGH FLOW CIRCUIT KIT
ON CX225SR Tier 3 EXCAVATOR
KG0RP808-00 (1.90 M Dipper)
KG0RP807-00 (2.40 M Dipper)
KG0RP806-00 (3.00 M Dipper)
KG1RP328-00-00 (Boom and upperstructure)

GENERAL INFORMATION:
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to consult
the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions. If
a torque setting is not shown, use the standard torque
setting shown in the Service Manual.
PREPARATION:
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

TABLE OF CONTENTS:

CNH CX225SR Tier 3 EXCAVATOR BREAKER OR HIGH FLOW CIRCUIT KIT ASSEMBLY INSTRUCTIONS MANUAL 84133123 EN_FR_DE_ES – PDF DOWNLOAD

ASSEMBLY INSTRUCTIONS FOR
HYDRAULIC HAMMER OR HIGH FLOW KITS
ON CX225SR Tier 3 EXCAVATOR
KG0RP808-00 (1.90 m dipper); (a)
KG0RP807-00 (2.40 m dipper); (b)
KG0RP806-00 (3.00 m dipper); (c)
PARTS LIST
ITEMP/N DESCRIPTION Qty (a) Qty (b) Qty (c)
1. 162335A1 Plug (CAJ3912) ……………………………………………….. 2 ……………………….2 ……………………… 2
2. KHV10700 Shut-off valve…………………………………………………… 2 ……………………….2 ……………………… 2
3. KHV0451 Adaptor…………………………………………………………… 2 ……………………….2 ……………………… 2
4. 150811A1 Washer W12 (KHN0296)…………………………………… 4 ……………………….4 ……………………… 4
5. 827-12080 Screw M12x80 (102R012Y080R)……………………….. 4 ……………………….4 ……………………… 4
6. KRV3227 Bracket …………………………………………………………… 2 ………………………..- ………………………. –
7. 166373A1 Screw M16x40 (105R016Y040R)……………………….. 2 ………………………..- ………………………. –
8. 150124A1 Clamp (KTJ0029) …………………………………………….. 8 ……………………….8 ……………………… 8
9. KRV3226 Manifold………………………………………………………….. 2 ………………………..- ………………………. –
10. 164450A1 O-ring (LBQ5222)…………………………………………….. 4 ……………………….4 ……………………… 4
11. 108R014Y045RScrew M14x45 …………………………………………….. 20 ………………………..- ………………………. –
12. 150418A1 Washer M14 (KEH0116) …………………………………… 4 ………………………..- ………………………. –
13. KRV3101 RH pipe …………………………………………………………… – ……………………….1 ………………………. –
KRV3095 RH pipe ………………………………………………………….. – ………………………..- ………………………1
14. KRV3102 LH pipe……………………………………………………………. – ……………………….1 ………………………. –
KRV3096 LH pipe……………………………………………………………. – ………………………..- ………………………1
15. 862-14050 Screw M14x50 (108R014Y050R)………………………… – ……………………..16 ……………………. 16
16. KTV1209 Retaining clamp ……………………………………………….. – ……………………….2 ……………………… 4
17. KRV3116 Retaining clamp………………………………………………… – ………………………..- ……………………… 2
18. 150814A1 Washer W16 (KHN0297)……………………………………. – ……………………….2 ……………………… 4
19. 827-16080 Screw M16x80 (102R016Y080R)………………………… – ……………………….2 ……………………… 4
20. KRV3228 Hose L=1950…………………………………………………… 2 ………………………..- ………………………. –
KRV3100 Hose L=1900……………………………………………………. – ……………………….2 ……………………….-
KRV3094 Hose L=2050……………………………………………………. – ………………………..- ………………………2
153591A1 Loctite 262 (KRC5007)……………………………………… 1 ……………………….1 ………………………1
2
Lep 84133123 Issued 08-08
KG1RP328-00-00 (Monobloc boom and upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. 152924A1 Plug (BRJ1286)…………………………. 2
2. KRV3503 RH pipe …………………………………… 1
3. KRV3504 LH pipe…………………………………….. 1
4. 150777A1 Retaining clamp (KSV0282)………… 6
5. 152498A1 Retaining clamp (KSJ0899) ………… 1
6. 150814A1 Washer W16 (KHN0297) ……………. 6
7. 150811A1 Washer W12 (KHN0296) ……………. 1
8. 827-16070 Screw M16x70 (102R016Y070R) … 6
9. 827-12070 Screw M12x70 (102R012Y070R) … 1
10. 164450A1 O-ring (LBQ5222) ……………………… 2
11. 150124A1 Clamp (KTJ0029)………………………. 4
12. 862-14050 Screw M14x50 (108R014Y050R) … 8
13. KHJ1995 Control pedal…………………………….. 1
14. 150548A1 Screw M10x20 (KHJ0161) ………….. 2
15. 150604A1 Washer W10 (KHJ0183) …………….. 2
16. KHJ2568 Bracket …………………………………….. 1
17. 166346A1 Screw M10x16 (105R010Y016R) … 2
18. KHJ2231 Pedal bolt …………………………………. 1
19. 157558A1 Washer WW8 (KHN0518) …………… 2
20. 157770A1 Nut M8 (KHR0086) ……………………. 2
21. KHJ2571 Cover ………………………………………. 1
22. KHJ18760 Floor carpet………………………………. 1
23. KHJ2229 Pedal ……………………………………….. 1
24. 159500A1 Washer W8 (KHN0420) ……………… 2
25. 162571A1 Screw M8x16 (KHN1642) …………… 2
26. KHP1484 Decal……………………………………….. 1
27. KHP1511 Decal……………………………………….. 1
28. KHP1821 Decal……………………………………….. 1
29. KMP11010 Decal……………………………………….. 1
30. 161841A1 Union (CNA0584)………………………. 1
31. 152127A1 Adaptor (KNJ0758) ……………………. 9
32. 150933A1 Elbow (KHJ0348) ………………………. 3
33. KHJ2130 T-piece …………………………………….. 4
34. KAJ4715 Bracket …………………………………….. 1
35. 166346A1 Screw M10x16 (105R010Y016R) … 2
36. KHJ17100 Manifold block …………………………… 1
37. KHJ11460 Adaptor ……………………………………. 1
38. 153081A1 Washer M8 (KAJ1500)……………….. 2
39. 827-8060 Screw M8x60 (102R008Y060R) ….. 2
40. KHR10820 Pressure switch…………………………. 1
41. 150067A1 Clip L=150 (KAR0016)……………….xx
42. KRJ6989 Set of 4 hoses
KHJ2237 Hose Y1 …………………………………… 1
KHJ2045 Hose Y2 …………………………………… 1
KHJ2342 Hose P5 …………………………………… 1
KHJ2342 Hose T5 …………………………………… 1
43. 162538A1 Solenoid valve block (KRJ3557) ….. 1
44. 150913A1 Elbow (KHJ0341) …………………….. 10
45. 183-106VR Washer SW6…………………………….. 2
46. 895-11006 Washer W6 (182-006SR) …………….2
47. 627-6020 Screw M6x20 (102R006Y020R)……2
48. KRJ6990 Set of 4 hoses
KHJ2470 Hose Y1…………………………………….1
KHJ2042 Hose Y3…………………………………….1
KHJ2172 Hose Y2…………………………………….1
KHJ2079 Hose Y5…………………………………….1
49. KRJ6841 Bracket………………………………………1
50. 166350A1 Screw M8x20 (105R008Y020R)……2
51. 167853A1 Adaptor (KHJ0651)……………………..1
52. 159497A1 T-piece (KHJ0869) ………………………1
53. 162654A1 Adaptor (KHJ0882)……………………..1
54. KHJ17090 Shuttle ball block ………………………..1
55. KRJ6991 Set of 5 hoses
KHJ2471 Hose A3…………………………………….1
KHJ2327 Hose A1…………………………………….1
KHJ2055 Hose A4…………………………………….1
KHJ2094 Hose A2…………………………………….1
KHJ2309 Hose Y4…………………………………….1
56. KHJ1340 Outflow reinjection block………………1
57. KRJ6844 Bracket………………………………………1
58. 166352A1 Screw M12x30 (105R012Y030R)….5
59. 166347A1 Screw M10x30 (105R010Y030R)….3
60. KHR2948 Switch……………………………………….1
61. KRR13870 Electrical harness ……………………….1
62. KHR19630 Indicator lamp base …………………….1
63. KHR19620 Indicator lamp…………………………….1
64. 150496A1 Clip L=250 (KHH0142) ……………… xx
65. KHJ11730 Manifold …………………………………….1
66. 153081A1 Washer W M8 (KAJ1500) …………….2
67. 827-8050 Screw H M8x50 (102R008Y050R) ..2
68. KHR14470 Pressure switch ………………………….1
69. KHJ2044 Hose …………………………………………2
70. KRJ6832 Pipe ………………………………………….1
71. 154548A1 O-ring (LBQ0352) ……………………….3
72. 862-10035 Screw M10x35 (108R010Y035R)….8
73. KHJ1495 Adaptor ……………………………………..1
74. KRJ6843 Bracket………………………………………1
75. KHJ2358 Selector block …………………………….1
76. 166052A1 Screw M10x25 (105R010Y025R)..12
77. 159198A1 Adaptor (KNJ1936)……………………..2
78. KHJ1804 Elbow………………………………………..2
79. KRJ6836 Hose …………………………………………1
80. KHJ1360 O-ring ……………………………………….3
81. KRJ6837 Hose …………………………………………1
82. 152598A1 Half-clamp (KRJ0963) …………………2
83. 862-10030 Screw M10x30 (108R010Y030R)..16
84. 155210A1 O-ring (LBQ6214) ……………………….1
85. KRJ6838 Hose …………………………………………1
3
Lep 84133123 Issued 08-08
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
86. 153459A1 Half-clamp (KRJ2682) ……………….. 6
87. 155211A1 O-ring (LBQ6219) ……………………… 3
88. KHJ1361 O-ring………………………………………. 5
89. KRJ6839 Hose ……………………………………….. 1
90. 157581A1 Elbow (KHJ0345) ………………………. 1
91. KHJ0603 Elbow………………………………………. 1
92. KSJ 2079 Hose ……………………………………….. 1
93. KRJ6967 Bracket…………………………………….. 1
94. KRJ7144 Pipe…………………………………………. 1
95. KRJ7143 Pipe…………………………………………. 1
96. 862-10065 Screw M10x65 (108R010Y065R) … 4
97. KRJ6930 Retaining clamp ………………………… 1
98. 150811A1 Washer W12 (KHN0296) ……………. 1
99. 827-12080 Screw M12x80 (102R012Y080R) … 1
100. KRJ7136 Set of 2 hoses
KRJ7134 Hose Y1 …………………………………… 1
KRJ7137 Hose Y2 …………………………………… 1
101. KHJ2679 Hose clamp………………………………. 2
102. 150071A1 Clip L=380 (KAR0017)……………….xx
103. 155745A1 Secondary relief valve (LNC0071).. 2
104. KRJ6856 Set of 2 hoses
KHJ2240 Hose P9…………………………………….1
KHJ2240 Hose T9…………………………………….1
105. KRN3169 Bracket ……………………………………..1
106. KRN3171 Retaining lug ……………………………..1
107. KRN3170 Hinge bracket …………………………….1
108. KRN3168 Hood…………………………………………1
109. KHN3334 Washer M 10 ……………………………..4
110. 102R010A020N Screw M10x20 ……………………..4
111. 166351A1 Screw M10x20 (105R010Y020R)….2
112. KHN3533 Strut………………………………………….1
113. 895-11008 Washer W8 (182-008SR) …………….1
114. 153077A1 Pin (KAJ1495) ……………………………1
115. KRN3172 Gasket ………………………………………1
116. KMN1912 Sound-proofing element L=320…….1
117. KRN2858 Sound-proofing element L=280…….1
118. KRN2859 Sound-proofing element L=460…….1
119. KRN2860 Sound-proofing element L=570…….1
xx According to requirement
