CNH CX225SR Tier 3 EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 84133122 EN_DE_FR_ES – PDF DOWNLOAD

Description

CNH CX225SR Tier 3 EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 84133122 EN_DE_FR_ES – PDF DOWNLOAD

DESCRIPTION:

CNH CX225SR Tier 3 EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 84133122 EN_DE_FR_ES – PDF DOWNLOAD

ASSEMBLY INSTRUCTIONS
FOR HYDRAULIC HAMMER KIT
ON CX225SR Tier 3 EXCAVATOR
KG0RP808-00 (1.90 M Dipper)
KG0RP807-00 (2.40 M Dipper)
KG0RP806-00 (3.00 M Dipper)
KG1RP325-00-00 (Boom and upperstructure)

GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to consult
the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

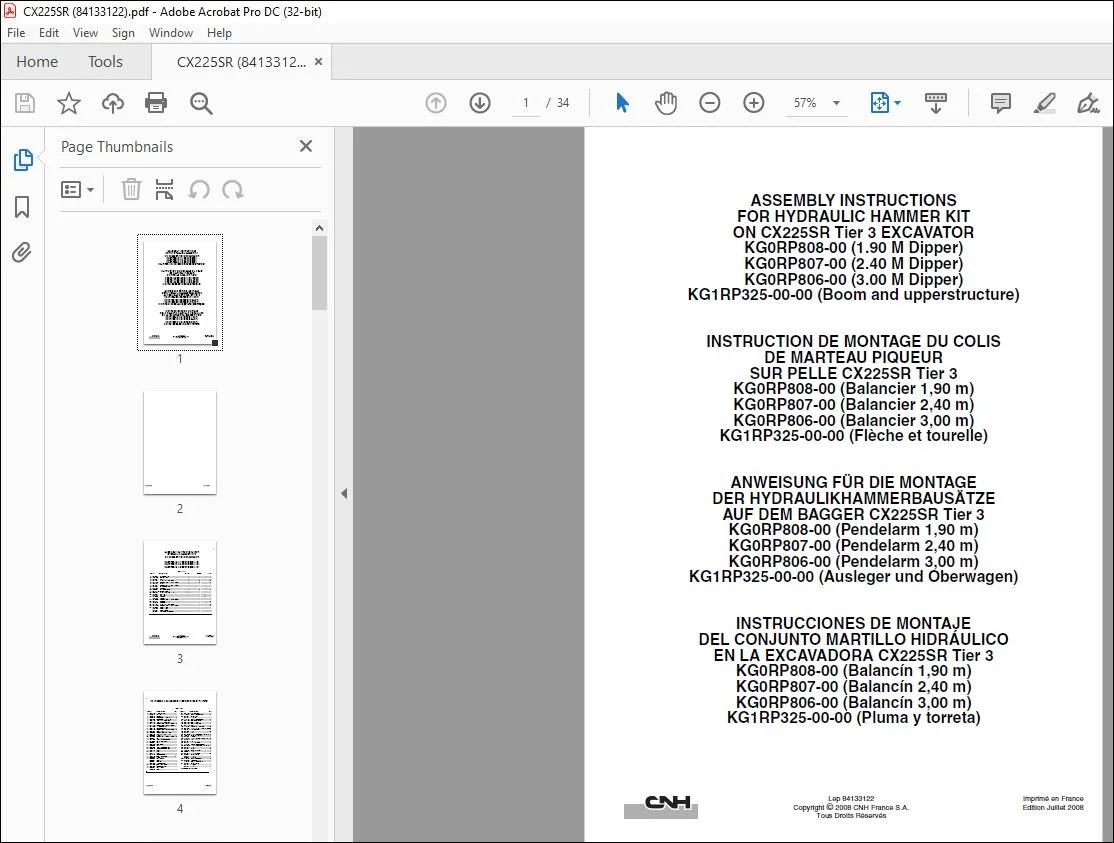

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX225SR Tier 3 EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 84133122 EN_DE_FR_ES – PDF DOWNLOAD

ASSEMBLY INSTRUCTIONS FOR
HYDRAULIC HAMMER KITS
ON CX225SR Tier 3 EXCAVATOR
KG0RP808-00 (1.90 m dipper); (a)
KG0RP807-00 (2.40 m dipper); (b)
KG0RP806-00 (3.00 m dipper); (c)
PARTS LIST
ITEMP/N DESCRIPTION Qty (a) Qty (b) Qty (c)
1. 162335A1 Plug (CAJ3912) ……………………………………………….. 2 ……………………….2 ……………………… 2
2. KHV10700 Shut-off valve…………………………………………………… 2 ……………………….2 ……………………… 2
3. KHV0451 Adaptor…………………………………………………………… 2 ……………………….2 ……………………… 2
4. 150811A1 Washer W12 (KHN0296)…………………………………… 4 ……………………….4 ……………………… 4
5. 827-12080 Screw M12x80 (102R012Y080R)……………………….. 4 ……………………….4 ……………………… 4
6. KRV3227 Bracket …………………………………………………………… 2 ………………………..- ………………………. –
7. 166373A1 Screw M16x40 (105R016Y040R)……………………….. 2 ………………………..- ………………………. –
8. 150124A1 Clamp (KTJ0029) …………………………………………….. 8 ……………………….8 ……………………… 8
9. KRV3226 Manifold………………………………………………………….. 2 ………………………..- ………………………. –
10. 164450A1 O-ring (LBQ5222)…………………………………………….. 4 ……………………….4 ……………………… 4
11. 108R014Y045RScrew M14x45 …………………………………………….. 20 ………………………..- ………………………. –
12. 150418A1 Washer M14 (KEH0116) …………………………………… 4 ………………………..- ………………………. –
13. KRV3101 RH pipe …………………………………………………………… – ……………………….1 ………………………. –
KRV3095 RH pipe ………………………………………………………….. – ………………………..- ………………………1
14. KRV3102 LH pipe……………………………………………………………. – ……………………….1 ………………………. –
KRV3096 LH pipe……………………………………………………………. – ………………………..- ………………………1
15. 862-14050 Screw M14x50 (108R014Y050R)………………………… – ……………………..16 ……………………. 16
16. KTV1209 Retaining clamp ……………………………………………….. – ……………………….2 ……………………… 4
17. KRV3116 Retaining clamp………………………………………………… – ………………………..- ……………………… 2
18. 150814A1 Washer W16 (KHN0297)……………………………………. – ……………………….2 ……………………… 4
19. 827-16080 Screw M16x80 (102R016Y080R)………………………… – ……………………….2 ……………………… 4
20. KRV3228 Hose L=1950…………………………………………………… 2 ………………………..- ………………………. –
KRV3100 Hose L=1900……………………………………………………. – ……………………….2 ……………………….-
KRV3094 Hose L=2050……………………………………………………. – ………………………..- ………………………2
153591A1 Loctite 262 (KRC5007)……………………………………… 1 ……………………….1 ………………………1
2
Lep 84133122 Issued 07-08
KG1RP325-00-00 (Monobloc boom and upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. 152924A1 Plug (BRJ1286)…………………………. 2
2. KRV3503 RH pipe …………………………………… 1
3. KRV3504 LH pipe…………………………………….. 1
4. 150777A1 Retaining clamp (KSV0282)………… 6
5. 152498A1 Retaining clamp (KSJ0899) ………… 1
6. 150814A1 Washer W16 (KHN0297) ……………. 6
7. 150811A1 Washer W12 (KHN0296) ……………. 1
8. 827-16070 Screw M16x70 (102R016Y070R) … 6
9. 827-12070 Screw M12x70 (102R012Y070R) … 1
10. 164450A1 O-ring (LBQ5222) ……………………… 2
11. 150124A1 Clamp (KTJ0029)………………………. 4
12. 862-14050 Screw M14x50 (108R014Y050R) … 8
13. KHJ1995 Control pedal…………………………….. 1
14. 150548A1 Screw M10x20 (KHJ0161) ………….. 2
15. 150604A1 Washer W10 (KHJ0183) …………….. 2
16. KHJ2568 Bracket …………………………………….. 1
17. 166346A1 Screw M10x16 (105R010Y016R) … 2
18. KHJ2231 Pedal bolt …………………………………. 1
19. 157558A1 Washer WW8 (KHN0518) …………… 2
20. 157770A1 Nut M8 (KHR0086) ……………………. 2
21. KHJ2571 Cover ………………………………………. 1
22. KHJ18760 Floor carpet………………………………. 1
23. KHJ2229 Pedal ……………………………………….. 1
24. 159500A1 Washer W8 (KHN0420) ……………… 2
25. 162571A1 Screw M8x16 (KHN1642) …………… 2
26. KHP1484 Decal……………………………………….. 1
27. KHP1511 Decal……………………………………….. 1
28. KHP1821 Decal……………………………………….. 1
29. 161841A1 Union (CNA0584)………………………. 1
30. 152127A1 Adaptor (KNJ0758) ……………………. 3
31. KHJ2130 T-piece …………………………………….. 3
32. KRJ6970 Set of 2 hoses
KHJ2084 Hose P5 …………………………………… 1
KHJ2084 Hose T5 …………………………………… 1
33. 159002A1 Plug (KHJ0363)…………………………. 1
34. 167666A1 Adaptor (KAJ3807) ……………………. 1
35. 150913A1 Elbow (KHJ0341) ………………………. 4
36. KRJ6971 Set of 1 hose
KHJ2313 Hose Y1 …………………………………… 1
37. KHR10820 Pressure switch ………………………….1
38. 150067A1 Clip L=150 (KAR 0016) …………….. xx
39. KRJ6972 Set of 1 hose
KRJ2090 Hose Y2…………………………………….1
40. 150496A1 Clip L=250 (KHH0142) ……………… xx
41. KRR13860 Electrical harness ……………………….1
42. KHR19620 Indicator lamp…………………………….1
43. KHR19630 Indicator lamp base …………………….1
44. KHJ11730 Manifold …………………………………….1
45. 153081A1 Washer WM8 (KAJ1500) ……………..2
46. 827-8050 Screw B M8 x 50 (102R008Y050R) 2
47. KHR14470 Pressure switch ………………………….1
48. KHJ2044 Hose …………………………………………2
49. KRJ6832 Pipe ………………………………………….1
50. 862-10035 Screw M10x35 (108R010Y035R)….4
51. 154548A1 O-ring (LBQ0352) ……………………….1
52. KRJ6967 Bracket………………………………………1
53. 166052A1 Screw M10 x 25(105R010Y025R)…2
54. KRJ6965 Pipe ………………………………………….1
55. KRJ6966 Pipe ………………………………………….1
56. KRJ6930 Retaining clamp………………………….1
57. 150811A1 Washer W12 (KHN0296) ……………..1
58. 827-12080 Screw M12x80 (102R012Y080R)….1
59. KRJ6969 Hose …………………………………………1
60. KHJ1361 O-ring ……………………………………….5
61. 157581A1 Elbow (KHJ0345)………………………..1
62. KSJ2079 Hose …………………………………………1
63. KHJ2679 Retaining clamp………………………….2
64. KRJ7210 Set of 2 hoses
KRJ7134 Hose Y1…………………………………….1
KRJ7211 Hose Y2…………………………………….1
65. 150071A1 Clip L=380 (KAR0017) ……………… xx
66. KRJ7014 Secondary relief …………………………1
153591A1 Loctite 262 (KRC5007) ………………..1
67. KRJ6856 Set of 2 hoses
KHJ2240 Hose P9…………………………………….1
KHJ2240 Hose T9 …………………………………….1
xx According to requirement
