DESCRIPTION:

CNH CX290B EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTALLATION INSTRUCTIONS MANUAL 87664165A EN_DE_FR – PDF DOWNLOAD

ASSEMBLY INSTRUCTIONS
FOR HYDRAULIC HAMMER KIT
ON CX290B EXCAVATOR
KG0BP653-00-00 (2.65 m Dipper)
KG0BP652-00-00 (3.18 m Dipper)
KG0BP695-00-00 (3.66 m Dipper)
KG0BP658-00-00 (Boom and Upperstructure)

GENERAL INFORMATION:
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

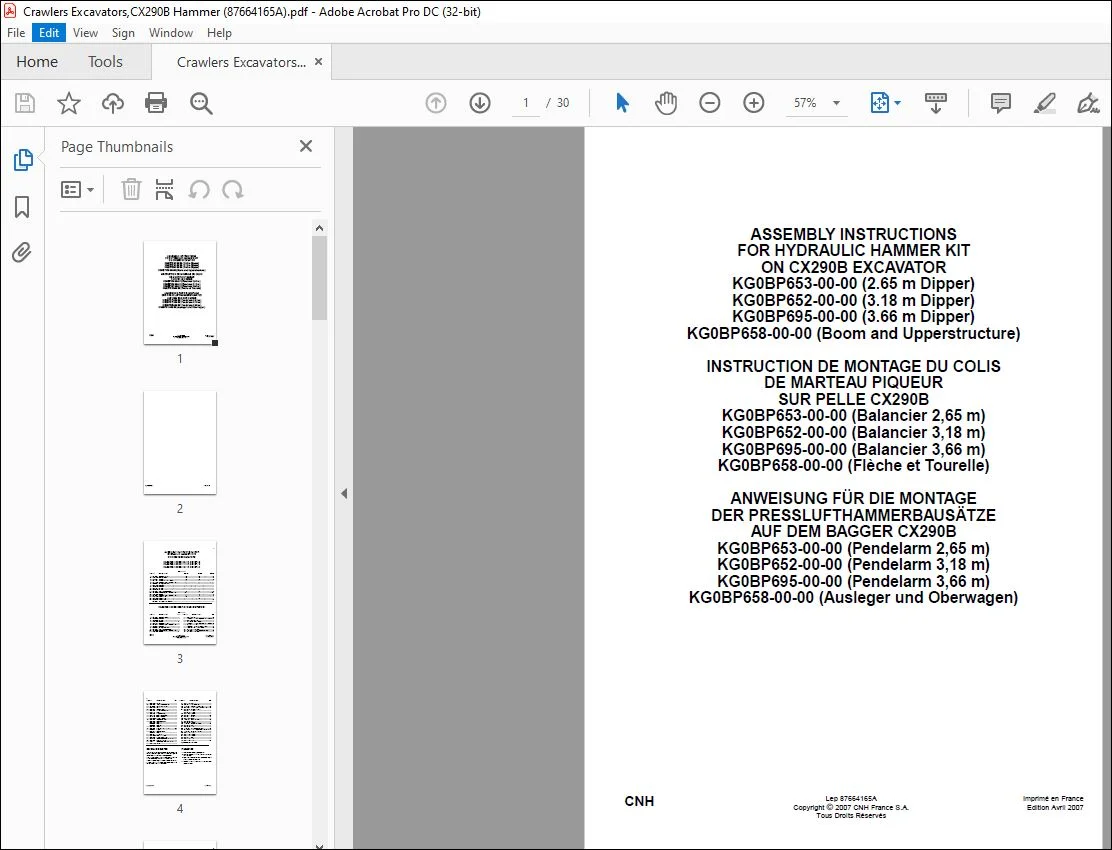

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX290B EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTALLATION INSTRUCTIONS MANUAL 87664165A EN_DE_FR – PDF DOWNLOAD

ITEMP/N DESCRIPTION Qty (a) Qty (b) Qty (c)
1. 162335A1 Plug (CAJ3912) …………………………………………….2 …………………………….2 …………………………….. 2
2. KHV10700 Shut-off valve………………………………………………..2 …………………………….2 …………………………….. 2
3. KHV0451 Adaptor ………………………………………………………..2 …………………………….2 …………………………….. 2
4. 150811A1 Washer W12 (KHN0296) ………………………………..4 …………………………….4 …………………………….. 4
5. 827-12080 Screw M12x80 (102R012Y080R) …………………….4 …………………………….4 …………………………….. 4
6. 164450A1 O-ring (LBQ5222) ………………………………………….4 …………………………….4 …………………………….. 4
7. KBV16080 RH pipe………………………………………………………..1 ……………………………. – ……………………………… –
8. KBV14730 RH pipe…………………………………………………………- …………………………….1 …………………………….. 1
9. KBV16070 LH pipe ………………………………………………………..1 ……………………………. – ……………………………… –
10. KBV14720 LH pipe …………………………………………………………- …………………………….1 …………………………….. 1
11. 150124A1 Half-clamp (KTJ0029)…………………………………..12 …………………………..12 …………………………… 12
12. 862-14050 Screw M14x50 (108R014Y050R) …………………..24 …………………………..24 …………………………… 24
13. KHV11060 Clamp ………………………………………………………….4 …………………………….8 …………………………….. 8
14. 166352A1 Screw M12x30 (105R012Y030R) …………………….4 …………………………….8 …………………………….. 8
15. KRV16090 Hose L=2150 ………………………………………………..2 ……………………………. – ……………………………… –
13. KBV15980 Hose L=1900 …………………………………………………- …………………………….2 ……………………………… –
13. KBV17880 Hose L=2400 …………………………………………………- ……………………………. – …………………………….. 2
153591A1 Loctite 262 (KRC5007) …………………………………..1 …………………………….1 …………………………….. 1
KG0BP658-00-00 (boom and upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. 152924A1 Plug (BRJ1286) ………………………… 2
2. KBV14690 RH pipe……………………………………. 1
3. KBV14680 LH pipe ……………………………………. 1
4. KHV11050 Clamp ……………………………………… 4
5. KBV15210 Clamping bracket ………………………. 2
6. 167183A1 Screw M12x60 (105R012Y060R) . 12
7. KBV14710 RH pipe……………………………………. 1
8. 164450A1 O-ring (LBQ5222) ……………………… 4
9. 150124A1 Half-clamp (KTJ0029)………………… 8
10. 862-14050 Screw M14x50 (105R014Y050R) . 16
11. KHV11060 Clamp ……………………………………… 4
12. KHV11070 Clamp……………………………………….2
13. 166352A1 Screw M12x30 (105R012Y030R)..23
14. KBV14700 LH pipe ……………………………………..1
15. KHJ10450 Control pedal ……………………………..1
16. 166052A1 Screw M10x25 (105R010Y025R)….2
17. KHJ10711 Bracket ……………………………………..1
18. 150604A1 Washer W10 (KHJ0183)………………6
19. 108R010Y016RScrew M10x16………………………2
20. KHJ10691 Pedal stop………………………………….1
21. 165404A1 Screw M10x20 (KHJ1104) …………..2
22. KHJ10701 Pedal stop………………………………….1
2
Lep 87664165A Issued 04-07
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
23. KHJ10721 Spring ……………………………………… 1
24. 159500A1 Washer W8 (KHN0420) ……………… 1
25. 157740A1 Nut M8 (KHJ0091) …………………….. 1
26. KHJ13850 Pedal ……………………………………….. 1
27. KHJ1820 Screw M10x25 ………………………….. 2
28. 163782A1 Protection (KHP0912) ………………… 1
29. KHP1484 Decal……………………………………….. 1
30. 159002A1 Plug (KHJ0363)…………………………. 2
31. 152127A1 Adaptor (KNJ0758) ……………………. 4
32. 161841A1 Adaptor (CNA0584) …………………… 1
33. KHR10820 Pressure sensor………………………… 1
34. 150913A1 Elbow (KHJ0341) ………………………. 4
35. KHJ12290 Batch of 3 hoses
KHJ13660 Hose Y1 …………………………………… 1
KHJ2050 Hose P5 …………………………………… 1
KHJ2050 Hose T5 …………………………………… 1
36. KHJ1178 Elbow ………………………………………. 1
37. 150496A1 Plastic clip (KHH0142) ……………….xx
38. KHJ2773 T-piece …………………………………….. 2
39. KRJ12470 Batch of 1 hose
KHJ2309 Hose Y2 …………………………………… 1
40. KHJ14640 Protection…………………………………. 1
41. KHR15960 Electrical harness ……………………… 1
42. 158962A1 Bracket (KHR1317) ……………………. 4
43. 166345A1 Screw M8x16 (105R008Y016R) ….. 4
44. 150860A1 Base (KHR0319)……………………….. 7
45. 840-168 Screw M6x8 (145T006S008R)…….. 7
46. KHR14060 Switch ……………………………………… 1
47. KHJ11730 Manifold …………………………………….1
48. KHR14470 Pressure sensor …………………………1
49. 153081A1 Washer M8 (KAJ1500) ………………..2
50. 827-8055 Screw M8x55 (102R008Y055R)……2
51. KRJ16520 Batch of 2 hoses
KHJ2292 Hose F1 …………………………………….1
KHJ15120 Hose F2 …………………………………….1
52. KRJ11470 Bracket………………………………………1
53. KHJ1349 Adaptor ……………………………………..2
54. KHJ1361 O-ring ……………………………………….3
55. KHJ11370 Elbow………………………………………..1
56. 157586A1 Elbow (KHJ0351)………………………..2
57. KHJ15050 Manifold …………………………………….1
58. KRJ16050 Bracket………………………………………1
59. 151655A1 Adaptor (KNJ0606)……………………..2
60. KRJ16400 Manifold …………………………………….1
61. KBJ12510 Hose …………………………………………1
62. 153459A1 Half-clamp (KRJ2682) …………………2
63. 862-10030 Screw M10x30 (108R010Y030R)….4
64. 155211A1 O-ring (LBQ6219) ……………………….1
65. KBJ11830 Hose …………………………………………1
66. KBJ11850 Bracket………………………………………1
67. KBJ11860 Bracket………………………………………1
68. KHJ2680 Clip …………………………………………..1
69. KBJ11820 Hose …………………………………………1
70. KBJ11790 Hose …………………………………………
