GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and letters in these
instructions are the same as those used in the
illustrations.
Special torque settings are shown in these
instructions. If a torque setting is not shown, use the
standard torque setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and lower
it to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

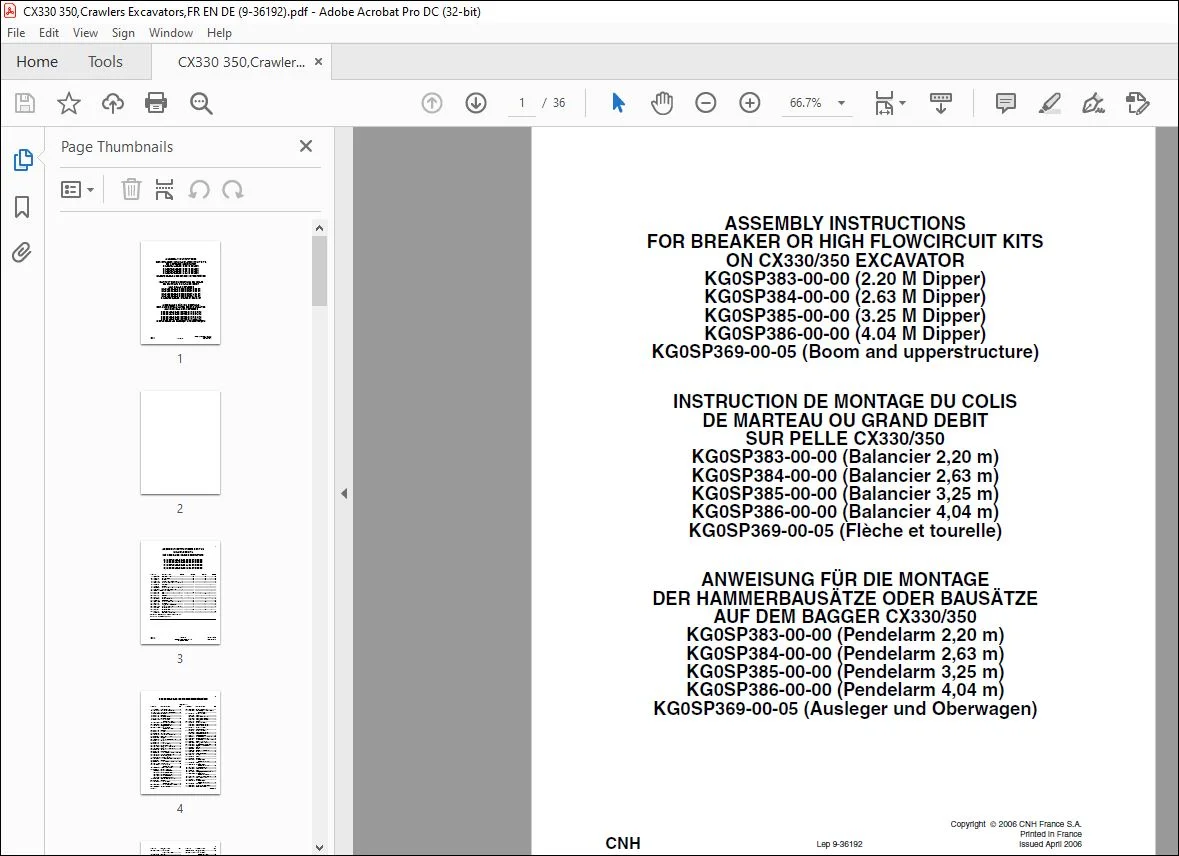

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX330 350 EXCAVATOR BREAKER OR HIGH FLOWCIRCUIT KITS ASSEMBLY INSTRUCTIONS MANUAL 9-36192 – PDF DOWNLOAD

ITEMP/N DESCRIPTION Qty (a) Qty (b) Qty (c) Qty (d)
1. 162335A1 Plug (CAJ3912) ………………………… 2 ……………………. 2 ………………………2 …………………….2
2. KHV0389 Shut-off valve……………………………. 2 ……………………. 2 ………………………2 …………………….2
3. KHV0451 Adaptor ……………………………………. 2 ……………………. 2 ………………………2 …………………….2
4. 150811A1 Washer SW12 (KHN0296)………….. 4 ……………………. 4 ………………………4 …………………….4
5. 827-12080 Screw M12x80 (102R012Y080R)… 4 ……………………. 4 ………………………4 …………………….4
6. KRV3226 Manifold …………………………………… 2 …………………….. – ………………………- ……………………..-
7. KRV3227 Bracket…………………………………….. 2 …………………….. – ………………………- ……………………..-
8. 166373A1 Screw M16x40 (105R016Y040R)… 2 …………………….. – ………………………- ……………………..-
9. 150418A1 Washer M14 (KEH0116)…………….. 4 …………………….. – ………………………- ……………………..-
10. 108R014Y045RScrew M14x45………………………. 20 …………………….. – ………………………- ……………………..-
11. KSV1434 Pipe …………………………………………. – ……………………. 2 ………………………- ……………………..-
11. KSV1436 Pipe …………………………………………. – …………………….. – ………………………2 ……………………..-
12. KSV1514 RH pipe…………………………………….. – …………………….. – ………………………- …………………….1
13. KSV1515 LH pipe …………………………………….. – …………………….. – ………………………- …………………….1
14. 164450A1 O-ring (LBQ5222) ……………………… 6 ……………………. 6 ………………………6 …………………….6
15. 150124A1 Clamp (KTJ0029) ……………………. 12 ………………….. 12 ………………………12 …………………12
16. 862-14050 Screw M14x50 (108R014Y050R)… 8 ………………….. 24 ………………………24 …………………24
17. KTV1209 Retaining clamp…………………………. – ……………………. 4 ………………………4 …………………….4
18. 150814A1 Washer W16 (KHN0297) …………….. – ……………………. 4 ………………………4 …………………….4
19. 827-16080 Screw M16x80 (102R016Y080R)…. – ……………………. 4 ………………………4 …………………….4
20. KSV1546 Hose L=2200 ……………………………. 2 …………………….. – ………………………- ……………………..-
20. KSV1371 Hose L=2250 …………………………….. – ……………………. 2 ………………………2 ……………………..-
20. KSV1517 Hose L=2600 …………………………….. – …………………….. – ………………………- …………………….2
153591A1 Loctite 262 (KRC5007) ………………. 1 ……………………. 1 ………………………1 …………………….1
NOTE: The circuit on the 4.04 m dipper is not
available on the CX350 excavator.
2
Lep 9-36192 Issued 04-06
KG0SP369-00-05 (boom and upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. 152924A1 Plug (BRJ1286)…………………….3
2. 150067A1 Clip L=150 (KAR0016) …………..1
3. 150814A1 Washer W16 (KHN0297) ………22
4. KHJ11460 Reducing ring……………………….1
5. KSV1383 RH pipe……………………………….1
6. KSV1384 Retaining clamp ……………………1
7. KTV1209 Retaining clamp ………………….13
8. 827-16080 Screw M16x80
(102R016Y080R) …………..12
9. 162610A1 Hose L1300 (KTV0866)………….2
10. 164450A1 O-ring (LBQ5222) ……………….15
11. 150124A1 Clamp (KTJ0029) ………………..20
12. 862-14050 Screw M14x50
(108R014Y050R) …………..16
13. KSV1385 RH pipe……………………………….1
14. KSV1386 LH pipe ……………………………….1
15. KRJ5864 Control pedal ……………………….1
16. 150604A1 Washer W10 (KHJ0183)…………4
17. KHR3353 Electrical harness …………………1
18. KHJ1643 Bracket ……………………………….1
19. 165404A1 Screw M10x20 (KHJ1104) ……..2
20. KHJ1614 Carpet…………………………………1
21. KHJ1629 Pedal ………………………………….1
22. KHJ1820 Screw M10x25 ……………………..2
23. 169357A1 Decal (KHP1465) ………………….1
24. 150913A1 Elbow union (KHJ0341)………….8
25. 150933A1 Elbow union (KHJ0348)………….2
26. KHJ0994 Adaptor ……………………………….1
27. KHJ1655 Manifold block ………………………1
28. 827-8055 Screw M8x55 (102R008Y055R) 2
29. 153081A1 Washer M8 (KAJ1500) …………..8
30. 152127A1 Union (KNJ0758) ………………..11
31. KHR10800 Pressure switch…………………….1
32. 162538A1 Solenoid valve block (KRJ3557) 1
33. KRJ5751 Bracket ……………………………….1
34. 627-6012 Screw M6x12 (102R006Y012R) 2
35. 183-106VR Washer W6 ………………………….2
36. 166346A1 Screw M10x16
(105R010Y016R) …………….2
37. 159497A1 T-piece (KHJ0869) ………………..2
38. KRJ6217 Batch of 5 hoses
161483A1 Hose Y1 (KBJ2346) ……………….1
165147A1 Hose Y2 (KNJ1700) ……………….1
164236A1 Hose P5 (KAJ3183) ……………….1
159013A1 Hose T5 (KRJ3571) ……………….1
159235A1 Hose D5 (KRJ3572) ……………….1
39. KHJ1340 Outflow reinjection block ………..1
40. KSJ2804 Bracket ……………………………….1
41. 166052A1 Screw M10x25
(105R010Y025R) …………….9
42. 152718A1 Screw M12x25 (KHN1079) ……..6
43. 167853A1 Adaptor (KHJ0651) ……………….1
44. 162654A1 Adaptor (KHJ0882)………………. 1
45. 158186A1 Connecting rod shuttle block
(KHJ0579) …………………….. 1
46. KSJ2806 Batch of 4 hoses
KHJ1772 Hose Y1……………………………… 1
161272A1 Hose Y3 (MPJ2142) ……………… 1
157839A1 Hose Y2 (MPJ5070) ……………… 1
152581A1 Hose Y5 (KMA0951) …………….. 1
47. KHJ1222 Elbow ………………………………… 1
48. KSJ2807 Batch of 2 hoses
159019A1 Hose A3 (KNJ1699) ……………… 1
159019A1 Hose A1 (KNJ1699) ……………… 1
49. KSJ2691 Batch of 1 hose
164727A1 Hose A2 (KHJ1150) ……………… 1
50. KSJ2808 Batch of 2 hoses
161648A1 Hose Y4 (KNJ1849) ……………… 1
152514A1 Hose D6 (KTJ0906)………………. 1
51. KHJ1951 Retaining clamp ………………….. 3
52. 627-8012 Screw M8x12 (102R008Y012R) 6
53. 150860A1 Bracket (KHR0319) ……………… 6
54. 840-168 Screw M6x8 (145T006S008R).. 6
55. KHR3351 Electrical harness………………… 1
56. 165405A1 Coupler (KHR1957) ……………… 2
57. 156559A1 Screw M6x12 (KHR1252) ……… 2
58. 150496A1 Plastic clip (KHH0142) …………. 6
59. KHR2948 Switch ……………………………….. 1
60. KSP0857 Decal…………………………………. 1
61. 150071A1 Plastic clip (KAR0017)…………. xx
62. KHJ1348 Adaptor ……………………………… 3
63. 152012A1 Union (KNJ0700)…………………. 1
64. KHJ1360 O-ring………………………………… 4
65. KSJ2803 Hose …………………………………. 1
66. KSJ2749 Bracket ………………………………. 1
67. 166352A1 Screw M12x20
(105R012Y030R)……………. 9
68. KSJ2805 Pipe…………………………………… 1
69. 862-10030 Screw M10x30
(108R010Y030R)……………16
70. 154528A1 O-ring (LBQ0302)………………… 1
71. 159198A1 Union (KNJ1936)…………………. 1
72. KRJ5937 Hose …………………………………. 1
73. 151486A1 Retaining clamp (KRV0548) ….. 1
74. 827-12070 Screw M12x70
(102R012Y070R)……………. 1
75. 150811A1 Washer W12 (KHN0296) ………. 2
76. 829-1412 Nut (164R012SR) ………………… 1
77. KSJ2741 Bracket ………………………………. 1
78. 627-16030 Screw M16x30
(102R016Y030R)……………. 8
79. KSJ2740 Manifold …………………………….. 1
80. 162656A1 Safety valve (KSJ2292) ………… 1
81. 162658A1 Block (KSJ2256)………………….. 1
3
Lep 9-36192 Issued 04-06
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
82. 862-16030 Screw M16x30
(108R016Y030R) ……………. 4
83. KSJ2743 Bracket ………………………………. 1
84. KSJ2755 Control valve ………………………. 1
85. 162667A1 Manifold (KSJ2372) ……………… 1
86. 184-014VR Washer W14……………………….. 4
87. 862-14090 Screw M14x90
(108R014Y090R) ……………. 4
88. 157582A1 Elbow (KHJ0346)…………………. 2
89. KSJ2802 Pipe…………………………………… 1
90. 154548A1 O-ring (LBQ0352) ………………… 1
91. 862-10035 Screw M10x35
(108R010Y035R) ……………. 4
92. KSJ2844 Hose………………………………….. 1
93. 153459A1 Clamp (KRJ2682) ………………… 4
94. 155211A1 O-ring (LBQ6219) ………………… 2
95. 108R014Y045R Screw M14x45 ………………. 28
96. KSJ2750 Hose………………………………….. 1
97. 157856A1 Clamp (KRJ4117) ………………… 6
98. KSJ2753 Bracket ………………………………. 1
99. 159704A1 Oil filter (KRJ3546) ………………. 1
100.KSJ2752 Coupling flange……………………. 2
101. 862-10025 Screw M10x25
(108R010Y025R) ………….. 16
102. 154625A1 O-ring (LBQ0553) ………………… 2
103.KSJ2800 Bracket ………………………………. 1
104.KSJ2799 Pipe …………………………………… 1
105.KSJ2737 Hose ………………………………….. 1
106. 827-16110 Screw M16x110
(102R016Y110R) ……………. 1
107. 829-1416 Nut M16 (162R016VR)………….. 1
108. 159047A1 Adaptor (BDJ0218) ………………. 1
109.KSJ2751 Hose ………………………………….. 1
110.KSJ2754 Hose ………………………………….. 1
111.KSJ2742 Hose ………………………………….. 2
112. 157249A1 Safety valves
(KHP0401) …………………….. 2
153591A1 Loctite (KRC5007)………………… 1

PLEASE NOTE:
