ASSEMBLY INSTRUCTIONS FOR HYDRAULIC LOW FLOW CIRCUIT KIT
ON CX350B /CX370B EXCAVATOR
KG0SP646-00-00 (2.20 M Dipper)
KG0SP645-00-00 (2.63 M Dipper)
KG0SP643-00-00 (3.25 M Dipper)
KG0SP644-00-00 (4.04 M Dipper)
KG0SP649-00-00 (Boom and upperstructure + Option.1)
KG0SP650-00-00 (Boom and upperstructure)
KG0SP651-00-00 (Boom and upperstructure S/V)

GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to consult
the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
settings shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

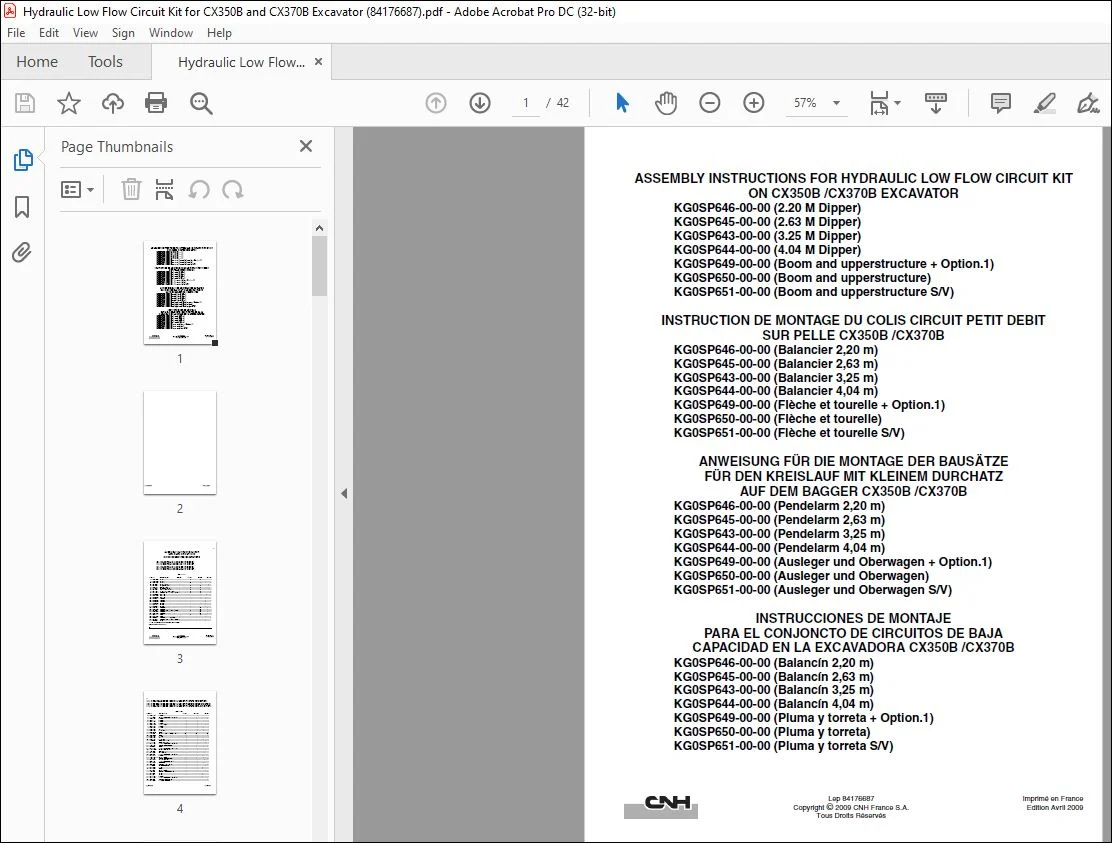

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX350B CX370B EXCAVATOR ASSEMBLY INSTRUCTIONS FOR HYDRAULIC LOW FLOW CIRCUIT KIT INSTALLATION INSTRUCTIONS MANUAL 84176687 – PDF DOWNLOAD

ITEMP/N DESCRIPTION Qty (a) Qty (b) Qty (c) Qty (d)
1. KHV11380 Bracket …………………………………….. – …………………….3 …………………….3 ……………………. 3
1. KHV10930 Bracket ……………………………………. 3 ……………………. – ……………………..- …………………….. –
2. KHV10960 Bracket …………………………………….. – …………………….2 …………………….4 ……………………. 6
2. 163304A1 Bracket (KLV0189)…………………….. 2 ……………………. – ……………………..- …………………….. –
3. 152924A1 Plug (BRJ1286) ………………………… 3 …………………….3 …………………….3 ……………………. 3
4. KHV10710 Shut-off valve……………………………. 3 …………………….3 …………………….3 ……………………. 3
5. 157580A1 Elbow (KHJ0344) ……………………… 1 ……………………. – ……………………..- …………………….. –
6. 167248A1 Adaptor (KAJ3910)……………………. 2 …………………….3 …………………….3 ……………………. 3
7. 150811A1 Washer W12 (KHN0296)……………. 6 …………………….6 …………………….6 ……………………. 6
8. 827-12075 Screw M12x75 (102R012Y075R)… 6 …………………….6 …………………….6 ……………………. 6
9. KSV17920 RH pipe ……………………………………. – ……………………. – …………………….1 …………………….. –
9. KSV18000 RH pipe ……………………………………. – ……………………. – ……………………..- ……………………. 1
9. KSV17960 RH pipe ……………………………………. – …………………….1 ……………………..- …………………….. –
10. KSV17910 LH pipe …………………………………….. – ……………………. – …………………….1 …………………….. –
10. KSV17990 LH pipe …………………………………….. – ……………………. – ……………………..- ……………………. 1
10. KSV17950 LH pipe …………………………………….. – …………………….1 ……………………..- …………………….. –
11. KSV17930 Dr pipe……………………………………… – ……………………. – …………………….1 …………………….. –
11. KSV18010 Dr pipe……………………………………… – ……………………. – ……………………..- ……………………. 1
11. KSV17970 Dr pipe……………………………………… – …………………….1 ……………………..- …………………….. –
12. KHV11410 Retaining clamp…………………………. – …………………….1 …………………….2 ……………………. 3
13. KHV10450 Retaining clamp…………………………. – …………………….1 …………………….2 ……………………. 3
14. 166352A1 Screw M12x30 (105R012Y030R)…. – …………………….6 …………………..12 ………………….. 18
15. KHV11420 Retaining clamp…………………………. – …………………….1 …………………….2 ……………………. 3
16. KHV10460 Retaining clamp…………………………. – …………………….1 …………………….2 ……………………. 6
17. KTV13190 Hose……………………………………….. 1 …………………….3 …………………….3 ……………………. 3
18. KSV18080 Hose……………………………………….. 2 ……………………. – ……………………..- …………………….. –
19. 151486A1 Retaining clamp (KRV0548) ……….. 2 ……………………. – ……………………..- …………………….. –
20. 167183A1 Screw M12x60 (105R012Y060R)… 2 ……………………. – ……………………..- …………………….. –
21. KTV1439 Pipe ………………………………………… 2 ……………………. – ……………………..- …………………….. –
NOTE: The circuit on the 4.04 m dipper is not available
on the CX370B excavator.
2
Lep 84176687 Issued 04-09
(a); KG0SP649-00-00 (boom & upperstructure with option)
(b); KG0SP650-00-00 (boom & upperstructure without option)
(c); KG0SP651-00-00 (boom & upperstructure with S/V circuit)
PARTS LIST
ITEMP/N DESCRIPTION Qty (a) Qty (b) Qty (c)
1. KSV18091 Bracket………………………………………………………… 1 ……………………….1 ………………………1
2. 167183A1 Screw M12x60 (105R012Y060R) ………………….. 12 ……………………..12 …………………….12
3. KSV18100 Bracket………………………………………………………… 2 ……………………….2 ………………………2
4. KTV12910 Bracket………………………………………………………… 1 ……………………….1 ………………………1
5. KTV12900 Bracket………………………………………………………… 1 ……………………….1 ………………………1
6. KTV12930 Bracket………………………………………………………… 1 ……………………….1 ………………………1
7. KHV11670 Screw M12x80 …………………………………………….. 4 ……………………….4 ………………………4
8. KTV12920 Bracket………………………………………………………… 1 ……………………….1 ………………………1
9. KSV18550 RH pipe……………………………………………………….. 1 ……………………….1 ………………………1
10. KSV18540 LH pipe ……………………………………………………….. 1 ……………………….1 ………………………1
11. KSV18561 LH Dr pipe……………………………………………………. 1 ……………………….1 ………………………1
12. KHV10450 Clamp …………………………………………………………. 5 ……………………….5 ………………………5
13. 166352A1 Screw M 12×30 (105R012Y030R) …………………. 20 ……………………..20 …………………….20
14. KHV10460 Clamp …………………………………………………………. 5 ……………………….5 ………………………5
15. KSV17900 RH pipe……………………………………………………….. 1 ……………………….1 ………………………1
16. KSV17890 LH pipe ……………………………………………………….. 1 ……………………….1 ………………………1
17. KSV18070 LH Dr pipe……………………………………………………. 1 ……………………….1 ………………………1
18. 152742A1 Clamp (KNJ1101) …………………………………………. 1 ……………………….1 ………………………1
19. 167227A1 Clamp (KAJ3787) …………………………………………. 1 ……………………….1 ………………………1
20. 827-12050 Screw M12x50 (102R012Y050R) ……………………. 1 ……………………….1 ………………………1
21. 150811A1 Washer W12 (KHN0296) ……………………………….. 2 ……………………….2 ………………………2
22. KRA0270 Clamp …………………………………………………………. 2 ……………………….2 ………………………2
23. 827-12070 Screw M12x70 (102R012Y070R) ……………………. 1 ……………………….1 ………………………1
24. 162R012VR Nut M12 (829-1412)………………………………………. 1 ……………………….1 ………………………1
25. 153683A1 Plug (KHJ0481) ……………………………………………. 3 ……………………….3 ………………………3
26. KHJ10450 Control pedal ……………………………………………….. 1 ……………………….1 ……………………….-
27. 166052A1 Screw M10x25 (105R010Y025R) ……………………. 8 ……………………….8 ………………………6
28. KHJ10711 Bracket………………………………………………………… 1 ……………………….1 ……………………….-
29. 108R010Y016R Screw M10x16……………………………………………… 2 ……………………….2 ……………………….-
30. 150604A1 Washer W10 (KHJ0183) ………………………………… 6 ……………………….6 ……………………….-
31. KHJ10681 LH pedal bracket…………………………………………… 1 ……………………….1 ……………………….-
32. 165404A1 Screw M10x20 (KHJ1104)……………………………… 2 ……………………….2 ……………………….-
33. KHJ10701 Pedal stop……………………………………………………. 1 ……………………….1 ……………………….-
34. 159500A1 Washer W8 (KHN0420) …………………………………. 1 ……………………….1 ……………………….-
35. 157740A1 Nut M8 (KHJ0091) ………………………………………… 1 ……………………….1 ……………………….-
36. KHJ10721 Spring …………………………………………………………. 1 ……………………….1 ……………………….-
37. KHJ13850 Pedal…………………………………………………………… 1 ……………………….1 ……………………….-
38. KHJ1820 Screw M10x25……………………………………………… 2 ……………………….2 ……………………….-
39. 163782A1 Pedal protection (KHP0912) …………………………… 1 ……………………….1 ……………………….-
40. KHP1510 Decal……………………………………………………………. – ……………………….1 ……………………….-
41. KHP1511 Decal…………………………………………………………… 1 ………………………. – ……………………….-
42. KHJ15190 Bracket…………………………………………………………. – ………………………. – ………………………1
43. 627-10035 Screw M10x35 (102R010Y035R) …………………….. – ………………………. – ………………………2
44. 150409A1 Washer W10 (KEH0114) ………………………………… – ………………………. – ……………………… 2
45. KHJ14000 Solenoid valve block ………………………………………. – ………………………. – ………………………1
3
Lep 84176687 Issued 04-09
ITEMP/N DESCRIPTION Qty (a) Qty (b) Qty (c)
46. 166351A1 Screw M10x20 (105R010Y020R) ……………………. 2 ……………………….2 ……………………… 4
47. 162554A1 Adaptor (KHJ0626)………………………………………… – ………………………..- ……………………… 1
48. KHR15060 Electrical harness ………………………………………….. – ………………………..- ……………………… 1
49. KHR15960 Electrical harness …………………………………………. 1 ……………………….1 ………………………. –
50. KHR10820 Pressure switch ……………………………………………. 1 ……………………….1 ………………………. –
51. 152127A1 Adaptor (KNJ0758)……………………………………….. 3 ……………………….5 ……………………… 4
52. 158962A1 Bracket (KHR1317)……………………………………….. 4 ……………………….4 ……………………… 2
53. 166345A1 Screw M8x16 (105R008Y016R) ……………………… 4 ……………………….4 ……………………… 2
54. KRJ10330 Option control valve section……………………………. 1 ……………………….1 ……………………… 1
55. 159002A1 Plug (KHJ0363) ……………………………………………. 1 ……………………….1 ……………………… 1
56. 161841A1 Adaptor (CNA0584) ………………………………………. 1 ……………………….1 ……………………… 1
57. 159497A1 T-piece (KHJ0869) ………………………………………… 2 ………………………..- ………………………. –
58. 150913A1 Adaptor (KHJ0341)……………………………………….. 1 ……………………….1 ……………………… 1
59. 150933A1 Adaptor (KHJ0348)……………………………………….. 1 ……………………….1 ……………………… 1
60. KSJ13570 Set of 4 hoses
KHJ18110 Hose Y6………………………………………………………. 1 ……………………….1 ………………………1
KHJ18680 Hose Y7 ……………………………………………………… 1 ……………………….1 ………………………1
KHJ2088 Hose P6 ……………………………………………………… 1 ……………………….1 ………………………1
KHJ2088 Hose T6 ……………………………………………………… 1 ……………………….1 ………………………1
61. 150860A1 Base (KHR0319) ………………………………………….. 7 ……………………….7 ……………………… 7
62. 840-168 Screw M6x8 (145T006S008R) ……………………….. 7 ……………………….7 ……………………… 7
63. 150496A1 Plastic clip L=250 (KHH0142)…………………………xx …………………….. xx ……………………. xx
64. KSJ14010 Power takeoff ……………………………………………….. 1 ……………………….1 ……………………… 1
65. KRJ10300 Option pump ………………………………………………… 1 ……………………….1 ……………………… 1
66. 154697A1 O-ring (LBQ0853) …………………………………………. 1 ……………………….1 ……………………… 1
67. 150409A1 Washer W10 (KEH0114) ……………………………….. 2 ……………………….2 ……………………… 2
68. 862-10030 Screw M10x30 (108R010Y030R) ……………………. 2 ……………………….2 ……………………… 2
69. 163636A1 Elbow (KTJ1778) ………………………………………….. 1 ……………………….1 ……………………… 1
70. 151650A1 Adaptor (KNJ0604)……………………………………….. 1 ……………………….1 ……………………… 1
71. KTJ2249 Hose …………………………………………………………… 1 ……………………….1 ……………………… 1
72. KSJ13520 Bracket………………………………………………………… 1 ……………………….1 ……………………… 1
73. KRJ11590 Bracket………………………………………………………… 1 ……………………….1 ……………………… 1
74. KSJ13560 Hose …………………………………………………………… 1 ……………………….1 ……………………… 1
75. KHJ2021 Rubber ring …………………………………………………. 1 ……………………….1 ……………………… 1
76. KHJ2025 Clamp …………………………………………………………. 1 ……………………….1 ……………………… 1
77. KBJ12300 Bracket………………………………………………………… 1 ……………………….1 ……………………… 1
78. 157936A1 Elbow (KHJ0642)………………………………………….. 1 ……………………….1 ……………………… 1
79. 168988A1 Adaptor (KHJ1778)……………………………………….. 1 ……………………….1 ……………………… 1
80. 157585A1 Elbow (KHJ0350)………………………………………….. 1 ……………………….1 ……………………… 1
81. KSJ13530 Hose …………………………………………………………… 1 ……………………….1 ……………………… 1
82. KSJ13540 Hose …………………………………………………………… 1 ……………………….1 ……………………… 1
83. KSJ13550 Hose …………………………………………………………… 1 ……………………….1 ……………………… 1
84. KRJ11580 Hose clamp………………………………………………….. 2 ……………………….2 ……………………… 2
