ASSEMBLY INSTRUCTIONS
FOR HYDRAULIC HAMMER KIT
ON CX350B / CX370B EXCAVATOR
KG0SP642-00 (2.20 M Dipper)
KG0SP641-00 (2.63 M Dipper)
KG0SP639-00 (3.25 M Dipper)
KG0SP640-00 (4.04 M Dipper)
KG0SP647-00-01 (Boom and upperstructure)

GENERAL INFORMATION:
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to consult
the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
settings shown in the Service Manual.
PREPARATION:
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

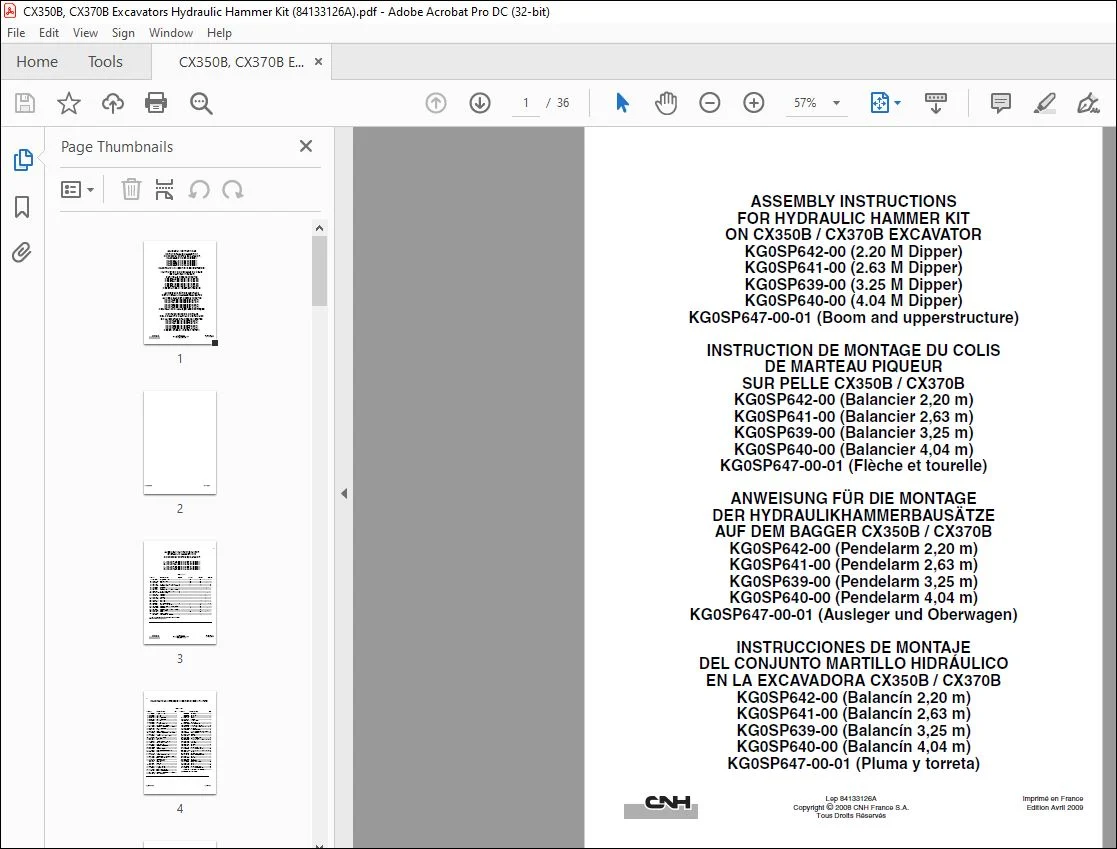

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX350B CX370B EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 84133126A EN_DE_FR_ES – PDF DOWNLOAD

ITEMP/N DESCRIPTION Qty (a) Qty (b) Qty (c) Qty (d)
1. 162335A1 Plug (CAJ3912) ………………………… 2 …………………….2 …………………….2 ……………………. 2
2. KHV11100 Shut-off valve……………………………. 2 …………………….2 …………………….2 ……………………. 2
3. KHV0451 Adaptor……………………………………. 2 …………………….2 …………………….2 ……………………. 2
4. 150811A1 Washer SW12 (KHN0296) …………. 4 …………………….4 …………………….4 ……………………. 4
5. 827-12090 Screw M12x90 (102R012Y090R)… 4 …………………….4 …………………….4 ……………………. 4
6. KRV3226 Manifold…………………………………… 2 ……………………. – ……………………..- …………………….. –
7. KRV3227 Bracket ……………………………………. 2 ……………………. – ……………………..- …………………….. –
8. 166373A1 Screw M16x40 (105R016Y040R)… 2 ……………………. – ……………………..- …………………….. –
9. 150418A1 Washer M14 (KEH0116) ……………. 4 ……………………. – ……………………..- …………………….. –
10. 108R014Y045RScrew M14x45 ……………………….. 4 ……………………. – ……………………..- …………………….. –
11. KSV16440 LH pipe …………………………………….. – …………………….1 ……………………..- …………………….. –
11. KSV17100 LH pipe …………………………………….. – ……………………. – …………………….1 …………………….. –
11. KSV16370 LH pipe …………………………………….. – ……………………. – ……………………..- ……………………. 1
12. KSV16450 RH pipe ……………………………………. – …………………….1 ……………………..- …………………….. –
12. KSV17110 RH pipe ……………………………………. – ……………………. – …………………….1 …………………….. –
12. KTV16360 RH pipe ……………………………………. – ……………………. – ……………………..- ……………………. 1
13. 164450A1 O-ring (LBQ5222)……………………… 4 …………………….4 …………………….4 ……………………. 4
14. 150124A1 Half-clamp (KTJ0029) ……………… 12 …………………..12 …………………..12 ………………….. 12
15. 862-14050 Screw M14x50 (108R014Y050R). 16 …………………..16 …………………..16 ………………….. 16
16. KHV11060 Retaining clamp…………………………. – …………………….8 …………………….8 ……………………. 8
17. 166352A1 Screw M12x30 (105R012Y030R)…. – …………………….8 …………………….8 ……………………. 8
18. KSV18050 Hose L=2100……………………………. 2 ……………………. – ……………………..- …………………….. –
18. KSV15870 Hose ……………………………………….. – …………………….2 …………………….2 …………………….. –
18. KSV16380 Hose L=2500…………………………….. – ……………………. – ……………………..- ……………………. 2
153591A1 Loctite 262 (KRC5007)………………. 1 …………………….1 …………………….1 ……………………. 1
NOTE: The circuit on the 4.04 m dipper is not available
on the CX370B excavator.
2
Lep 84133126A Issued 04-09
KG0SP647-00-01 (monobloc boom and upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. 152924A1 Plug (BRJ1286)………………………. 3
2. KSV15820 RH pipe…………………………………. 1
3. KSV15810 LH pipe …………………………………. 1
4. KHV11200 Retaining clamp ……………………… 8
5. KHV11060 Retaining clamp ……………………… 4
6. KSV15841 RH pipe…………………………………. 1
7. KSV15831 LH pipe …………………………………. 1
8. 164450A1 O-ring (LBQ5222) …………………… 4
9. 150124A1 Half-clamp (KTJ0029) ……………… 4
10. 862-14050 Screw M14x50 (108R014Y050R)16
11. KHV11070 Retaining clamp ……………………… 2
12. KUP0009 Plug ……………………………………… 2
13. KHJ10450 Control pedal …………………………. 1
14. 166052A1 Screw M10x25 (105R010Y025R) . 2
15. KHJ10711 Bracket………………………………….. 1
16. 150604A1 Washers W10 (KHJ0183) …………. 6
17. 108R010Y016RScrew M10x16 …………………….. 2
18. KHJ10701 Pedal stop ……………………………… 1
19. KHJ10721 Spring …………………………………… 1
20. 159500A1 Washer W8 (KHN0420) ……………. 1
21. 157740A1 Nut M8 (KHJ0091) ………………….. 1
22. KHJ10691 Pedal bracket …………………………. 1
23. 165404A1 Screw M10x20 (KHJ1104) ……….. 2
24. KHJ13850 Pedal…………………………………….. 1
25. KHJ1820 Screw M10x25 ……………………….. 2
26. 163782A1 Pedal protection (KHP0912) ……… 1
27. KHP1484 Decal ……………………………………. 1
28. KHJ11730 Manifold ………………………………… 1
29. 153081A1 Washer M8 (KAJ1500) …………….. 2
30. 827-8060 Screw M8x60 (102R008Y060R) … 2
31. 152127A1 Adaptor (KNJ0758) …………………. 2
32. 150913A1 Elbow (KHJ0341) ……………………. 6
33. KSJ13000 Set of 2 hoses
KHJ2394 Hose F1 ………………………………… 1
KHJ2044 Hose F2 ……………………………….. 1
34. KHJ2773 T-piece ………………………………….. 1
35. KHR14470 Pressure switch ………………………. 1
36. 159002A1 Plug (KHJ0363)………………………. 2
37. 152127A1 Adaptor (KNJ0758) …………………. 2
38. 161841A1 Adaptor (CNA0584)…………………. 1
39. 862-14050 Screw M14x50 (108R014Y050R) . 8
40. KSJ13230 Set of 2 hoses
KHJ2050 Hose P5 …………………………………1
KHJ2050 Hose T5………………………………….1
KHJ17550 Hose Y1 ………………………………..1
41. KHJ1178 Elbow …………………………………….1
42. KHJ2773 T-piece……………………………………1
43. KRJ12470 Set of 1 hose
KHJ2309 Hose Y2 …………………………………1
44. KHR10820 Pressure switch ……………………….1
45. 158962A1 Bracket (KHR1317)…………………..4
46. 166345A1 Screw M8x16 (105R008Y016R)….4
47. KHR15960 Harness………………………………….1
48. 150860A1 Base (KHR0319) ……………………..7
49. 840-168 Screw M6x8 (145N006S008R)……7
50. 150496A1 Clip L=250 (KHH0142)……………. xx
51. KHR14060 Switch ……………………………………1
52. KSJ12870 Bracket …………………………………..1
53. 152718A1 Screw (KHN1079)…………………….8
54. KHJ15050 Selector block ………………………….1
55. 166352A1 Screw M12x30 (105R012Y030R)..7
56. KSJ12880 Bracket …………………………………..1
57. KRJ16400 Manifold………………………………….1
58. KHJ1349 Adaptor…………………………………..3
59. KSJ13070 Hose………………………………………1
60. 155211A1 O-ring (LBQ6219) ……………………1
61. 153459A1 Half-clamp (KRJ2682) ………………2
62. 862-10030 Screw M10x30 (108R010Y030R)..4
63. KHJ1361 O-ring …………………………………….3
64. 151655A1 Adaptor (KNJ0606) …………………..1
65. 157581A1 Elbow union (KHJ0345) …………….1
66. KSJ13110 Hose………………………………………1
67. KRJ16280 Bracket …………………………………..1
68. KBJ11860 Support clamp …………………………1
69. KHJ2680 Protection ……………………………….1
70. 157586A1 Elbow (KHJ0351)……………………..2
71. KSJ13100 Hose………………………………………1
72. KSJ13060 Hose………………………………………2
73. 164450A1 O-ring (LBQ5222) …………………….2
74. 150124A1 Half-clamp (KTJ0029) ……………….4
153591A1 Loctite 262 (KRC5007) ……………..1
xx According to requirement
