CNH CX470C CAMERA KIT INSTALLATION INSTRUCTIONS MANUAL 47398787 – PDF DOWNLOAD

Description

CNH CX470C CAMERA KIT INSTALLATION INSTRUCTIONS MANUAL 47398787 – PDF DOWNLOAD

DESCRIPTION:

CNH CX470C CAMERA KIT INSTALLATION INSTRUCTIONS MANUAL 47398787 – PDF DOWNLOAD

PRE-ASSEMBLY
PREPARING FOR ASSEMBLY
Preparation
CX470C WE
An “*” in this document indicates that the part is mounted
on the actual machine.
Items to prepare
• Wrenches ( 10 mm (0.39 in), 13 mm (0.51 in))
• Wire cutters
• Crimping tool
• Magic marker
• Cutters
• Rag
1. Position the main unit.
• Put the main unit on solid, level ground, put the
bucket cylinder at its open stroke end, the arm
cylinder at its open stroke end, lower the boom,
and touch the arm top to the ground.

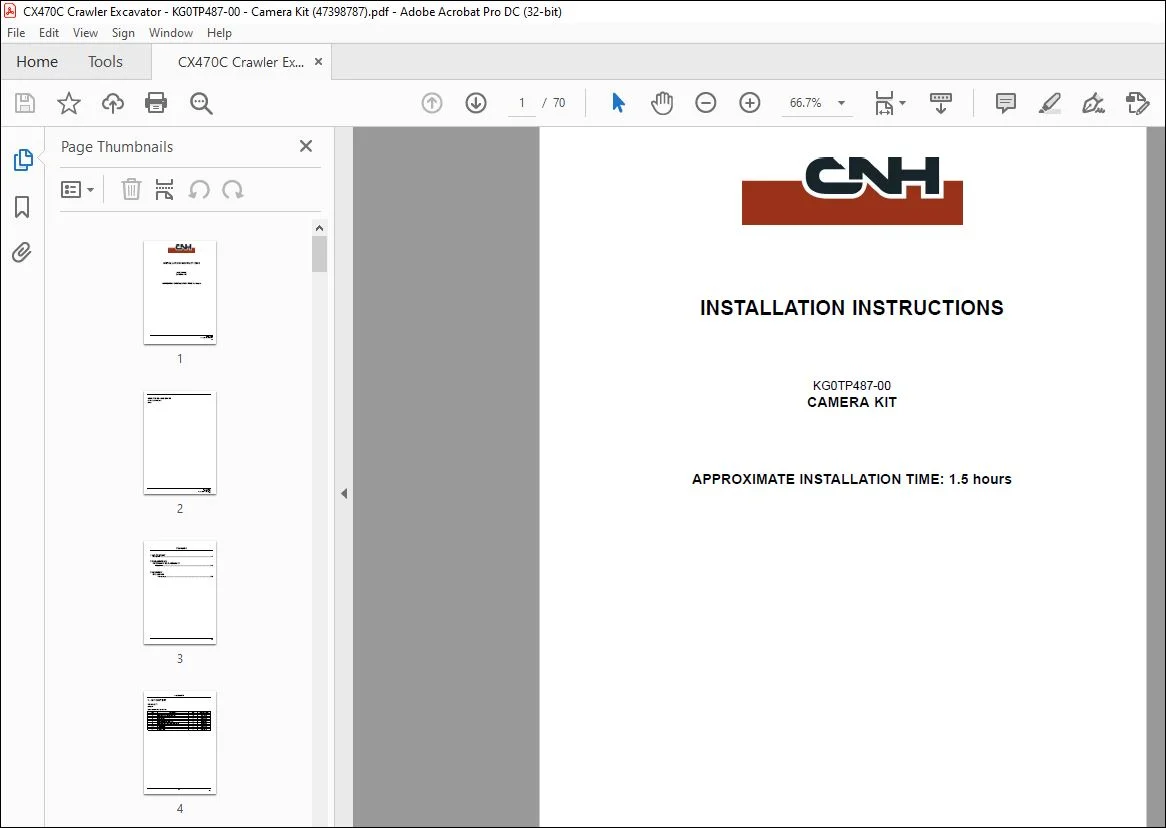

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX470C CAMERA KIT INSTALLATION INSTRUCTIONS MANUAL 47398787 – PDF DOWNLOAD

1 KIT CONTENT
Kit content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
2 PRE-ASSEMBLY
PREPARING FOR ASSEMBLY
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
3 ASSEMBLY
Side camera
Side camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
EN
