ASSEMBLY INSTRUCTIONS
FOR HYDRAULIC HAMMER KIT
ON CX75SR EXCAVATOR
KG0AP657-00 (1.71 m Dipper); (a)
KG0AP613-00 (1.75 m Dipper); (b)
KG0AP666-00 (2.12 m Dipper); (c)
KG0AP810-00-00 (Monobloc boom and upperstructure); (d)
KG0AP811-00-00 (Offset boom and upperstructure); (e)

GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

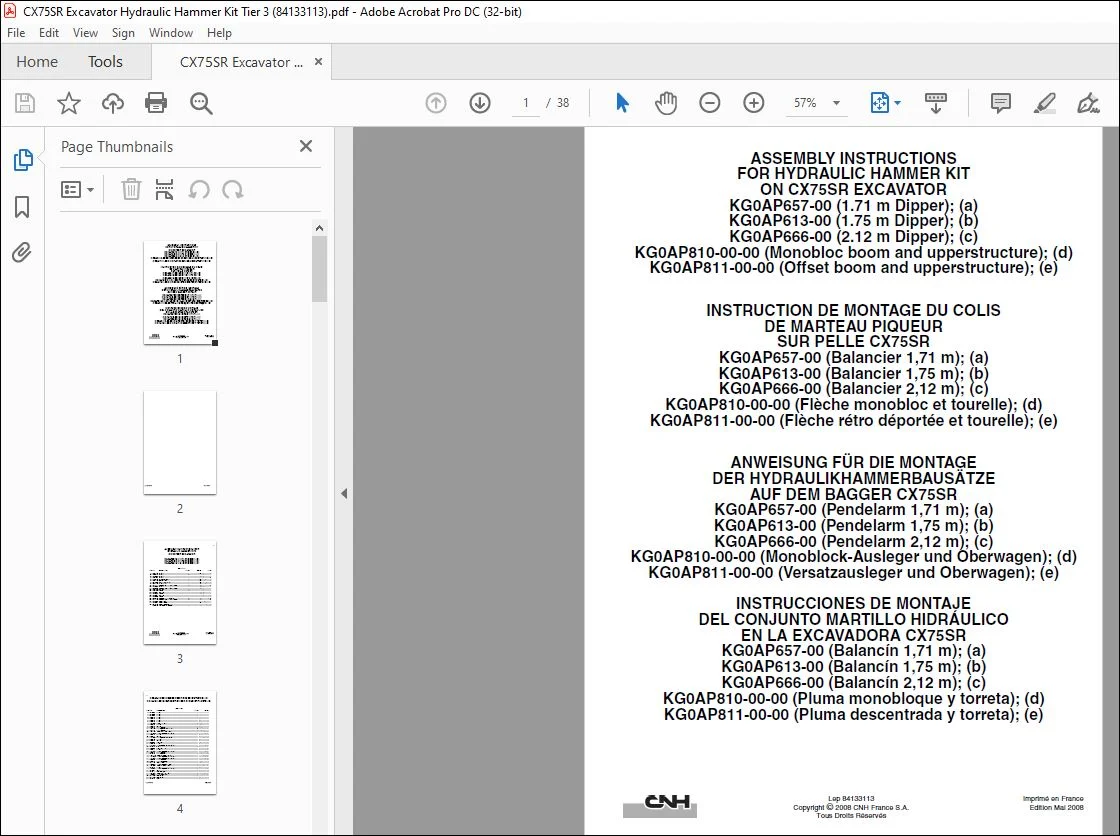

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX75SR EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 84133113 EN_DE_FR_ES – PDF DOWNLOAD

ITEMP/N DESCRIPTION Qty (a) Qty (b) Qty (c)
1. KNV1158 Bracket ……………………………………………………………… 2 …………………………2 ……………………. 2
2. KHB0268 Bracket ……………………………………………………………… 4 ………………………….- …………………….. –
3. KAV2186 Bracket ………………………………………………………………. – …………………………4 …………………….. –
4. KAV1655 Bracket ………………………………………………………………. – ………………………….- ……………………. 4
5. 152924A1 Plug (BRJ1286) ………………………………………………….. 2 …………………………2 ……………………. 2
6. KHV10680 Shut-off valve……………………………………………………… 2 …………………………2 ……………………. 2
7. 167248A1 Adaptor (KAJ3910)……………………………………………… 2 …………………………2 ……………………. 2
8. 183-112VR Washer SW12 ……………………………………………………. 8 …………………………8 ……………………. 8
9. 827-12070 Screw M12x70 (102R012Y070R)………………………….. 4 …………………………4 ……………………. 4
10. KAV2566 Bracket ………………………………………………………………. – …………………………4 …………………….. –
11. 166352A1 Screw M12x30 (105R012Y030R)…………………………… – …………………………4 …………………….. –
12. KAV12880 RH pipe …………………………………………………………….. 1 ………………………….- …………………….. –
13. KAV12890 LH pipe……………………………………………………………… 1 ………………………….- …………………….. –
14. KAV2607 RH pipe ……………………………………………………………… – …………………………1 …………………….. –
15. KAV2608 LH pipe………………………………………………………………. – …………………………1 …………………….. –
16. KAV2557 RH pipe ……………………………………………………………… – ………………………….- ……………………. 1
17. KAV2558 LH pipe………………………………………………………………. – ………………………….- ……………………. 1
18. 166401A1 Retaining clamp (KAV0792) …………………………………. 4 …………………………4 ……………………. 4
19. 827-12060 Screw M12x60 (102R012Y060R)………………………….. 4 …………………………4 ……………………. 4
20. KAV2642 Hose L=920……………………………………………………….. 2 ………………………….- …………………….. –
21. KAV2364 Hose L=2250………………………………………………………. – …………………………2 …………………….. –
22. 167831A1 Hose L=900 (KAV1464)………………………………………… – ………………………….- ……………………. 2
153591A1 Loctite 262 (KRC5007)………………………………………… 1 …………………………1 ……………………. 1
2
Lep 84133113 Edition 05-08
KG0AP810-00 (Monobloc boom and upperstructure); (d)
KG0AP811-00 (Backhoe-offset boom and upperstructure); (e)
PARTS LIST
ITEMP/N DESCRIPTION Qty (d) Qty (e)
1. KHB0268 Bracket ……………………………………………………………………………………………..3 ……………………..-
2. KHB0270 Bracket ……………………………………………………………………………………………..1 ……………………..-
3. KHB0269 Bracket ……………………………………………………………………………………………..1 ……………………..-
4. KAV2166 Bracket ……………………………………………………………………………………………..1 ……………………..-
5. KAV2330 Bracket ………………………………………………………………………………………………- …………………….3
6. KAV2188 Bracket ………………………………………………………………………………………………- …………………….1
7. KAV2712 Bracket ………………………………………………………………………………………………- …………………….1
8. 152924A1 Plug (BRJ1286) ………………………………………………………………………………….2 …………………….2
9. KAV2522 RH pipe …………………………………………………………………………………………….1 ……………………..-
10. KAV2523 LH pipe ……………………………………………………………………………………………..1 ……………………..-
11. KAV0486 Retaining clamp………………………………………………………………………………….2 ……………………..-
12. 166401A1 Retaining clamp (KAV0792) …………………………………………………………………4 …………………….2
13. KAV1583 Retaining clamp………………………………………………………………………………….2 ……………………..-
14. 150811A1 Washer SW12 (KHN0296) …………………………………………………………………..8 …………………….6
15. 827-12060 Screw M12x60 (102R012Y060R)………………………………………………………….8 …………………….6
16. KAV2204 RH pipe ……………………………………………………………………………………………..- …………………….1
17. KAV2711 LH pipe ………………………………………………………………………………………………- …………………….1
18. 167824A1 Retaining clamp (KAV0921) ………………………………………………………………….- …………………….4
19. KAV2205 RH pipe ……………………………………………………………………………………………..- …………………….1
20. KAV2206 LH pipe ………………………………………………………………………………………………- …………………… 1
21. KMJ2323 Hose L=920………………………………………………………………………………………..- …………………….2
22. KAV2199 Bracket ………………………………………………………………………………………………- …………………….1
23. 167182A1 Screw M8x25 (105R008Y025R)…………………………………………………………….- …………………….2
24. KHJ0508 Adaptor ……………………………………………………………………………………………..1 …………………….3
25. KAV2642 Hose L=920 GW………………………………………………………………………………….- …………………….2
26. KAV2331 Bracket ………………………………………………………………………………………………- …………………….2
27. 166352A1 Screw M12x30 (105R012Y030R)…………………………………………………………..- …………………….2
28. KAV2329 Retaining clamp…………………………………………………………………………………..- …………………….2
29. KHJ2023 Retaining clamp………………………………………………………………………………….2 …………………….4
30. 896-11012 Washer W12 (182-012SR) ……………………………………………………………………- …………………….2
31. 827-12080 Screw M12x80 (102R012Y080R)…………………………………………………………..- …………………….2
32. 167183A1 Screw M12x60 (105R012Y060R)…………………………………………………………..- …………………….2
33. KAV2640 Protective decals …………………………………………………………………………………- …………………….5
34. KAV2202 Protective housing ……………………………………………………………………………….- …………………….1
35. KHJ1994 Control pedal ……………………………………………………………………………………..1 …………………….1
36. 150548A1 Screw M10x20 (KHJ0161)……………………………………………………………………2 …………………….2
37. 150604A1 Washer W10 (KHJ0183)………………………………………………………………………2 …………………….2
38. KHJ2568 Bracket ……………………………………………………………………………………………..1 …………………….1
39. 166346A1 Screw M10x16 (105R010Y016R)………………………………………………………….2 …………………….2
40. KHJ2571 Cover ………………………………………………………………………………………………..1 …………………….1
41. KHJ2231 Pedal locking bolt………………………………………………………………………………..1 …………………….1
42. 157558A1 Washer WW8 (KHN0518) ……………………………………………………………………2 …………………….2
43. 157770A1 Nut M8 (KHR0086) ……………………………………………………………………………..2 …………………….2
44. KHJ18760 Floor carpet ……………………………………………………………………………………….1 ……………………..-
45. KHJ18750 Floor carpet ………………………………………………………………………………………..- …………………….1
46. KHJ2229 Pedal ……………………………………………………………………………………………….1 …………………….1
