CNH CX75SR Tier3 EXCAVATOR DOUBLE ACTING KIT ASSEMBLY INSTRUCTIONS MANUAL 84133117 – PDF DOWNLOAD

Description

CNH CX75SR Tier3 EXCAVATOR DOUBLE ACTING KIT ASSEMBLY INSTRUCTIONS MANUAL 84133117 – PDF DOWNLOAD

DESCRIPTION:

CNH CX75SR Tier3 EXCAVATOR DOUBLE ACTING KIT ASSEMBLY INSTRUCTIONS MANUAL 84133117 – PDF DOWNLOAD

ASSEMBLY INSTRUCTIONS
FOR DOUBLE ACTING KIT
ON CX75SR Tier3 EXCAVATOR
KG0AP613-00 (1.75 m Dipper)
KG0AP838-00-00 (Backhoe-offset boom
and upperstructure)

GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to consult
the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

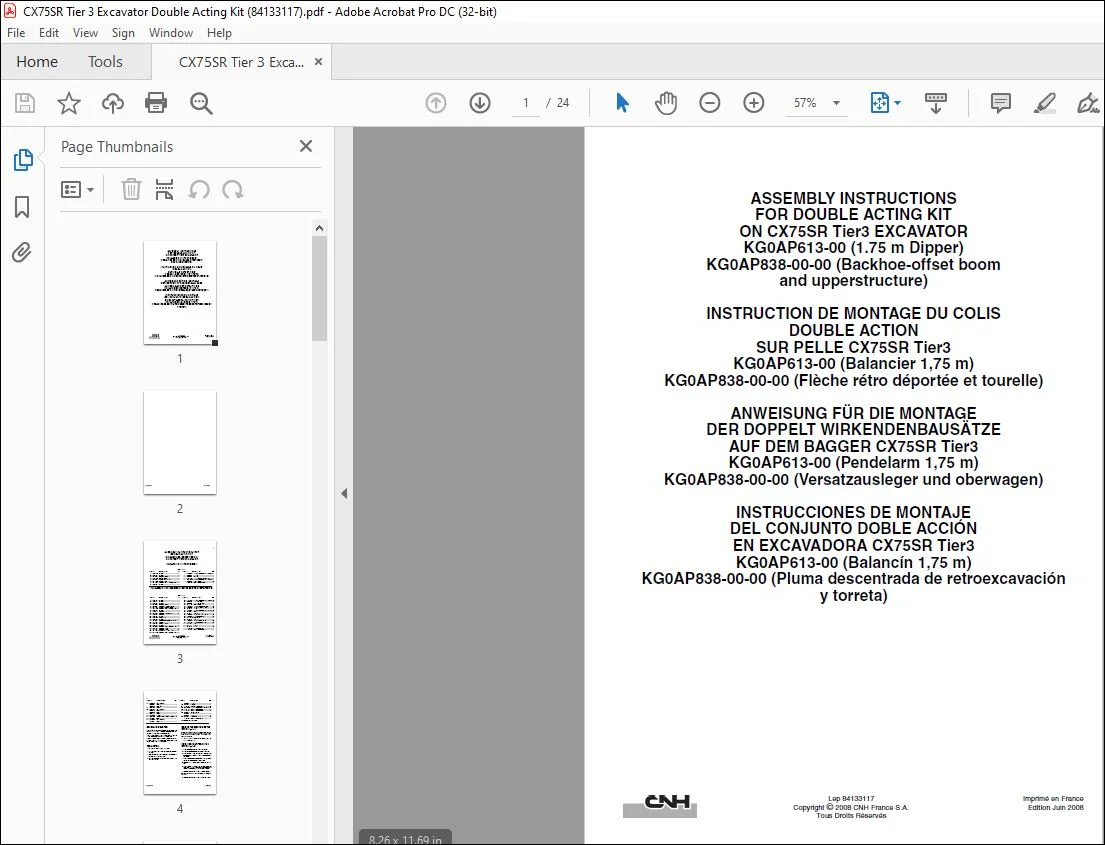

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX75SR Tier3 EXCAVATOR DOUBLE ACTING KIT ASSEMBLY INSTRUCTIONS MANUAL 84133117 – PDF DOWNLOAD

ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. KNV1158 Bracket…………………………………….. 2
2. KAV2186 Bracket…………………………………….. 4
3. 152924A1 Plug (BRJ1286) ………………………… 2
4. KHV10680 Shut-off valve……………………………. 2
5. 167248A1 Adaptor (KAJ3910) ……………………. 2
6. 183-112VR Washer SW12…………………………… 8
7. 827-12070 Screw M12x70 (102R012Y070R) … 4
8. KAV2566 Bracket…………………………………….. 4
9. 166352A1 Screw M12x30 (105R012Y030R)….4
10. KAV2607 RH pipe …………………………………….1
11. KAV2608 LH pipe ……………………………………..1
12. 166401A1 Retaining clamp (KAV0792) …………4
13. 827-12060 Screw M12x60 (102R012Y060R)….4
14. KAV2364 Hose L=2250……………………………..2
153591A1 Loctite 262 (KRC5007)………………..1
KG0AP838-00-00 (Backhoe-offset boom and upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. KAV2330 Bracket…………………………………….. 3
2. KAV2712 Bracket…………………………………….. 1
3. KAV2188 Bracket…………………………………….. 1
4. 152924A1 Plug (BRJ1286) ………………………… 2
5. 166401A1 Retaining clamp (KAV0792)………… 2
6. 150811A1 Washer SW12 (KHN0296)………….. 6
7. 827-12060 Screw M12x60 (102R012Y060R) … 6
8. KAV2204 LH pipe ……………………………………. 1
9. KAV2711 RH pipe……………………………………. 1
10. 167824A1 Retaining clamp (KAV0921)………… 4
11. KAV2205 RH pipe……………………………………. 1
12. KAV2206 LH pipe ……………………………………. 1
13. KMJ2323 Hose L=920 ……………………………… 2
14. KAV2199 Bracket…………………………………….. 1
15. 167182A1 Screw M8x25 (105R008Y025R) ….. 2
16. KHJ0508 Adaptor ……………………………………. 2
17. KAV2642 Hose L=920 GW ………………………. 2
18. KAV2331 Bracket…………………………………….. 2
19. 166352A1 Screw M12x30 (105R012Y030R) … 2
20. KAV2329 Retaining clamp ………………………… 2
21. KHJ2023 Retaining clamp ………………………… 4
22. 896-11012 Washer W12 (182-012SR)………….. 2
23. 827-12080 Screw M12x80 (102R012Y080R) … 2
24. 167183A1 Screw M12x60 (105R012Y060R)….2
25. KAV2640 Protective decal ………………………….5
26. KAV2202 Protective housing ………………………1
27. KHJ1994 Control pedal ……………………………..1
28. 150548A1 Screw M10x20 (KHJ0161)……………2
29. 150604A1 Washer W10 (KHJ0183)………………2
30. KHJ2568 Bracket ……………………………………..1
31. 166346A1 Screw M10x16 (105R010Y016R)….2
32. KHJ2571 Cover ………………………………………..1
33. KHJ2231 Pedal bolt…………………………………..1
34. 157558A1 Washer WW8 (KHN0518) ……………2
35. 157770A1 Nut M8 (KHR0086) ……………………..2
36. KHJ18750 Floor carpet ……………………………….1
37. KHJ2229 Pedal ………………………………………..1
38. 159500A1 Washer W8 (KHN0420)……………….2
39. 162571A1 Screw M8x16 (KHN1642)…………….2
40. KHP1821 Decal ………………………………………..1
41. KHP1741 Decal ………………………………………..1
42. KHJ2130 T-piece………………………………………2
43. 161841A1 Union (CNA0584) ……………………….1
44. 152127A1 Adaptor (KNJ0758)……………………..4
2
Lep 84133117 Issued 06-08
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
45. KAJ4736 Set of 2 hoses
KHJ2084 Hose P5 …………………………………… 1
KHJ2238 Hose T5 …………………………………… 1
46. KHJ1178 Elbow ………………………………………. 1
47. KAJ4854 Set of 2 hoses
KHJ2312 Hose Y1 …………………………………… 1
KHJ2069 Hose Y2 ………………………………….. 1
48. KHJ1515 Elbow ………………………………………. 2
49. KAJ5023 Bracket …………………………………….. 1
50. 166052A1 Screw M10x25 (105R010Y025R) … 2
51. KAJ2974 Adaptor ……………………………………. 2
52. KAJ5029 Set of 2 hoses
KAJ5024 Hose Y1 …………………………………… 1
KAJ5024 Hose Y2…………………………………….1
53. KAJ4919 Bracket………………………………………1
54. 150409A1 Washer M10 (KEH0114)………………2
55. 627-10035 Screw M10x35 (102R010Y035R)….2
56. 150496A1 Clip L=250 (KHH0142) ……………… xx
57. 150498A1 Clip L=300 (KHH0143) ……………… xx
58. KAJ5040 Set of 2 hoses
KAJ5037 Hose Y1…………………………………….1
KAJ5037 Hose Y2…………………………………….1
59. KAJ4876 Secondary relief …………………………2
153591A1 Loctite 262 (KRC5007) ………………..1
xx According to requirement
