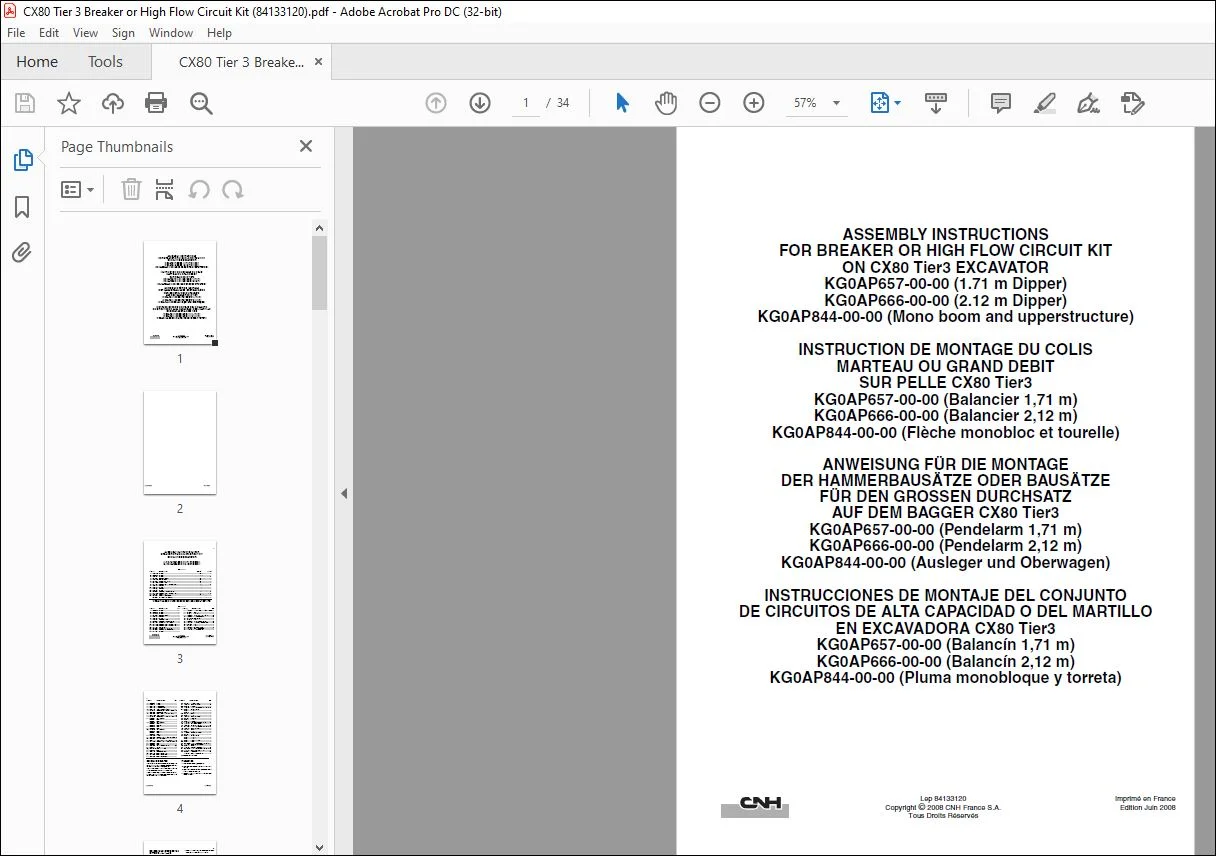

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CNH CX80 Tier 3 Breaker or High Flow Circuit Kit Installation Instructions Manual 84133120 EN_FR_DE_IT_ES – PDF DOWNLOAD

ASSEMBLY INSTRUCTIONS
FOR BREAKER OR HIGH FLOW CIRCUIT KIT
ON CX80 Tier3 EXCAVATOR
KG0AP657-00-00 (1.71 m Dipper)
KG0AP666-00-00 (2.12 m Dipper)
KG0AP844-00-00 (Mono boom and upperstructure)

GENERAL INFORMATION:
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to consult
the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
setting shown in the Service Manual.
PREPARATION:
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

TABLE OF CONTENTS:

CNH CX80 Tier 3 Breaker or High Flow Circuit Kit Installation Instructions Manual 84133120 EN_FR_DE_IT_ES – PDF DOWNLOAD

ITEMP/N DESCRIPTION Qty (a) Qty (b)
1. KNV1158 Bracket………………………………………………………………………………………………2 ……………………. 2
2. KHB0268 Bracket………………………………………………………………………………………………4 …………………….. –
3. KAV1655 Bracket……………………………………………………………………………………………….- ……………………. 4
4. 152924A1 Plug (BRJ1286) ………………………………………………………………………………….2 ……………………. 2
5. KHV10680 Shut-off valve……………………………………………………………………………………..2 ……………………. 2
6. 167248A1 Adaptor (KAJ3910) ……………………………………………………………………………..2 ……………………. 2
7. 183-112VR Washer SW12…………………………………………………………………………………….8 ……………………. 8
8. 827-12070 Screw M12x70 (102R012Y070R) ………………………………………………………….4 ……………………. 4
9. KAV12880 RH pipe……………………………………………………………………………………………..1 …………………….. –
10. KAV12890 LH pipe ……………………………………………………………………………………………..1 …………………….. –
11. KAV2557 RH pipe………………………………………………………………………………………………- ……………………. 1
12. KAV2558 LH pipe ………………………………………………………………………………………………- ……………………. 1
13. 166401A1 Retaining clamp (KAV0792)………………………………………………………………….4 ……………………. 4
14. 827-12060 Screw M12x60 (102R012Y060R) ………………………………………………………….4 ……………………. 4
15. KAV2642 Hose L=920 ……………………………………………………………………………………….2 …………………….. –
16. 167831A1 Hose L=900 (KAV1464) ………………………………………………………………………..- ……………………. 2
153591A1 Loctite 262 (KRC5007) ………………………………………………………………………..1 ……………………. 1
KG0AP844-00-00 (Monobloc boom and upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. KHB0268 Bracket…………………………………….. 2
2. KHB0269 Bracket…………………………………….. 2
3. KHV0338 Bracket…………………………………….. 2
4. 152924A1 Plug (BRJ1286) ………………………… 2
5. KAV10410 RH pipe……………………………………. 1
6. KAV10420 LH pipe ……………………………………. 1
7. KAV1583 Retaining clamp ………………………… 2
8. 166401A1 Retaining clamp (KAV0792)………… 4
9. 150811A1 Washer W12 (KHN0296) ……………. 7
10. 827-12060 Screw M12x60 (102R012Y060R) … 4
11. 827-12055 Screw M12x55 (102R012Y055R) … 2
12. KHJ1994 Control pedal ……………………………. 1
13. 150604A1 Washer W10 (KHJ0183) …………….. 2
14. 150548A1 Screw M10 x 20 (KHJ0161) ………… 2
15. KHJ2568 Bracket…………………………………….. 1
16. 166346A1 Screw M10 x 16 (105R010Y016R)..4
17. KHJ2571 Cover ………………………………………..1
18. KHJ2231 Pedal bolt…………………………………..1
19. 157558A1 Washer WW8 (KHN0518) ……………2
20. 157770A1 Nut M8 (KHR0086) ……………………..2
21. KHJ18750 Floor carpet ……………………………….1
22. KHJ2229 Pedal ………………………………………..1
23. 159500A1 Washer W8 (KHN0420)……………….2
24. 162571A1 Screw M8 x 16 (KHN1642)…………..2
25. KAP1582 Decal ………………………………………..1
26. KHP1940 Decal ………………………………………..1
27. 150933A1 Elbow (KHJ0348)………………………..3
28. 152127A1 Adaptor (KNJ0758)……………………..7
29. 161841A1 Union (CNA0584) ……………………….1
2
Lep 84133120 Issued 06-08
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
30. KHJ2130 T-piece …………………………………….. 3
31. KAJ4715 Bracket …………………………………….. 1
32. KHJ17100 Manifold block …………………………… 1
33. 150821A1 Plug (KHJ0300)…………………………. 1
34. 153081A1 Washer M8 (KAJ1500)……………….. 2
35. 827-8060 Screw M8 x 60 (102R008Y060R) … 2
36. 150913A1 Elbow (KHJ0341) ………………………. 7
37. 162538A1 Solenoid valve block (KRJ3557) ….. 1
38. 183-106VR Washer SW6…………………………….. 2
39. 627-6016 Screw M6 x16 (102R006Y016R) …. 2
40. KAJ4737 Set of 2 hoses
KHJ2044 Hose Y1 …………………………………… 1
KHJ2237 Hose Y2 …………………………………… 1
41. KAJ4736 Set of 2 hoses
KHJ2084 Hose P5 …………………………………… 1
KHJ2238 Hose T5 …………………………………… 1
42. KHJ2238 Hose ……………………………………….. 1
43. KHJ2042 Hose………………………………………… 1
44. KAJ5143 Set of 3 hoses
KHJ2063 Hose Y1 …………………………………… 1
KHJ2067 Hose Y2 …………………………………… 1
KHJ2069 Hose NN ………………………………….. 1
45. KAJ10860 Bracket …………………………………….. 1
46. 166052A1 Screw M10 x 25 (105R010Y025R) . 2
47. KHJ1473 Re-injection block………………………. 1
48. 892-11010 Washer SW10 (183-110VR) ……….. 2
49. 827-10080 Screw M10 x 80 (102R010Y080R) . 2
50. KHJ2142 Hose………………………………………… 1
51. KHJ2179 Hose………………………………………… 1
52. 150496A1 Clip L = 250 (KHH0142)……………..xx
53. KHR3121 Switch ……………………………………… 1
54. KAR10410 Electrical harness ……………………… 1
55. KHV0373 Adaptor ……………………………………. 1
56. 163004A1 Elbow (KHJ0606) ………………………. 1
57. 163287A1 Adaptor (KNJ1840) ……………………. 1
58. 151650A1 Adaptor (KNJ0604) ……………………. 1
59. 152012A1 Adaptor (KNJ0700) ……………………. 2
60. KHJ2020 Selector block …………………………….1
61. 157580A1 Elbow (KHJ0344)………………………..5
62. KAJ5144 Bracket………………………………………1
63. 166351A1 Screw M10 x 20 (105R010Y020R) 13
64. KAJ5141 Set of 2 hoses
KAJ5136 Hose Y1…………………………………….1
KAJ5137 Hose Y2…………………………………….1
65. KHJ2243 Elbow………………………………………..1
66. KAJ5140 Hose …………………………………………1
67. 157936A1 Elbow (KHJ0642)………………………..1
68. KHJ2022 Protection …………………………………1
69. KAJ4721 Hose …………………………………………1
70. KAJ5145 Bracket………………………………………1
71. 163275A1 Hydraulic clamp (KLJ0275) ………….2
72. 163278A1 Oil filter (KHJ0778) ……………………..1
73. 154569A1 O-ring (LBQ0403) ……………………….2
74. 862-8035 Screw M8 x 35 (108R008Y035R)….8
75. 157586A1 Elbow (KHJ0351)………………………..1
76. UCJ0991 Elbow………………………………………..1
77. KAJ4760 Hose …………………………………………1
78. 151654A1 Adaptor (KNJ0605)……………………..1
79. KRJ5666 Hose …………………………………………1
80. KAJ5142 Set of 2 hoses
KAJ5138 Hose Y1…………………………………….1
KAJ5139 Hose Y2…………………………………….1
81. KAJ5183 Protective clamp …………………………1
82. KAJ5156 Plate …………………………………………1
83. 827-12065 Screw M12x65 (102R012Y065R)….1
84. 162189A1 Protection (KRJ4674) ………………….1
85. KAJ5199 Clamp ……………………………………….1
86. 150409A1 Washer M10 (KHE0114)………………2
87. 827-10040 Screw M10x40 (102R010Y040R)….2
88. 150498A1 Clip L = 300 (KHH0143) ……………. xx
89. KAJ4876 Secondary relief …………………………2
153591A1 Loctite 262 (KRC5007) ………………..1
xx According to requirement
