CNH CX80 Tier 3 EXCAVATOR LOW FLOW CIRCUIT KIT ASSEMBLY INSTRUCTIONS MANUAL 84133121 – PDF DOWNLOAD

Description

CNH CX80 Tier 3 EXCAVATOR LOW FLOW CIRCUIT KIT ASSEMBLY INSTRUCTIONS MANUAL 84133121 – PDF DOWNLOAD

DESCRIPTION:

CNH CX80 Tier 3 EXCAVATOR LOW FLOW CIRCUIT KIT ASSEMBLY INSTRUCTIONS MANUAL 84133121 – PDF DOWNLOAD

ASSEMBLY INSTRUCTIONS
FOR LOW FLOW CIRCUIT KIT
ON CX80 Tier 3 EXCAVATOR
KG0AP658-00-00 (1.71 m Dipper)
KG0AP668-00-00 (2.12 m Dipper)
KG0AP847-00-00 (Mono boom and upperstructure)

GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to consult
the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

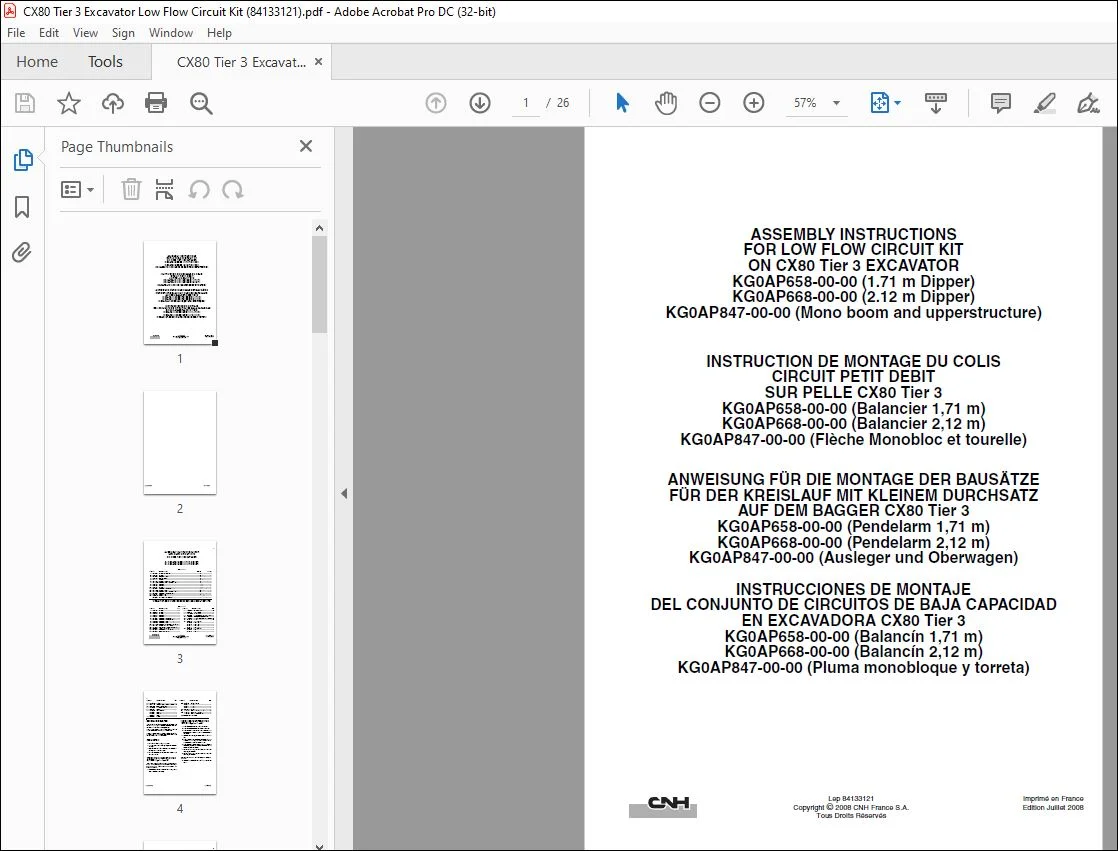

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CNH CX80 Tier 3 EXCAVATOR LOW FLOW CIRCUIT KIT ASSEMBLY INSTRUCTIONS MANUAL 84133121 – PDF DOWNLOAD

1. 168627A1 Bracket (KHV0345) ……………………………………………………………………………..3 ……………………. 3
2. KAV2531 Bracket………………………………………………………………………………………………2 ……………………. 2
3. 159085A1 Plug (BRJ0190) ………………………………………………………………………………….3 ……………………. 3
4. KHV10670 Shut-off valve……………………………………………………………………………………..3 ……………………. 3
5. KHJ1940 Adaptor ……………………………………………………………………………………………..3 ……………………. 3
6. 892-11010 Washer SW10 (183-110VR) …………………………………………………………………6 ……………………. 6
7. 827-10050 Screw M10x50 (102R010Y050R) ………………………………………………………….6 ……………………. 6
8. KAV2524 RH pipe……………………………………………………………………………………………..1 ……………………. 1
9. KAV2525 RH pipe……………………………………………………………………………………………..1 ……………………. 1
10. KAV2526 LH pipe ……………………………………………………………………………………………..1 ……………………. 1
11. 168551A1 Retaining clamp (KAV1627)………………………………………………………………….1 ……………………. 1
12. 183-112VR Washer SW12…………………………………………………………………………………….2 ……………………. 2
13. 827-12050 Screw M12x50 (102R012Y050R) ………………………………………………………….2 ……………………. 2
14. 169149A1 Retaining clamp (KAV1844)………………………………………………………………….1 ……………………. 1
15. KAV2530 Hose L=650 ……………………………………………………………………………………….3 …………………….. –
16. KMV2302 Hose L=1050 ………………………………………………………………………………………- ……………………. 3
153591A1 Loctite 262 (KRC5007) ………………………………………………………………………..1 ……………………. 1
KG0AP847-00-00 (Monobloc boom and upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. KAV2330 Bracket…………………………………….. 5
2. KHB0271 Bracket…………………………………….. 2
3. KAV2779 LH pipe ……………………………………. 1
4. KAV2777 RH pipe……………………………………. 1
5. KAV2778 RH pipe……………………………………. 1
6. 168551A1 Retaining clamp (KAV1627)………… 4
7. 169149A1 Retaining clamp (KAV1844)………… 3
8. KEV0405 Retaining clamp ………………………… 1
9. KEV0406 Retaining clamp ………………………… 1
10. 827-12050 Screw M12 x 50 (102R012Y050R) . 8
11. 150811A1 Washer W12 (KHN0296) ……………. 8
12. KAJ10010 Control valve section (KAJ4882)….. 1
13. 159497A1 T-piece (KHJ0869) …………………….. 2
14. 162538A1 Solenoid valve (KRJ3557) ………….. 2
15. 150933A1 Elbow (KHJ0348) ………………………. 4
16. 150913A1 Elbow (KHJ0341)………………………..2
17. KAJ5206 Support plate……………………………..1
18. 183-106VR Washer SW6 ……………………………..4
19. 627-6012 Screw M6x12 (102R006Y012R)……4
20. 165984A1 Cable grommet (KAR0577) ………….1
21. 166052A1 Screw M10x25 (105R010Y025R)….2
22. KHJ2130 T-piece………………………………………2
23. KAJ5204 Set of 4 hoses
KHJ2240 Hose P13…………………………………..1
KHJ2238 Hose P14…………………………………..1
KHJ2291 Hose T13…………………………………..1
KHJ2291 Hose T14…………………………………..1
24. KAJ5205 Set of 2 hoses
KHJ2076 Hose Y6…………………………………….1
KHJ2069 Hose Y7…………………………………….1
2
Lep 84133121 Issued 07-08
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
25. KAJ5150Y2 Bracket …………………………………….. 1
26. 166351A1 Screw M10x20 (105R010Y020R) … 2
27. 162826A1 Adaptor (KHJ0506) ……………………. 3
28. KAJ5122 Protective rubber L=215mm ……….. 1
29. KHJ1254 Elbow ………………………………………. 2
30. KAJ5153 Set of 3 hoses
KAJ5151 Hose Y6 …………………………………… 1
KAJ5151 Hose Y7 …………………………………… 1
KHJ2841 Hose Y8 …………………………………… 1
31. KHJ2234 T-piece …………………………………….. 1
32. KAJ5154 Set of 3 hoses
KAJ5152 Hose Y6…………………………………….1
KAJ5152 Hose Y7…………………………………….1
KAJ5152 Hose Y8…………………………………….1
33. KHP1941 Decal ………………………………………..1
34. 150496A1 Plastic clips (KHH0142)…………….. xx
35. 153526A1 Elbow (KRJ 3357)……………………….1
153591A1 Loctite 262 (KRC5007) ………………..1
xx According to requirement
