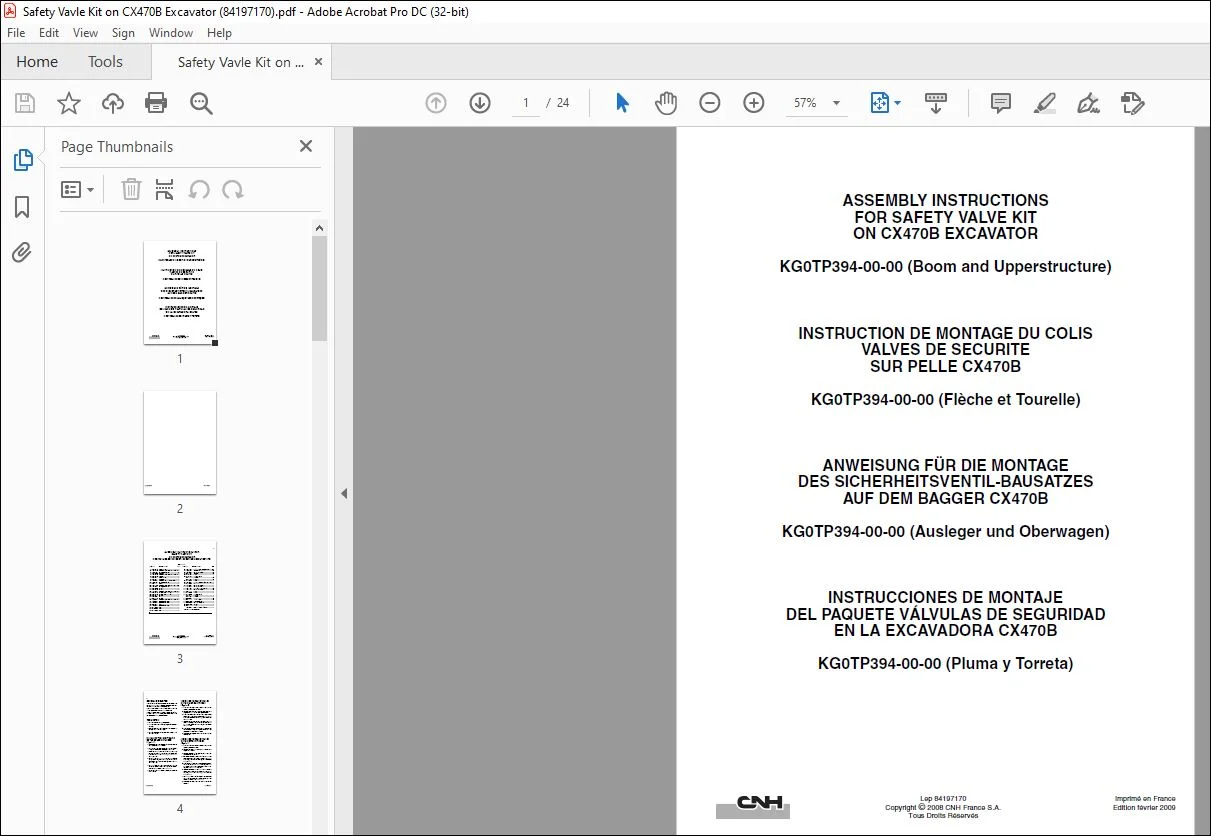

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CNH Safety Vavle Kit on CX470B Excavator Assembly Instructions Manual 84197170 EN_FR_DE_ES – PDF DOWNLOAD

GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to consult
the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
settings shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

TABLE OF CONTENTS:

CNH Safety Vavle Kit on CX470B Excavator Assembly Instructions Manual 84197170 EN_FR_DE_ES – PDF DOWNLOAD

ASSEMBLY INSTRUCTIONS FOR
SAFETY VALVE KIT
ON CX470B EXCAVATOR
KG0TP394-00-00 (Cylinders, boom and upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. KTV13680 Safety valve …………………………….2
2. 862-12055 Screw M12x55 (108R012Y055R)..8
3. 155211A1 O-ring (LBQ6219) …………………….4
4. KTV13740 RH pipe ………………………………….1
5. 862-12050 Screw M12x50 (108R012Y050R)..8
6. KTV13750 LH pipe…………………………………..1
7. KTV1316 Safety valve …………………………….1
8. KSV1606 Manifold………………………………….1
9. 162030A1 Screw M14x100 (KHV0181)……….8
10. 168211A1 O-ring (LBQ5225) …………………….2
11. KTV1411 Pipe……………………………………….1
12. 862-14040 Screw M14x40 (108R014Y040R)..4
13. 164450A1 O-ring (LBQ5222) …………………….1
14. KTV13440 Bracket …………………………………..1
15. KTV13450 Bracket …………………………………..2
16. 167183A1 Screw M12x60 (105R012Y060R)..6
17. KTV12830 Bracket (2nd option) …………………1
18. KTV12850 Bracket (2nd option) …………………2
19. KTV13181 Dr pipe …………………………………..1
20. KTV13171 Pi pipe ……………………………………1
21. KHV11400 Clamp…………………………………….3
22. 166352A1 Screw M12x30 (105R012Y030R)..6
23. 157580A1 Elbow (KHJ0344)……………………..2
24. 150916A1 Elbow (KHJ0342)……………………..2
25. KHV0373 Adaptor…………………………………..1
26. 157937A1 Elbow (KHJ0643)……………………..3
27. KHJ19770 Hose………………………………………1
28. KHJ20780 Hose………………………………………1
29. KHJ19780 Hose………………………………………1
30. 150071A1 Plastic clip L380 (KAR0017)……..xx
31. 152747A1 Adaptor (KNJ1106) …………………. 2
32. 153559A1 Elbow (KRJ3560) ……………………. 2
33. KHJ1584 Adaptor …………………………………. 2
34. KTV15450 Hose …………………………………….. 1
35. KTV13770 Set of 4 hoses
KHJ19100 Hose PL ………………………………… 2
KHJ19060 Hose T …………………………………. 2
36. KTJ12330 Bracket …………………………………. 1
37. 166351A1 Screw M10x20 (105R010Y020R) . 4
38. KTJ12320 Manifold ………………………………… 1
39. 157584A1 Elbow (KHJ0349) ……………………. 1
40. 157586A1 Elbow (KHJ0351) ……………………. 1
41. 150919A1 Right-angle (KHJ0343)…………….. 2
42. 150916A1 Elbow (KHJ0342) ……………………. 2
43. KUJ0377 Hose …………………………………….. 1
44. KTJ12350 Hose …………………………………….. 1
45. KTJ12340 Set of 2 hoses
KHJ17180 Hose V6 ………………………………… 1
KHJ19380 Hose A6 ……………………………….. 1
46. KHR2581 Tie ……………………………………….. 2
47. KHJ1215 Screw M8x25 …………………………. 2
48. KHR10290 Pressure sensor……………………… 1
49. KHR20520 Electrical harness …………………… 1
50. KHR15490 Switch …………………………………… 1
51. KHJ18180 Union ……………………………………. 1
153591A1 Loctite 262 (KRC5007)…………….. 1
xx According to requirement
