DESCRIPTION:

CNH WX148 WE150B Wheeled Excavator 47567711 Hydraulic Quick Coupler Kit WX168 WX188 WE170B WE19 Installation Instructions Manual 47568243 EN_DE_IT_FR_ES – PDF DOWNLOAD

47567711 – HYDRAULIC QUICK COUPLER KIT
CASE CONSTRUCTION
WX148
NEW HOLLAND CONSTRUCTION
WE150B
47567712 – HYDRAULIC QUICK COUPLER KIT
CASE CONSTRUCTION
WX168
WX188
NEW HOLLAND CONSTRUCTION
WE170B
WE190B
47567713 – HYDRAULIC QUICK COUPLER KIT
CASE CONSTRUCTION
WX218
NEW HOLLAND CONSTRUCTION
WE210B

PRE-ASSEMBLY
PREPARING FOR ASSEMBLY
Preparation
Before perform the operations to install the kit, proceed as
follows:
1. Park the machine on a level surface.
2. Position the attachment as indicated in the figure.
3. Lower the blade and the stabilizers to the ground.
4. Lock the upper structure.
5. Apply the parking brake.
6. Turn the rotary dial to 1st detent (LOW IDLE) and shut
off the engine.
7. To allow all cylinders to release pressure set the starter
switch key again to position I, move both hydraulic control
hand levers and the pedal in all directions. Press
the brake pedal to discharge the accumulators of brake
system.
SMIL13WEX0217AB 1
8. Rest the bucket to the ground.
9. Place the safety lever in “LOCK” position.
10. Set the starter switch key to position 0 and pull it out.
11. Place some wedges under the wheels so as to prevent
the machine from moving.
12. Wait for the machine to cool off.
13. Release the pressure inside the hydraulic tank
through the bleeding valve (1) located on the tank (2).

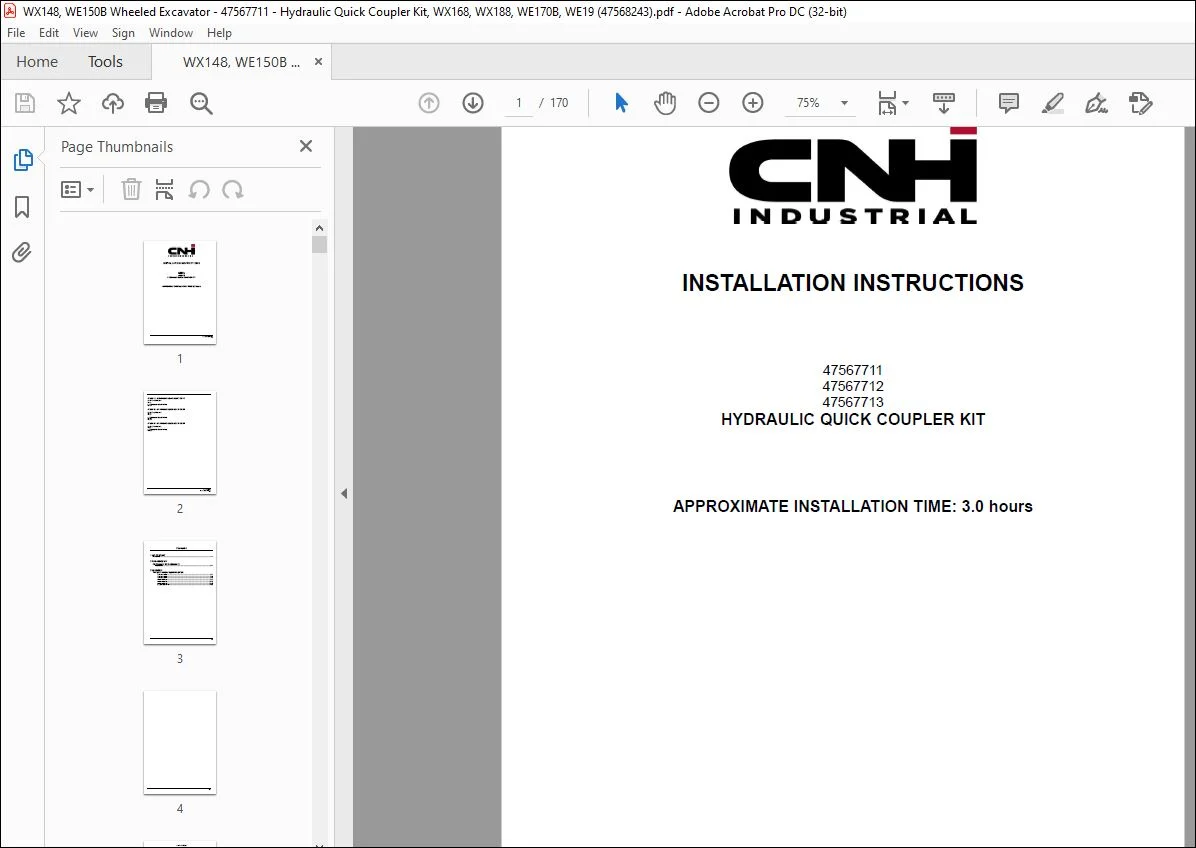

IMAGES PREVIEW OF THE MANUAL:
