Compal KHLB2 Notebook Service Manual – PDF Download

Description:

Overview

Compal KHLB2 service manual covers the 15.6-inch notebook series often rebranded like Sager NP2098. With 188 pages it’s for techs handling repair and specs. Chapter 1 outlines system like HDD up to 320GB SATA 5400/7200 RPM easily removable. ODD fixed 12.7mm SATA with Combo or Super Multi or Blu-Ray options. Touch pad dimensions 84x42mm. Keyboard 85/86 keys scissor type 2.5mm stroke. Display 15.6” W-LED HD Glare LCD 1366×768 resolution. Camera 2.0MP CMOS via USB2.0.

IMAGES:

Communications and Mechanical

Communications include Wireless LAN mini card PCI Express Intel Shirley Peak 802.11a/g/n. Modem internal MDC V.92 56K. Bluetooth Ver. 2.1 USB2.0 module. Mechanical specs dimensions 377.5x255x37.9mm weight around 5.6-5.8lb. Option packs AC adapter 444g battery 6-cell 414g. Functions removable HDD ODD battery Kensington lock Express card fixed webcam wireless switch. Material PC+ABS plastic.

Software and Power

Chapter 2 dives software with system components hot keys buttons like power override lid switch status LEDs. BIOS features multi boot quiet boot boot block PnP support. Thermal management covered. ACPI power modes time-outs device PM for CPU HDD display. Wake sources modem ring LAN RTC alarm PC-card USB critical battery. Hibernation support. Sleep states detailed.

Hardware and DC-DC

Chapter 3 hardware probably circuits diagrams. Chapter 4 DC-DC converter voltage regulation but details sparse in previews.

Disassembly and Troubleshooting

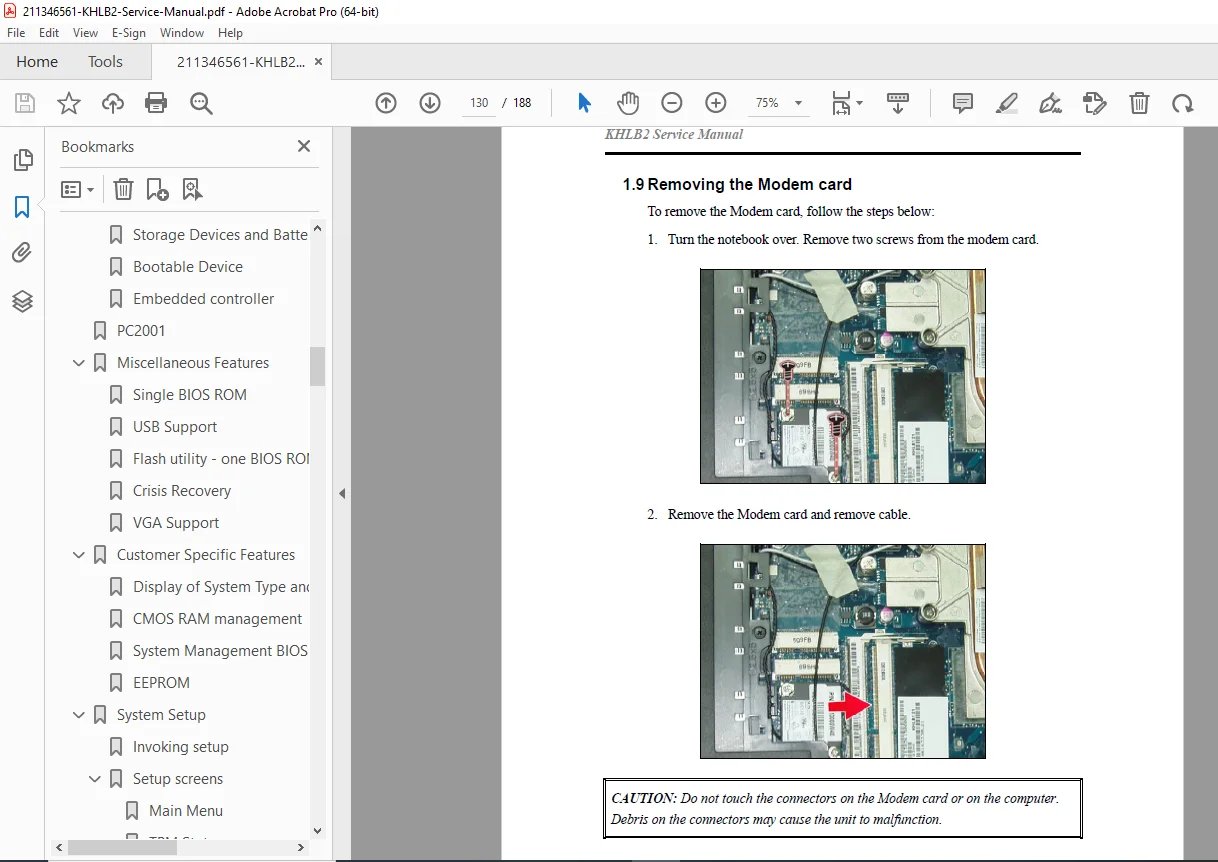

Chapter 5 disassembly guide full unit cross-referenced to replacement. Use screwdriver ESD precautions. Chapter 6 testing troubleshooting systematic isolation BIOS beep codes diagnostics. Flowcharts for display keyboard wireless issues. Checks for boards antennas.

Includes wiring diagrams some torque specs for screws but not all. Missing exhaustive voltages for all circuits assumes multimeter. Good for shop use with special tools.

File Details

• Document Title: Compal KHLB2 Notebook Service Manual
• Models Covered: Compal KHLB2 series (rebranded as Sager NP2098)
• System Coverage: System Description, Software Specification, Hardware, DC-DC Converter, Disassembly Guide, Testing and Troubleshooting
• Pages: 188

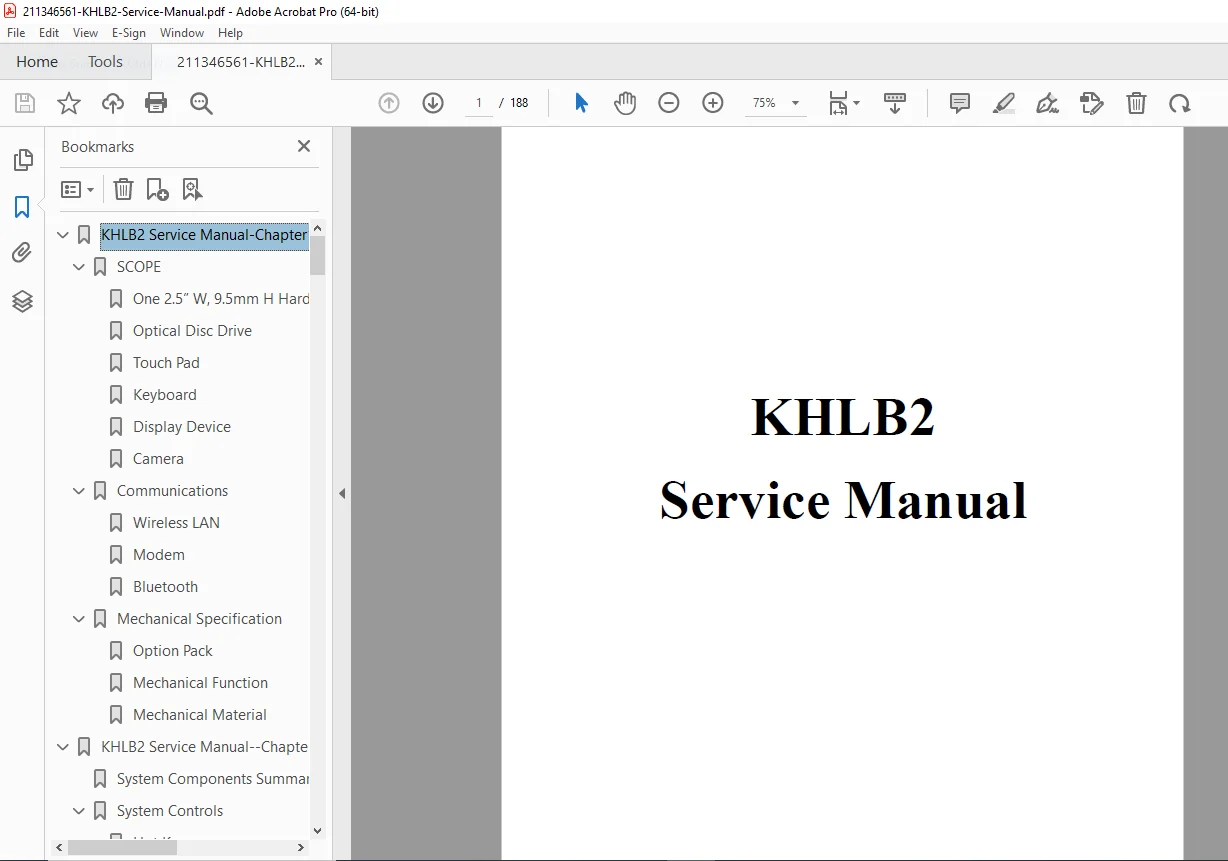

• Format: Searchable PDF (OCR-enabled)
• Languages: English
• File Size: ~2.94 MB
• Quality Notes: Factory scan with clear text, crisp schematics, OCR searchable; diagrams sharp and legible. ✅ Verified factory technical content.
