Crown CTs600 & CTs1200 Power Amplifier Service Manual PDF
Original price was: $120.00.$19.95Current price is: $19.95.
Official Service Manual for Crown CTs600 and CTs1200 Power Amplifiers. This 80+ page guide covers complete disassembly, test specifications, 120V & 230V circuit schematics, and extensive Bill of Materials (BOM) lists. Essential for audio engineers and repair technicians. Instant Download.
Description
Crown CTs600 & CTs1200 Power Amplifier Service Manual PDF DOWNLOAD
Description:
Maintain Professional Audio Performance
This is the comprehensive Service Manual for the Crown CTs600 and CTs1200 series professional power amplifiers. Designed for qualified audio technicians, this document provides the critical technical data required to diagnose, repair, and maintain these high-performance 2-channel amplifiers.
Whether you are tracing a fault in the output stage of a CTs1200 or ordering specific capacitors for a CTs600 power supply, this manual offers the detailed diagrams and part numbers you need.
Detailed Technical Coverage:
The manual is structured to provide direct access to repair data for both voltage variants:
1. General Service Information
Disassembly Procedure: Step-by-step instructions for opening the chassis and accessing internal boards.
Test Specifications: Factory benchmarks for verify amplifier performance after repair.
Update & Checkout: “CTs Update and Check Out List” to ensure all modifications are current.

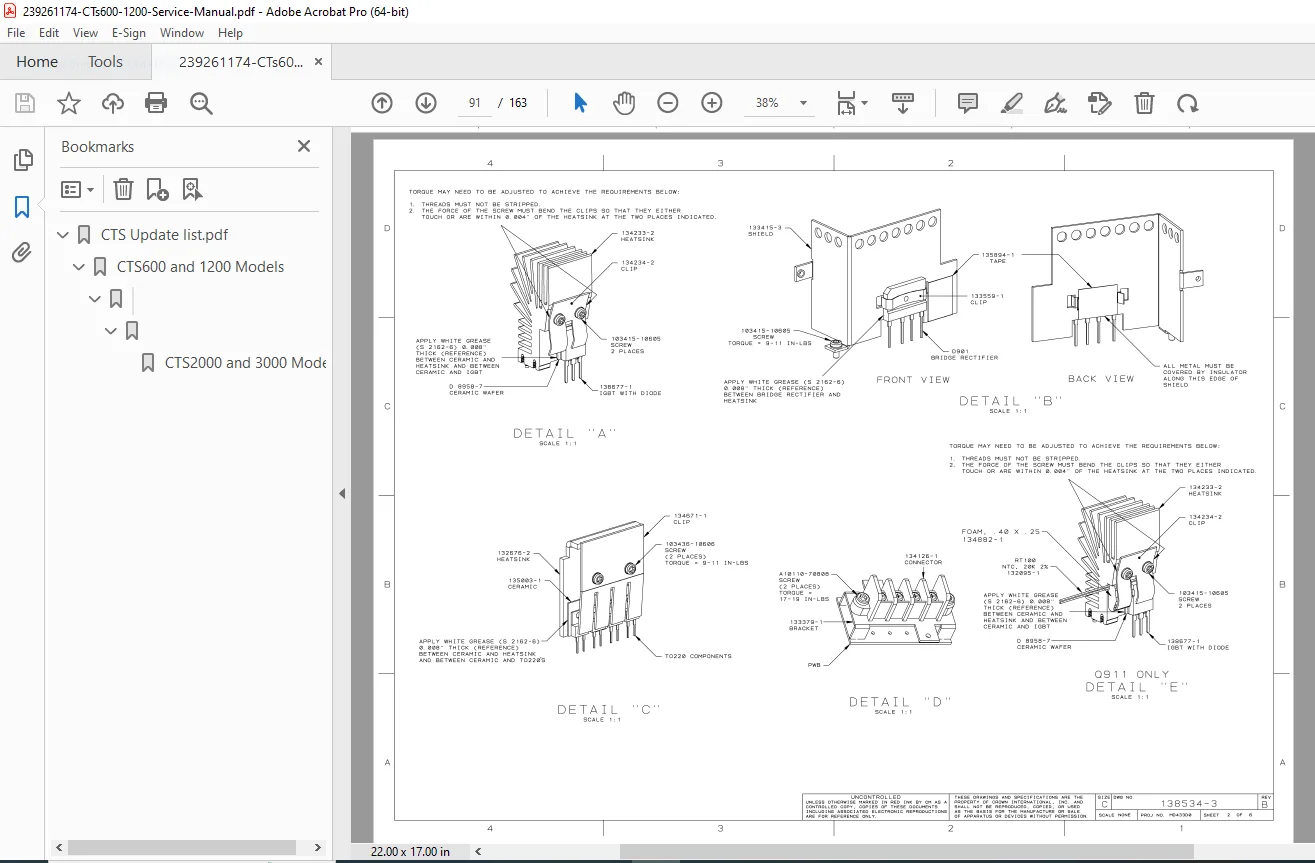

Assembly Drawings: Visual guides for mechanical assembly and component location.
2. CTs600 Technical Data (120V & 230V)
Bill of Materials (BOM): Complete parts lists for both 120V and 230V models, including specific resistors, capacitors, and ICs.
Schematics: Full circuit diagrams (138533-3 & 138554-3) covering the Main Board, Input Stage, and Power Supply.
3. CTs1200 Technical Data (120V & 230V)
Bill of Materials (BOM): Comprehensive component lists for the higher-power CTs1200 model.
Schematics: Detailed electrical drawings (138536-6 & 138537-3) for trouble-shooting signal paths and voltage rails.
Component Level Detail
Semiconductors: Identification of critical parts like LM339D Quad Comparators, OP07 Op-Amps, and power transistors.
Wire Assemblies: Specifications for internal cabling (e.g., 14GA BLK/GRY wire assy) to ensure safe current handling.
Key Features:
Voltage Specifics: Separate sections for 120V (US) and 230V (International) models to prevent parts incompatibility.
Board Layouts: Reference designators (e.g., U205, C9038-8) matched to physical board locations.
Schematic Clarity: High-contrast diagrams for tracing complex audio circuits.
Product Details:

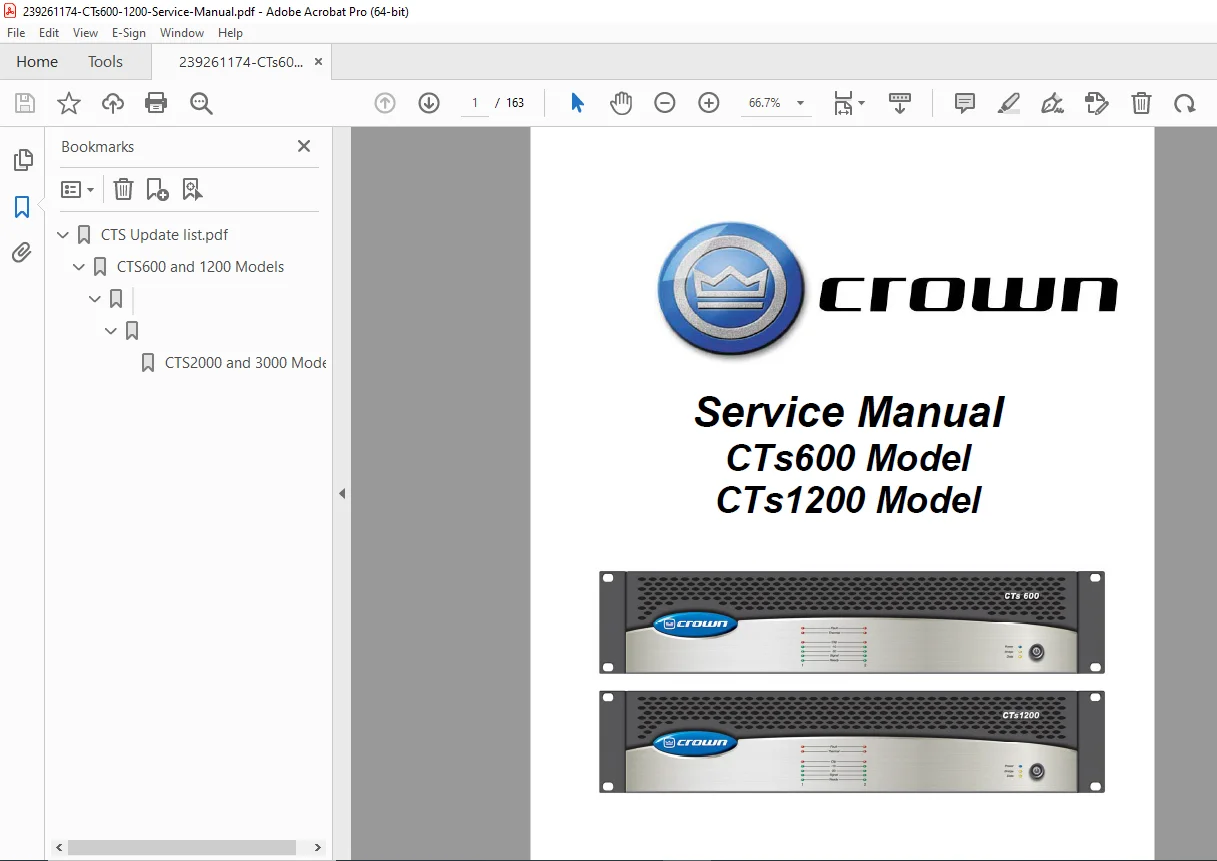

Manual Name: Crown CTs600 / CTs1200 Service Manual
Models Covered: Crown CTs 600, Crown CTs 1200 (120V & 230V versions)
Year: N/A (Standard Service Reference)
File Type: PDF (Portable Document Format)
File Quality: High-Quality / Searchable Text
Number of Pages: 163 Pages
Get your sound system back to full power. Download this essential service manual now to access the factory schematics and part numbers you need to fix your Crown amplifier quickly and professionally!
