Crown Forklift SP 3470/80 Wheel Parts Manual – PDF DOWNLOAD

Description

Crown Forklift SP 3470/80 Wheel Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Crown Forklift SP 3470/80 Wheel Parts Manual – PDF DOWNLOAD

Language : English
Pages :257
Downloadable : Yes
File Type : PDF

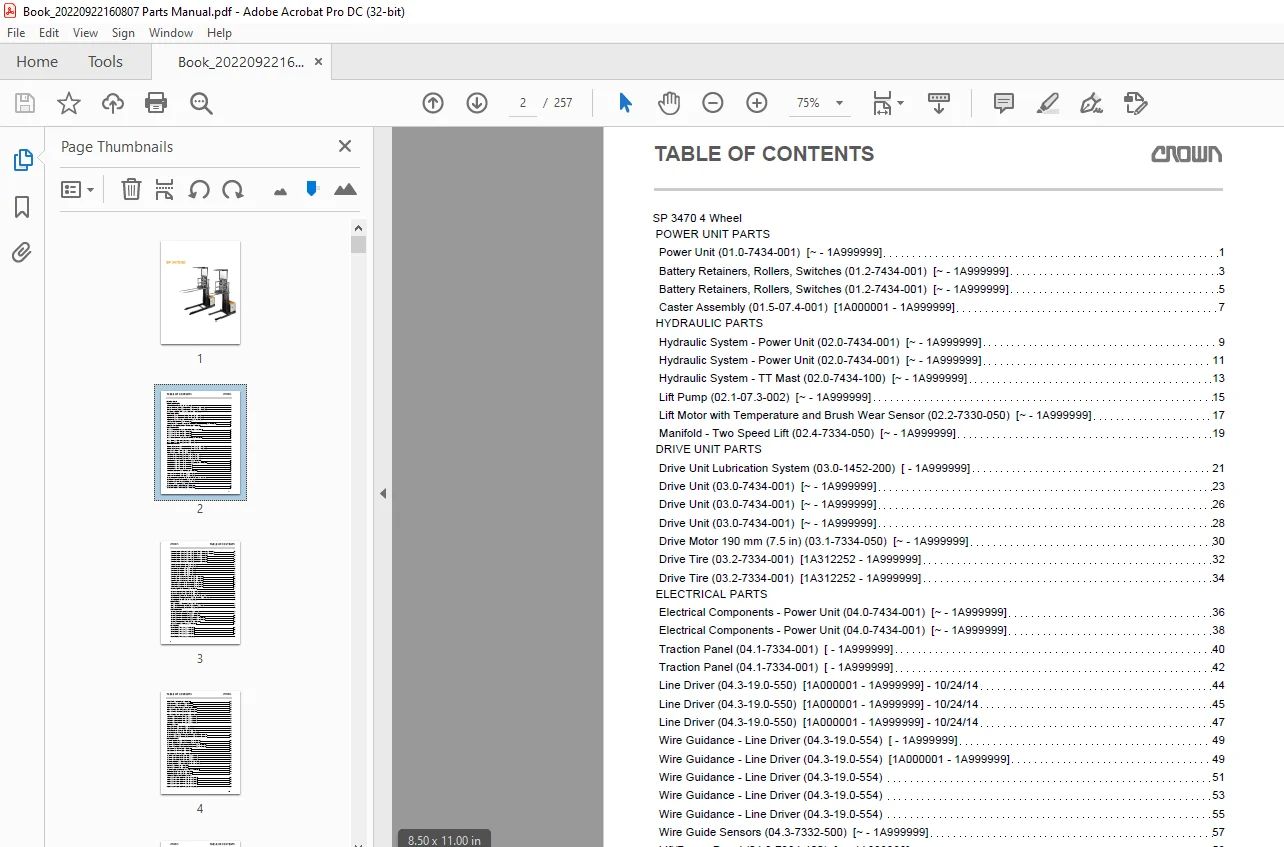

TABLE OF CONTENTS:

Crown Forklift SP 3470/80 Wheel Parts Manual – PDF DOWNLOAD

SP 3470 4 Wheel
POWER UNIT PARTS
Power Unit (01.0-7434-001) [~ – 1A999999] 1
Battery Retainers, Rollers, Switches (01.2-7434-001) [~ – 1A999999] 3
Battery Retainers, Rollers, Switches (01.2-7434-001) [~ – 1A999999] 5
Caster Assembly (01.5-07.4-001) [1A000001 – 1A999999] 7
HYDRAULIC PARTS
Hydraulic System – Power Unit (02.0-7434-001) [~ – 1A999999] 9
Hydraulic System – Power Unit (02.0-7434-001) [~ – 1A999999] 11
Hydraulic System – TT Mast (02.0-7434-100) [~ – 1A999999] 13
Lift Pump (02.1-07.3-002) [~ – 1A999999] 15
Lift Motor with Temperature and Brush Wear Sensor (02.2-7330-050) [~ – 1A999999] 17
Manifold – Two Speed Lift (02.4-7334-050) [~ – 1A999999] 19
DRIVE UNIT PARTS
Drive Unit Lubrication System (03.0-1452-200) [ – 1A999999] 21
Drive Unit (03.0-7434-001) [~ – 1A999999] 23
Drive Unit (03.0-7434-001) [~ – 1A999999] 26
Drive Unit (03.0-7434-001) [~ – 1A999999] 28
Drive Motor 190 mm (7.5 in) (03.1-7334-050) [~ – 1A999999] 30
Drive Tire (03.2-7334-001) [1A312252 – 1A999999] 32
Drive Tire (03.2-7334-001) [1A312252 – 1A999999] 34
ELECTRICAL PARTS
Electrical Components – Power Unit (04.0-7434-001) [~ – 1A999999] 36
Electrical Components – Power Unit (04.0-7434-001) [~ – 1A999999] 38
Traction Panel (04.1-7334-001) [ – 1A999999] 40
Traction Panel (04.1-7334-001) [ – 1A999999] 42
Line Driver (04.3-19.0-550) [1A000001 – 1A999999] – 10/24/14 44
Line Driver (04.3-19.0-550) [1A000001 – 1A999999] – 10/24/14 45
Line Driver (04.3-19.0-550) [1A000001 – 1A999999] – 10/24/14 47
Wire Guidance – Line Driver (04.3-19.0-554) [ – 1A999999] 49
Wire Guidance – Line Driver (04.3-19.0-554) [1A000001 – 1A999999] 49
Wire Guidance – Line Driver (04.3-19.0-554) 51
Wire Guidance – Line Driver (04.3-19.0-554) 53
Wire Guidance – Line Driver (04.3-19.0-554) 55
Wire Guide Sensors (04.3-7332-500) [~ – 1A999999] 57
Lift/Power Panel (04.3-7334-100) [~ – 1A999999] 59
Lift/Power Panel (04.3-7334-100) [~ – 1A999999] 61
Freezer/Corrosion Distribution Board (04.3-7334-250) [~ – 1A999999] 63
Distribution Panel (04.3-7434-001) [~ – 1A999999] 65
Contactor 1A P1 24V (04.4-6535-050) [~ – 1A999999] 67
Contactor (04.4-6540-001) [ – 1A999999] 69
Control Module (04.6-7334-001) [~ – 1A999999] 71
Control Module (04.6-7334-001) [~ – 1A999999] 73
TABLE OF CONTENTS
ii
Control Module – Back (04.6-7334-050) [1A287723 – 1A999999] – 01/01/06 75
Control Module – Back (04.6-7334-050) [1A287723 – 1A999999] – 01/01/06 77
Control Module – Back (04.6-7534-050) [1A298043 – 1A999999] 79
Control Module – Back (04.6-7534-050) [1A298043 – 1A999999] 81
Control Module – Back (04.6-7335-050) [1A352386 – 1A999999] 83
Control Module – Back (04.6-7335-050) [1A352386 – 1A999999] 85
Switch Panel (04.8-7330-100) [~ – 1A999999] 87
Switch Panel (04.8-7330-100) [~ – 1A999999] 90
Connectors (04.8-7334-170) [ – 1A999999] 92
Connectors (04.8-7334-170) [ – 1A999999] 94
Connectors (04.8-7334-170) [ – 1A999999] 96
Connectors (04.8-7334-170) [ – 1A999999] 98
Control Cable – TT Mast (04.8-7434-025) [~ – 1A999999] 100
Control Cable – TT Mast (04.8-7434-025) [~ – 1A999999] 102
Control Cable – TT Mast (04.8-7434-025) [~ – 1A999999] 103
TT Mast Limit Switches (04.8-7434-050) [~ – 1A999999] 105
TT Mast Limit Switches (04.8-7434-050) [~ – 1A999999] 107
TT Mast Limit Switches (04.8-7434-050) [~ – 1A999999] 109
Flashing Light (04.9-7330-001) [ – 1A999999] 111
Overhead Console (04.9-7330-052) [~ – 1A999999] 113
Overhead Console (04.9-7330-052) [~ – 1A999999] 115
Mast Mounted Lights (04.9-7332-250) [ – 1A540123] – 09/28/18 117
Mast Mounted Worklights (04.9-7332-252) [1A540203 – 1A9999999] 119
Strobe Light (04.9-10.0-550) [~ – 1A999999] 121
BRAKE PARTS
Brake Pedal (05.1-7334-001) [1A311702 – 1A999999] 123
Brake (05.3-7334-001) [1A303728 – 1A395765] – 12/30/12 125
Brake (05.3-7340-001) [1A395766 – 1A999999] 127
STEERING PARTS
Steering Command (06.0-7334-001) [~ – 1A999999] 129
Steering Gearbox (06.0-7330-102) [~ – 1A999999] 131
Steering Gearbox (06.0-7330-102) [~ – 1A999999] 133
Steering Gearbox (06.0-7330-106) [1A000001 – 1A999999] 135
Steering Gearbox (06.0-7330-106) [1A000001 – 1A999999] 137
Steering Feedback (06.0-7434-500) [~ – 1A999999] 139
Steer Motor (06.2-7330-003) [~ – 1A999999] 141
MAST PARTS
Mast TT (07.2-7434-001) [~ – 1A999999] 143
Mast TT (07.2-7434-001) [~ – 1A999999] 145
Mast TT (07.2-7434-001) [~ – 1A999999] 147
Mast TT (07.2-7434-001) [~ – 1A999999] 149
Mast TT (07.2-7434-001) [~ – 1A999999] 151
TABLE OF CONTENTS
iii
Mast TT (07.2-7434-001) [~ – 1A999999] 153
Load Wheel (07.4-7434-001) [~ – 1A999999] 155
Load Wheel (07.4-7434-001) [~ – 1A999999] 157
Yoke TT (07.5-7330-003) [~ – 1A311234] – 08/18/08 159
Yoke – TT (07.5-7334-001) [1A311235 – 1A999999] 161
Yoke – TT (07.5-7335-001) [1A329502 – 1A999999] 163
Yoke – TT (07.5-7434-001) [1A339141 – 1A999999] 165
Lift Chain – TT Mast (07.6-7434-050) [~ – 1A999999] 167
Lift Chain – TT Mast (07.6-7434-050) [~ – 1A999999] 169
Lift Chain – TT Mast (07.6-7434-050) [~ – 1A999999] 171
Lift Chain – TT Mast (07.6-7434-050) [~ – 1A999999] 173
CYLINDER PARTS
Mast Cylinder (08.1-7434-001) [~ – 1A999999] 175
Mast Cylinder (08.1-7434-001) [~ – 1A999999] 177
Free Lift Cylinder – TT (08.3-7434-001) [~ – 1A999999] 179
Free Lift Cylinder – TT (08.3-7434-001) [~ – 1A999999] 181
Free Lift Cyl – TT (08.3-7330-003) [1A251993 – 1A371860] – 06/19/11 183
Free Lift Cyl – TT (08.3-7330-003) [1A251993 – 1A371860] – 06/19/11 185
PLATFORM PARTS
Platform – Operator Side (09.0-7434-001) [~ – 1A999999] 187
Platform – Operator Side (09.0-7434-001) [~ – 1A999999] 190
Platform – TT Mast Side/Underside (09.0-7434-100) [~ – 1A999999] 192
Platform – TT Mast Side/Underside (09.0-7434-100) [~ – 1A999999] 194
Side Gate (09.0-7334-150) [~ – 1A999999] 196
Side Gate (09.0-7334-150) [~ – 1A999999] 198
Side Gate (09.0-7334-150) [~ – 1A999999] 200
Platform – Side Gates (09.0-7534-150) [~ – 1A999999] 202
Platform – Side Gates (09.0-7534-150) [~ – 1A999999] 205
Platform – Side Gates (09.0-7534-150) [~ – 1A999999] 207
Rear Gate (SAA) (09.1-7330-175) [1A311763 – 1A999999] 209
Rear Gate (SAA) (09.1-7330-175) [1A311763 – 1A999999] 211
Fork (09.0-7330-250) [~ – 1A999999] 213
Fork (09.0-7330-250) [~ – 1A999999] 215
Platform Height Sensor (09.0-7334-200) [~ – 1A999999] 217
Pallet Grab (09.0-7534-200) [~ – 1A999999] 219
Pallet Grab (09.0-7534-200) [~ – 1A999999] 221
LABELS & DECALS AND ACCESSORIES
Aisle Guide Wheels (10.0-7434-001) [~ – 1A999999] 223
Aisle Guide Wheels (10.0-7434-001) [~ – 1A999999] 225
Aisle Guide Wheels (10.0-7434-001) [~ – 1A999999] 227
Aisle Guide Wheels (10.0-7434-001) [~ – 1A999999] 229
Aisle Guide Wheels (10.0-7434-001) [~ – 1A999999] 230
TABLE OF CONTENTS
iv
Aisle Guide Wheels (10.0-7434-001) [~ – 1A999999] 231
Aisle Guide Wheels (10.0-7434-001) [~ – 1A999999] 232
Aisle Guide Wheels (10.0-7434-001) [~ – 1A999999] 233
Aisle Guide Wheels (10.0-7434-001) [~ – 1A999999] 234
Aisle Guide Wheels (10.0-7434-001) [~ – 1A999999] 235
Aisle Guide Wheels (10.0-7434-001) [~ – 1A999999] 236
Accessories (10.0-7332-100) [1A259864 – 1A999999] 238
Platform Load Deck (10.0-7334-100) [~ – 1A999999] 240
End Aisle Control (EAC) (10.4-7334-001) [1A356377 – 1A999999] 242
Labels and Decals (10.9-7434-001) [~ – 1A999999] 244
Labels and Decals (10.9-7434-001) [~ – 1A999999] 246
Wheels, Tires and Casters
Load Wheels (PF25785) 248
Poly Tires (PF25786) 250

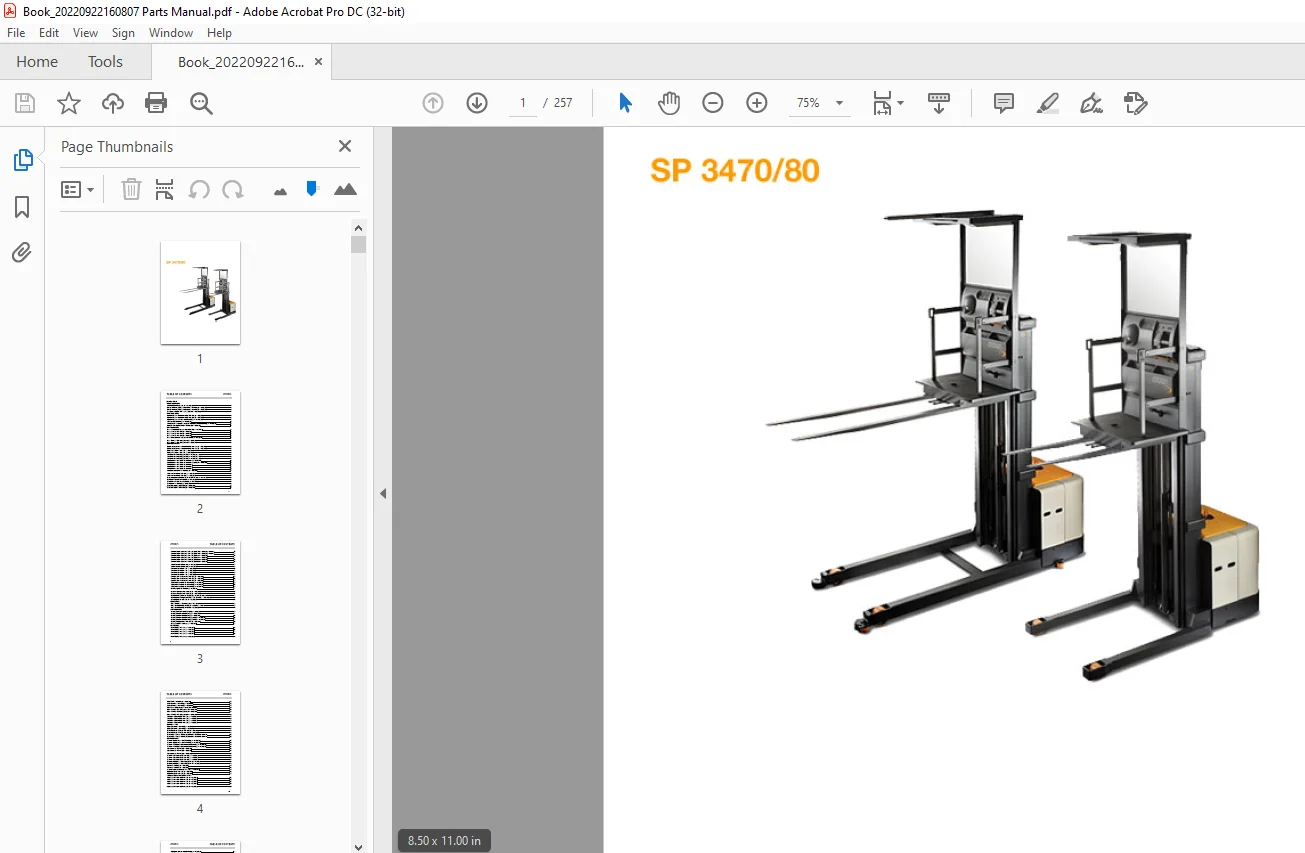

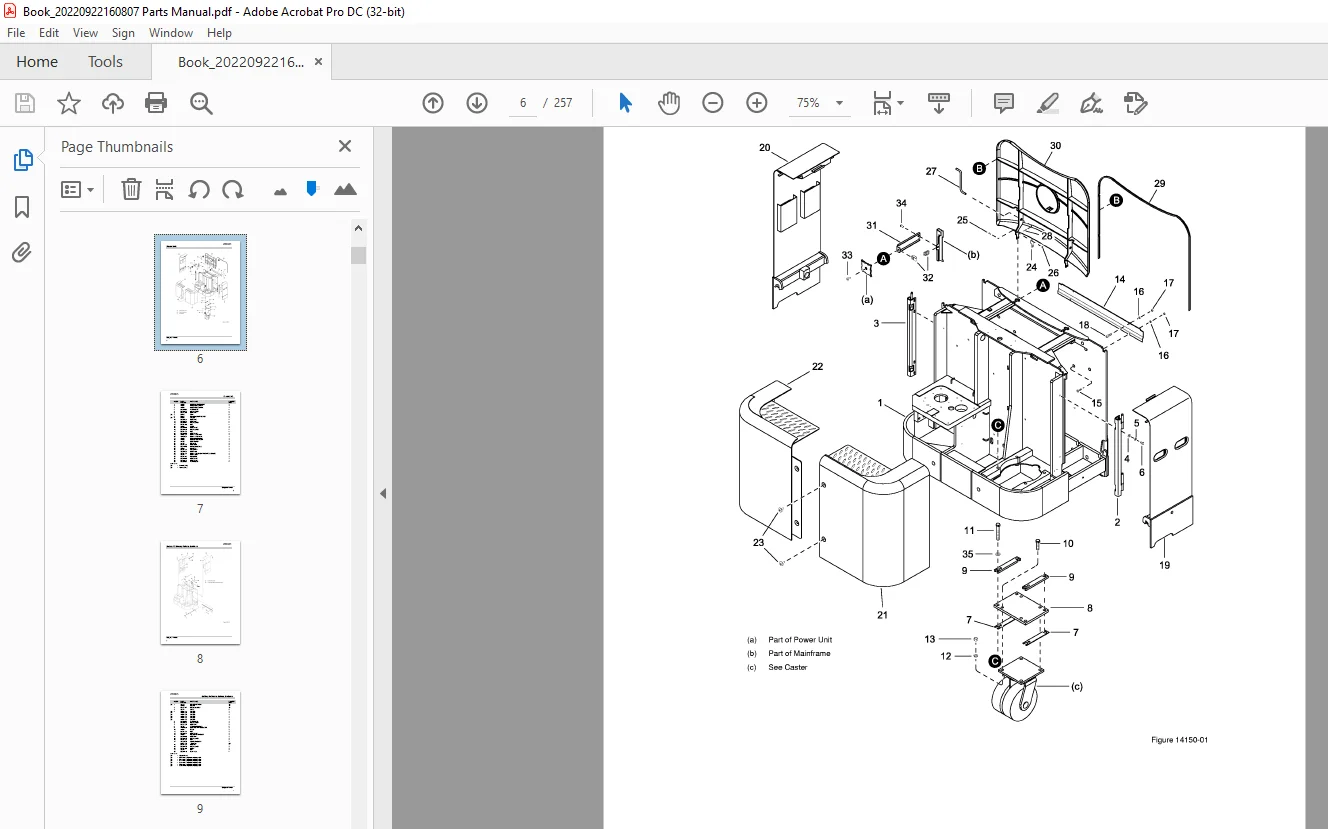

IMAGES PREVIEW OF THE MANUAL:
