DESCRIPTION:

Crown Forklift TS Service Manual – PDF DOWNLOAD

INTRODUCTION
This manual is intended for the service mechanic who is seeking information about maintenance and service
replacement parts. It contains a section on trouble shooting which will enable a qualified mechanic to locate and
solve problems which may occur.
OPERATOR INSTRUCTIONS
This manual does not contain operation instructions. Operator Instructions in tag or booklet form are sent with each
truck. Additional copies can be ordered if required. These booklets are for you and your personnel to insure years of
safe, trouble-free operation of your Crown Lift Truck. For turret sideloader operator instructions, refer to Crown publication,
“You and Your Crown Turret Sideloader” (PF-5681).
DRIVER TRAINING
Crown has available a complete series of Driver Training programs, in two parts concerning basic safety rules and
operating characteristics of your turret sideloader. To obtain this informative information ask your Crown Dealer
about “Its up to You” and “You and Your Turret Sideloader”.
SERVICE TRAINING
Complete Service Training is available to the lift truck mechanic covering all Crown Lift Trucks, SCR systems, wire
guidance, hydraulic and electrical systems. To obtain more information concerning service training contact your
Crown Dealer.

TABLE OF CONTENTS:

Crown Forklift TS Service Manual – PDF DOWNLOAD

Cleaning of Material Handling Equipment 4
Lubrication and Adjustment 0
Operator’s Daily Checklist 12
General 14
Lubrication and Inspection 16
Platform 16
Lift Structure and Power Unit 18
Auxiliary Mast and Pivot 20
Power Unit and Lift Structure 22
SAE Torque Values 23
Grade 23
Drift Test 26
Drift Test 28
Switch Adjustment 39
Lever Adjustment 40
Switch Function & Location 42
Fuses 48
Circuit Operation 90
Control Features 93
Component Testing 94
Control Description100
Control Features 100
Component Testing 100
Component Replacement103
Circuit Operation105
Component Testing106
Component Replacement108
Circuit Operation 110
Component Testing 111
Component Replacement113
Circuit Operation116
Component Testing 116
Component Replacement121
Circuit Operation 125
Component Testing 125
Component Replacement127
Circuit Operation130
Component Testing 130
Component Replacement135
Electronic Box Location139
Static Electricity Precautions139
Card Placement Labels140
Software141
Cards 141
Program Jumpers143
Card Indicators145
System Operation158
Circuit Operation160
Line Driver177
Sensor Operation & Mounting183
Sensor Amplifier Board185
Servo Amplifier Board189
Servo Driver195
Position Potentiometer206
Alignment215
Troubleshooting Chart220
Manual Steering 231
Traction232
Brakes235
Main and Auxiliary Raise236
Main and Auxiliary Lower238
Accessory240
Automatic Steering242
Wire Guidance242
Rail Guidance243
Truck Wiring Charts244
Brush Replacement262
Motor Chart262
Lining Replacement284
Adjustment285
Speed Sensor Adjustment286
Linkage Adjustment292
Second Stage Mast Removal293
Main Frame & Power Unit Hydraulics294
Column Roller Adjustment297
Second Stage Installation297
Side Thrust Roller Adjustment298
Cylinder Removal299
Packing Replacement301
Cylinder Replacement303
Platform Shimming304
Turret Removal305
Turret Disassembly305
Turret Assembly305
Auxilliary Mast Removal307
Auxilliary Mast Disassembly307
Sideshift Removal309
Sideshift Disassembly309
Sideshift Assembly309
Sideshift-Auxilliary Mast Shimming310

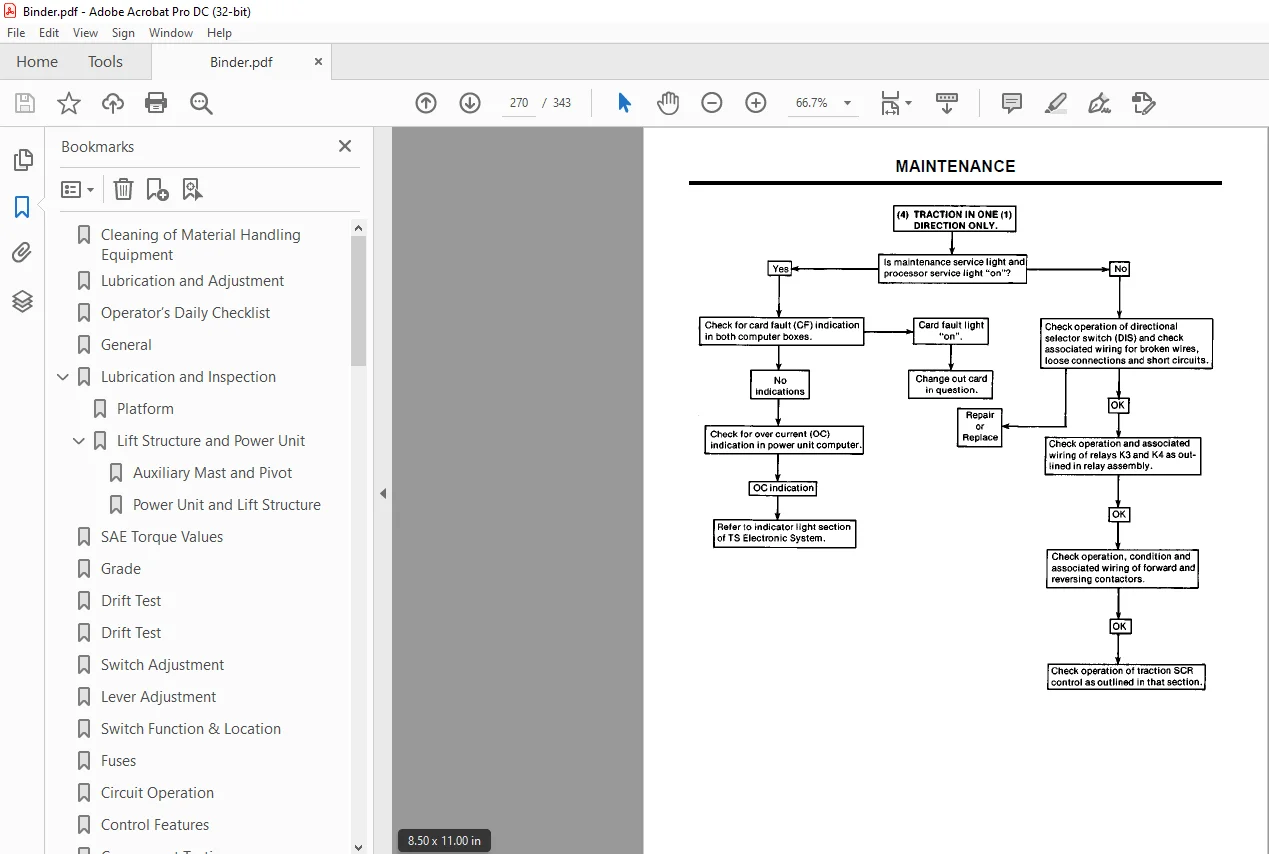

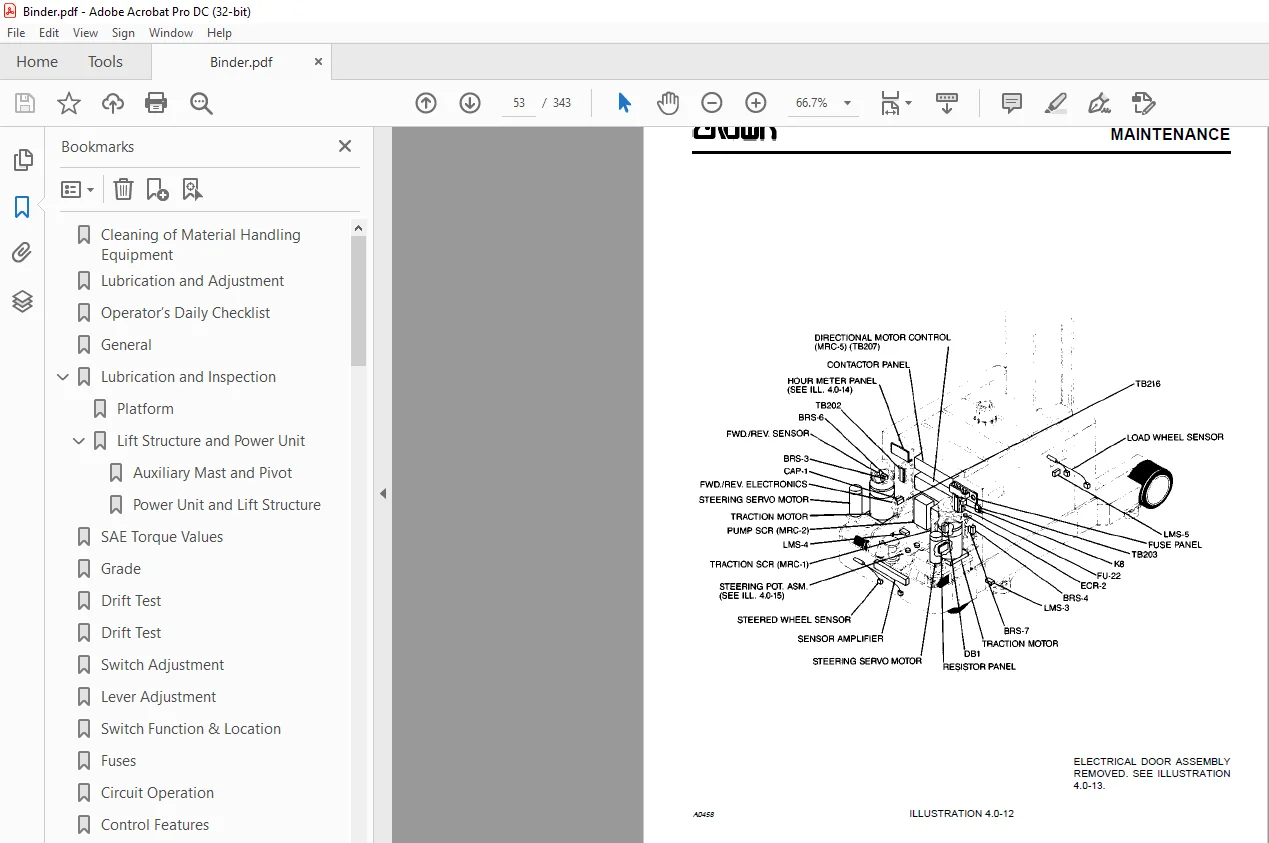

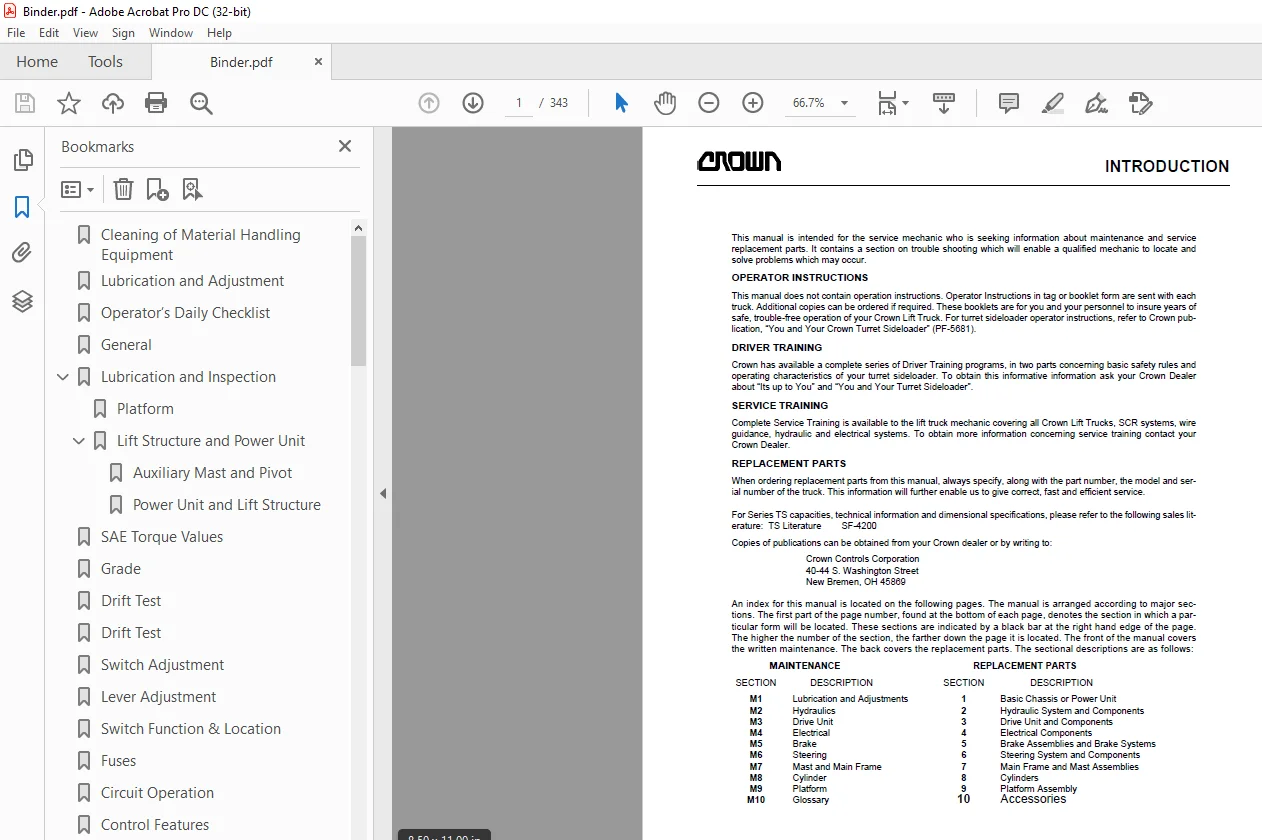

IMAGES PREVIEW OF THE MANUAL:
