Cub Cadet 5000 Series Compact Tractor Service Repair Manual
Description
Cub Cadet 5000 Series Compact Tractor Service Repair Manual
FILE DETAILS:
Cub Cadet 5000 Series Compact Tractor Service Repair Manual
Language : English
Pages : 96
Downloadable : YES
Format : PDF
Size : 17.0 MB
DESCRIPTION:
Cub Cadet 5000 Series Compact Tractor Service Repair Manual

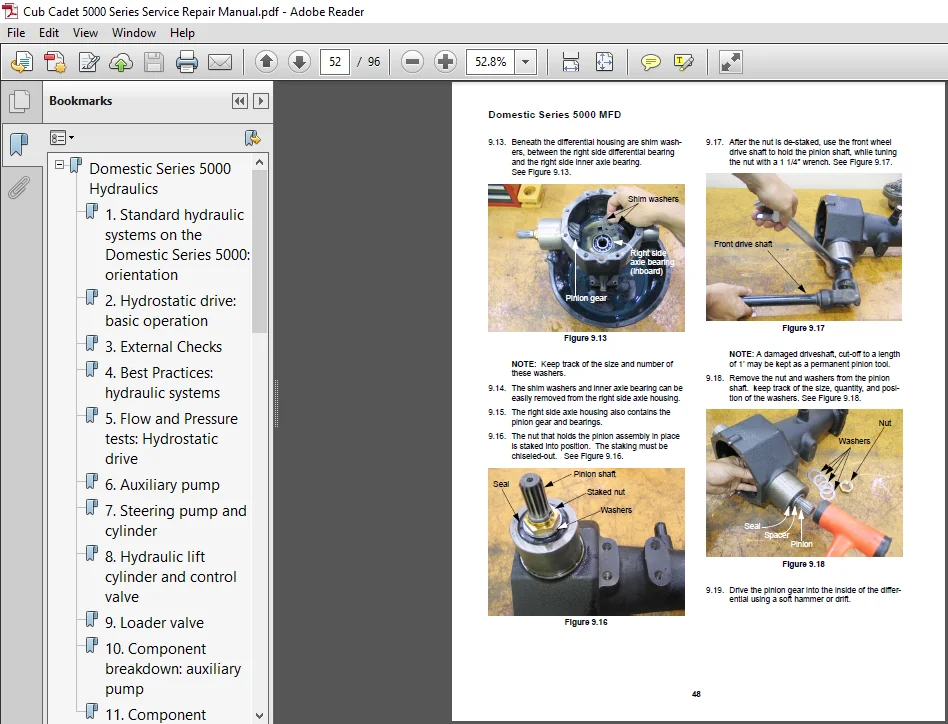

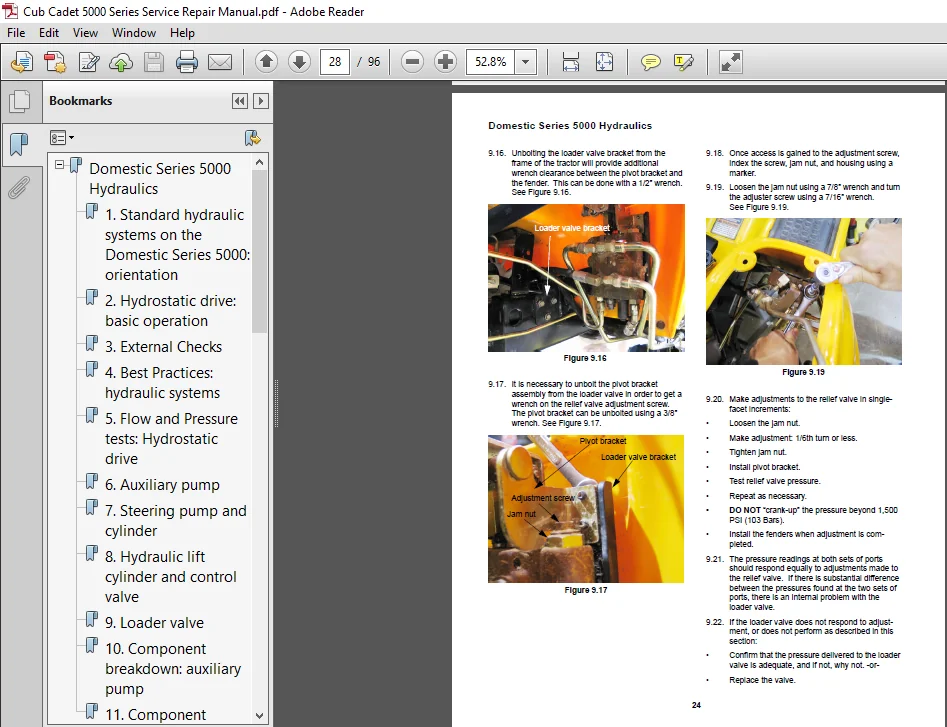

SAMPLE PAGES FROM THE MANUAL:
STANDARD HYDRAULIC SYSTEMS ON THE DOMESTIC SERIES 5000:
ORIENTATION NOTE: Subsections 1 and 2 of the Domestic Series 5000 Hydraulics portion of this manual provide a basic orientation to the system. Subsection 3 and those that follow it contain specific test procedures. NOTE: Hydraulic diagrams are contained in an appendix to this section. 1.1. The transmission housing acts as a reservoir for all of the hydraulic systems on the tractor: hydrostatic drive pump, hydrostatic steering system, lift cylinder, and accessories. 1.2. Fluid: the transmission and hydraulic system are filled with 5.0 gallons (19.0 L) of Cub Cadet Hydraulic Drive System Fluid Plus (P/N: 737- 3120 1Qt., 737-3121 1Gal.). 1.3. Filtration: The hydraulic system filter (P/N:723- 0405) is located on a boss on the front surface of the transmission housing, adjacent to the midmount, 2000 R.P.M. P.T.O. shaft.
TABLE OF CONTENTS:
Cub Cadet 5000 Series Compact Tractor Service Repair Manual
CHAPTER 1 – Hydraulics
Standard Hydraulic Systems on the Domestic Series 5000: Orientation 1
Hydrostatic Drive: Basic Operation 4
External Checks 6
Best Practices: Hydraulic Systems 8
Flow and Pressure Tests: Hydrostatic Drive 8
Auxiliary Pump 12
Steering Pump and Cylinder 14
Hydraulic Lift Cylinder and Control Valve 18
Loader Valve 22
Component Breakdown: Auxiliary Pump 25
Component Breakdown: Steering Unit 26
CHAPTER 2 – MFD
About This Section: 31
Identifying the MFD: 31
Domestic Series 5000 MFD 31
MFD Removal: Preparation 33
Removal 34
MFD Installation 36
In-Frame Repairs: Drop Axle Service 37
In Frame Repairs: Drop Axle Cover 38
In-Frame Repairs: Drop-Axle Removal 40
Bench Repairs: Drop Axle and Kingpin Housing Assemblies 42
Bench Repair: Axles and Differential 46
Torque Specifications 60
CHAPTER 3 – Rear Axle
Reason for Change: 61
Preparation: 61
Axle Assembly 63
Install the New Axle 64
CHAPTER 4 – Deck Adapter Kit – 190-830-100 65
About This Section: 65
Preparation and Brackets: 65
Lift Shaft and Arms: 66
Hanger to Deck Connections 67
Mating the Deck to the Tractor 68
CHAPTER 5 – Dash and Steering Pump
About This Section: 71
Dash Panel Removal 71
The Dash Panel 75
Steering Shaft and Pump: Sauer 77
Steering Shaft and Pump: Ross 79
TABLE OF CONTENTS
II
CHAPTER 6 – Electrical System
Similarities and Differences 81
Components 82
Electric Clutch and Fuel Pump 90
