Cummins C Series Diesel Engine Troubleshooting & Repair Manual PDF

Description

Cummins C Series Diesel Engine Troubleshooting & Repair Manual (6C8.3, 6CT8.3, 6CTA8.3) PDF DOWNLOAD

Description:

Factory-Level Diagnostics and Repair for C Series Engines

This is the comprehensive Troubleshooting and Repair Manual (Bulletin 3666003) for the Cummins C Series Diesel Engines. Whether you are rebuilding a 6CTA8.3 marine engine or servicing a 6CT8.3 in heavy equipment, this manual provides the precise factory procedures required to get the job done efficiently.

Derived from Cummins QuickServe data, this manual offers step-by-step instructions for everything from routine component replacement to a full “out-of-frame” overhaul.

Detailed Coverage Includes:

The manual is methodically organized into critical service sections:

• General Engine Specifications

  • Industrial, Marine, and Automotive ratings.

  • Air intake restrictions and exhaust back pressure limits.

  • Lubricating oil and coolant capacities.

• Cylinder Block & Internal Components

  • Crankshaft: Removal, inspection, wear sleeve installation, and main bearing service.

  • Pistons & Rods: Connecting rod bearing replacement, piston ring gap measurement, and protrusion checks.

  • Cylinder Liners: Inspection, removal, and shim installation for counterbore repair.

  • Camshaft: Gear installation (heat shrink method), bushing replacement, and lobe wear limits.

• Cylinder Head & Valvetrain

  • Cylinder Head: Flatness checks, valve recess measurement, and vacuum testing.

  • Valves: Grinding angles, seat width specifications, and guide bore measurement.

  • Rocker Levers: Disassembly, inspection, and valve lash adjustment procedures.

• Fuel System (Bosch P3000/P7100/MW/A Pumps)

  • Injection Timing: Static timing adjustment using the spill port method and timing pins.

  • Injectors: Removal, cleaning, nozzle testing, and sealing washer selection.

  • Lift Pump: Output pressure and flow volume tests.

• Lubrication System

  • Oil pump disassembly and inspection (gerotor planetary).

  • Oil cooler pressure testing and element replacement.

  • Oil pan and suction tube installation.

• Cooling System

  • Water pump seal inspection and replacement criteria.

  • Thermostat opening temperature tests and housing installation.

  • Drive belt tensioner and fan hub service.

Technical Reference Data:

• Torque Tables: Precise tightening values for head bolts (torque-plus-angle), connecting rods, and main bearings.

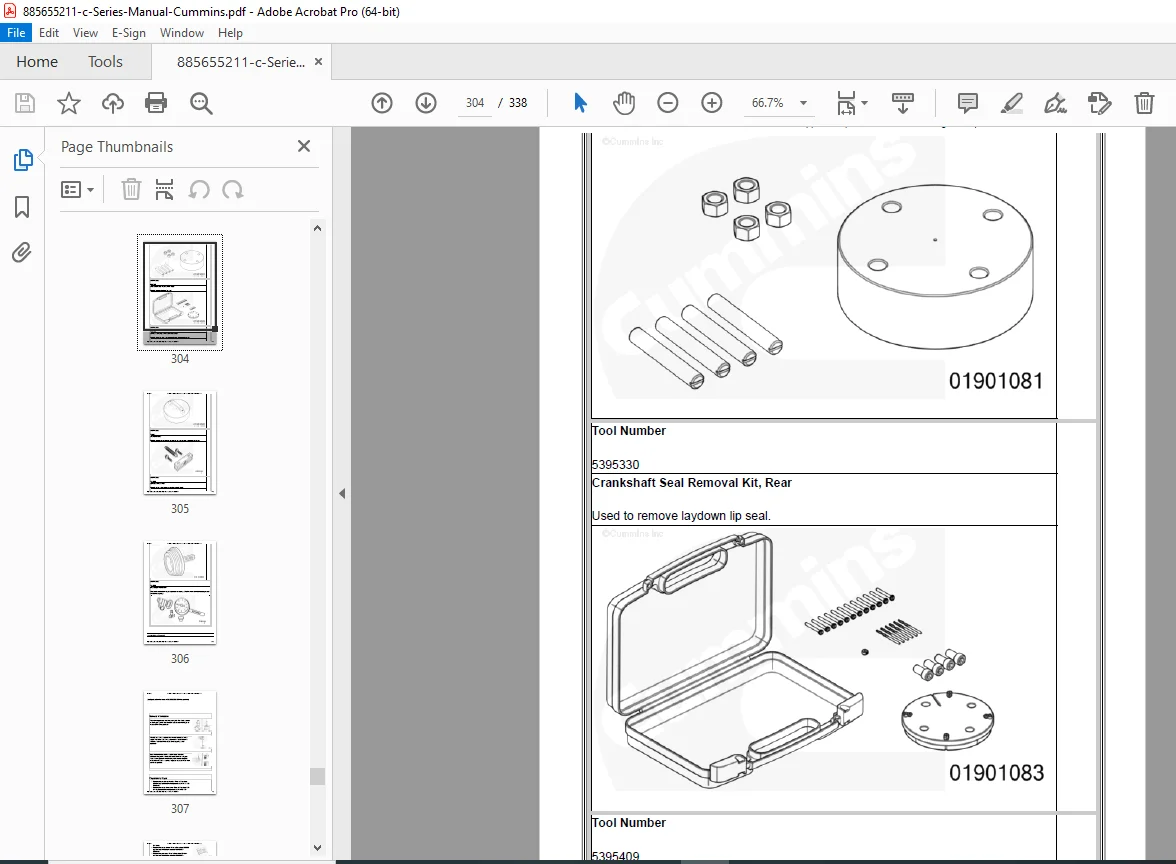

• Tooling Lists: Required service tools (e.g., Camshaft Bushing Kit 3162253, Piston Ring Compressor 3823290).

• Wear Limits: Detailed Min/Max specifications for journals, bores, and clearances.

Product Details:

• Manual Name: Cummins C Series Troubleshooting and Repair Manual (Bulletin 3666003)

• Models Covered:

  • 6C8.3

  • 6CT8.3

  • 6CTA8.3

  • Covers Industrial, Automotive, and Marine Applications

• Year: Covers 1991 and later certification levels (Updated ~2021)

• File Type: PDF (Portable Document Format)

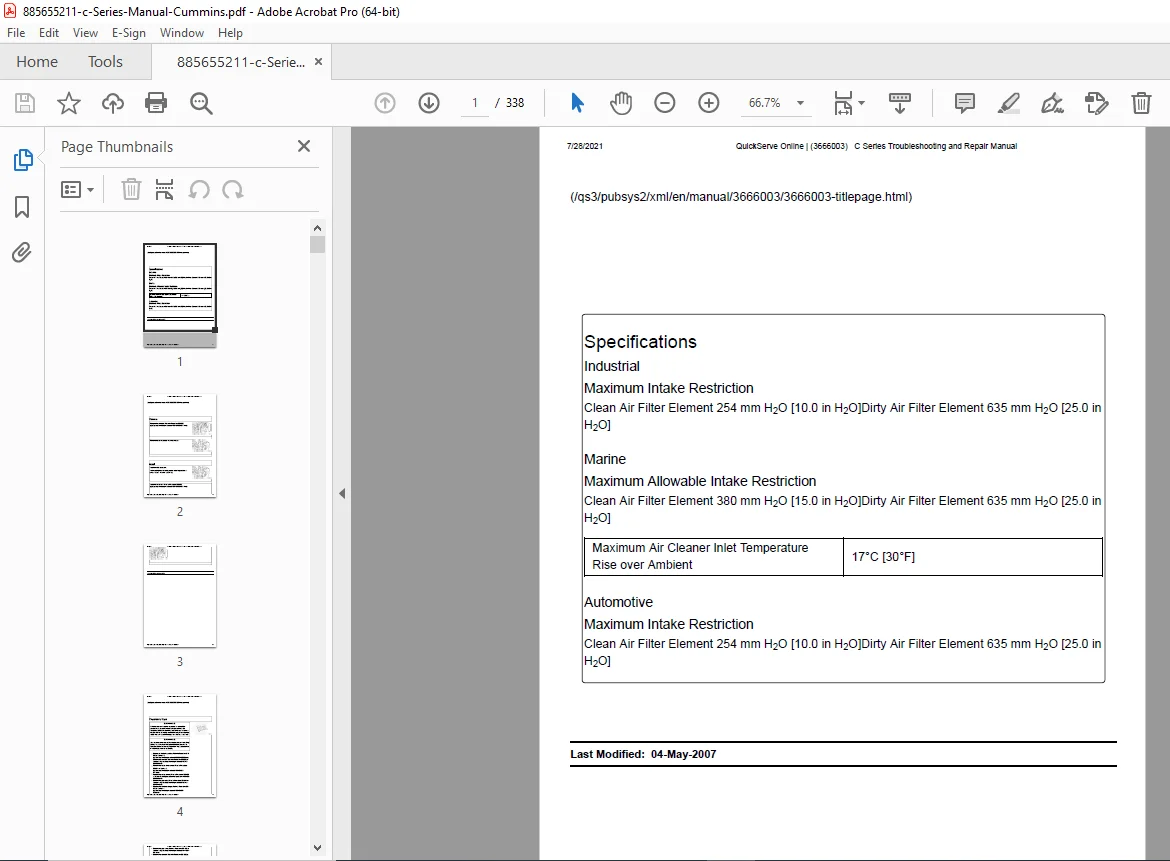

• File Quality: High-Quality / Searchable Text / Illustrations

• Number of Pages: ~338 Pages

 Download this authoritative factory guide today to access the exact torque specs and timing procedures used by certified Cummins technicians!
