Cummins QSK19 CM850 Modular Common Rail System Marine Auxiliary with C Command Panel System Wiring Diagram Manual 4021583 – PDF DOWNLOAD

Description

Diagram Overview

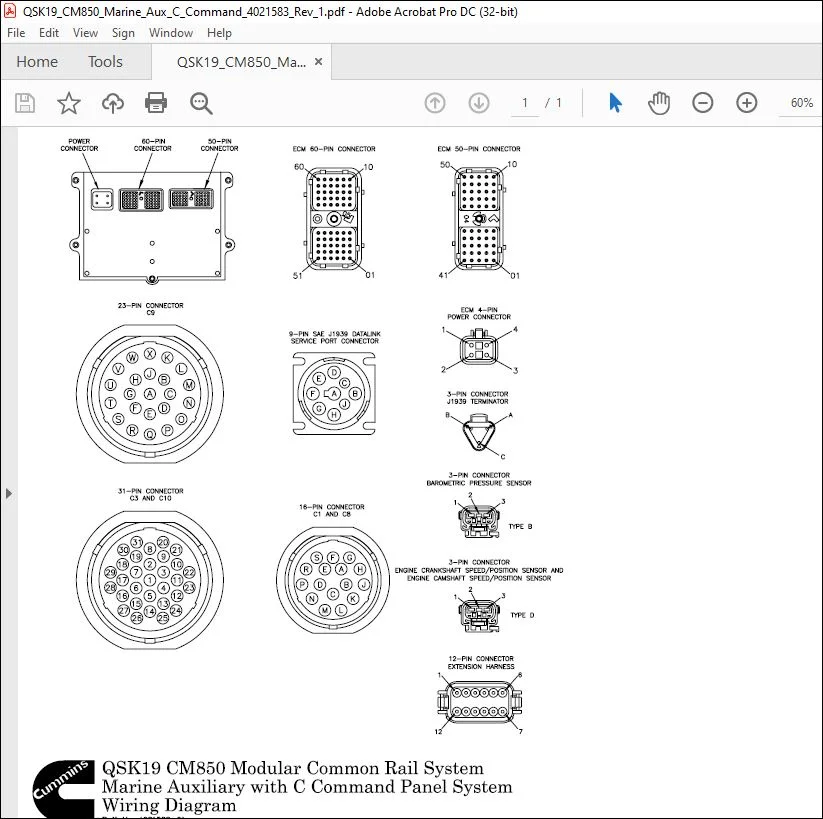

This is the System Wiring Diagram, manual number 4021583, for the Cummins QSK19 CM850 Modular Common Rail System. It is specifically designed for marine auxiliary applications integrated with the C Command Panel. This document is a crucial reference for marine service technicians and electrical engineers.

Why This Wiring Diagram is Essential

An accurate wiring diagram is fundamental for any work involving the engine’s electrical system. This schematic provides a detailed layout of the wiring, connectors, sensors, and control modules. It enables technicians to effectively diagnose electrical faults, perform repairs, and install components correctly, ensuring the reliability and safety of the marine auxiliary power system.

System Details

This document contains the precise electrical information for the QSK19 engine configuration.

• Brand: Cummins
• Engine Model: QSK19
• System: CM850 Modular Common Rail System
• Application: Marine Auxiliary with C Command Panel
• Document Type: System Wiring Diagram
• Manual Number: 4021583
• Language: English
• Pages: 1
• Format: PDF

Get the technical information you need to perform service with confidence. This downloadable PDF provides instant access to the complete wiring diagram, viewable on any device for convenience in the engine room or workshop.

Original Product Details

Cummins QSK19 CM850 Modular Common Rail System Marine Auxiliary with C Command Panel System Wiring Diagram Manual 4021583 – PDF DOWNLOAD

Language : English
Pages : 1
Downloadable : Yes
File Type : PDF
Size: 527 KB
