Cummins QSK50 CM2150 Modular Common Rail System Propulsion with C Command Elite and C Command Elite Plus Panel System Wiring Diagram Manual 4022113 – PDF DOWNLOAD

Description

Diagram Overview

This document is the official Cummins wiring diagram, manual number 4022113, for the QSK50 CM2150 Modular Common Rail System. It is specifically designed for propulsion applications equipped with the C Command Elite and C Command Elite Plus Panel System. This technical resource is indispensable for marine engineers, electricians, and service technicians working on these advanced Cummins engine systems.

Technical Details Covered

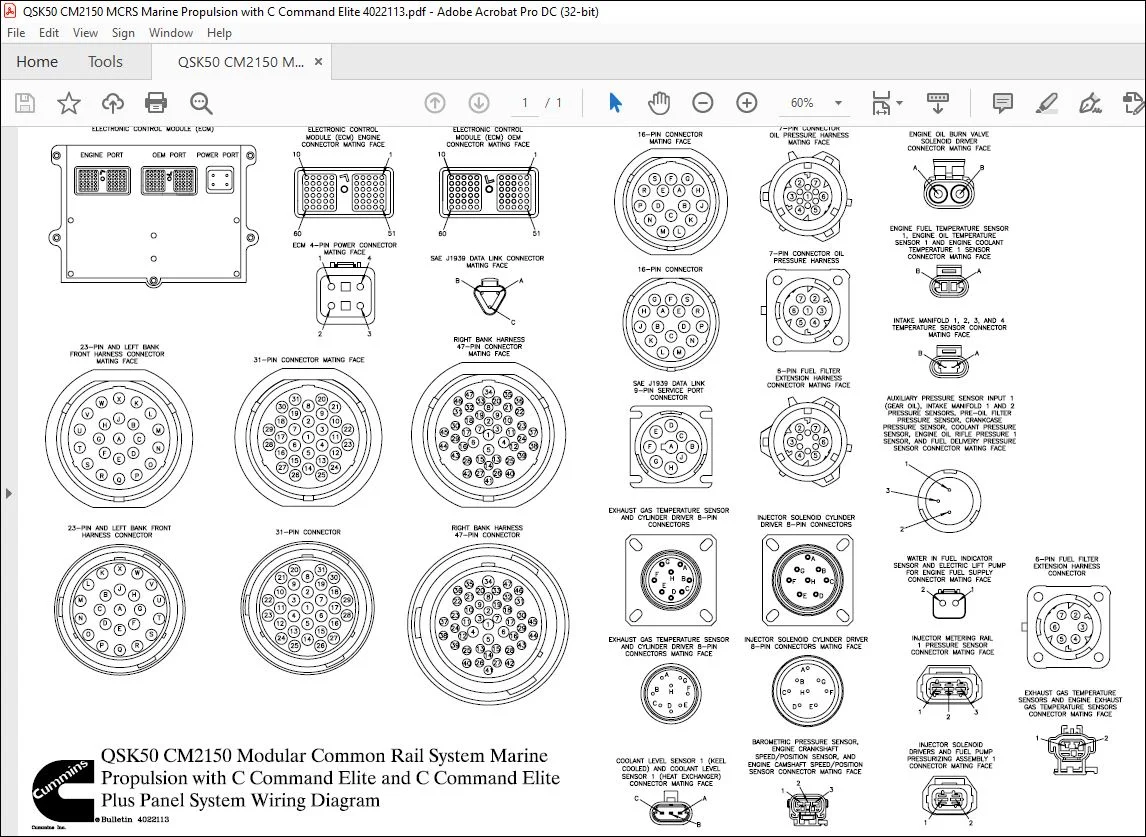

This single-page, high-detail diagram provides a comprehensive visual map of the entire electrical system. It is crucial for troubleshooting, installation, and repair tasks. The diagram clearly lays out:

• Connections between the engine control module (ECM) and system components
• Wiring for the C Command Elite and C Command Elite Plus panels
• Sensor and actuator wiring paths
• Power supply and ground circuits
• Connector pinouts and wire color codes

Why This Wiring Diagram is Essential

Modern marine engine systems are complex. A precise and accurate wiring diagram is the most critical tool for diagnosing electrical issues, preventing incorrect connections, and ensuring all components communicate correctly. This document helps technicians quickly identify faults, reducing downtime and ensuring the reliability and safety of the vessel’s propulsion system.

Get the technical accuracy you need to service your Cummins engine with confidence. This downloadable PDF provides instant access to the complete wiring schematic. Download now for immediate use in the workshop or on board.

Original Product Details

Cummins QSK50 CM2150 Modular Common Rail System Propulsion with C Command Elite and C Command Elite Plus Panel System Wiring Diagram Manual 4022113 – PDF DOWNLOAD

Language : English
Pages : 1
Downloadable : Yes
File Type : PDF
Size: 1.18 MB
