Cummins QSK60 CM850 Modular Common Rail System Marine Propulsion with C Command Elite and C Command Elite Plus Panel System Wiring Diagram Manual 4022086 – PDF DOWNLOAD

Description

Manual Overview

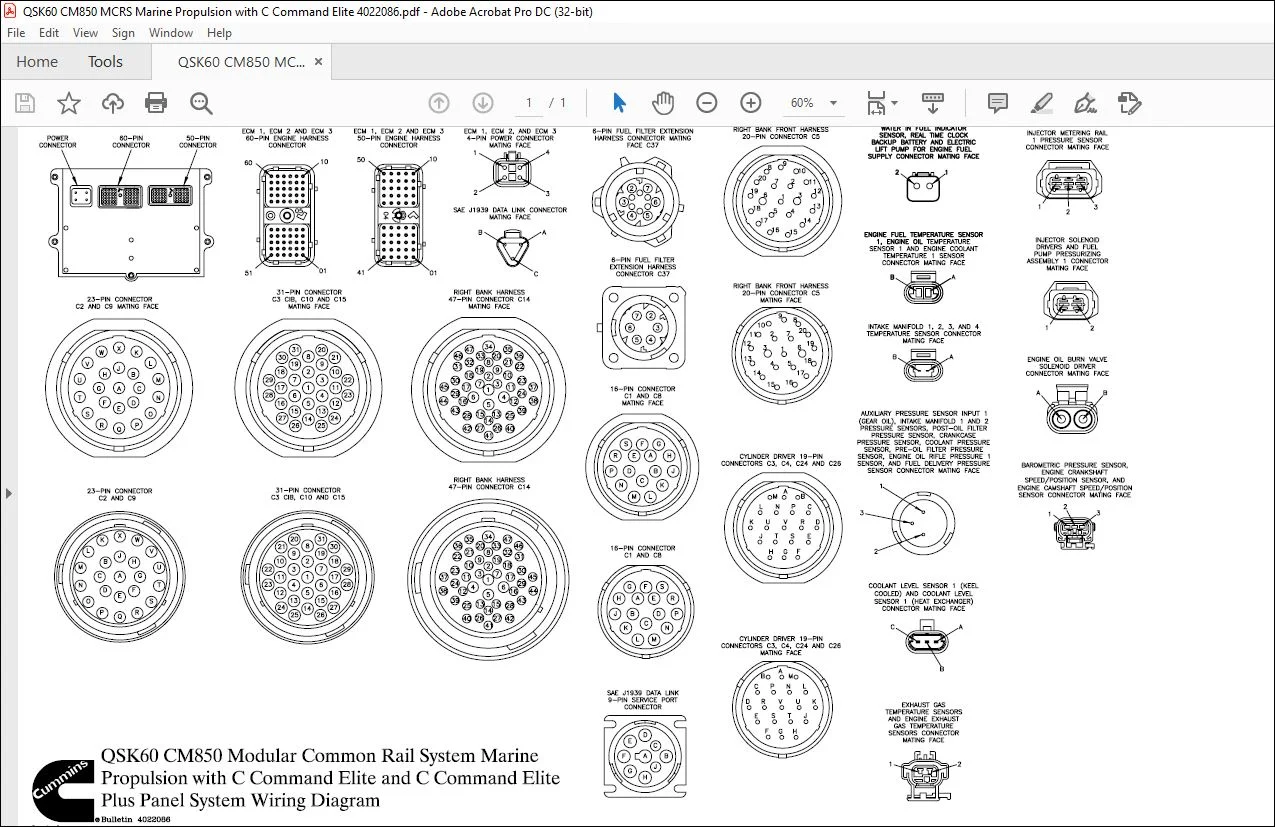

This is the Wiring Diagram Manual for the powerful Cummins QSK60 CM850 marine propulsion engine, publication number 4022086. It is an indispensable technical document for marine engineers, electricians, and service technicians who work on vessels equipped with this engine. The manual specifically covers configurations with the Modular Common Rail System and the C Command Elite or C Command Elite Plus Panel System.

What This Diagram Details

This manual provides a comprehensive and precise schematic of the engine’s entire electrical system. It is expertly designed to aid in the diagnosis, troubleshooting, and repair of any electrical issue. The diagram clearly maps the intricate connections between the engine, the advanced fuel system, control panels, sensors, and other integrated electronics, making it a vital tool for complex problem-solving.

Technical Specifications

• Engine Model: Cummins QSK60 CM850
• System: Modular Common Rail System, Marine Propulsion
• Control Panel: C Command Elite and C Command Elite Plus
• Manual Number: 4022086
• Language: English
• Format: PDF

Instant Access for Mission-Critical Work

In the demanding marine industry, engine reliability is paramount. This wiring diagram provides the authoritative information needed to perform accurate and efficient electrical service, minimizing downtime and ensuring safe operation. Purchase now for an instant PDF download and equip yourself with this essential resource.

Original Product Details

Cummins QSK60 CM850 Modular Common Rail System Marine Propulsion with C Command Elite and C Command Elite Plus Panel System Wiring Diagram Manual 4022086 – PDF DOWNLOAD

Language : English
Pages : 1
Downloadable : Yes
File Type : PDF
Size: 1.21 MB
