Cushman Titan XD 48V Electric Vehicle Service Manual PDF (2019)
Original price was: $95.00.$26.95Current price is: $26.95.
Factory Cushman / Textron Titan XD 48-Volt Electric Vehicle Service Manual (PDF) covering repair, maintenance, safety procedures, torque specs, steering, suspension, IntelliBrake™, motor, rear axle, electrical system, troubleshooting diagnostics, batteries & charging, wiring components, lubrication points, and full scheduled maintenance charts for 2-passenger and 4-passenger Titan XD models.
Description
Cushman Titan XD 48V Electric Vehicle Service Manual PDF DOWNLOAD (2019)
Description

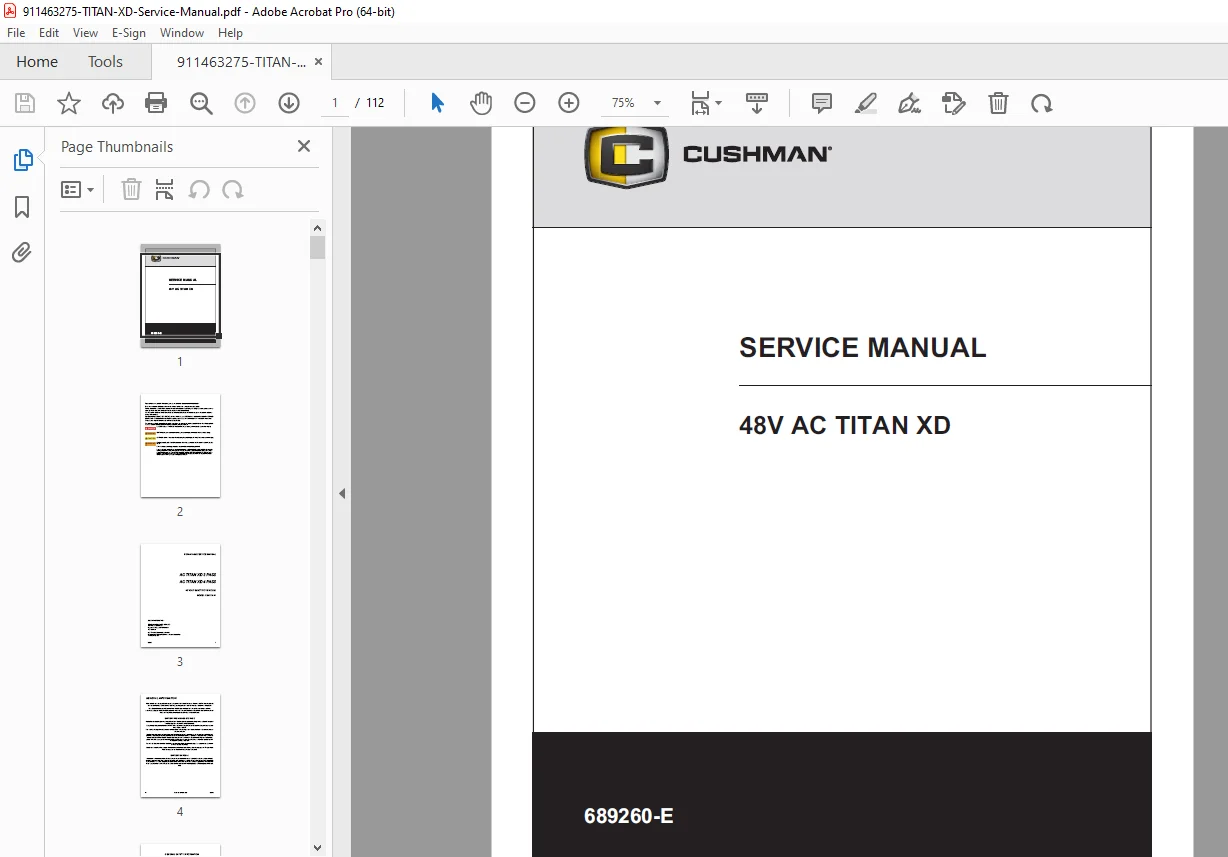

This official Cushman Titan XD 48V Electric Vehicle Service Manual (PDF) provides the complete factory service, repair, adjustment, and maintenance procedures for Titan XD 2-Passenger and 4-Passenger electric models.
The manual includes detailed safety instructions, step-by-step disassembly and installation procedures, lubrication charts, battery service, brake and suspension repair, IntelliBrake™ removal and installation, electrical diagnostics, fault testing, and complete scheduled maintenance guidelines.
The Table of Contents in the manual clearly organizes all core systems — including body, wheels, brakes, steering, suspension, rear axle, motor, control systems, and charging maintenance — making it ideal for fleet maintenance, dealership workshops, and professional technicians.
✅ Structured Sections — Key Contents
General & Safety Information
Vehicle operation & maintenance warnings
Service precautions & lifting procedures
Hardware torque specifications
Ventilation & charging safety
Body & Chassis
Swing-out battery tray
Cargo deck removal & replacement
Seating assembly
Painting & panel repair guidance
Weather Protection
Canopy kit installation
Windshield & top transport limits
Curtain mounting diagrams
Wheels & Tires
Wheel removal & installation
Tire repair & replacement
Recommended pressure specs
Lug torque patterns
Brake System
Hydraulic brake layout diagram (pg. 21)
Daily brake performance test
Master cylinder service
Front & rear brake service
Parking brake adjustments
Steering & Suspension
Steering gear & alignment
Front suspension disassembly
Shock absorbers & lubrication points
Wheel bearing packing & adjustment
Rear Axle & Drives
Axle removal & installation
Bearing & seal inspection
Shaft assembly procedures
Motor & IntelliBrake™
Motor removal & installation
IntelliBrake™ service procedures
Speed sensor replacement
Electrical System
Control panel & switches
Fuses, solenoids & DC/DC converter
Pedal box & inductive throttle testing
Controller diagnostics & fault testing
Batteries & Charging
Battery maintenance & storage
Hydrometer procedures
On-board charger operation
Monthly and cycle-based checks
Scheduled Maintenance
Severe-use schedule
Maintenance chart (pg. 91)
Lubrication points & fluids list
General specifications section
📄 File Details
| Field | Details |
|---|---|
| Manual Name | Cushman / Textron Titan XD Service Manual |
| Models Covered | Titan XD 2-Passenger & 4-Passenger (48V AC) |
| Model Year | 2019 |
| Content Type | Service, Maintenance, Troubleshooting, Electrical |
| Format | PDF Download |
| Pages | 112 |

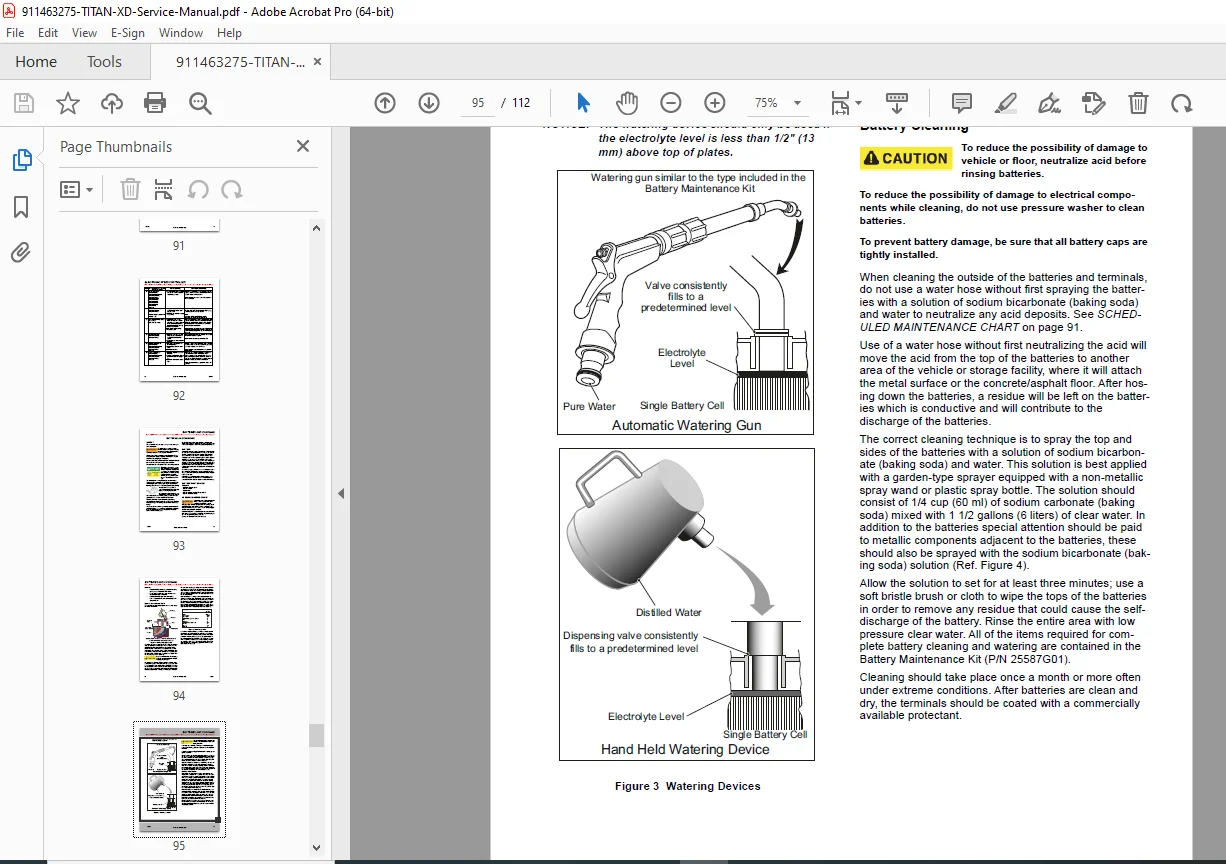

| PDF Quality | Clear diagrams, illustrations, searchable text |
| Language | English |
