Daewoo Doosan ADT DA40-5 Shop Manual MX533346-1 – PDF DOWNLOAD

Description

Daewoo Doosan ADT DA40-5 Shop Manual MX533346-1 – PDF DOWNLOAD

DESCRIPTION:

Daewoo Doosan ADT DA40-5 Shop Manual MX533346-1 – PDF DOWNLOAD

Foreword

The Shop Manual is prepared as an aid to performing quality repairs by giving the service personnel an understanding of the dump truck, and showing the correct way perform repairs and make judgements. Make sure that you understand the manual and use it at every available opportunity. The manual will also serve as a useful guide to office personnel and other persons who are involved with the dump truck in one way or another.

How to use the SHOP MANUAL:

The main index give an view of the chapters index page no. The manual is divided into the following
chapters:

Chapter 1: Engine XPI/PDE Chapter 2: Transmission
Chapter 3: Drive line
Chapter 4: Lubrication Chapter

5: Hydraulic system

Chapter 6: Electric system
Chapter 7: Front frame
Chapter 8: Rear frame
Chapter 9: Option
Chapter 10: Error codes list

• In the chapters index you will find the page no. For the description of each part. Each part will describe: Structure and function: This section explains how the components are built and how they work. Testing and adjusting: This section explains checks to be made before and after performing repairs, as well as adjustments to be done at the completion of the checks and repairs. Disassembly and assembly: This section describes how to remove, install, disassemble, repair and assemble components, and the work order. Special tools are listed at the end of each chapter.
• The special tools are an excellent aid in the work shop. By using special tools, the job will be easier to perform and in some cases a special tool is required to carry out the work. List of all special tools for the complete truck are listed in the “Special Tool Guide”.
• Maintenance standard: This section gives the judgement standards when inspecting disassembled parts. Troubleshooting: When a fault is detected, this section is used as before the practical fault finding starts. A skilled and trained mechanic together with the Shop Manual is the best combination for troubleshooting when repair instruction is needed. At the end of each chapters are the main Troubleshooting This manual is valid for the serial nos.Listed on the first page. Distributing and updating: Subscribed Shop Manuals will automatically be updated at revisions. This manual is originally produced by Doosan Infracore Norway AS, 6440 Elnesvågen, Norway, and must not be reproduced, translated or made available to a third party, fully or partly, without our written permission

TABLE OF CONTENTS:

Daewoo Doosan ADT DA40-5 Shop Manual MX533346-1 – PDF DOWNLOAD

0 General
1 Engine XPI/PDE
2 Transmission
3 Driveline
4 Lubrication
5 Hydraulic
6 Electrical system
7 Front frame
8 Rear frame
9 Option
10 Error codes list
Foreword 4
Doosan ADT Payload Policy 5
Torque limit table 6
Types of sealing-/locking compounds and lubricants 7
Safety in workshop 8
Working on machine 9
Personal Protective Equipment (PPE) 12
Vibration 13
Injurious noise 14
Organic solvent 15
Fueling 16
Fire and Explosion Prevention 16
Fire and explosion risks 18
In case of Fire 19
Coolant 20
Refrigerant 21
Air pollution 22
Operation in extreme conditions 23
Liquid or gas under high pressure 27
Asbestos 28
Lead 28
Battery hazard prevention 29
Disposal of hazardous materials 31
Jacked up vehicle or bodywork 32
Crushing and Cutting Danger 32
Heavy units 33
More than one person working with the same object 34
Involuntary start of electric motors etc 34
Rotating parts 35
Splinters, flying object When using certain tools 36
Springs under load 37
Precautions for disassembly and assembly 38

DAEWOO DOOSAN ADT DA40-5 SHOP MANUAL MX533346-1 – PDF DOWNLOAD:

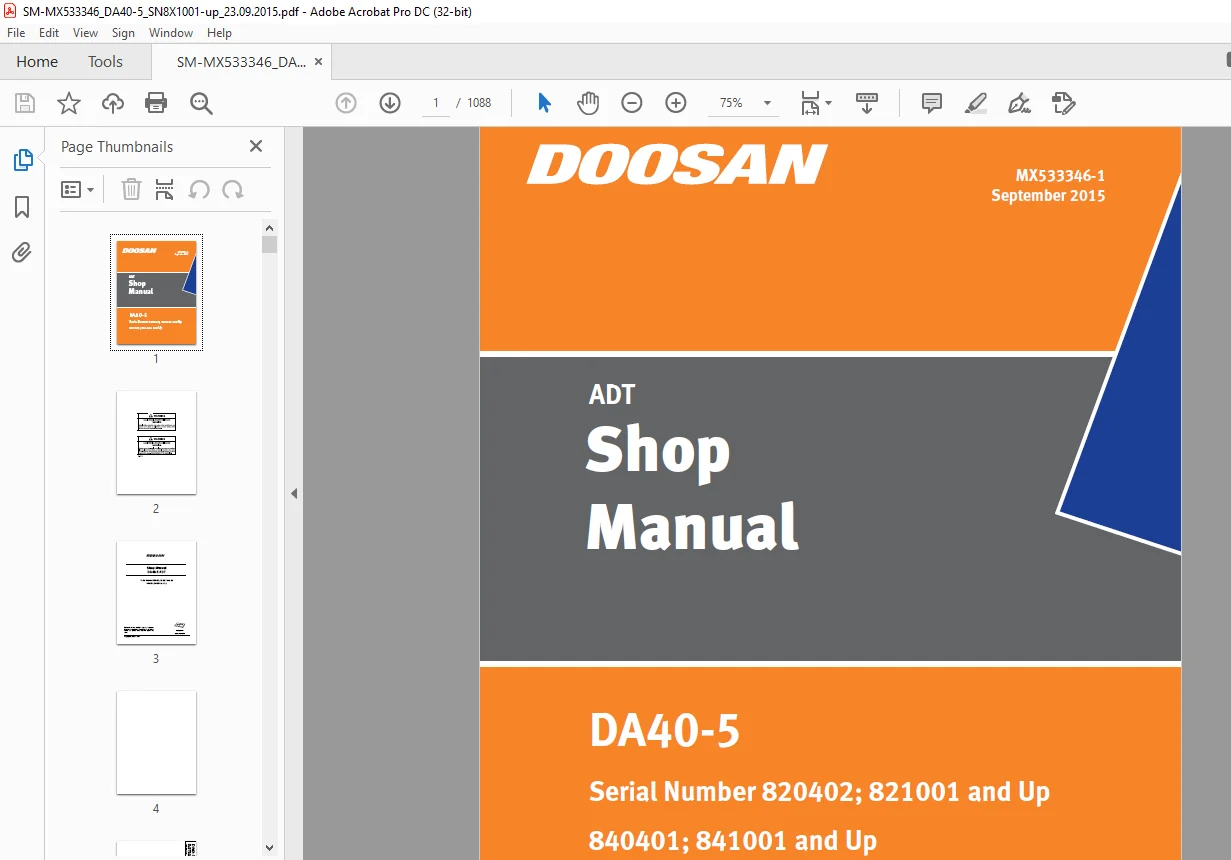

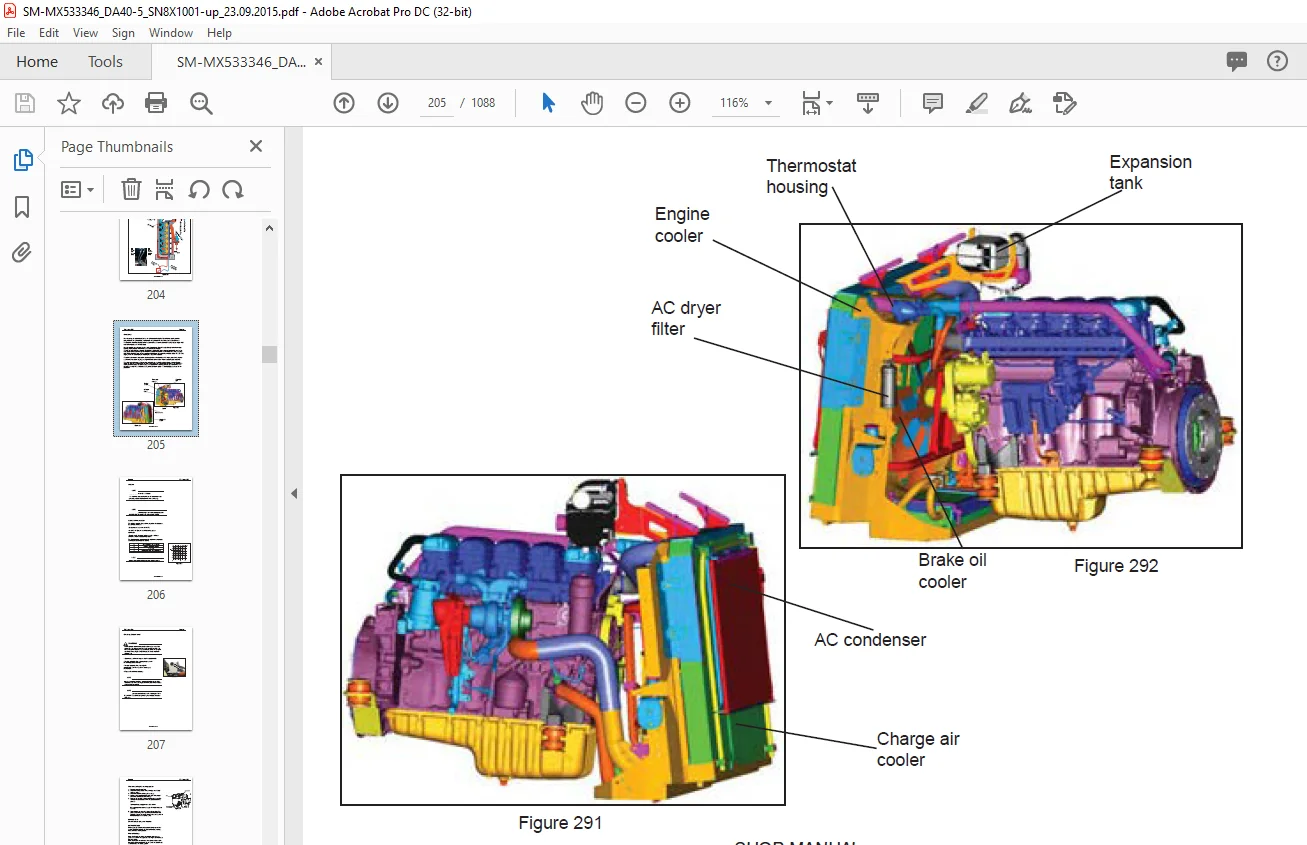

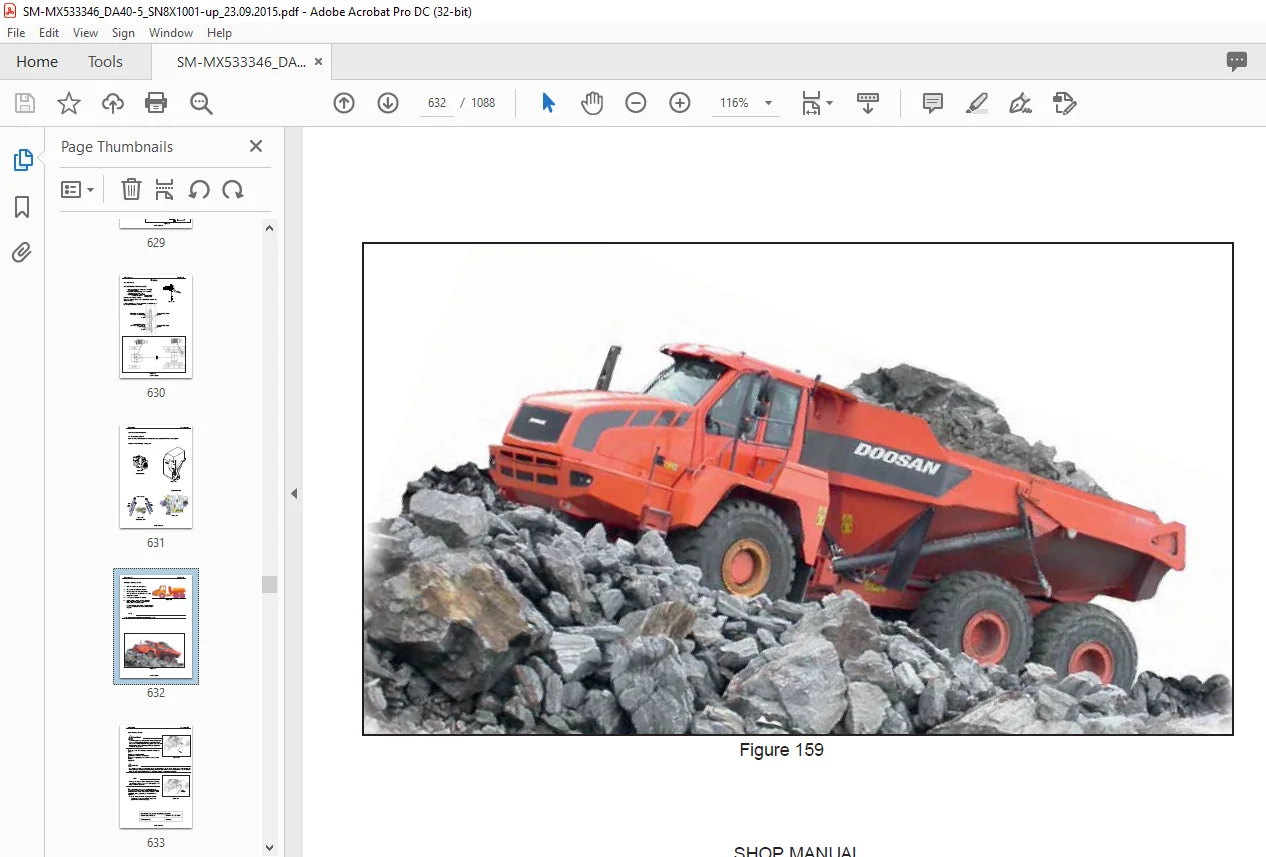

IMAGES PREVIEW OF THE MANUAL:
