Daewoo Doosan DL400 Wheel Loader Shop Manual K1010635BE – PDF DOWNLOAD

Description

Daewoo Doosan DL400 Wheel Loader Shop Manual K1010635BE – PDF DOWNLOAD

DESCRIPTION:

Daewoo Doosan DL400 Wheel Loader Shop Manual K1010635BE – PDF DOWNLOAD

UNAUTHORIZED MODIFICATIONS:

• Any modification made without authorization or written approval from DOOSAN can create a safety hazard, for which the machine owner must be held responsible.
• For safety’s sake, replace all OEM parts with the correct authorized or genuine DOOSAN part.
• For example, not taking the time to replace fasteners, bolts or nuts with the correct replacement parts could lead to a condition in which the safety of critical assemblies is dangerously compromised.

Safety Rules:

• Only trained and authorized personnel can operate and maintain the machine.
• Follow all safety rules, precautions and instructions when operating or performing maintenance on the machine.
• Do not operate the machine if you are not feeling well, if you are taking medication that makes you feel sleepy, if you have been drinking, or if you are suffering from emotional problems.
• These problems will interfere with your sense of judgement in emergencies and may cause accidents.
• When working with another operator or with a person on work site traffic duty, be sure that all personnel know the nature of the work and understand all hand signals that are to be used.
• Always observe strictly any other rules related to safety.

Safety Features:

• Be sure that all guards and covers are installed in their proper position.
• Have guards and covers repaired immediately if damaged.
• Be sure that you understand the method of use of safety features such as transmission lever neutral lock and the seat belt, and use them properly.
• Never remove any safety features.
• Always keep them in good operating condition.
• Failure to use safety features according to the instructions in the Operation and Maintenance Manual could result in serious bodily injury.

Inside Operator’s Compartment:

• When entering the operator’s compartment, always remove all mud and oil from the soles of your shoes.
• If you operate the accelerator and brake pedals with mud or oil stuck to your shoes, your foot may slip and this may cause a serious accident.
• Clean grease and dirt from pedals and controls. This contributes to safe operation. Cleaning also provides an opportunity to inspect equipment.
• Minor damage can be repaired or corrected before major problems result. Keep cab floor and consoles free of tools and personal items.
• After using the ashtray, make sure that any matches or cigarettes are properly extinguished, and be sure to close the ashtray.
• If the ashtray is left open, there is danger of fire. Do not stick suction pads to the window glass. Suction pads act as a lens and may cause fire.

TABLE OF CONTENTS:

Daewoo Doosan DL400 Wheel Loader Shop Manual K1010635BE – PDF DOWNLOAD

Safety
Wheel Loader Safety………………………………………………………………… SP000095
Specifications
Specification for DL400 …………………………………………………………….. SP001564
General Maintenance
General Maintenance Procedures ……………………………………………… SP000097
Standard Torques …………………………………………………………………….. SP000098
Engine
QSL9 Engine……………………………………………………………………………. SP000204
Drive Train
Transmission and Torque Converter (ZF 4WG-260-4)………………… SP000099
Transmission Error Codes (ZF)…………………………………………………. SP000100
Front Axle (ZF – MT-L 3105)……………………………………………………. SP000101
Rear Axle (ZF – MT-L 3095)…………………………………………………….. SP000107
Drive Shaft ………………………………………………………………………………. SP000119
Brake
Service Brake…………………………………………………………………………… SP000120
Brake Supply Valve………………………………………………………………….. SP000121
Parking Brake ………………………………………………………………………….. SP000122
Brake Pedal Valve……………………………………………………………………. SP000123
Accumulator……………………………………………………………………………… SP000124
Steering
Steering Unit ……………………………………………………………………………. SP000125
Table of Contents
Page II
Flow Amplifier ………………………………………………………………………….. SP000126
Cushion Valve………………………………………………………………………….. SP000127
Emergency Steering …………………………………………………………………. SP000128
Frame
Articulation Center ……………………………………………………………………. SP000129
Counterweight…………………………………………………………………………… SP000130
Tank
Oil Tank…………………………………………………………………………………… SP000131
Fuel Tank………………………………………………………………………………… SP000132
Hydraulics
Main Control Valve…………………………………………………………………… SP000144
Load Isolation System………………………………………………………………. SP000149
Cooling System………………………………………………………………………… SP000154
Pilot System…………………………………………………………………………….. SP000159
Hydraulic Schematic (DL400) ……………………………………………………. SP000168
Electrical System
Air Conditioner …………………………………………………………………………. SP000172
Electrical System ……………………………………………………………………… SP000173
Electrical Schematic (DL400)…………………………………………………….. SP000235

DAEWOO DOOSAN DL400 WHEEL LOADER SHOP MANUAL K1010635BE – PDF DOWNLOAD:

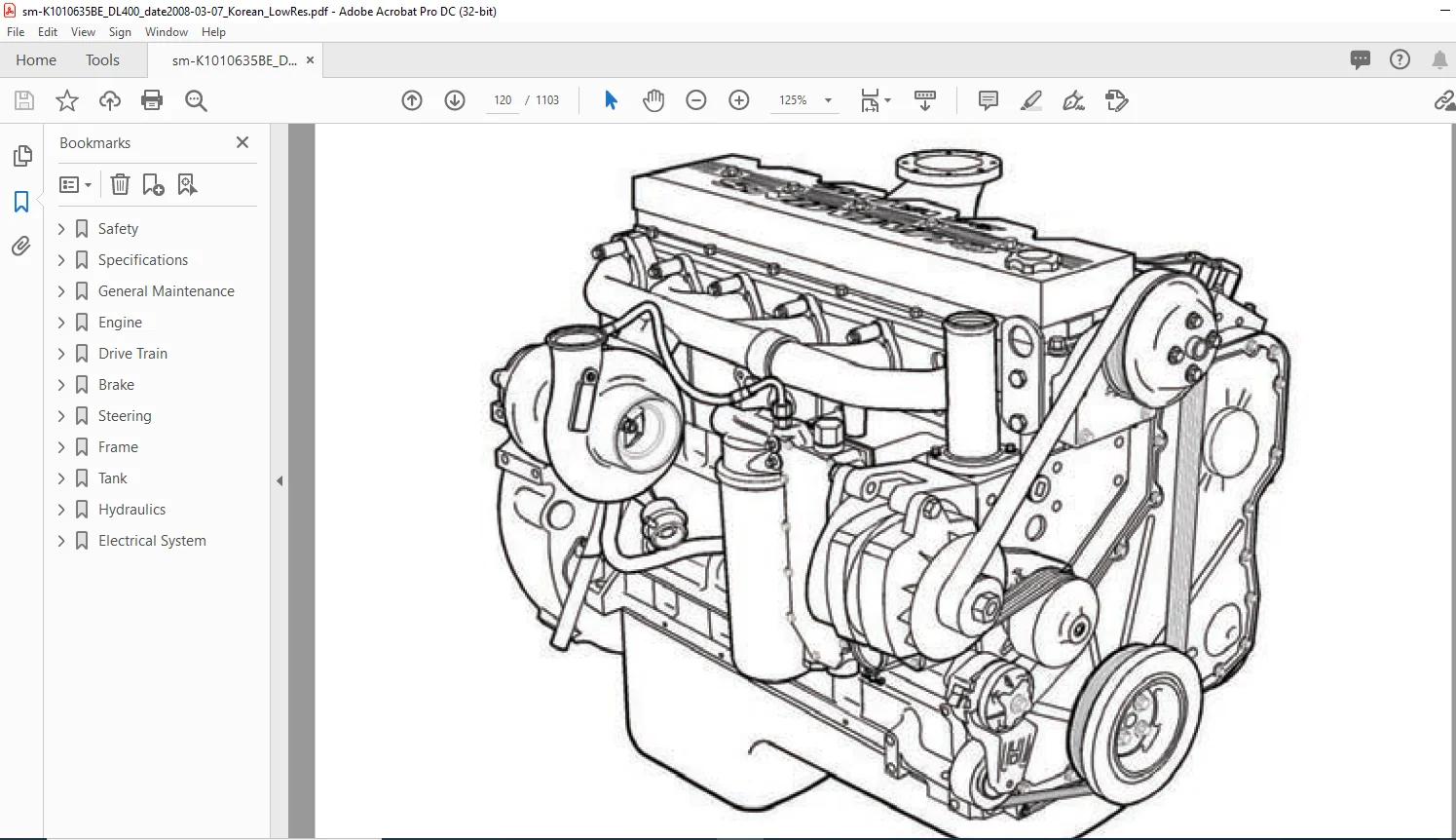

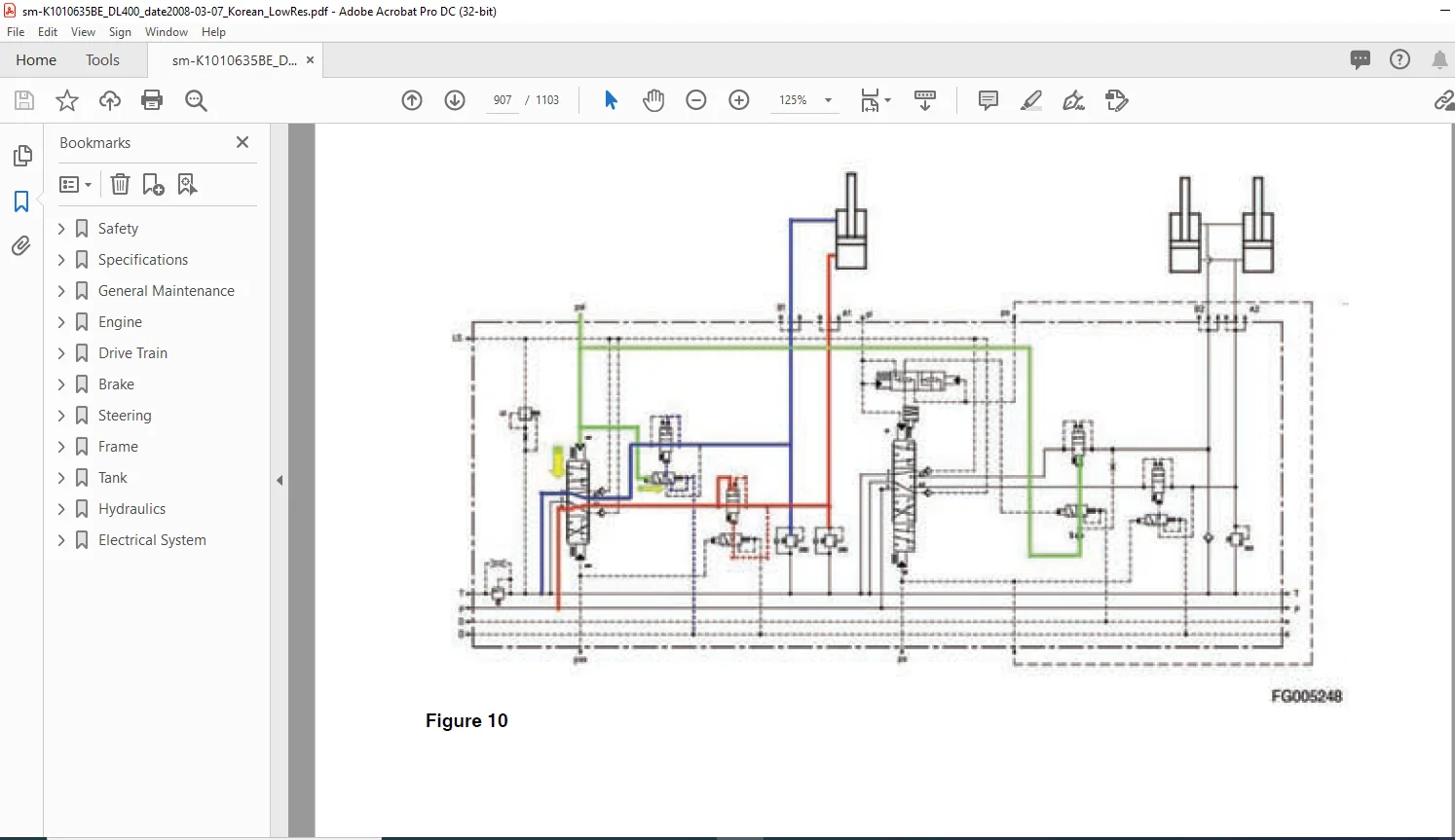

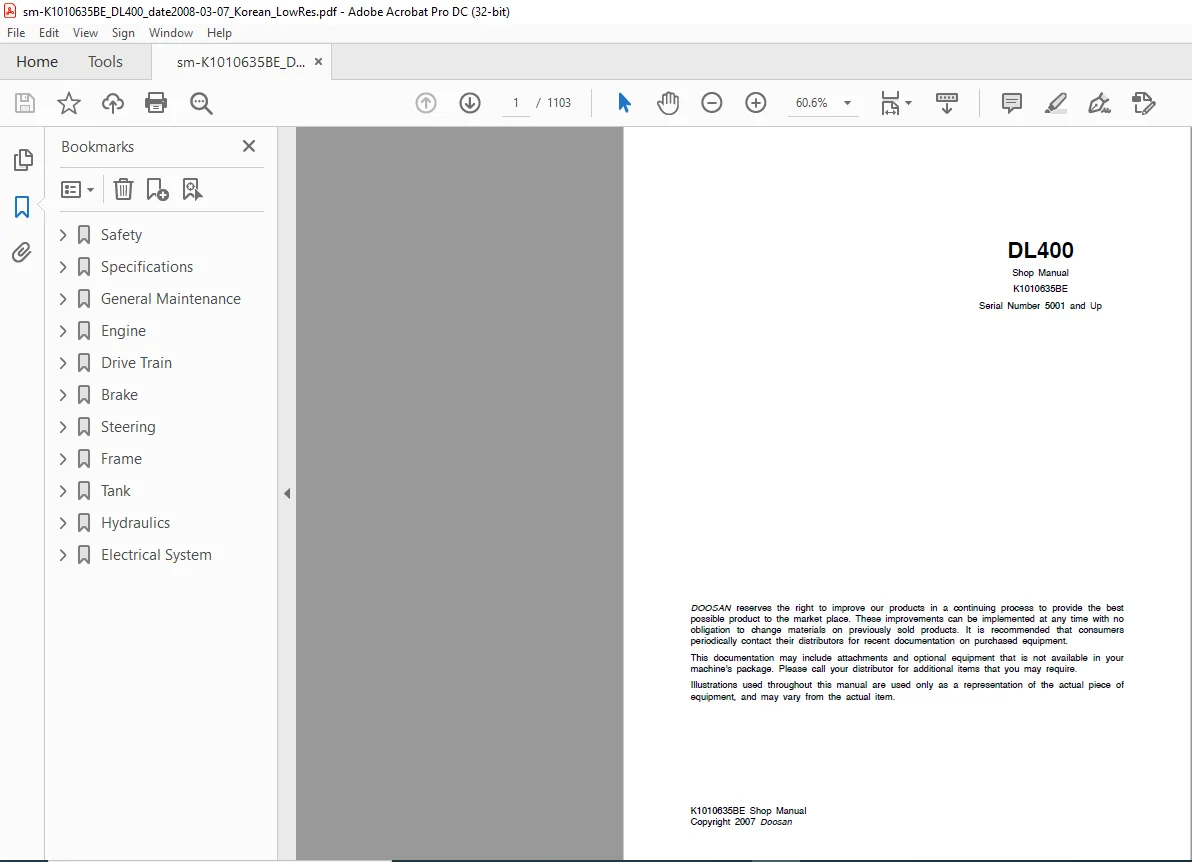

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
