Daewoo Doosan excavator solor 330Lc-v Operation and Maintenance Manual 2022-7166E – PDF DOWNLOAD

Description

Daewoo Doosan excavator solor 330Lc-v Operation and Maintenance Manual 2022-7166E – PDF DOWNLOAD

DESCRIPTION:

Daewoo Doosan excavator solor 330Lc-v Operation and Maintenance Manual 2022-7166E – PDF DOWNLOAD

• DOOSAN reserves the right to improve our products in a continuing process to provide the best possible product to the market place. These improvements can be implemented at any time with no obligation to change materials on previously sold products.
• It is recommended that consumers periodically contact their distributors for recent documentation on purchased equipment. This documentation may include attachments and optional equipment that is not available in your machine’s package.
• Please call your distributor for additional items that you may require. Illustrations used throughout this manual are used only as a representation of the actual piece of equipment, and may vary from the actual item.

TO THE OPERATOR OF A DAEWOO EXCAVATOR

Unsafe use of the excavator could lead to serious injury or death. Operating procedures, maintenance and equipment practices or travelling or shipping methods that do not follow the safety guidelines on the following pages could cause serious, potentially fatal injuries or extensive damage to the machine or nearby property

Please respect the importance of taking responsibility for your own safety, and that of other people who may be affected by your actions.

The safety information on the following pages is organized into the following sections

1. “General Safety Essentials” on page 1-3
2. “Location of Safety Labels” on page 1-4
3. “Summary of Safety Precautions for Lifting in Digging Mode” on page 1-10
4. “Work-site Precautions” on page 1-11
5. “Operation” on page 1-13
6. “Equipment” on page 1-18
7. “Maintenance” on page 1-22
8. “Shipping and Transportation” on page 1-25
9. “Excavator Rated Lift Capacity Tables” on page 1-26

GENERAL SAFETY ESSENTIALS

ACCESSORY APPLICATIONS

The excavator has been primarily designed for moving earth with a bucket. For use as a grapple or for other object handling, contact Daewoo for proper installation and application. Lifting-work applications (unless restricted or prohibited by local regulations) are permitted in approved lift configuration, to rated capacity only, with no side-loading. DO NOT use the machine for activities for which it was not intended. DO NOT use the bucket for lifting work, unless lift slings are used in the approved configuration. Use of an accessory hydraulic hammer (breaker), work in rough terrain, demolition applications or other hazardous operation may require installation of additional protective structures to safeguard the operator.

LIFTING CAPACITY RATING CONFIGURATION

Lifting capacity ratings that are printed at the end of this safety section are based on the machine being level, on a firm supporting surface, with hooks and slings attached in approved configuration. Loads must be balanced and supported evenly. Use taglines to keep the load steady if wind conditions and large surface area are a problem. Work crew hand signals, individual tasks and safe procedures should all be universally understood before the lift is made.

IMPORTANT

Before using the excavator to make lifts check municipal and regional regulations or statutes that could apply. Governing ordinances may require that all heavy lifting be done with single purpose equipment specifically designed for making lifts, or other local restrictions may apply. Making heavy lifts with a general purpose excavator that can be used for digging, loading, grading or other work may be expressly forbidden by a regional injunction or other legal prohibition. Always follow all of the other instructions, guidelines and restrictions for Safe Lifting in the Operation and Maintenance and Shop Manuals.

TABLE OF CONTENTS:

Daewoo Doosan excavator solor 330Lc-v Operation and Maintenance Manual 2022-7166E – PDF DOWNLOAD

Safety…………………………………………………………………………….. 1-1
To the Operator of a Daewoo Excavator ……………………………………..1-1
General Safety Essentials …………………………………………………………1-3
Location of Safety Labels ………………………………………………………….1-4
Summary of Safety Precautions for Lifting in Digging Mode …………1-10
Work-site Precautions …………………………………………………………….1-11
Operation………………………………………………………………………………1-13
Equipment …………………………………………………………………………….1-18
Maintenance………………………………………………………………………….1-22
Shipping and Transportation ……………………………………………………1-25
Excavator Rated Lift Capacity Tables………………………………………..1-26
Operating Controls …………………………………………………………. 2-1
Component Locations ………………………………………………………………2-2
Operator’s Area ……………………………………………………………………….2-4
Operational Controls and Panels………………………………………………..2-5
Instrument Panel ……………………………………………………………………2-11
Mode Selection Switches ………………………………………………………..2-16
Heater and Air Conditioning Control Panel ………………………………..2-17
Stereo…………………………………………………………………………………..2-21
Miscellaneous Electrical Devices ……………………………………………..2-25
Seat Adjustment…………………………………………………………………….2-26
Seat Belt……………………………………………………………………………….2-27
Ceiling Cover …………………………………………………………………………2-28
Front Windows……………………………………………………………………….2-29
Door Side Latch……………………………………………………………………..2-32
Miscellaneous Access Covers and Doors ………………………………….2-33
Cab Storage Compartments ……………………………………………………2-34
Ashtray …………………………………………………………………………………2-34
Emergency Glass Breaking Tool ………………………………………………2-35
II Table of Contents 2022-7166E Operation and Maintenance Manual
Operation……………………………………………………………………….. 3-1
To Handle a New Excavator ………………………………………………………3-1
Starting and Stopping the Engine ………………………………………………3-2
Safety Lever ………………………………………………………………………….3-13
Travel ……………………………………………………………………………………3-14
Operating Instructions …………………………………………………………….3-19
Operating Precautions…………………………………………………………….3-25
Parking Excavator ………………………………………………………………….3-30
Towing Procedure…………………………………………………………………..3-31
Hydraulic Breaker…………………………………………………………………..3-32
Inspection, Maintenance and Adjustment………………………… 4-1
Preliminary Work Machine Setup for Maintenance ……………………….4-2
Table of Recommended Lubricants…………………………………………….4-4
Maintenance Intervals ………………………………………………………………4-6
10 Hour / Daily Service …………………………………………………………….4-8
50 Hour / Weekly Service………………………………………………………..4-15
150 Hour Service …………………………………………………………………..4-19
250 Hour / Monthly Service……………………………………………………..4-21
500 Hour / 3 Month Service …………………………………………………….4-23
1000 Hour / 6 Month Service …………………………………………………..4-31
2000 Hour / Yearly Service………………………………………………………4-36
4000 Hour / Biennial Service……………………………………………………4-37
Venting and Priming Hydraulic System ……………………………………..4-38
Handling of Accumulator …………………………………………………………4-40
Fuel Transfer Pump………………………………………………………………..4-41
Electrical System……………………………………………………………………4-43
Bucket ………………………………………………………………………………….4-47
Bucket Shimming Procedures ………………………………………………….4-49
Track Tension ………………………………………………………………………..4-50
Bolt and Nut Inspection …………………………………………………………..4-53
Maintenance in Special Conditions …………………………………………..4-54
Long Term Storage…………………………………………………………………4-55
Transportation………………………………………………………………… 5-1
Loading and Unloading …………………………………………………………….5-1
Troubleshooting……………………………………………………………… 6-1
Engine ……………………………………………………………………………………6-1
Hydraulic System …………………………………………………………………….6-2
Swing System………………………………………………………………………….6-3
Electrical System……………………………………………………………………..6-4
Travel System………………………………………………………………………….6-5
Specification ………………………………………………………………….. 7-1
Standard Specification ……………………………………………………………..7-1
Working Range………………………………………………………………………..7-3
Index ……………………………………………………………………………… 8-1
DAEWOO DOOSAN EXCAVATOR SOLOR 330LC-V OPERATION AND MAINTENANCE MANUAL 2022-7166E – PDF DOWNLOAD:

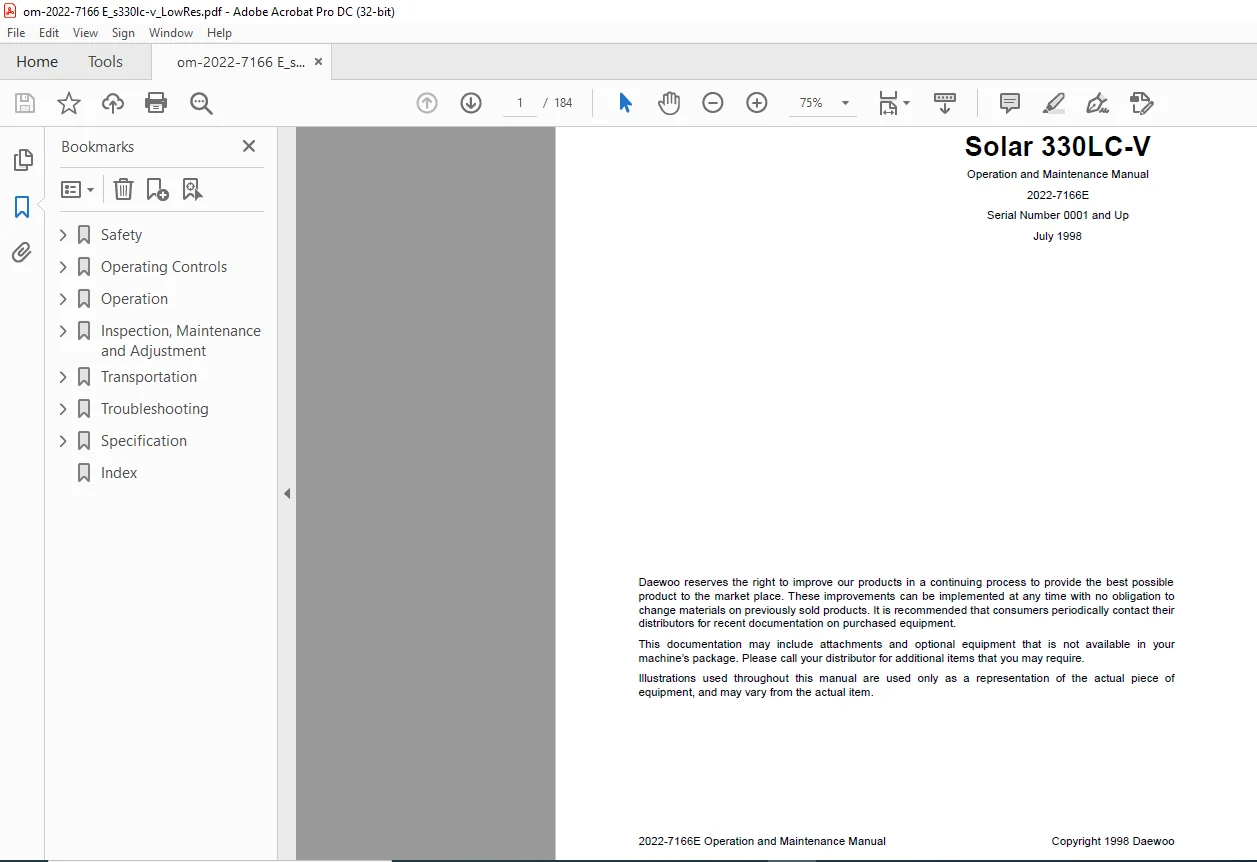

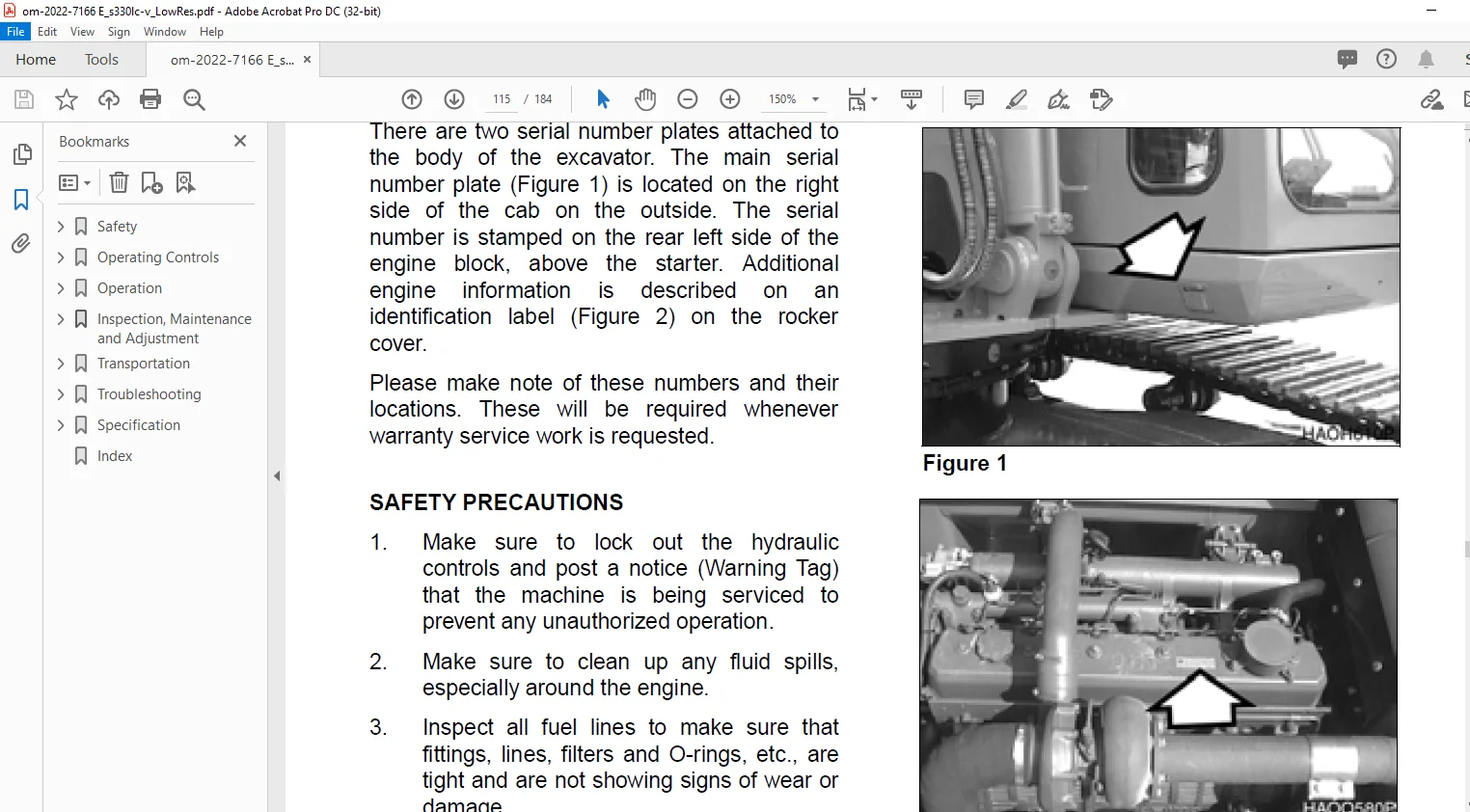

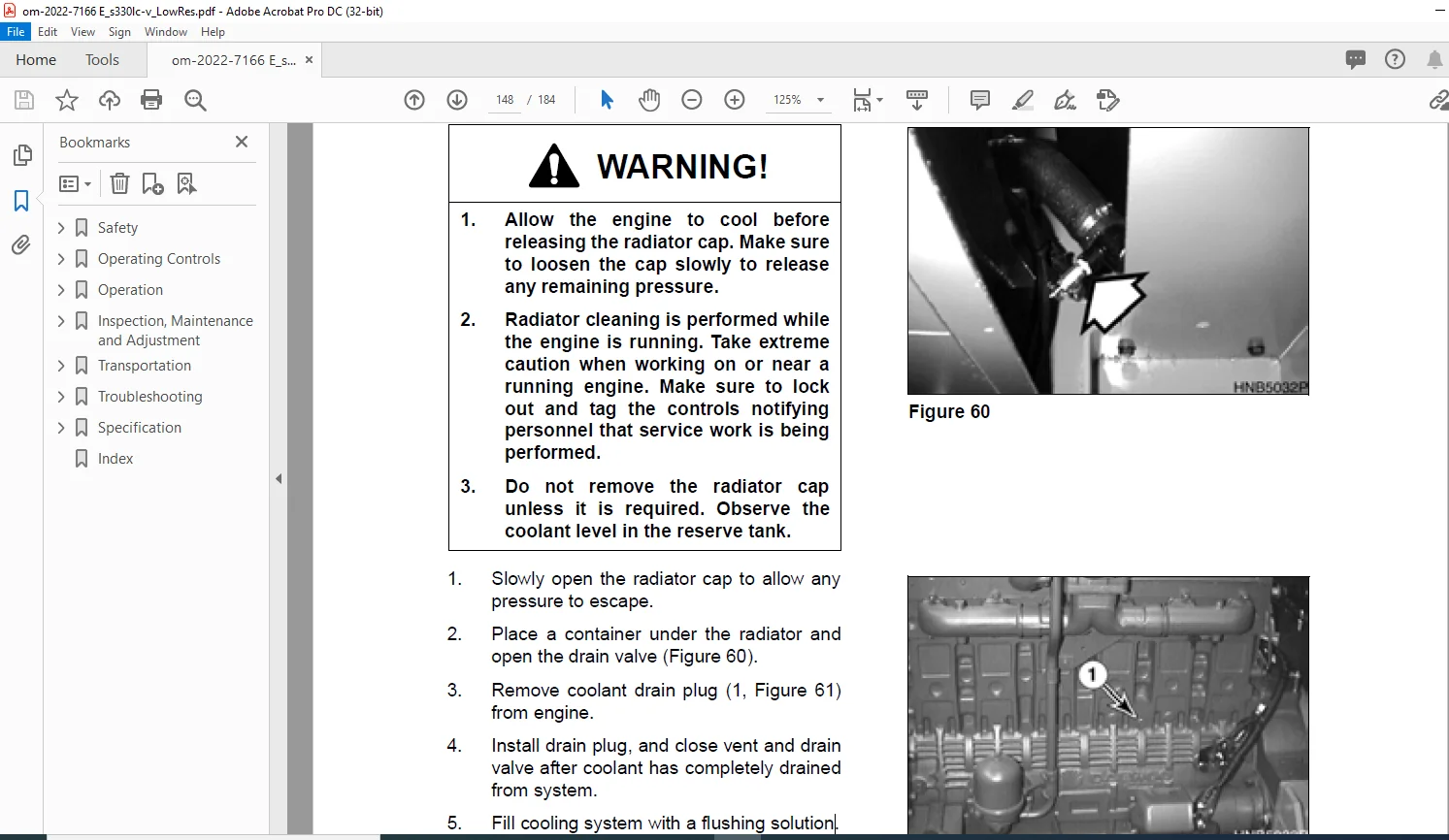

IMAGES PREVIEW OF THE MANUAL:
