Daewoo Doosan M200TC III Parts Manual 021 00005AEF – PDF DOWNLOAD

Description

Daewoo Doosan M200TC-III Parts Manual 021-00005AEF – PDF DOWNLOAD

DESCRIPTION:

Daewoo Doosan M200TC-III Parts Manual 021-00005AEF – PDF DOWNLOAD

• Daewoo Doosan reserves the right to improve our products in a continuing process to provide the best possible product to the market place.
• These improvements can be implemented at any time with no obligation to change materials on previously sold products. It is recommended that consumers periodically contact their distributors for recent documentation on purchased equipment.
• This documentation may include attachments and optional equipment that is not available in your machine’s package. Please call your distributor for additional items that you may require.
• Illustrations used throughout this manual are used only as a representation of the actual piece of equipment, and may vary from the actual item.

FOREWORD

2. HOW TO USE THIS PARTS LIST.

• Key No. Part No. Description It shows the reference no. on the illustration. It shows the part number of the parts which are included in an illustration. It shows the name of part. Components of an assembly part are shown with [el marks and are shown on the line, or lines. below the assembly part. Qlty Also if the components with [el mark is consists of further components part. These further components are shown with the marks [eel. It shows the quantity use for one machine.
• quantity of components show the quantity for one assembly part. Service code Abbreviations in this column have their own meaning as show below. The parts with this abbreviation shows that the part requires some work on it before installing in the machine. B D The part with this abbreviation is a component of an assembly and is not available independently. The assembly part containing this part should be ordered. K This means that the part is contained in the service part kit.
• M This means that the part is available only with its mating parts altogether. R The part with this abbreviation shows that the quantity of the part is changed depending on the machine, such as an adjusting shim etc. S This part is specially provided as a service part, which was not provided in the machine before shipping from the factory. G This part need grade control and should be requested as the same grade of counter part. OP Optional parts. (THIS PARTS BOOK IS FOR REFERENCE ONLY
• . PART NUMBERS AND SERAIL NUMBERS MAY BE OUTDATED. ALWAYS USE THE ONLINE PARTS SYSTEM) Serial no. ICA EX Specific design parts. OS Over-sized parts. US Under-sized parts. # (Part with abbreviation “OS” or “US” is described on the line below the standard sized part.) The part with this mark is newly added on that page of the equipment. Serial No. shows the machine serial number which the parts were applied. As to the engine Serial No. shows only engine serial number which the parts were applied.
• Parts without any applicable serial number are used in every machine. ICA shows the interchangeability between the original and the improved parts. Abbreviations used in this column are as follows; Part No. in the column of “Replaceable part” can be used instead of this part but not vice versa. P This must not be used for machine. The part No. in the column “Replaceable part” should be used instead. T Parts No. those in the column of “Replaceable part” can be used as an assembly instead of this part.
• Y This part and the part in the column of “Replaceable part” are interchangeable with each other. Blank : This part has no “Repleaceable part” Replaceable part Interchangeable parts nos. and their required quantity are shown in this column. If interchangeable improved parts are provided for the parts which you may order, the improved parts classified as “I’, “P” T’ or ‘Y” may be supplied. • When repairing, it is recommended to use our standard part. • Researching the assembling parts from

TABLE OF CONTENTS:

Daewoo Doosan M200TC-III Parts Manual 021-00005AEF – PDF DOWNLOAD

e ENGINE PARTS
Fig. 001 CYLINDER BLOCK BLOC CYLINDRE 2
002 TIMING GEAR CASE CARTER DE DISTRIBUTION 6
003 FLYWHEEL HOUSING CARTER DE VOLANT MOTEUR 8
004 CRANK SHAFT VILEBREQUIN 10
005 CYLINDER HEAD CULLASSE 12
006 VALVE MECHANISM CALAGE D’INJECTION 16
007 OIL PUMP POMPE A HUILE 18
008 OIL FILTER FILTRE A HUILE 20
009 OIL COOLER REFROIDISSEMENT DE HUILE 22
010 OIL PAN CARTER D’HUILE 24
011 THERMOSTAT THERMOSTAT 26
012 WATER PUMP & COOLING FAN POMPE A EAU VENTILATEUR 28
013 INTAKE & EXHAUST MANIFOLD D’ADMISSION ET D’ECHAPPEMENT 30
014 FUEL SYSTEM INJECTEUR ET POMPE-INJECTEUR 34
015 FUEL FILTER FILTRE A GAZOLE 38
016 ALTERNATOR MOUNTING ALTERNATEUR 39-1
017 STARTER DEMARREUR 39-3
018 OVER HAUL GASKET KIT PIECES DE RECHANGE 39-5 G
e BODY PARTS
Fig. 1100 FRAME CHASSIS 40
1110 ENGINE & TRANSMISSION MOTEUR 44
1120 OIL TANK RESERVOIR D’HUILE 48
1130 FUEL TANK RESERVOIR DE GAZOLE 50
1140 FUEL FILLER PUMP – OPT. POMPE DE GAZOLE 52
1150 AXLE & DRIVE SHAFT PONTS ET ARBRES DE TRANSMISSION 54
1155: .AXLE & DRIVE SHAFT-STD. PONTS ET ARBRES DE TRANSMISSION 57-1
1160 AXLE & DRIVE SHAFT-OPT. PONTS ET ARBRES DE TRANSMISSION 58
1165 AXLE & DRIVE SHAFT-OPT. PONTS ET ARBRES DE TRANSMISSION 61-1
1170 AXLE & DRIVE SHAFT-OPT. PONTS ET ARBRES DE TRANSMISSION 62
1175 AXLE & DRIVE SHAFT-OPT. PONTS ET ARBRES DE TRANSMISSION 65-1
1180 AXLE & DRIVE SHAFT-OPT. PONTS ET ARBRES DE TRANSMISSION 66
1185 AXLE & DRIVE SHAFT-OPT. PONTS ET ARBRES DE TRANSMISSION 69-1
1190 LUBRICATION PIPING CANALISATION GRASSAGE ESSIEU ARRIERE 70
1200 MAIN PIPING CIRCUIT HYDRAULIQUE PRINCIPAL 72
1210 CONTROL VAL VE PIPING-2 SPOOL CANALISATION DISTRIBUTEUR 76 – 1215 CONTROL VALVE PIPING-2 SPOOL(STD.) CANALISATION DISTRIBUTEUR 79-1
1220 CONTROL VALVE PIPING-3 SPOOL CANALISATION DISTRIBUTEUR 80
1225 CONTROL VALVE PIPING-3 SPOOL(OPT.) CANALISATION DISTRIBUTEUR 83-1
1230 PILOT PIPING-2 SPOOL CANALISATIONS PILOTE 84
1235 PILOT PIPING-2 SPOOL(STD.) CANALISATIONS PILOTE 87-1
MEGA200TC-31240 PILOT PIPING-3 SPOOL CANALISATIONS PILOTE 88
1245 PILOT PIPING-3 SPOOL(OPT.) CANALISATIONS PILOTE 91·1
1250 STEERING PIPING CANALISATION DE PILOTAGE 92
1260 BRAKE PIPING CANALISATION DE FREIN 94
1261 BRAKE PIPING CANALISATION DE FREIN 99·1
1265 BRAKE PIPING CANALISATION DE FREIN 99.7
1270 GREASE PIPING LUBRIFICATION 100
1280 REMOTE PRESSURE CHECK PIPING CONDUITES 102
1290 HEATER PIPING CANALISATION DE CHAUFFAGE 104
1300 COOLER PIPING SYSTEME DE VENTILATEUR 106
1310 CAB MOUNTS & COVER ASS’Y MONTAGE CABINE ET COUVERCLE 108
1320 FLOOR PLATE TOLE DE PLANCHER 110
1330 SEAT SIEGE 114
1340 CONTROL STAND CONSOLE 116
1350 FRONT PANEL ASS’Y TABLEAU DE BORD 120
1360 COVER ASS’Y ENSEMBLE DE COUVERCLE 122
1370 CAB(l) CABINE 124
1380 CAB[2) CABINE 128
1390 CAB(3) CABINE 132
1400 STEERING ENSEMBLE DE DIRECTION 134
1410 ENGINE CONTROL SYSTEME D’ACCELERATION DU MOTEUR 138
1420 FRONT LAMP SUPPORT SUPPORT LAMPE FRONTALE 140
1430 COUNTER WEIGHT AND BATTERY BOX CONTRE-POIDES ET COFFRE A BATTERIE 142
1440 ENGINE COVER CAPOT 144
1450 FENDER LADDER GARDE-BOUE,ECHELLES 148
1460 ELECTRIC PARTS(l )·ELECTRIC BOX EQUIPMENT ELECTRIQUE 150
1470 ELECTRIC PARTS(2)-GAUGE PANEL EQUIPMENT ELECTRIQUE 154
1480 ELECTRIC PARTS(3)-SWITCH BOX EQUIPMENT ELECTRIQUE 156
1490 ELECTRIC PARTS(4)·CABIN EQUIPMENT ELECTRIQUE 158
1500 ELECTRIC PARTS(5)-BATTERY EQUIPMENT ELECTRIQUE 160
1510 ELECTRIC PARTS(6)-ENGINE RELATED EQUIPMENT ELECTRIQUE 162
1515 ALTERNATOR ALTERNATEUR 164
1520 ELECTRIC PARTS(7)-FRONT PARTS EQUIPMENT ELECTRIQUE 166
1530 ELECTRIC PARTS(8)-RELATED PARTS EQUIPMENT ELECTRIQUE 168
1540 ELECTRIC WIRING(l)-BATTERY EQUIPMENT ELECTRIQUE 170
1550 ELECTRIC WIRING[2)-ENGINE EQUIPMENT ELECTRIQUE 172
1560 ELECTRIC WIRING[3)-RELATED EQUIPMENT ELECTRIQUE 174
1570 ELECTRIC WIRING[4)-FRONT FRAME EQUIPMENT ELECTRIQUE 176
1580 AIRCONDITIONER(l) REFRIGERATION 178
1590 AIRCONDITIONER(2) REFRIGERATION 180
1600 AIR HANDLING UNIT REFRIGERATION 182
1610 ROTATING BEACON-OPT. FEU DE CIRCULATION 184
1620 ELECTRIC PARTS-CE OPT. EQUIPMENT ELECTRIQUE 186
e FRONT PARTS
Fig. 2100 LOADER EQUIPMENT FRONT ALE 188
MEGA200TC-3
192
2110 ARM RAISE KICK OUT CAPTEUR DE POSITION 194
2120 RETURN TO DIG POSITIONNEUR DE GODET 196
2130 BUCKET-1.8m’ – TOOTH(STD.) GODET 198
2140 BUCKET-1.9m’ -TOOTH(OPT.) GODET 200
0 2150 NOISE REDUCTION-EUROPE BRUIT REDUCTION 202
2160 EMERGENCY STEERING PIPING CANALISATION DE PILOTAGE 204
2170 DEFROSTER DEG ELEMENT 205-1
2180 3rd PIPING PINCE$
e HYDRAULIC COMPONENTS
Fig. 3100 CONVERTER HOUSHING CARTER DE CONYERTISSEUR 206
3110 TRANSMISSION CASE AND REAR COVER CARTER DE TANS. COUVERCLE 208
3120 DRIVE PLATE ENTRAINMENT 212
3130 STATOR SUPPORT & OIL BAFFLE STATOR SUPPORT & HUILE DEJOUER 214
3140 TORQUE CONVERTER TORQUE CONYERTISSEUR 216
3150 AUXILIARY PUMP DRIVE AUXILIAIRE POMPE DERIVE 218
3160 CHARGING PUMP DRIVE CHARGEMENT POMPE DERIVE 220
3170 FORWARD SHAFT A YANCE DERIVE 222
3180 RESERVE IDLER RESERVE FAINEANT 224
3190 RESERVE & 2nd SHAFT RESERVE & DEUXIEME ARBRE 226
3200 LOW SHAFT BAS ARBRE 228
3210 3rd & 4th SHAFT CLUTCH TROISIEME & QUATRIEME ARBRE 230
3220 IDLER SHAFT FAINEANT ARBRE 232
3230 OUTPUT SHAFT ARBRE DE RENDEMENT 234
3240 CHARGING PUMP & FILTER CHARGEMENT POMPE & FILTRE 236
3250 CONTROL VAL VE MOUNTING MONTAGE DE TIROIRS DE COMMANDE 238
3260 ELECTRIC CONROL VAL YE ELECTRIQUE TIROIRS DE COMMANDE 240
3270 CONTROL VAL VE TIROIRS DE COMMANDE 244
3272 CONVERTER SEALING KIT KIT DE REPARATION 246
3274 TRANSMISSION SEALING KIT KIT DE REPARATION 250
3280 FRONT AXLE DIFFERENTIAL DIFFERENCIEL ARRIERE 252
3290 FRONT AXLE PLANET GEAR REDUCTEUR AVANT 256
3300 FRONT AXLE ENSEMBLE DU PONT AVANT 260
3310 PARKING BRAKE FREIN DE AXE 262
3312 FRONT AXLE DIFFERENTIAL HOUSING CARTER DE DIFFERENCIEL 263-1
3313 FRONT AXLE DIFFERENTIAL GEAR-STD. DIFFERENCIH ARRIERE 263-2
3314 FRONT AXLE DIFFERENTIAL GEAR-OPT. DIFFERENCIEL ARRIERE 263-7
3315 FRONT AXLE PLANET GEAR REDUCTEUR AV ANT 263-11
3316 FRONT AXLE BRAKE FREIN DE AXE 263.- 13
3320 REAR AXLE DIFFERENTIAL DIFFERENCIEL ARRIERE 264
3330 REAR AXLE PLANET REDUCTEUR AV ANT 268
3340 REAR AXLE ENSEMBLE DU PONT AV ANT 272
0 3342 REAR AXLE DIFFERENTIAL HOUSING CARTER DE DIFFERENCIEL 273-1
3343 REAR AXLE DIFFERENTIAL GEAR DIFFERENCIEL ARRIERE 273-3
3344 REAR AXLE PLANET GEAR REDUCTEUR AVANT 273-7
3345 REAR AXLE BRAKE FREIN DE AXE 273-93350 CONTROL VAL VE-2 SPOOL TIROIRS DE COMMANDE 274
3355 CONTROL VALVE-2 SPOOL(STD.) TIROIRS DE COMMANDE 277-1
3360 CONTROL VALVE-3 SPOOL TIROIRS DE COMMANDE 278 ~\
3365 CONTROL VAL VE-3 SPOOL(OPT.) TIROIRS DE COMMANDE 281-1
3370 MAIN PUMP POMPE PRINCIPALE 282
3380 STEERING UNIT ORBITROL 284
3390 STEERING CYLINDER VERIN DE DIRECTION 286
3400 BUCKET CYLINDER-R.H VERIN DE GODET 288
3410 BUCKET CYLINDER-L.H VERIN DE GODET 290
3420 LIFT CYLINDER-R.H VERIN DE LEVAGE DROIT 292
3430 LIFT CYLINDER-L.H VERIN DE LEV AGE GAUCHE 294
3440 UNLOADER VALVE SOUPAPEDEDECHARGE 296
3450 BRAKE & PILOT SUPPLY VAL VE SOUPAPE DE DISTRIBUTION 298
3455 BRAKE & PILOT SUPPLY VAL VE SOUPAPE DE DISTRIBUTION 299-1
3460 PRIORITY VALVE SOUPAPE DE PRIORITE 300
3470 CUSHION VAL VE SOUP APE DE SECURITE 302
3480 PEDAL ASS’Y PEDALE DE FREINAGE 304
3490 PILOT VALVE VANNE PILOTE 306
3491 PILOT VALVE V ANNE PILOTE 307-1
e OTHER PARTS
Fig. 4100 TOOL OUTILLAGE 308
4110 SPARE PARTS PIECES DE RECHANGE 312
4120 NAME PLATE-DOMESTIC ‘El -“!!!- .:E ~ .g. 314
4130 NAME PLATE-ENGLISH PLAUE D’INDENTIFICATION 316
MEGA200TC
DAEWOO DOOSAN M200TC III PARTS MANUAL 021 00005AEF – PDF DOWNLOAD:

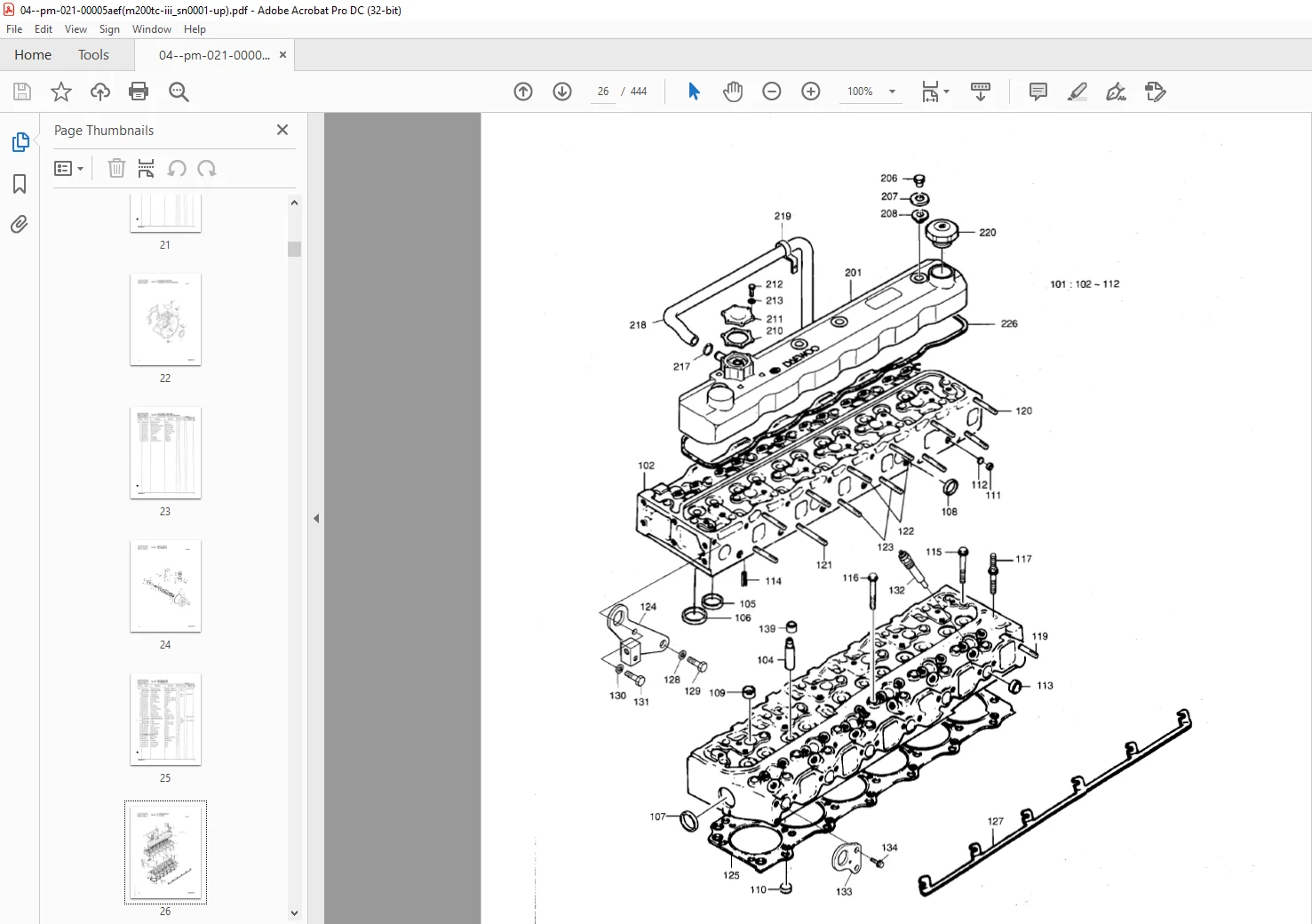

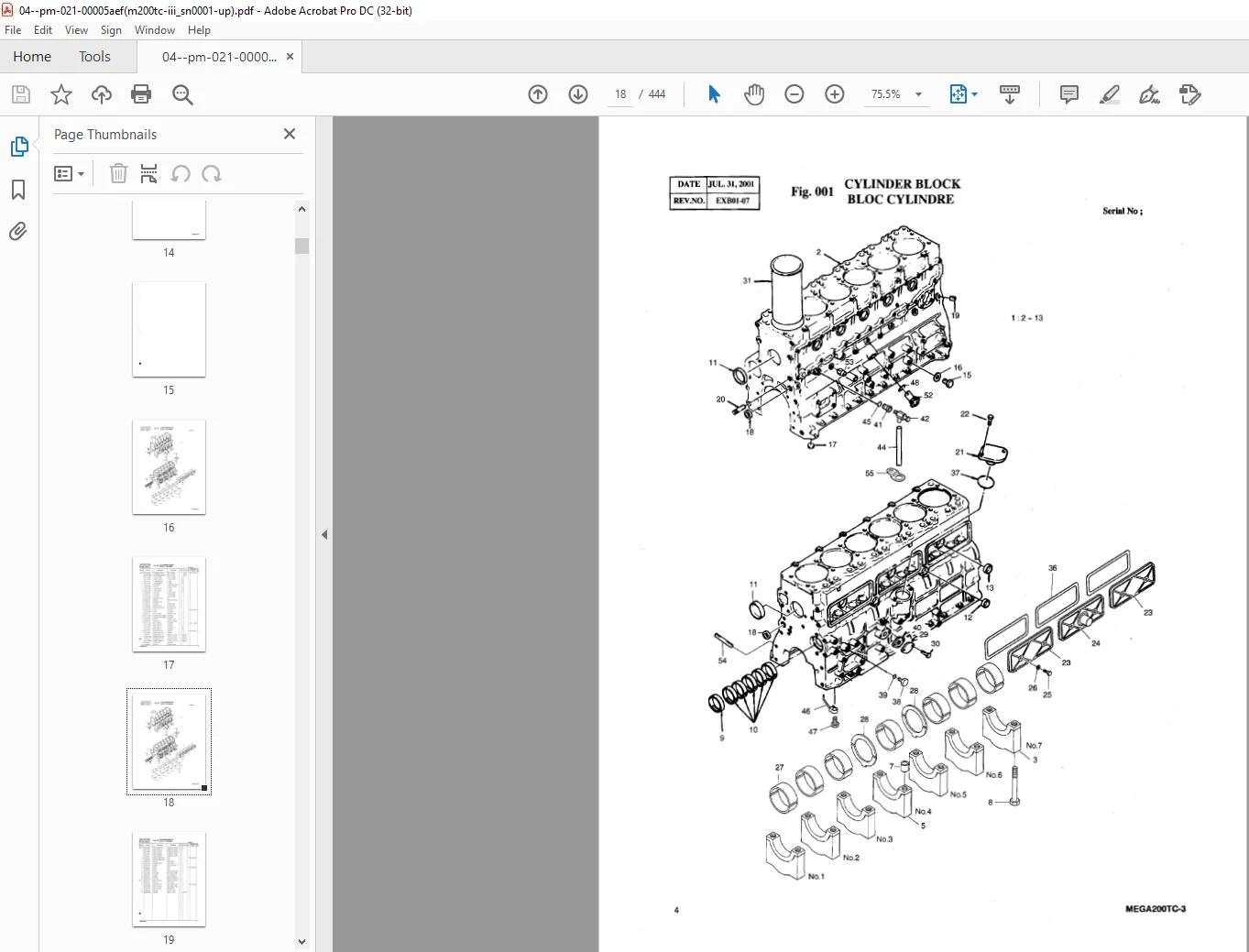

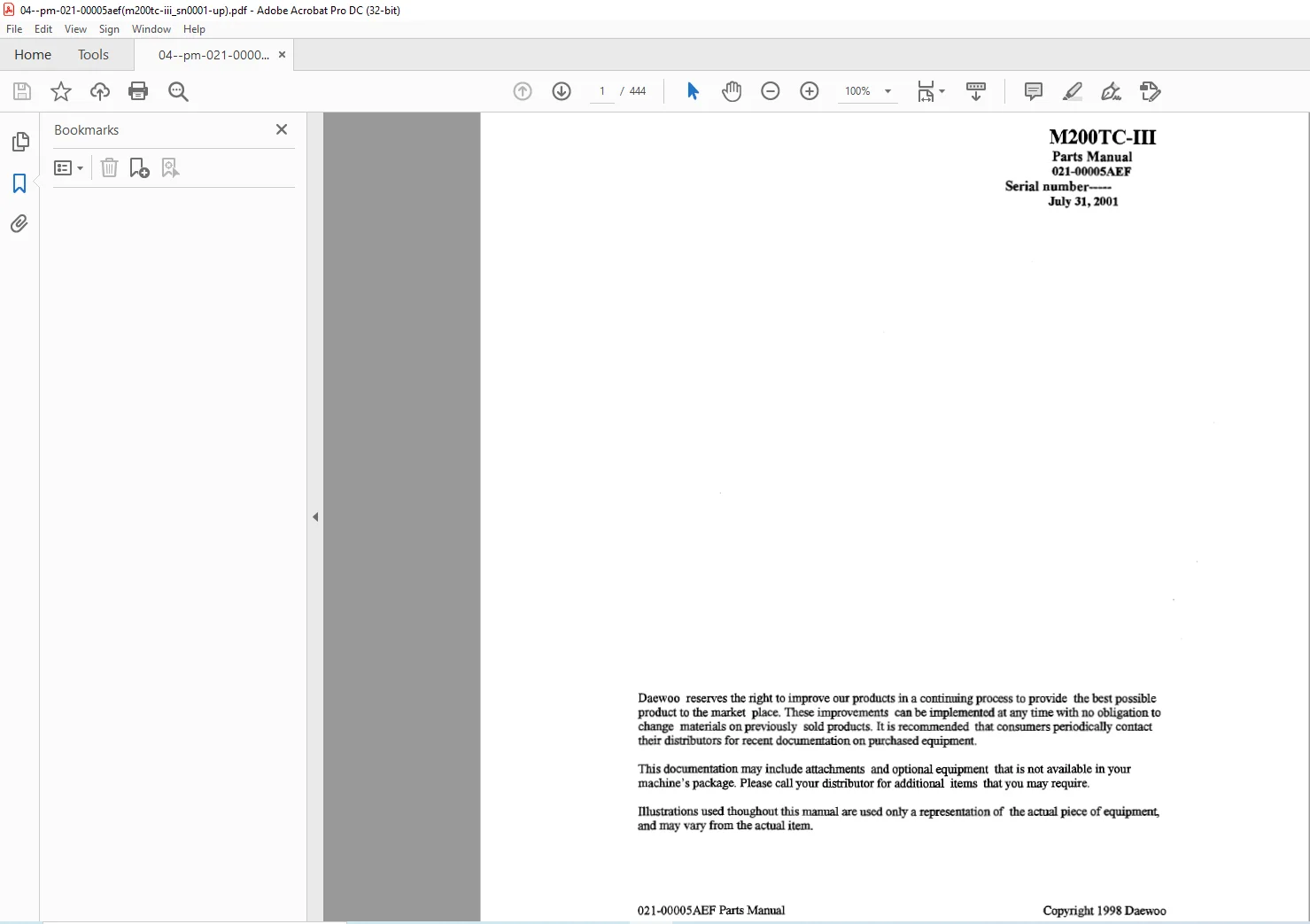

IMAGES PREVIEW OF THE MANUAL:
