Daewoo Doosan Mega 200 Parts Manual 4021-7071AEF – PDF DOWNLOAD

Description

Daewoo Doosan Mega 200 Parts Manual 4021-7071AEF – PDF DOWNLOAD

DESCRIPTION:

Daewoo Doosan Mega 200 Parts Manual 4021-7071AEF – PDF DOWNLOAD

• Daewoo reserves the right to improve our products in a continuing process to provide the best possible product to the market place.
• These improvements can be implemented at any time with no obligation to change materials on previously sold products. It is recommended that consumers periodically contact their distributors for recent documentation on purchased equipment.
• This documentation may include attachments and optional equipment that is not available in your machine’s package.
• Please call your distributor for additional items that you may require. Illustrations used throughout this manual are used only as a representation of the actual piece of equipment, and may vary from the actual item.

FOREWORD

2. HOW TO USE THIS PARTS LIST

• Key No. : It shows the reference no. on the illustration. Part No. : It shows the part number. Description : It shows the name of part. Components of an assembly part are shown with [.] marks and are shown on the line, or lines, below the assembly part. Also if the components with [.] mark consists of further components part. these further components are shown by the marks [ .. ]. Q’ty : It shows the quantity use for one machine.
• quantity of components show the quantity for one assembly part. Service code : Abbreviations in this column have their own meaning as show below. B: The parts with this abbreviation shows that the part requires some work on it before installing in the machine.
• D: The part with this abbreviation is a component of an assembly and is not available independently. The assembly part containing this part should be ordered. K: This means that the part is contained in the service part kit. M: This means that the part is available only with its mating parts altogether. R: The part with this abbreviation shows that the quantity of the part is changed depending on the machine, such as an adjusting shim etc.
• S: This part is specially provided as a service part, which was not provided in the machine before shipping from the factory. G: This part need grade control and should be requested as the same grade of counter part. OP: Optional parts. EX: Specific design parts.
• OS: Over-sized parts. US: Under-sized parts. (Part with abbreviation “OS” or “US” is described on the line below the standard sized part.) #: The part with this mark is newly added on that page of the equipment. Serial no. : Serial No. shows the machine serial number which the parts were applied.
• As to the engine Serial No. shows only engine serial number Which the parts were applied. Parts without any applicable serial number are used in every machine. ICA : ICA shows the interchangeability between the original and the improved parts. Abbreviations used in this column are as follows; : Part No. in the column of “Replaceable part” can be used instead of this part but not vice versa.
• P : This must not be used for machine. The part No. in the column “Replaceable part” should be used instead. T : Parts Nos. those in the column of “Replaceable part” can be used as an assembly instead of this part. Y : This part and the part in the column of “Replaceable part” are interchangeable with each other. BLANK : This part has no “Repleaceable part” Replaceable part : Interchangeable parts nos.
• and their required quantity are shown in this column. If interchangeable improved parts are provided for the parts which you may order, the improved parts classified as “I”, “P” “T” or “Y” may be supplied. • When repairing, it is recommended to use our standard part. • Researching the assembling parts from Part No., see the ‘Parts Indexof this

TABLE OF CONTENTS:

Daewoo Doosan Mega 200 Parts Manual 4021-7071AEF – PDF DOWNLOAD

e ENGINE PARTS
Fig. 010 CYLINDER HEAD CULLASE CYLINDRES 2
011 CYLINDER BLOCK BLOC CYLINDRES 6
012 TIMING GEAR CASE CARTER DE DISTRIBUTION 10
013 FLYWHEEL HOUSING CARTER DE VOLANT MOTEUR 12
014 OIL PAN CARTER D’HUILE 14
015 OIL PUMP POMPE A HUILE 16
016 CRANK SHAFT ENSEMBLE VILEBREQUIN 20
017 VAL VE MECHANISM ARBRE A CAMES 22
018 OIL FILTER AND FUEL FILTER FILTRE A HUILE ET FILTRE A GAZOLE 24
019 OIL PIPE PARTS CONDUITE D’HUILE 26
020 COOLING WATER PUMP POMPE A EAU, VENTILATEUR 28
021 COOLING SYSTEM SYSTEME DE VENTILATEUR 30
022 INT AKE AND EXHAUST SYSTEM TUBULURE ET COLLECTEUR 32
023 FUEL SYSTEM SYSTEME DE GAZOLE 36
024 ENGINE FOOT HANGER AND FIXING PARTS SUPPORT D’MOTEUR 38
025 INJECTION PUMP POMPE D’INJECTION 40
026 ELECTRIC PARTS EQUIPMENT ELECTRIQUE 42
e BODY PARTS
Fig. 1100 FRAME BA Tl PRINCIPAL 46
1110 ENGINE MOUNTING MOTEUR 52
1120 OIL TANK RESERVOIR D’HUILE 58
1130 FUEL TANK RESERVOIR A GAZOLE 62
1140 FUEL PUMP ASS’Y-OPTION POMPE A GAZOLE 64
1150 AXLES AND DRIVE SHAFT PONTS ET ARBRES DE TRANSMISSION 66
1160 REAR AXLE PIVOT LUB.PIPING GRAISSAGE DU PIVOT DE PONT 70
1170 MAIN PIPING CANALISATIONS PRINCIPALES 72
1180 CONTROL VAL VE PIPING-STD CANALISATIONS V ANNE DE COMMANDE 80
1190 CONTROL VAL VE PIPING-OPTION CANALISATIONS VANNE DE COMMANDE 84
1200 CONTROL V /V PILOT PIPING-STD CANALISATIONS PILOTE 88
1210 CONTROL V/V PILOT PIPING-OPTION CANALISATIONS PILOTE 90
1220 STEERING PIPING CANALISATIONS DE DIRECTION 92
1230 BRAKE PIPING CANALISATIONS DE FREIN 94
1240 HEATER PIPING CHAUFFAGE 98
1250 COOLING SYSTEM SYSTEME DE REFROIDISSEMENT 100
1260 HOSE CLAMPING FIXATION DES FLEXIBLES 104
1270 CAB MOUNTING FIXATION DE LA CABINE 106
1280 CAB COVER-OPTION STRUCTEUR DE PROTECTION 108
1290 CABIN CABINE 110
1300 SEAT AND FLOOR PLATE SIEGE ET TOLE DE PLANCHER 122
1310 INSTRUMENT PANEL TABLEAU DE BORD 128
1320 STEERING ASS’Y ENSEMBLE DE DIRECTION 130
1330 ENGINE CONTROL SYSTEME D’ACCELERATION DU MOTURE 134
1340 FRONT LAMP SUPPORT SUPPORT DE PHARES 136
1350 COUNTER WEIGHT,BATTERY BOX CONTRE-POIDS ET COFFRE A BA TTERIE 138
1360 CANOPIES ASS’Y CAPOTS 142
1370 FENDER AND LADDER ASS’Y GARDE-BOU E, ECH EEL 148
1380 COOLER REFRIGERATION 152
1390 ELECTRIC PARTS(]) EQUIPMENT ELECTRIQUE 156
1400 ELECTRIC PARTS(2) EQUIPMENT ELETRIQUE 166
e FRONT PARTS
Fig. 2100 LOADER ECHELLE 176
2110 ARM RAISE KICK OUT CAPTEUR DE POSITION 180
2120 ARM FLOAT KICK OUT CAPTEUR DE POSITION 182
2130 RETURN TO DIG POSITIONNEUR DE GODET 184
2140 BUCKET(STANDARD)-l .8M 3 GODET 186
2141 BUCKET(STANDARD)-l .8M3 WIT-EXPORT GODET 188
2142 BUCKET(OPTION)-l .9M3 GODET 190
2143 BUCKET(OPTION)-1.9M3 WIT-EXPORT GODET 192
2144 BUCKET(STANDARD)-l.8M3 WIT GODET 194
e OPTION PARTS
Fig. 2180 PALLET FORK FOURCHES A PALETTES 198
2190 EMERGENCY STEER KIT REPARATION DE DIRECTION CRITIQUE 200
2200 REAR DEFROSTER ASS’Y DEG ELEMENT 202
2210 LOG FORK PIPING CONDUITES DE PINCES 204
2220 CABIN ASS’Y-WITHOUT CABIN CABINE 206
2230 ROPSIFOPS-WITHOUT CABIN ROPSIFOPS 208
2240 INSTRUMENT PANEL-WITHOUT CABIN ENSEMBLE DE BORD 210
2250 SEAT AND FLOOR PLATE-WITHOUT CABIN ENSEMBLE DE SIEGE 212
e HYDRAURIC COMPONENTS
Fig. 3100 CONVERTER & TIM CASE GROUP CARTERSDE CONVERTISSEUR ET DE TRANS. 218
3110 CONVERTER PUMP DRIVE GROUP CONVERTEUR POMPE DIRECTION 222
3120 CLUTCH & GEAR GROUP EMBRA Y AGE ET GROUPE PIGNON 228
3130 CLUTCH ASS’Y ENSEMBLE EMBA Y AGE 236
3140 CHARGING PUMP & FILTER ASS’Y POMPE DE REMPLISSAGE ET FILTRES 240
3150 CONTROL VAL VE ASS’Y TIROIRS DE COMMANDE 242
3160 FRONT AXLE HOUSING ASS’Y ENSEMBLE DU PONT AV ANT 246
3170 FRONT AXLE DIFFERENTIAL GEAR ASS’Y ENSEMBLE DU DIFFERENCIEL ARRIERE 248
3180 FRONT AXLE PLANETARY GEAR ASS’Y ENSEMBLE DU REDUCTEUR A VANT 252
3190 PARKING BRAKE ASS’Y ENSEMBLE DU FREIN DE PARKING 256
3200 REAR AXLE HOL(sf~tlS\l?,ARTS BOOK IS ~IEE~i~MN. 260
PART NUMBERS AND SERAIL NUMBERS MAY BE
OUTDATED. ALWAYS USE THE ONLINE PARTS SYSTEM) MEGA20O’
3210 REAR AXLE DIFFERENTIAL GEAR ASS’Y ENSEMBLE DU DIFFERENCIEL ARRIERE
3220 REAR AXLE PLANET ARY GEAR ASS’Y ENSEMBLE DU REDUCTEUR A VANT
3230 CONTROL VAL VE TIROIRS DE COMMANDE
3240 COVER ASS’Y(L.H & R.H) ENSEMBLE COUVERCLES
3250 WORK SECTION-BUCKET,BOOM,OPTION ZONE DE TRAVAIL
3260 POSITIONER – BUCKET,BOOM(OPTION) POSITION
3270 RELIEF VAL VE-MAIN.OVERLOAD CLAPET PRINCIPAL DE SURCMARAGE
3280 OVERLOAD & ANTI-CAVITATION VALVE DISTRIBUTEUR ANTI CAVITES
3290 LOAD CHECK V/V,REGEN.V/V,PLUG VALVE DE CONTROLE LEVAGE-V/V REGEN
3300 MAIN PUMP POMPE PRINCIPALE
3310 STEERING UNIT ORBITROL
3320 PRIORITY VAL VE SOUPAPE DE PRIORITE
3330 CHSHION VAL VE SOU PAPE DE SECURITE
3340 UNLOADER VALVE SOUPAPE DE DECHARGE
3350 PILOT OPTION SOLENOID VAL VE SOUPAPE DE PILOT AGE OPTIONNELLE
3351 PILOT OPTION SOLENOID VAL VE SOUPAPE DE PILOTAGE OPTIONNELLE
3360 BRAKE PILOT SUPPLY VAL VE SOUP APE DE DISTRIBUTION DE FREINAGE
3370 BRAKE PEDAL VAL VE PEDALE DE FREINAGE
3380 LIFT CYLINDER[R.H) VERIN DE LEV AGE DROIT
3390 LIFT CYLINDER(L.H) VERIN DE LEV AGE GAUCHE
3400 BUCKET CYLINDER VERIN DE GODET
3410 STEER CYLINDER VERIN DE DIRECTION
e OTHER PARTS
Fig. 4100 NAME PLATE-ENGLISH PLAQUE D’IDENTIFICATION EXPORT
4105 NAME PLATE-DOMESTIC ~~.::E’El¾
4110 SPARE PARTS PIECES DE RECHANGE
4120 TOOLS OUTILS
e WORLDWIDE NETWORK
MEGA200
(THIS PARTS BOOK IS FOR REFERENCE ONLY.
PART NUMBERS AND SERAIL NUMBERS MAY BE
OUTDATED. ALWAYS USE THE ONLINE PARTS SYSTEM)
DAEWOO DOOSAN MEGA 200 PARTS MANUAL 4021-7071AEF – PDF DOWNLOAD:

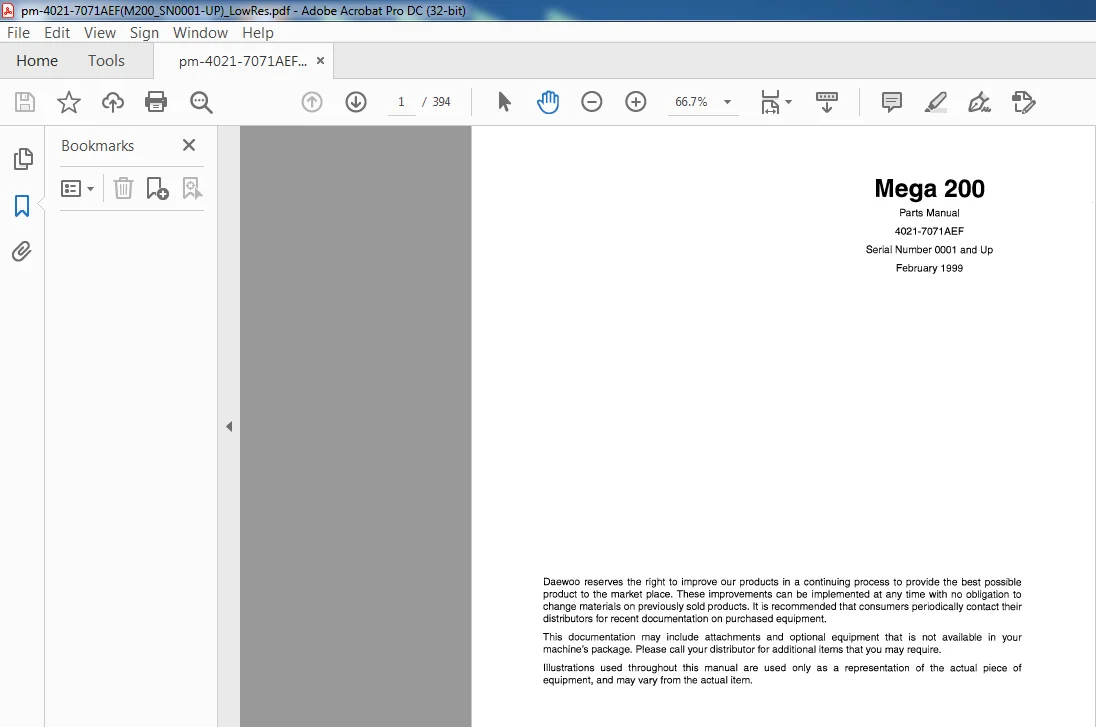

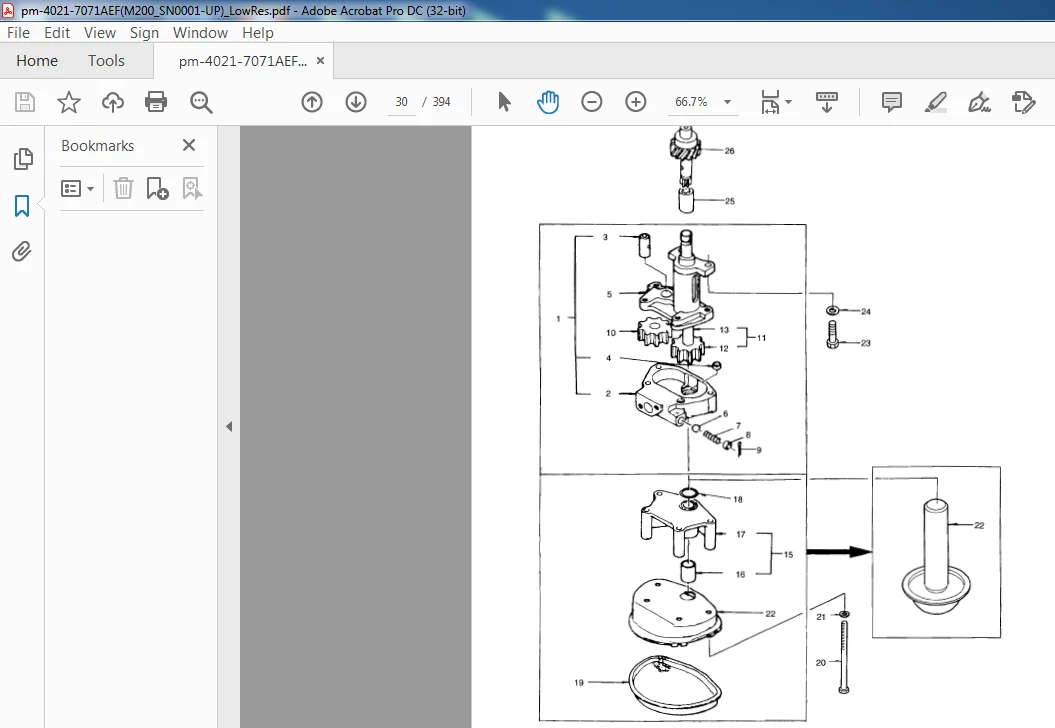

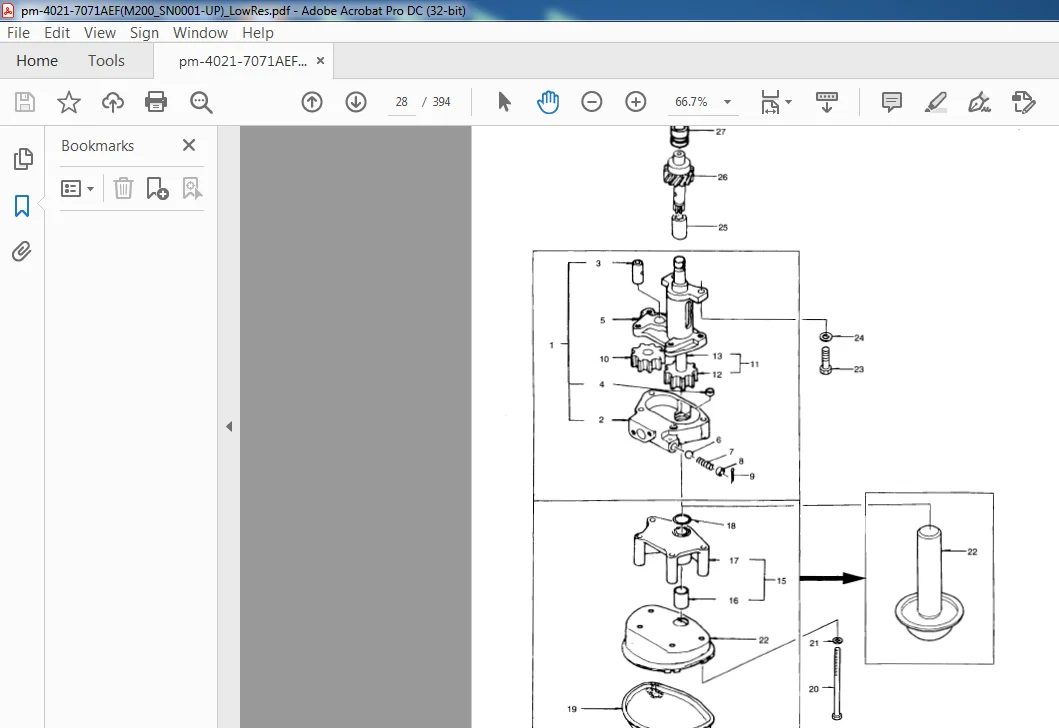

IMAGES PREVIEW OF THE MANUAL:
