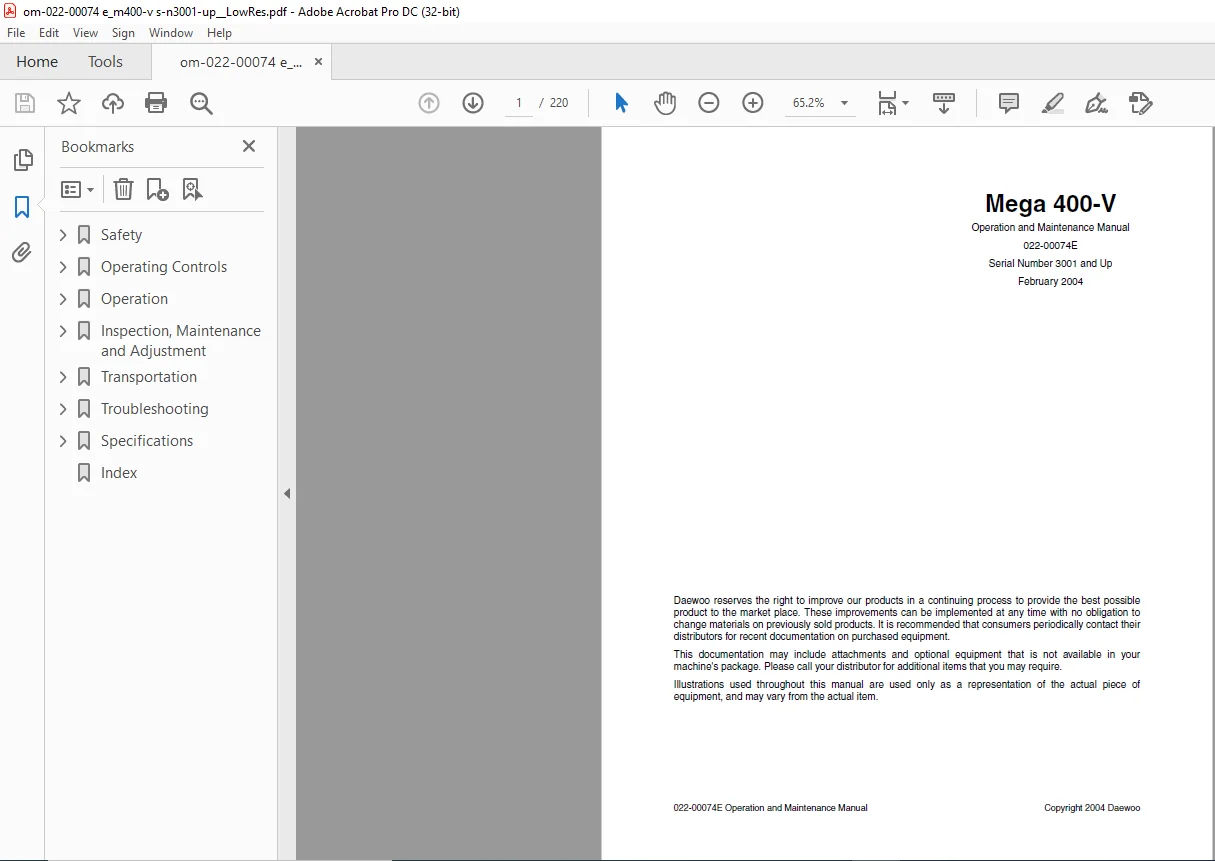

Daewoo Doosan Mega 400-V Operation and Maintenance Manual 022-00074E – PDF DOWNLOAD

Description

Daewoo Doosan Mega 400-V Operation and Maintenance Manual 022-00074E – PDF DOWNLOAD

DESCRIPTION:

Daewoo Doosan Mega 400-V Operation and Maintenance Manual 022-00074E – PDF DOWNLOAD

• Daewoo reserves the right to improve our products in a continuing process to provide the best possible product to the market place. These improvements can be implemented at any time with no obligation to change materials on previously sold products.
• It is recommended that consumers periodically contact their distributors for recent documentation on purchased equipment. This documentation may include attachments and optional equipment that is not available in your machine’s package.
• Please call your distributor for additional items that you may require. Illustrations used throughout this manual are used only as a representation of the actual piece of equipment, and may vary from the actual item.

TO THE OPERATOR OF A DAEWOO WHEEL LOADER

• Improper use of wheel loader could cause serious injury or death. Before operating wheel loader, or performing maintenance, operator or technician must read and understand entire Operation and Maintenance Manual. Any operation, maintenance, traveling or shipping methods  that do not follow safety guidelines printed in this Manual could cause serious injury or death
• Please respect the importance of taking responsibility for your own safety, and that other people who may be affected by your actions
• Safety information on the following pages is organized into the following topics.

1. “General Safety Essentials” on page 1-4
2. “Location of Safety Labels” on page 1-4
3. “Unauthorized Modifications” on page 1-13
4. “General Hazard Information” on page 1-13
5. “Before Starting Engine” on page 1-21
6. “Machine Operation” on page 1-24
7. “Maintenance” on page 1-31
8. “Battery” on page 1-39
9. “Towing” on page 1-41
10. “Shipping and Transportation” on page 1-42

• Improper operation and maintenance of this machine can be hazardous and could result in serious injury or death. Operator and maintenance personnel should read this manual thoroughly before beginning operation or maintenance.
• Keep this manual in the storage compartment to the rear of the operator’s seat, and have all personnel involved in working on the machine periodically read the manual. Some actions involved in operation and maintenance of the machine can cause a serious accident, if they are not done in a manner described in this manual.
• The procedures and precautions given in this manual apply only to intended uses of the machine. If you use your machine for any unintended uses that are not specifically prohibited, you must be sure that it is safe for any others. In no event should you or others engage in prohibited uses or actions as described in this manual.
• Daewoo delivers machines that comply with all applicable regulations and standards of the country to which it has been shipped. If this machine has been purchased in another country or purchased from someone in another country, it may lack certain safety devices and specifications that are necessary for use in your country.
• If there is any question about whether your product complies with the applicable standards and regulations of your country, consult Daewoo or your Daewoo distributor before operating the machine.

GENERAL SAFETY ESSENTIALS

ACCESSORY APPLICATIONS

The wheel loader has been designed primarily for moving earth with a bucket. For use as a grapple or for other object handling, contact Daewoo. Lifting-work applications are permitted in approved lift configuration, to rated capacity only, with no side-loading (unless prohibited by local regulation). Do not use machine for activities for which it was not intended. Do not use bucket for lifting work, unless lift slings are used in approved configuration.

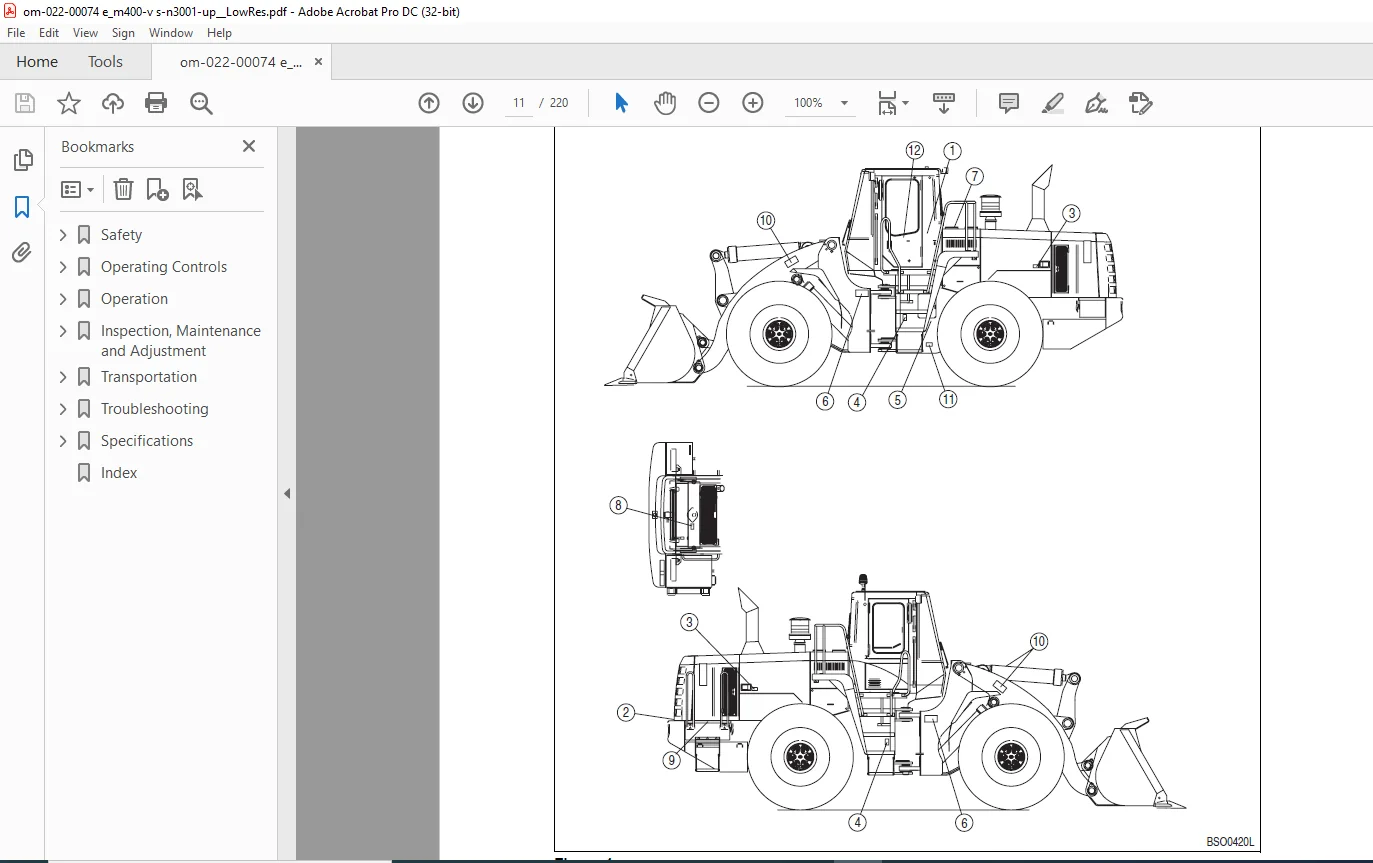

LOCATION OF SAFETY LABELS

There are several specific warning signs on this machine. The exact location of hazards and the description of the hazards are reviewed in this section. Please become familiarized with all warning signs. Make sure that all of the warning signs are legible. Clean the warning signs or replace the warning signs if you cannot read the words. Replace the illustrations if the illustrations are not visible. When you clean the warning signs, use a cloth, water and soap. Do not use solvent, gasoline, or other harsh chemicals to clean the safety signs. Solvents, gasoline, or other harsh chemicals could loosen the adhesive that secures the warning sign. Loose adhesive will allow the warning sign to fall off. Replace any safety sign that is damaged, or missing. If a safety sign is attached to a part that is replaced, install a safety sign on the replacement part
TABLE OF CONTENTS:

Daewoo Doosan Mega 400-V Operation and Maintenance Manual 022-00074E – PDF DOWNLOAD

Safety..........................................................................................................  7
	To the Operator of a Daewoo Wheel Loader....................................................................  7
		Learn Signal Words Used with Safety Alert Symbol........................................................  9
	General Safety Essentials................................................................................... 10
		Accessory Applications.................................................................................. 10
	Location of Safety Labels................................................................................... 10
		1. Warning for operation, inspection and maintenance (41902545A, 19000092)............................ 12
		2. Warnings for Engine Fan (21903315, 19000557)....................................................... 12
		3. Warnings when opening engine hood (19000095)........................................................ 13
		4. Warning for Using Wheel Block (41902547)............................................................ 13
		5. Warning for handling accumulator (19000703, 19000099).............................................. 14
		6. Keep Out of steering turn area (41901992A, 19000120)............................................... 15
		7. Warning for high temperature hydraulic oil (19000691, 19000097).................................... 15
		8. Warning for high temperature coolant (19000692, 19000097).......................................... 16
		9. Warning for battery maintenance (21902533A, 19000100).............................................. 16
		10. Warning for performing maintenance on front attachment (41902546A, 19000105)...................... 17
		11. Warning to use safety lock (19000121).............................................................. 17
		12. Warning Tag (19000695, 19000098).................................................................. 18
	Unauthorized Modifications.................................................................................. 19
	General Hazard Information.................................................................................. 19
		Safety Rules............................................................................................ 19
		Safety Features......................................................................................... 19
		Inside Operator's Compartment........................................................................... 20
		Clothing and Personal Protective Items.................................................................. 20
		Breathing Masks, Ear Protection May Be Required......................................................... 21
		Vibration Level Information............................................................................. 21
		Asbestos Dust Hazard Prevention......................................................................... 21
		Mounting and Dismounting................................................................................ 22
		Fuel, Oil and Hydraulic Fluid Fire Hazards.............................................................. 22
		Precautions When Handling Fluids at High Temperature.................................................... 23
		Injury from Work Equipment.............................................................................. 23
		Fire Extinguisher and First Aid Kit..................................................................... 24
		Protection from Falling or Flying Objects............................................................... 24
		Install Additional Safety Equipment If Conditions Require............................................... 25
		Maintain Standard Safety Equipment in Good Condition.................................................... 25
		Attachment Precautions.................................................................................. 26
		Accumulator............................................................................................. 26
		Engine Ventilation...................................................................................... 26
	Before Starting Engine...................................................................................... 27
		Work Site Precautions................................................................................... 27
		Checks Before Starting Engine........................................................................... 28
		Engine Starting......................................................................................... 28
		Before Operating Machine................................................................................ 29
	Machine Operation........................................................................................... 30
		Operate While Seated at Operator's Station ONLY......................................................... 30
		Seat Belts Should Be Used at All Times.................................................................. 30
		Movement Alarms......................................................................................... 30
		Travel Precautions...................................................................................... 31
		Sloping Terrain Requires Caution........................................................................ 31
		Avoid High Voltage Cables............................................................................... 32
		Before Starting to Dig, Contact Authorities............................................................. 32
		Be Aware of Height Obstacles............................................................................ 32
		Use Care on Loose Support............................................................................... 32
		Use Solid Support Blocking.............................................................................. 33
		Digging Beneath Overhangs............................................................................... 33
		Digging Beneath Wheel Loader............................................................................ 33
		Stay Alert for People Moving Through Work Area.......................................................... 33
		Be Aware of and Conform to Local Regulations............................................................ 33
		Never Use Ether Starting Aids........................................................................... 34
		Observe General Safety Rules............................................................................ 34
		Take Time to Provide Good Visibility.................................................................... 34
		Keep "Pinch Point" Areas Clear  Use Caution in Reverse................................................. 35
		Operate Carefully on Snow and Ice and in Very Cold Temperatures......................................... 35
		Parking Machine......................................................................................... 35
		Shutdown Control Functions.............................................................................. 36
		Never Let Anyone Ride on Attachment..................................................................... 36
	Maintenance................................................................................................. 37
		Use Warning Tag During Service.......................................................................... 37
		clean Before Inspection or Maintenance.................................................................. 37
		Proper Tools............................................................................................ 38
		Use of Lighting......................................................................................... 38
		Fire Prevention and Explosion Prevention................................................................ 38
		Burn Prevention......................................................................................... 39
		Welding Repairs......................................................................................... 40
		Precautions for Removal, Installation, and Storage of Attachments....................................... 40
		Precautions When Working on Machine..................................................................... 41
		Lock Inspection Covers.................................................................................. 41
		Crushing Prevention and Cutting Prevention.............................................................. 41
		Do Not Run Engine If Repairs or Work Are Being Performed Alone.......................................... 41
		Always Use Adequate Equipment Supports and Blocking..................................................... 42
		Do Not Work on Hot Engines or Hot Cooling or Hydraulic Systems.......................................... 42
		Hydraulic Cylinder Seals Require Periodic Replacement................................................... 42
		Highpressure Hydraulic Lines Can Store a Great Deal of Energy.......................................... 42
		Cool Down Is Required Before Radiator or Reservoir Checks............................................... 42
		Precautions with Highpressure Line, Tubes and Hoses.................................................... 43
		Obtain Immediate Medical Attention if Pressurized Oil Pierces Skin...................................... 43
		Use Correct Replacement Fasteners Tightened to Proper Torque............................................ 44
		Safety Critical Parts Must Be Replaced Periodically..................................................... 44
		Dispose of All Petroleum Based Oils and Fluids Properly................................................. 44
		Check Tire Pressure and Condition....................................................................... 44
	Battery..................................................................................................... 45
		Battery Hazard Prevention............................................................................... 45
		Disconnect Batteries Before Electrical Service or Electrical Welding.................................... 45
		Use Low Heat Portable Lighting.......................................................................... 46
		Boost Starting or Charging Engine Batteries............................................................. 46
	Towing...................................................................................................... 47
		Precautions When Towing................................................................................. 47
	Shipping and Transportation................................................................................. 48
		Obey State and Local OvertheRoad Regulations.......................................................... 48
Operating Controls.............................................................................................. 49

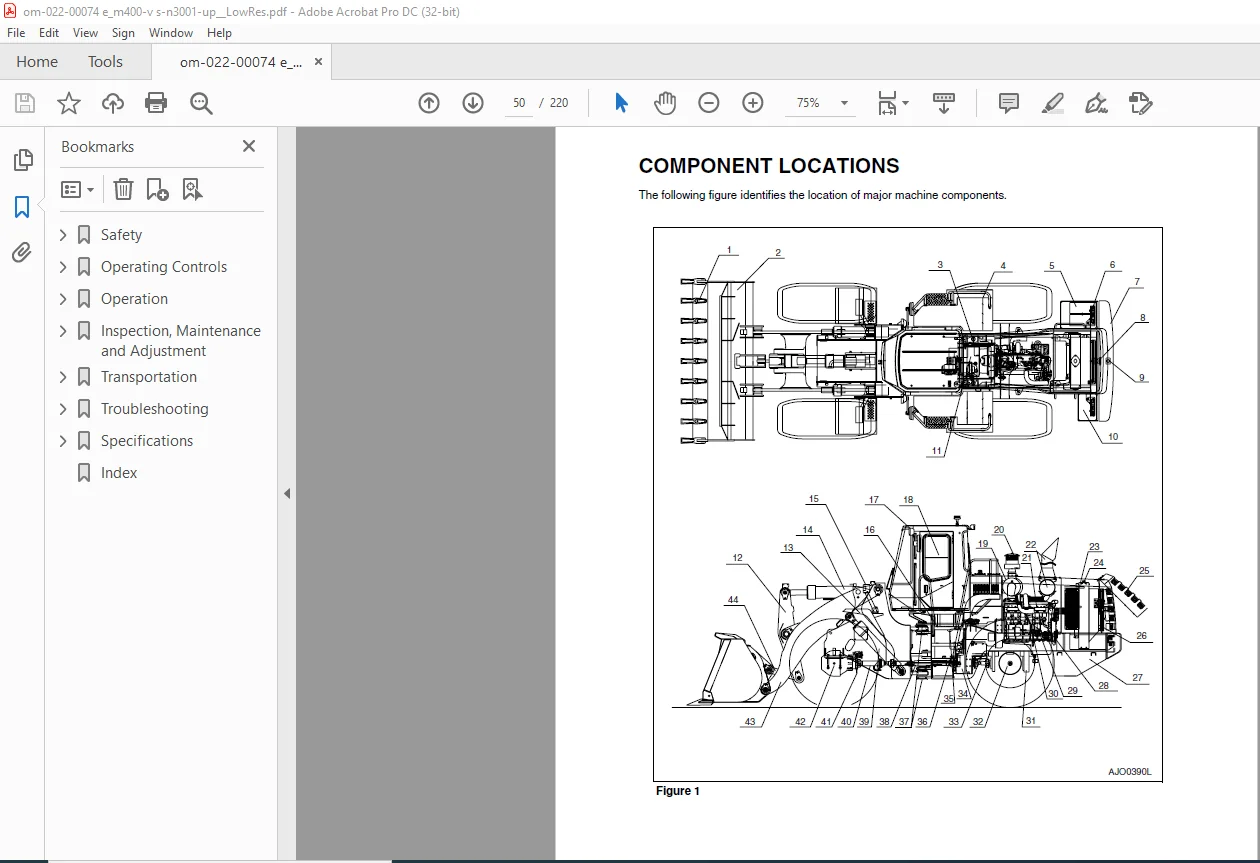

	Component Locations......................................................................................... 50
	Control Identification...................................................................................... 52
	Steering Console and Pedals................................................................................. 53
		1. Starter Switch....................................................................................... 54
		2. Horn Button (Two Places)............................................................................. 54
		3. Combination Switch................................................................................... 55
		4. Accelerator Pedal.................................................................................... 56
		5. Steering Wheel Adjustment Lever...................................................................... 56
		6. Brake Pedal (Right and Left Pedals).................................................................. 57
		7. Steering Wheel....................................................................................... 58
		8. Kickdown Switch (Two places)........................................................................ 58
		9. Transmission Lever................................................................................... 59
		10. FRONT INSTRUMENT PANEL.............................................................................. 60
		11. Transmission Display................................................................................ 60
	Transmission Display........................................................................................ 61
	Front Instrument Panel...................................................................................... 62
		Gauges.................................................................................................. 63
		Warning and Indicator Lights............................................................................ 63
		SWITCHES................................................................................................ 63
		1. Fuel Gauge........................................................................................... 63
		2. Speedometer.......................................................................................... 64
		3. Hour Meter........................................................................................... 64
		4. Tachometer........................................................................................... 64
		5. Engine Coolant Temperature Gauge..................................................................... 65
		6. Transmission Oil Temperature Gauge................................................................... 65
		7. Preheat Indicator Light.............................................................................. 65
		8. Air Cleaner Clogged Warning Light.................................................................... 66
		9. Engine Coolant Temperature Warning Light............................................................. 66
		10. Engine Oil Pressure Warning Light................................................................... 66
		11. Battery Warning Light............................................................................... 66
		12. Left Turn and Hazard Warning Light.................................................................. 67
		13. High Beam Indicator Light........................................................................... 67
		14. Right Turn and Hazard Warning Light................................................................. 67
		15. Work Light Indicator Light.......................................................................... 67
		16. Brake Fluid Pressure Warning Light.................................................................. 68
		17. F/R (Forward/Reverse) Selector Indicator Light (Option)............................................. 68
		18. Parking Brake Indicator Light....................................................................... 68
		19. Emergency Steering Indicator Light (Option)......................................................... 69
		20. Hazard Warning light Switch......................................................................... 69
		21. LIS (Load Isolation System) Switch (OPTION)......................................................... 70
		22. Float Kickout Switch (Option)...................................................................... 70
	Right Side Switch Panel..................................................................................... 71
		1. Pilot Control Valve Lever (Joystick)................................................................. 72
		1A. Pilot Control Valve Lever (Joystick) (Option)....................................................... 72
		1B. Pilot Control Valve Lever (Two Lever) (Option)...................................................... 73
		2. Kickdown Switch (TWO PLACES)........................................................................ 75
		3. Horn Button (Two Places)............................................................................. 75
		4. Cigar Lighter........................................................................................ 76
		5. Headlight Switch..................................................................................... 77
		6. front Work Light Switch.............................................................................. 77
		7. Rear Work Light Switch............................................................................... 78
		8. Rear Wiper Switch.................................................................................... 78
		9. Rotating Beacon Light Switch (Option)................................................................ 79
		10. Cup Holder.......................................................................................... 79
		11. Parking Brake switch................................................................................ 79
		12. Pilot cutoff switch................................................................................. 80
		13. Transmission Cutoff Switch.......................................................................... 80
		14. Automatic Transmission Switch....................................................................... 81
		15. emergency Steering Test Switch (option)............................................................. 81
		16. F/R (Forward/Reverse) Selector Switch (Option)...................................................... 82
		17. F/R (Forward/Reverse) Control Switch (Option)....................................................... 82
	Various Cabin Locations..................................................................................... 83
		1. CAB LIGHT............................................................................................ 84
		2. Stereo............................................................................................... 84
		3. Heater and Air Conditioner Control Panel............................................................. 84
		4. Speakers............................................................................................. 84
		5. Storage Box.......................................................................................... 85
		6. Washer Tank.......................................................................................... 85
		7. Hot/Cold Refrigerator................................................................................ 85
		8. Electrical Box....................................................................................... 85
		9. Fuse Box Two......................................................................................... 86
		10. Fuse Box One........................................................................................ 86
	Heater and Air Conditioner Operation........................................................................ 87
		Location of Controls and Vents.......................................................................... 87
		Operation Panel......................................................................................... 88
		1. Fan and Air Conditioner Switch....................................................................... 88
		2. Blower Fan Switches.................................................................................. 89
		3. Temperature Control Switch........................................................................... 89
		4. Selector Switch for Wind Direction................................................................... 89
		5. Ventilation Selector Switch.......................................................................... 90
		Memory Function of Used Mode............................................................................ 90
		Additional Operating Instruction........................................................................ 91
	Stereo...................................................................................................... 92
		1. OnOff / Volume Control Knob......................................................................... 92
		2. Balance / Fader Control.............................................................................. 92
		3. Bass/Treble Control.................................................................................. 92
		4. AM/FM Band Selector.................................................................................. 93
		5. Automatic Memory (AME)............................................................................... 93
		6. Tape Eject Button.................................................................................... 93
		7. Cassette Slot........................................................................................ 93
		8. & 9. Play Direction Button........................................................................... 93
		10. Automatic Selector.................................................................................. 93
		11. Dolby B Selector.................................................................................... 93
		12. Metal Selector...................................................................................... 94
		Care of Stereo.......................................................................................... 94
	Seat Adjustment (Standard).................................................................................. 96
		1. Adjusting Seat Forward/ Backward Lever............................................................... 96
		2 & 3. Adjusting Seat's Angle and Height Lever.......................................................... 96
		4. Weight Adjustment Knob............................................................................... 96
		5. Backrest Adjustment Lever............................................................................ 96
		6. Angle Adjustment of Armrest.......................................................................... 97
		7. Headrest............................................................................................. 97
		Recommendations for Limiting Vibrations................................................................. 97
	Seat Adjustment (Option).................................................................................... 98
		1. Adjusting Seat Forward/ Backward Lever............................................................... 98
		2. Seat Height & Firmness / Adjustment Knob............................................................. 98
		3. Backrest Adjustment Lever............................................................................ 98
		4. Lumbar Control Knob.................................................................................. 98
		5. Angle Adjustment of Armrest.......................................................................... 98
		6. Adjustment of Upper Backrest (6, Figure 101)......................................................... 98
	Seat Belt................................................................................................... 99
		Seat Belt Locking and Unlocking......................................................................... 99
	Door Side Latch.............................................................................................100
	Fuse Box/Relay..............................................................................................101
		Fuse Boxes..............................................................................................101
		Relay...................................................................................................103
		Circuit Breaker.........................................................................................103
		Fusible Link............................................................................................104
Operation.......................................................................................................105
	Instrument Panel Control Functions..........................................................................105
		Monitoring System.......................................................................................105
	New Machine Breakin Procedures.............................................................................105
	Engine Start and Stop.......................................................................................106
		Engine Start............................................................................................106
		Cold Weather Engine Start...............................................................................109
		Starting with Auxiliary Batteries.......................................................................112
		Engine Shut Down........................................................................................113
		Hydraulic System Warmup................................................................................114
		Hydraulic System Warmup – Cold Weather.................................................................114
	Machine Travel (Standard Transmission Controls).............................................................115
	Machine Shut Down...........................................................................................117
	F/R (Forward/Reverse) Travel Control System (Option)........................................................120
	Additional Braking..........................................................................................121
	Boom Raise Kickout.........................................................................................121
	Bucket Angle Indicator......................................................................................122
	Boom Lower Kickout (Option)................................................................................123
	Adjustment of Bucket Position Switch........................................................................123
	Towing Machine..............................................................................................124
	If Engine Stalls While Traveling............................................................................125
	Allowable Water Depth.......................................................................................125
Inspection, Maintenance and Adjustment..........................................................................127
	Preventive Maintenance......................................................................................127
		Serial Numbers..........................................................................................127
		Safety Precautions......................................................................................128
	Table of Recommended Lubricants.............................................................................129
	Fluid Capacities............................................................................................131
	Lubrication and Service Chart...............................................................................131
	Maintenance Intervals.......................................................................................134
		10 Hour / Daily Service.................................................................................134
		50 Hour / Weekly Service................................................................................134
		250 Hour / Monthly Service..............................................................................134
		500 Hour / 3 Month Service..............................................................................135
		1,000 Hour / 6 Month Service............................................................................135
		1,500 Hour / 9 Month Service............................................................................135
		2,000 Hour / Yearly Service.............................................................................135
		12,000 Hour / Six Year Service..........................................................................135
	10 Hour / Daily Service.....................................................................................136
		Grease Front Attachment Pins............................................................................136
		Inspect All Tires for Correct Tire Pressure and Signs of Damage or Abnormal Wear........................136
		Check Engine Oil Level..................................................................................136
		Check Transmission Oil Level............................................................................137
		Check Hydraulic System Oil Level........................................................................138
		Check for Leaks In Hydraulic System.....................................................................139
		fill Fuel Tank..........................................................................................140
		Check for Leaks in Fuel System..........................................................................140
		Drain Fuel Condensation.................................................................................141
		Check Coolant Level.....................................................................................142
		Check Level of Window Washer Liquid.....................................................................143
		Inspect the Bucket Teeth and Side Cutters for Signs of Wear.............................................143
		Inspect Seat Belt for Proper Operation..................................................................143
		Inspect the Structure for Cracks and Faulty Welds.......................................................143
		Check the Operation of All Switches.....................................................................143
		Check the Operation of All Exterior Lights, Horn and Control Console Indicator and Monitor Lights.......143
		Start Engine, Check Starting Ability, and Observe Exhaust Color at Startup and at Normal Operati.......144
		Check Operation of All Controls.........................................................................144
		Inspect Engine Fan Blade................................................................................144
		Check Engine Drive Belt Wear............................................................................145
		Check Air Intake System.................................................................................146
	50 Hour / Weekly Service....................................................................................147
		Perform All Daily Service Checks........................................................................147
		Grease Front Attachment Pins............................................................................147
		Grease Steering Cylinder Rod and HEAD Ends..............................................................152
		Grease Upper and Lower Center Pins......................................................................152
		Change Engine Oil and Filter............................................................................152
		Hydraulic Full Flow Filter Replacement..................................................................152
		Check Air Conditioner and Alternator Belt Tension.......................................................153
		Clean Exterior of Radiator, Oil Cooler and Air Conditioner Condenser....................................153
	250 Hour / Monthly Service..................................................................................154
		Perform All Daily and 50 Hour Service Checks............................................................154
		Replace Hydraulic System brake and Pilot Filter.........................................................154
		Check Engine Air Intake Precleaner......................................................................155
		Drain Water From Hydraulic Oil Tank.....................................................................155
		Clean Air Cleaner.......................................................................................156
		Check Air Conditioner and Alternator Belt Tension.......................................................157
		Grease Drive Shafts.....................................................................................157
		Change Engine Oil and Filter............................................................................158
		Replacement of Transmission Oil and Filter (After First 250 Hours)......................................159
	500 Hour / 3 Month Service..................................................................................160
		Perform All Daily, 50 and 250 Hour Service Checks.......................................................160
		Replace Fuel Filter.....................................................................................160
		Hydraulic Full Flow Filter Replacement..................................................................161
		Clean Exterior of Radiator, Oil Cooler and Air Conditioner Condenser....................................162
		Clean AirConditioning Filter...........................................................................162
		Axle Differential and Planetaries Oil Replacement (After First 500 Hours)...............................163
	1,000 Hour / 6 Month Service................................................................................164
		Perform All Daily, 50, 250, and 500 Hour Service Checks.................................................164
		Drain and Replace Transmission Oil and filter...........................................................164
		Axle Differential and Planetaries Oil Replacement.......................................................165
		Axle Brake Disk Wear Measurement........................................................................167
		Clean Fuel Tank and Strainer............................................................................168
		Check Air Conditioner Refrigerant.......................................................................168
		Check and Adjust Engine.................................................................................169
		Change Air Conditioner Filter...........................................................................169
	1,500 Hour / 9 Month Service................................................................................170
		Perform All 10, 50, 250 and 500 Hour Service Checks.....................................................170
		Replace Outer and Inner Air Cleaner Elements............................................................170
	2,000 Hour / Yearly Service.................................................................................171
		Perform All Daily, 50, 250, 500 and 1,000 Hour Service Checks...........................................171
		Check Steering, Brake, Drive Shaft, Engine, and Fuel System.............................................171
		Replace Pipes and Hoses.................................................................................171
		Bleed Brakes............................................................................................171
		Change Radiator Coolant.................................................................................172
		Drain and Replace Hydraulic Oil.........................................................................174
		Clean Hydraulic Oil Suction Strainer....................................................................176
		Check Brake Accumulator.................................................................................176
	12,000 Hour / Six Year Service..............................................................................177
		Hose Inservice Lifetime Limit (European Standard ISO8331 and EN982CEN)...............................177
	Bolt Torque Chart...........................................................................................178
		Tightening Torque Specifications for Metric Bolts (For coated threads, prelubricated assemblies)........178
	Electrical System...........................................................................................179
		Check Battery Condition.................................................................................179
	Engine Cooling System.......................................................................................180
		General.................................................................................................180
		Antifreeze Concentration Tables.........................................................................181
	Fuel Transfer Pump..........................................................................................182
	Handling of Accumulator.....................................................................................184
	Hydraulic Pressures.........................................................................................185
		Main Pump Pressure......................................................................................185
		Unloader Valve Pressure.................................................................................185
		Steering Pump Pressure..................................................................................186
		Transmission Clutch Pressure............................................................................186
		Brake Charge Pressure...................................................................................186
		Control Lever Activation Pressure.......................................................................186
		Service Brake Outlet Pressure...........................................................................187
		Fan Motor Pressure and Fan rpm..........................................................................187
	Long Term Storage...........................................................................................188
		Cleaning................................................................................................188
		Hydraulic System........................................................................................188
		Lubrication.............................................................................................188
		Battery.................................................................................................188
		Cooling System Care.....................................................................................188
	Parking Brake Adjustment....................................................................................189
		Emergency Release of the Parking Brake..................................................................189
		Adjusting regulations...................................................................................190
	Severe Conditions Maintenance...............................................................................191
	Tires and Wheels............................................................................................192
		Wheel Nut Torque........................................................................................192
		Check Tire for Damage...................................................................................193
Transportation..................................................................................................195
	Loading Machine on a Trailer................................................................................195
	Summary of Safety Precautions for Lifting...................................................................196
Troubleshooting.................................................................................................197
	Braking.....................................................................................................197
	Electrical System...........................................................................................197
	Engine......................................................................................................198
	Hydraulic System............................................................................................200
	Steering....................................................................................................202
	Travel System...............................................................................................203
		General.................................................................................................203
		Transmission Error Codes................................................................................205
Specifications..................................................................................................209
	General Specifications......................................................................................209
	Working Range and Dimensions................................................................................210
	Working Capacities..........................................................................................212
		Bucket Capacity.........................................................................................212
		Tipping Load............................................................................................212
		Material Weight.........................................................................................212
	Approximate Weight of Workload Materials....................................................................212
Index...........................................................................................................215

Need help? Contact: [email protected]

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.M
