OPERATING INSTRUCTIONS

START – STOP

CHECK THAT WARNI NG LIGHTS FOR ENGI NE OIL PRESSURE, GENERATOR, HANDBRAKE AND EMERGENCY STEERING ARE WORKING BEFORE STARTI NG ENGINE, NOTE: RED WARNI NG LIGHT FOR EMERGENCY STEERI NG SHALL ONLY SWIT CH WHEN DUMPER IS MOVING AT A SPEED OF APPROX, 5 KMH, GEARLEVER MUST BE IN NEUTRAL TO START ENGINE, PUSH STOP BUTTON RIGHT I N AND PRESS ACCELERATOR PEDAL RIGHT DOWN, TURN IGNITI ON KEY TO THE RIGHT TO ENGAGE STARTER AND HOLD UNTIL ENGINE STARTS, ADJUST ENGINE SPEED TO APPROX, 1000 R,P,M, AND HOLD FOR A FEW MI NUTES, Do NOT RACE THE ENGINE AFTER STARTING, FOR COLD WEATHER STARTI NG PRESS LN KNOB SITUATED AT_FORWARD END OF THE FUEL PUMP, THE KNOB IS PRESSED I N AFTER ACCELERATOR IS PRESSED DOWN, THE KNOB WILL RELEASE AUTOMATICALLY AFTER THE ENGI NE HAS STARTED, THE ENGINE IS STOPPED BY PULLI NG OUT STOP BUTTON,

WARMING UP PERIOD

THE ENGI NE SHOULD BE DRIVEN AT LOW LOAD AND REDUCED R,P,M, UNTIL TEMPERATURE IS REACHED APPROX, 750C, PARTIAL LOADI NG OF A COLD ENGINE GIVES BETTER COMBUSTION AND QUICKER WARMING UP PERIOD THAN NO LOAD CONDITION, CHECK AT REGULAR INTERVALS THAT ALL ENGI NE INSTRUMENTS ARE INDICATING NORMAL CONDITIONS AND THAT NO WARN NG LIGHTS ARE ON, OIL PRESSURE FOR NORMAL ENGINE TEMPERATURE SHOULD BE A MINIMUM OF 1,0 KPlcM2 AT 800 R,P,M, AND MAXIMUM OF 6,0 KPlcM2 AT 2650 R.P.M. WATER COOLJ NG SYSTEM SHOULD BE BETI EEN 700C AND 900(, CLUTCHPRESSURE ON GEARBOX SHOULD BE 10 KP/CM2 WITH “LOXK-UP” DRIVE AND 13 + 2 KP/CM2 WITH CONVERTER DRIVE, OPERATING TEMPERATURE FOR CONVERTER OIL SHOULD BE BETWEEN 8QOC AON 110°c. A SHORT  IS ALLOWED AT 120°c, NORMAL BRAKE PRESSURE SHOULD BE BETWEEN 5 AND 7,5 KP/CM2,

GEARBOX – POWERSHIFT GEARBOX

WITH DUMPER STATIONARY DO NOT ENGAGE GEAR AT HIGH ENGINE R,P,M, WHEN STARTING ON INCLINE IT IS ADVISABLE TO SELECT A SUITADLE GEAR BEFORE THE PARK BRAKE IS RELEASED, THE LOCK-UP SYSTEM IN THE COMVERTER ALLOWS DIRECT CONTACT BETWEEN THE ENGINE AND GEARBOX IN THE FULL GEAR RANGE, THIS HAPPENS AUTOMATICALLY WHEN THE TURBINE  REACHES A SET SPEED (APPROX, 1850 R,P,M,) DISCONNECT IS WHEN ENGINE SPEED DROPS TO APPROX. 1400 R.P.M. THIS MEANS THAT THE ENGINE CAN BE USED TO BRAKE ON DECLINES, To PREVENT THE GEARLEVER CHANGING FROM A HIGHER TO SEVERAL GEARS THERE IS BUILD IN TIME DELAY BETWEEN EACH GEAR ON THE GEAR LEVER, IN  IS THEREFORE ONLY POSSIBLE TO CHANGE DOWN ONE GEAR AT THE TIME, WITH ENGINE SPEED OVER 2050 R,P,M, IT IS NOT POSSIBLE TO CHANGE DOWN TO A LOWER GEAR AND ENGINE SPEED MUST BE REDUCED BY BRAKING,

IMPORTANT

A) MACHINE MUST NOT COAST WITH GEARLEVER IN “NEUTRAL” POSITION,

B) ENGINE REVOLUTIONS MUST BE REDUCED BEFORE SELECTING REVERSE, HE RECOMMEND THIS TO BE DONE ONLY IN AND 2ND GEAR

C) THERE IS NO BRAKING EFFECT WITH ENGINE STOPPED AND IN GEAR,

D) MACHI NE MUST NOT BE TOWED AT SPEEDS HIGHER THAN 10 KM/H AND TOWING DISTANCE MUST NOT EXCEED 10 KM,

E) J N CASE OF PROBLEMS WITH TRANSMISSION STOP MACHI NE AND CONTACT TRAINED PERSONELL TO RECTIFY FAULT,

F) WHEN ENGINE IS STOPPED THE TRANSMISSION OIL LEVEL WILL RISE CONSIDERABLY,

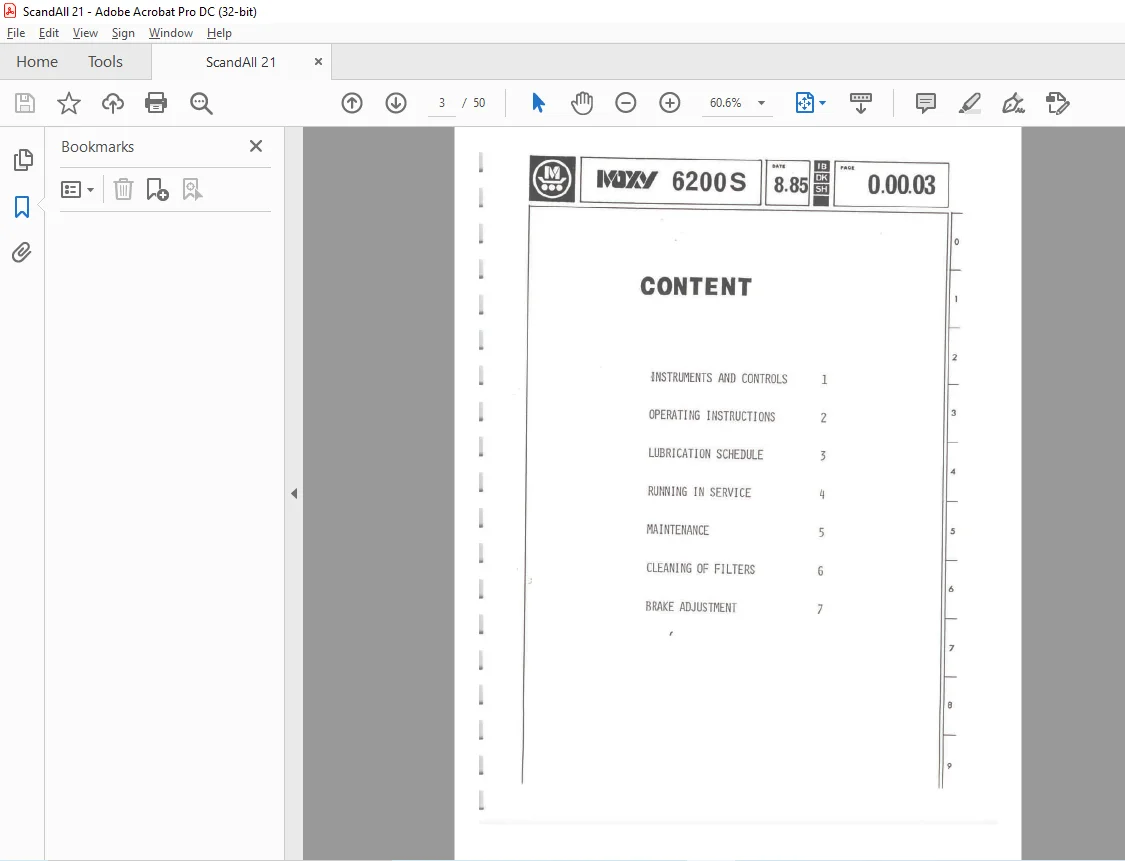

TABLE OF CONTENTS:

Daewoo Doosan MOXY 6200S OPERATING MANUAL – PDF DOWNLOAD

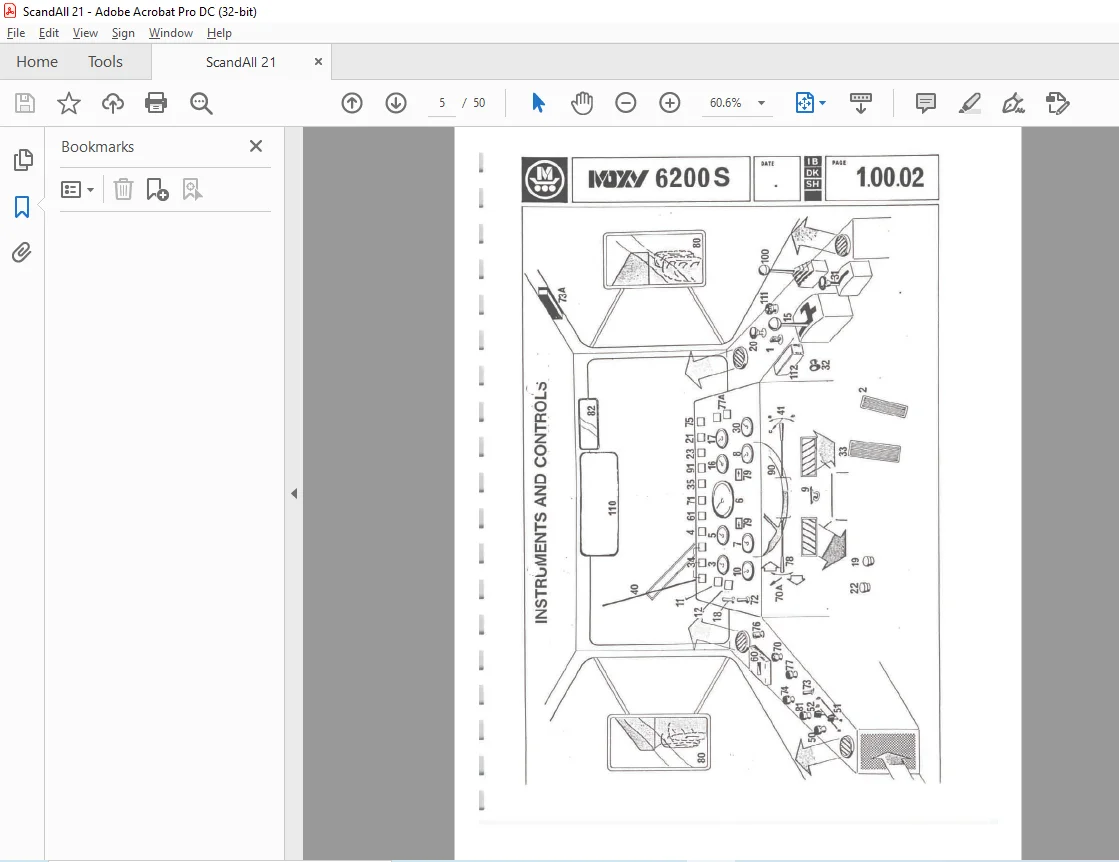

INSTRUMENTSAND CONTROLS
