Daewoo Nubira Service Manual PDF 1998-2001

Description

Daewoo Nubira Service Manual  Complete Factory Repair Guide 1998-2001  PDF DOWNLOAD

DESCRIPTION

Complete Factory Service Manual for Daewoo Nubira (1998-2001)

This is the official factory service manual for the 1998-2001 Daewoo Nubira, providing comprehensive technical documentation for all body styles including 4-door sedan (notchback), 4-door wagon, and 5-door hatchback models. This professional-grade manual covers complete service procedures, diagnostics, specifications, and repair information for every system in the vehicle. Whether you’re a professional automotive technician, independent repair shop, or dedicated DIY mechanic, this manual provides everything needed for proper maintenance and repair of these economical and reliable vehicles.

📋 FILE DETAILS

• Manual Title: Daewoo Nubira Service Manual
• Model Years: 1998, 1999, 2000, 2001
• Body Styles Covered:
  • 4-Door Sedan (Notchback)
  • 4-Door Wagon
  • 5-Door Hatchback
• Engine: 2.0L DOHC L-4 (1,998cc / 121.9 cu in)
• Transmissions:
  • D-20 5-Speed Manual
  • 4T40E 4-Speed Automatic
• Manual Format: PDF (searchable factory documentation)
• Page Count: 744 pages
• File Size: ~10.7 MB
• PDF Quality: High-quality factory scanned documentation

🚗 VEHICLE SPECIFICATIONS COVERED

Engine Specifications (2.0L DOHC):

• Type: Dual Overhead Cam 4-Cylinder
• Displacement: 1,998 cc (121.9 cubic inches)
• Bore x Stroke: 86mm x 86mm (3.4″ x 3.4″)
• Compression Ratio: 9.5:1
• Maximum Power: 96 kW (128.7 bhp) @ 5,400 rpm
• Maximum Torque: 184 N·m (135.7 lb-ft) @ 4,400 rpm
• Ignition: Direct Ignition System (DIS)
• Fuel System: Multi-Point Fuel Injection (MPI)

Performance Specifications:

• Maximum Speed: 195 km/h (122 mph) manual / 190 km/h (119 mph) automatic
• Minimum Turning Radius: 5.3 meters (17 feet)

Dimensions:

• Wheelbase: 2,570 mm (101.2 inches)
• Overall Length: 4,248-4,514 mm (depending on body style)
• Overall Width: 1,700 mm (66.9 inches)
• Overall Height: 1,425-1,470 mm (depending on body style)

Capacities:

• Fuel Tank: 52 liters (13.7 gallons)
• Engine Oil (with filter): 3.8 liters (4.1 quarts)
• Coolant: 7.0 liters (7.4 quarts)
• Manual Transmission: 1.8 liters (2 quarts)
• Automatic Transmission: 11.5 liters (12 quarts)

📖 COMPREHENSIVE MANUAL CONTENTS

SECTION 0B: GENERAL INFORMATION

• Complete Technical Specifications
  • Performance data (manual and automatic)
  • Engine specifications and tolerances
  • Ignition system specifications
  • Clutch specifications (manual transmission)
  • Manual transaxle gear ratios
  • Automatic transaxle specifications (4T40E)
  • Brake system specifications
  • Tire and wheel specifications
  • Steering system specifications
  • Suspension specifications
  • Fuel system specifications
  • Lubrication system specifications
  • Cooling system specifications
  • Electrical system specifications
• Vehicle Dimensions and Weights
  • Complete dimensional data for all body styles
  • Curb weights (standard and optional equipment)
  • Gross vehicle weight ratings
  • Passenger capacity information
• Standard Bolt Specifications
  • Complete torque specifications chart
  • 4T (Low Carbon), 7T (High Carbon), and Alloy steel ratings
  • Metric fastener torque values (M6 through M24)
• Maintenance and Lubrication
  • Normal vehicle use guidelines
  • Scheduled maintenance services explanation
  • Maintenance schedule charts
  • Owner inspection guidelines:
    • While operating the vehicle
    • At each fuel fill
    • At least monthly inspections
    • Twice yearly inspections
    • Each oil change inspections
    • Annual inspections
  • Recommended fluids and lubricants specifications
• General Description and System Operation
  • On-Board Refueling Vapor Recovery (ORVR) system
  • Vehicle identification (VIN) information
  • Vehicle lifting procedures and safety

ENGINE SECTION

• Engine Mechanical
  • Complete engine removal and installation procedures
  • Cylinder head service and overhaul
  • Valve train components and adjustment
  • Camshaft removal, inspection, and installation
  • Timing belt replacement procedures
  • Piston and connecting rod service
  • Crankshaft service and bearing replacement
  • Engine block service and machining limits
  • Oil pump removal and installation
  • Engine assembly procedures
  • Torque specifications for all fasteners
• Lubrication System
  • Oil circulation system operation
  • Oil pump testing and replacement
  • Oil filter specifications
  • Pressure testing procedures
  • Oil pressure specifications
• Cooling System
  • Radiator service and replacement
  • Water pump removal and installation
  • Thermostat testing and replacement
  • Cooling fan operation and diagnosis
  • Coolant flow diagrams
  • System pressure testing
  • Hose and clamp replacement
• Fuel System (MPI)
  • Fuel delivery system operation
  • Electric fuel pump testing and replacement
  • Fuel pressure specifications and testing
  • Fuel filter replacement
  • Fuel injector service and testing
  • Throttle body service
  • Fuel rail and regulator service
  • Fuel tank removal and installation
  • Evaporative emission system
• Ignition System
  • Direct Ignition System (DIS) operation
  • Spark plug specifications and replacement
  • Ignition coil testing
  • Ignition timing procedures
  • Spark plug wire inspection and replacement
  • Ignition module diagnosis

TRANSMISSION/TRANSAXLE SECTION

• Manual Transaxle (D-20)
  • Complete disassembly and reassembly procedures
  • Gear ratio specifications

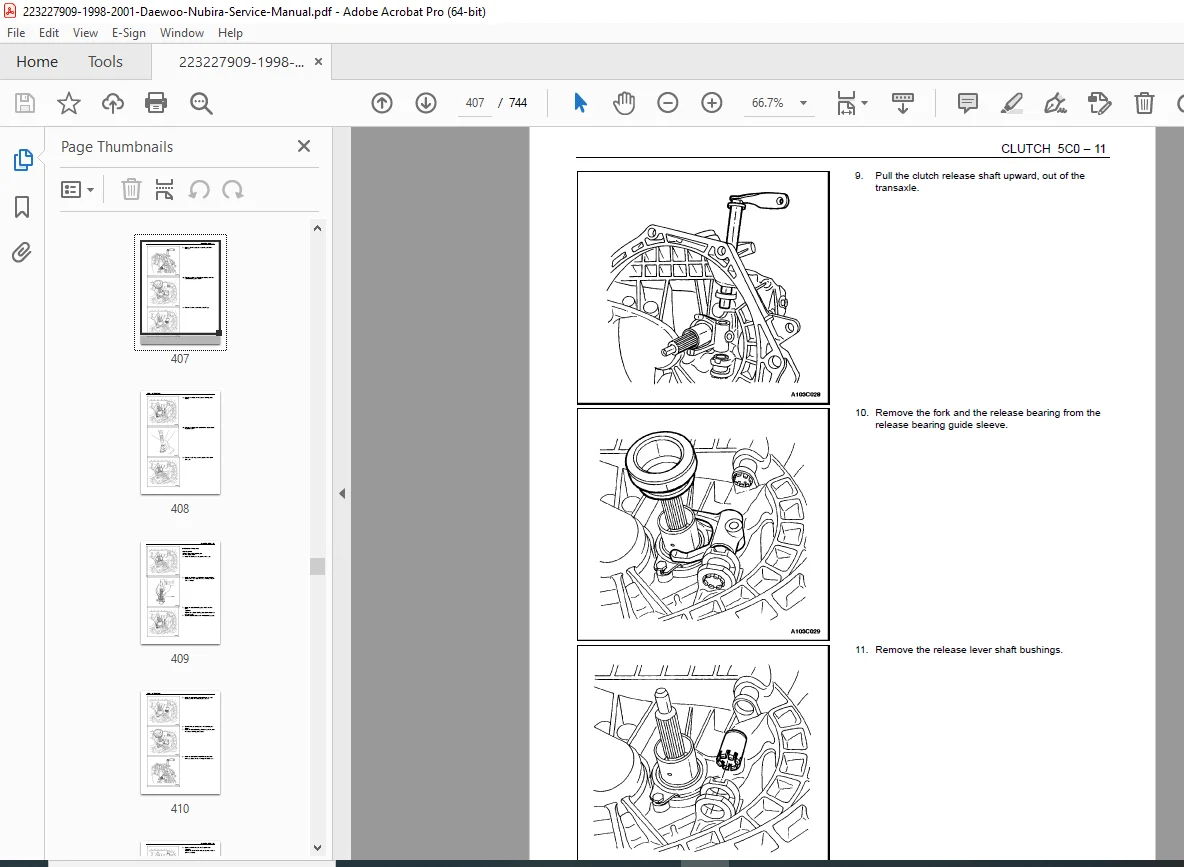

  • Clutch system service
  • Hydraulic clutch system diagnosis
  • Shift linkage adjustment
  • Differential service
  • Bearing and seal replacement
  • Synchronizer inspection and replacement
  • Final drive service
• Automatic Transaxle (4T40E)
  • General Motors 4T40E operation
  • Fluid and filter service
  • Shift cable adjustment
  • Range switch adjustment
  • Electronic control diagnosis
  • Valve body service
  • Torque converter diagnosis
  • Planetary gear train service
  • Complete overhaul procedures

DRIVETRAIN SECTION

• Front Drive Axles (FWD)
  • CV joint service and replacement
  • Drive axle shaft removal and installation
  • Boot replacement procedures
  • Bearing inspection and replacement
  • Tripod joint service
  • Ball-type joint service

SUSPENSION SECTION

• Front Suspension (MacPherson Strut)
  • Strut assembly removal and installation
  • Strut cartridge replacement
  • Upper strut mount service
  • Lower control arm replacement
  • Ball joint inspection and replacement
  • Stabilizer bar service
  • Wheel bearing replacement
  • Alignment specifications and procedures
• Rear Suspension (Compound Link)
  • Shock absorber replacement
  • Coil spring service
  • Control arm (link) replacement
  • Lateral link service
  • Trailing arm service
  • Stabilizer bar service
  • Wheel bearing replacement

STEERING SECTION

• Power Rack and Pinion Steering
  • Steering gear removal and installation
  • Power steering pump service
  • Hydraulic line replacement
  • Tie rod end replacement
  • Steering column service
  • Power steering fluid specifications
  • Pressure testing procedures
  • Wheel alignment procedures:
    • Caster adjustment
    • Camber adjustment
    • Toe-in adjustment
    • Thrust angle alignment

BRAKE SECTION

• Hydraulic Brake System
  • Master cylinder service and replacement
  • Power brake booster testing and replacement
  • Brake fluid specifications
  • Hydraulic line service
  • Proportioning valve service
• Front Disc Brakes
  • Ventilated disc specifications (356mm / 14.0″)
  • Caliper overhaul procedures
  • Brake pad replacement
  • Rotor inspection and machining limits
  • Caliper bracket service
• Rear Disc Brakes
  • Solid disc specifications (32mm / 1.3″)
  • Caliper service
  • Brake pad replacement
  • Rotor service
  • Parking brake adjustment
• Anti-Lock Brake System (ABS) (if equipped)
  • ABS component identification
  • Wheel speed sensor service
  • Hydraulic control unit service
  • Electronic control module diagnosis
  • ABS bleeding procedures
  • Diagnostic trouble code procedures

WHEELS AND TIRES SECTION

• Tire Service
  • Tire rotation patterns
  • Inflation pressure specifications
  • Tire wear diagnosis
  • Wheel balance procedures
  • Temporary spare tire specifications
• Wheel Service
  • Wheel inspection procedures
  • Wheel bearing service
  • Lug nut torque specifications
  • Wheel runout specifications

ELECTRICAL SECTION

• Battery and Charging System
  • Battery specifications (55AH, 630 CCA)
  • Battery testing procedures
  • Alternator output testing (85 amps)
  • Voltage regulator testing
  • Wiring diagrams
• Starting System
  • Starter motor specifications (1.4 kW)
  • No-load testing procedures
  • Starter removal and installation
  • Solenoid testing
  • Drive mechanism service
• Lighting System
  • Headlight aiming procedures
  • Bulb specifications
  • Switch testing and replacement
  • Relay locations and testing
• Instrument Panel and Gauges
  • Gauge cluster removal and service
  • Warning light diagnosis
  • Speedometer cable service (if applicable)
  • Electronic sensor testing
• Wiper and Washer System
  • Wiper motor testing
  • Linkage service
  • Washer pump replacement
  • Switch diagnosis
• Complete Wiring Diagrams
  • Engine control system wiring
  • Charging system wiring
  • Starting system wiring
  • Lighting system wiring
  • Instrument panel wiring
  • HVAC system wiring
  • Audio system wiring
  • Power accessory wiring
  • Ground distribution diagrams
  • Connector pin-outs

HEATING, VENTILATION & AIR CONDITIONING

• HVAC System Service
  • Heater core replacement
  • Evaporator service
  • Blower motor replacement
  • Control panel service
  • Refrigerant specifications (if equipped)
  • A/C compressor service
  • Condenser replacement
  • Expansion valve/orifice tube service
  • System evacuation and charging procedures

BODY AND ACCESSORIES

• Body Service
  • Door panel removal and installation
  • Window regulator service
  • Door lock and latch service
  • Seat belt inspection and replacement
  • Mirror replacement
  • Bumper removal and installation
  • Hood and trunk/hatch alignment
• Interior Trim
  • Dashboard removal procedures
  • Console service
  • Headliner replacement
  • Carpet removal
  • Upholstery service

EMISSION CONTROL SYSTEMS

• Evaporative Emission Control
  • EVAP system operation
  • Canister replacement
  • Purge valve testing
  • Leak detection procedures
• Exhaust Emission Control
  • Catalytic converter service
  • Oxygen sensor replacement
  • EGR system service (if equipped)
  • PCV system service

DIAGNOSTIC PROCEDURES

• Engine Performance Diagnostics
  • No-start diagnosis
  • Hard starting troubleshooting
  • Poor idle quality diagnosis
  • Driveability concerns
  • Engine noise diagnosis
  • Oil consumption diagnosis
• Transmission Diagnostics
  • Shift quality concerns
  • No movement diagnosis
  • Slipping diagnosis
  • Noise diagnosis
• Electrical System Diagnostics
  • No-start electrical diagnosis
  • Charging system diagnosis
  • Parasitic draw testing
  • Circuit testing procedures
• Brake System Diagnostics
  • Low pedal diagnosis
  • Hard pedal diagnosis
  • Brake pull diagnosis
  • Noise diagnosis
  • ABS diagnostic procedures

🔧 PERFECT FOR:

✅ Professional Mechanics – Complete factory repair procedures ✅ Independent Repair Shops – Essential technical reference ✅ Auto Technicians – Detailed diagnostic and repair information ✅ DIY Enthusiasts – Step-by-step service instructions ✅ Daewoo Specialists – Comprehensive model-specific data ✅ Technical Schools – Educational training resource ✅ Classic Car Owners – Maintain your Nubira properly ✅ Fleet Maintenance – Service multiple Nubira vehicles

💡 KEY FEATURES OF THIS MANUAL:

• Factory Official: Original manufacturer service documentation
• Complete Coverage: All systems covered in detail (744 pages)
• Multiple Body Styles: Sedan, wagon, and hatchback procedures
• Both Transmissions: Manual and automatic transaxle service
• Wiring Diagrams: Complete electrical schematics
• Torque Specifications: All fastener torque values included
• Maintenance Schedules: Factory-recommended service intervals
• Fluid Specifications: All recommended fluids and capacities
• Diagnostic Procedures: Systematic troubleshooting methods
• Exploded Diagrams: Component identification and assembly sequences

🎯 CRITICAL TECHNICAL INFORMATION:

• Engine Overhaul: Complete rebuild procedures with clearances
• Timing Belt Service: Critical timing belt replacement procedures
• Transaxle Service: Both manual and automatic overhaul procedures
• Suspension Alignment: Complete wheel alignment specifications
• Brake Service: Disc brake service for all four wheels
• Electrical Diagnostics: Complete wiring and connector diagrams
• HVAC Service: Air conditioning and heating system procedures
• Emission Controls: Complete emission system service
• Body Service: Interior and exterior component replacement

📐 SPECIFICATIONS QUICK REFERENCE:

Engine:

• Type: 2.0L DOHC 4-Cylinder
• Power: 128.7 HP @ 5,400 RPM
• Torque: 135.7 lb-ft @ 4,400 RPM
• Spark Plugs: Bosch FR8LDC4, Gap 0.031″

Transmission:

• Manual: D-20 5-Speed, 1.8L capacity
• Automatic: 4T40E 4-Speed, 11.5L capacity

Brakes:

• Front: 356mm (14″) ventilated disc
• Rear: 32mm (1.3″) solid disc
• Master Cylinder: 22.2mm (0.87″)

Suspension:

• Front: MacPherson Strut
• Rear: Compound Link

Tires:

• Standard: 185/65R14
• Temporary: T125/70D15

Electrical:

• Battery: 55AH, 630 CCA
• Alternator: 85 Amps
• Starter: 1.4 kW

🛠️ MAINTENANCE SCHEDULES INCLUDED:

Complete factory-recommended maintenance intervals for:

• Engine oil and filter changes
• Coolant system service
• Fuel filter replacement
• Air filter replacement
• Spark plug replacement
• Drive belt inspection and replacement
• Brake system inspection
• Tire rotation schedules
• Transmission service intervals
• Battery maintenance
• Wheel alignment checks

⚡ INSTANT DOWNLOAD – Start servicing your Daewoo Nubira immediately! This factory service manual provides authentic manufacturer specifications and procedures, ensuring your vehicle is maintained and repaired to original factory standards. Perfect for keeping these economical and reliable Korean vehicles running smoothly for years to come

Justification:

• 744 pages of official factory documentation
• Covers 4 model years (1998-2001)
• Multiple body styles (sedan, wagon, hatchback)
• Both manual and automatic transmission coverage
• Complete engine overhaul procedures
• Comprehensive wiring diagrams included
• Essential for Daewoo Nubira owners and mechanics
• Limited availability of Daewoo-specific manuals
• Daewoo brand no longer exists (discontinued manufacturer)
• Critical resource for maintaining existing vehicles
• Comparable import vehicle service manuals sell for $35-$65
• Growing interest in affordable classic/vintage cars

This service manual is an invaluable resource for anyone maintaining or repairing a 1998-2001 Daewoo Nubira. Download now and have complete factory-authorized service procedures for these reliable and economical vehicles!
