Daihatsu A4Q A4R Automatic Transmission Repair Manual PDF
$14.95
Daihatsu A4Q A4R Series Automatic Transmission(Electrically Controlled)Service Manual – PDF DOWNLOAD
PN 9738
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Daihatsu A4Q A4R Series Automatic Transmission(Electrically Controlled)Service Manual – PDF DOWNLOAD
FILE DETAILS:
Daihatsu A4Q A4R Series Automatic Transmission(Electrically Controlled)Service Manual – PDF DOWNLOAD
PN 9738
Language : English
Pages : 48
Downloadable : Yes
File Type : PDF

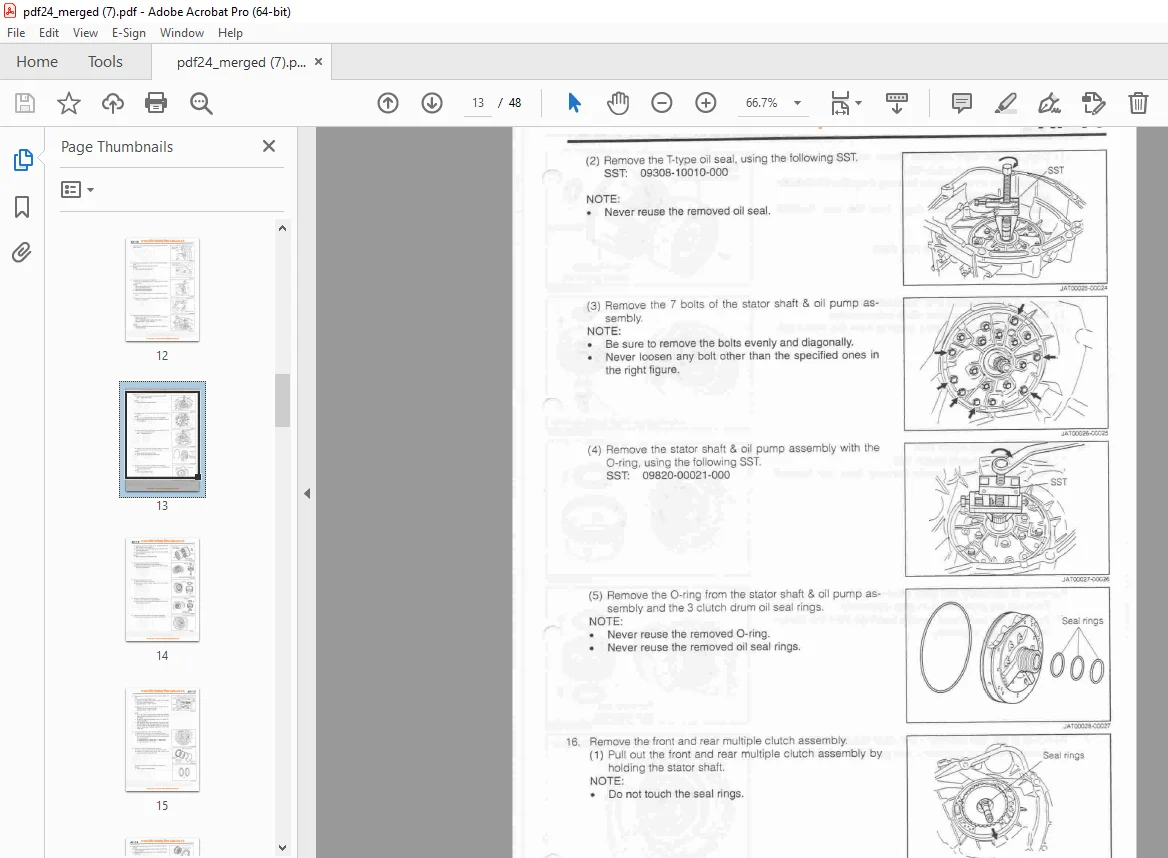

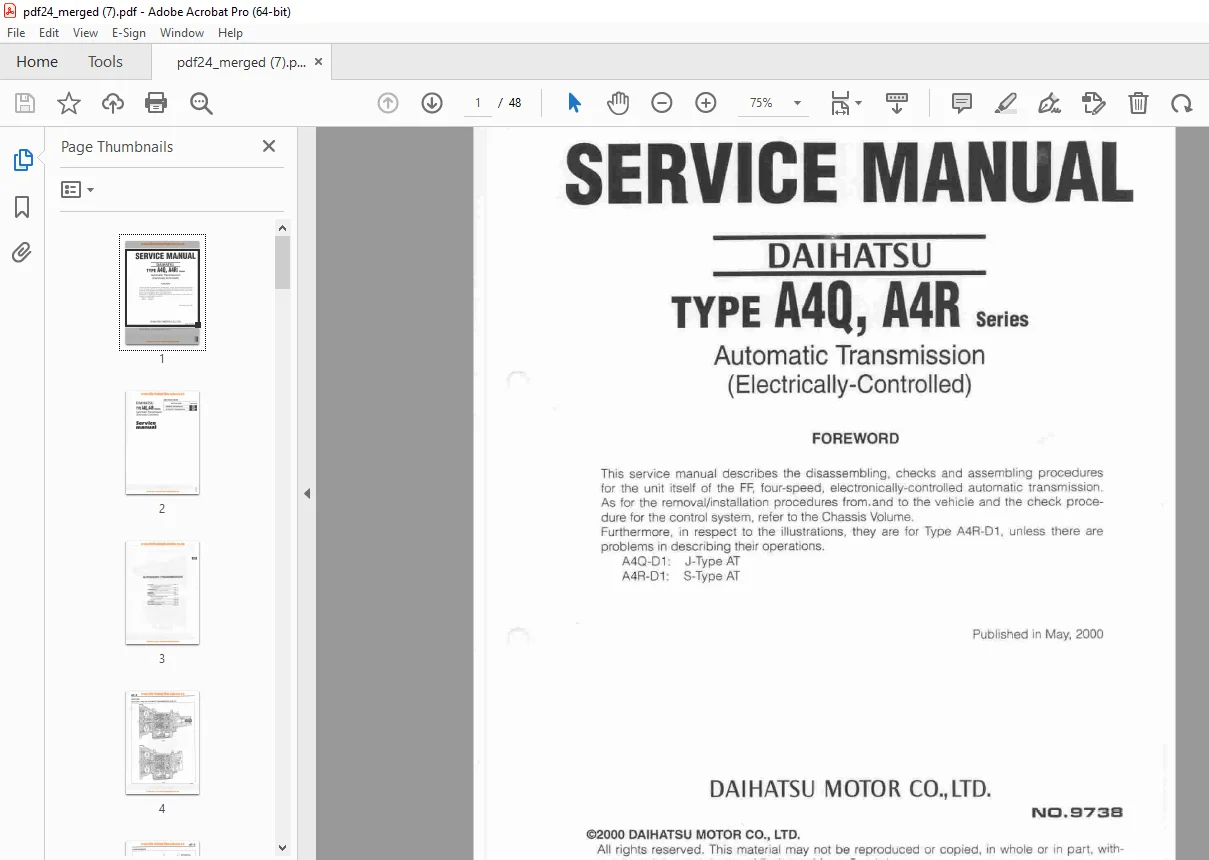

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Daihatsu A4Q A4R Series Automatic Transmission(Electrically Controlled)Service Manual – PDF DOWNLOAD
PN 9738
GENERAL INFORMATIONΒ GI
AUTOMATIC TRANSMISSIONΒ Β AT
DESCRIPTION:
Daihatsu A4Q A4R Series Automatic Transmission(Electrically Controlled)Service Manual – PDF DOWNLOAD
PN 9738
FOREWORD:
- This service manual describes the disassembling, checks and assembling procedures for the unit itself of the FF, four-speed, electronically-controlled automatic transmission.
- As for the removal/installation procedures from. and to the vehicle and the check proce- dure for the control system, refer to the Chassis Volume.
- Furthermore, in respect to the illustrations, they are for Type A4R-D1, unless there are problems in describing their operations.
A4Q-D1: J-Type AT A4R-D1: S-Type AT
INSPECTION:
FRONT AND REAR MULTIPLE CLUTCH:
1. Check of forward clutch
FRONT AND REAR MULTIPLE CLUTCH:
1. Check of forward clutch
(C2) piston stroke and Rear clutch
(C3) piston stroke
(1) Measure the forward clutch
(C2) end play, Rear clutch end play using a thickness gauge.
Specified Value: Β Forward Clutch (C2): Rear Clutch (C3): 0.67-0.98 mm 1.24-1.55 mm
ASSEMBLY:
- Selection of brake flanges, snap rings for 1st & reverse brake piston and 2nd & 4th brake piston
Before assembling the unit, determine the thickness of the snap rings brake flanges, as follows.
(1) Assemble the piston, brake discs and brake plates as shown in the right figure. Push them from the direction A with a load of 4.9 to 7.8 N. (Place a suitable weight). (2) Measure the dimension X with a height gauge. Based on this dimension, select a suitable brake flange (1st & Rev), snap ring (2nd & 4th) according to the table
below.
below.
