Service Manual for Daihatsu EJ Engine PDF Download
$18.95
Daihatsu EJ Engine Service Manual – PDF DOWNLOAD
PN 9726
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Daihatsu EJ Engine Service Manual – PDF DOWNLOAD
FILE DETAILS:
Daihatsu EJ Engine Service Manual – PDF DOWNLOAD
PN 9726
Language : English
Pages : 80
Downloadable : Yes
File Type : PDF

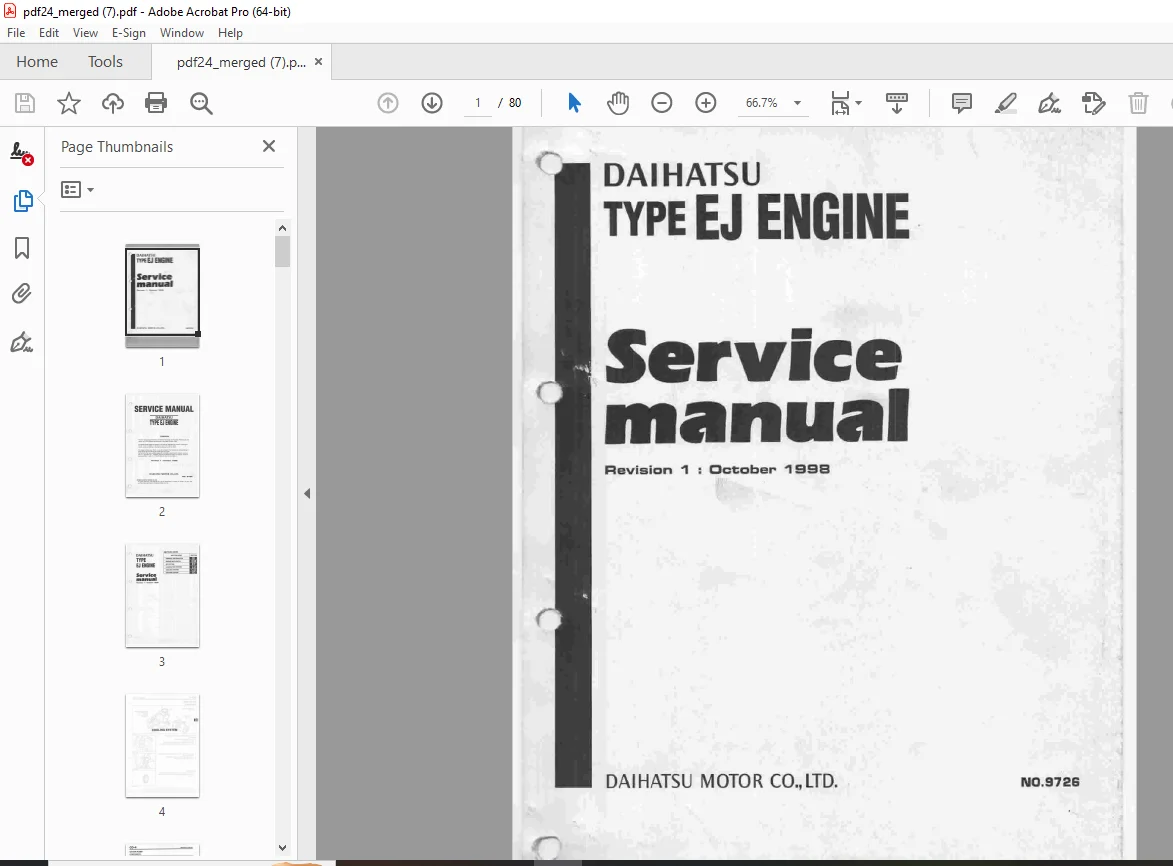

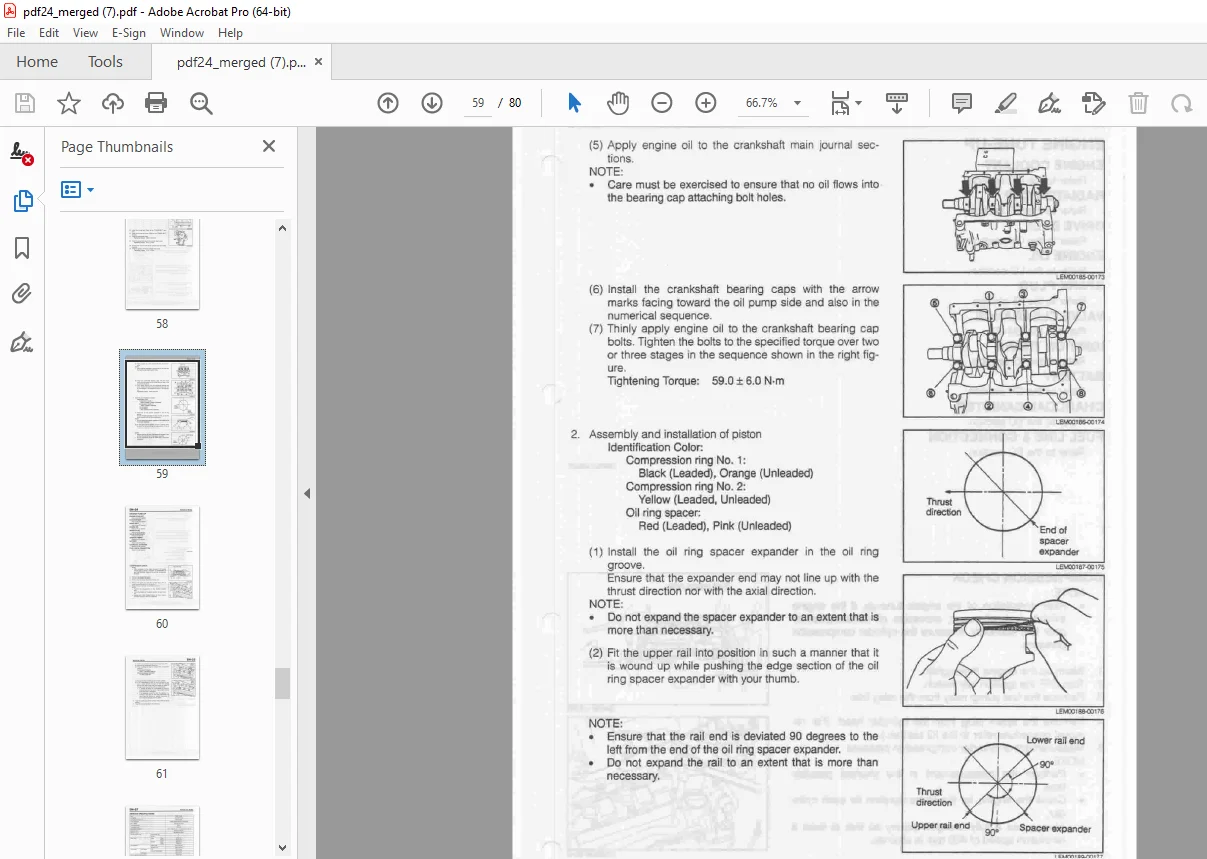

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Daihatsu EJ Engine Service Manual – PDF DOWNLOAD
PN 9726
GENERAL INFORMATION GI
ENGINE MECHANICAL EM
EFI SYSTEM EF
LUBRICATION SYSTEM LU
COOLING SYSTEM CO
IGNITION SYSTEM IG
DESCRIPTION:
Daihatsu EJ Engine Service Manual – PDF DOWNLOAD
PN 9726
FOREWORD:
- This is a version supplemental to the Service Manual EJ-DE No. 9722. Please apply this version to EJ-DE engines manufactured in and after October, 1998.
- As regards those pages not posted in this manual, basically they remain unchanged. Hence, continue referring to the Service Manual EJ-DE No. 9722.
- The page numbers (e.g. EM-3, LU-6, etc.) posted in this manual are corresponding to those of the Service Manual No. 9722 Type EJ Engine.
- Furthermore, the newly-added pages are numbered, using branch numbers, such as EM-11-1 and EM-13-1. Therefore, this manual should be read, for instance, in the se- quence of EM-11, EM-11-1, EM-12, EM-13, EM-13-1 and EM-14.
2. PRECAUTIONS:
1. When resistance or voltage measurement is conducted at the connector section, insert a measuring probe from the back of the connector, being very careful not to damage the harness of terminal connections. In the case of water-proof type connector, a measurement is conducted at the connector section with the measuring probe put into contact with the terminal at the connection side of the connector. Be very careful not to apply exces- sive force to the terminal at the connector side. As an alternative method, insert a male or female terminal into the connector terminal or connect an adequate at- tachment.
2. The fuel line at the high-pressure side is pressurized to a fuel pressure of about 250 kPa. Therefore, a large amount of gasoline flows out when parts of the fuel line are discon- nected. Hence, take the following countermeasures. WARNING Be sure to release the inner pressure of the fuel tank by removing the fuel filler cap in advance.
3. Tachometer connection Connect the tachometer probe to the measuring terminal of the diagnosis connecter. CAUTION: This does not apply if your tachometer is a pick-up type. Never allow the tachometer probe to touch the ground, for it could result in damage to the ignitor and/or igni- tion coil. Some kinds of tachometers may not be suited for the ignition system of the vehicle. Therefore, ensure that your tachometer is compatible with the ignition system of the vehicle.
4. Precautions during oxygen sensor handling (1) Do not drop the oxygen sensor or hit it to other ob- jects. (2) Do not immerse the sensor in water or do not cool it by water.
