Dana Spicer Off C270 Torque Converter Maintenance & Repair Manual PDF
$14.95
Dana Spicer Off C270 Torque Converter Maintenance & Repair Manual – PDF DOWNLOAD
Description
Dana Spicer Off C270 Torque Converter Maintenance & Repair Manual – PDF DOWNLOAD
FILE DETAILS:
Dana Spicer Off C270 Torque Converter Maintenance & Repair Manual – PDF DOWNLOADย
Language : English
Pages : 45
Downloadable : Yes
File Type : PDF

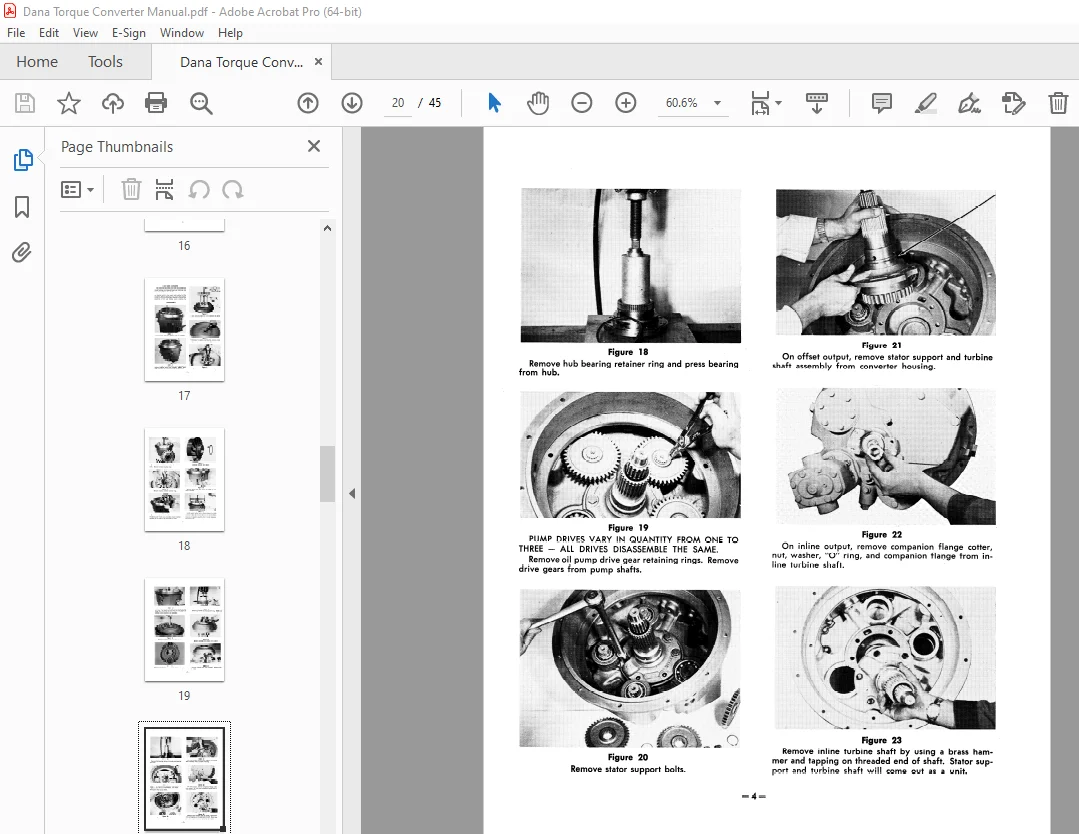

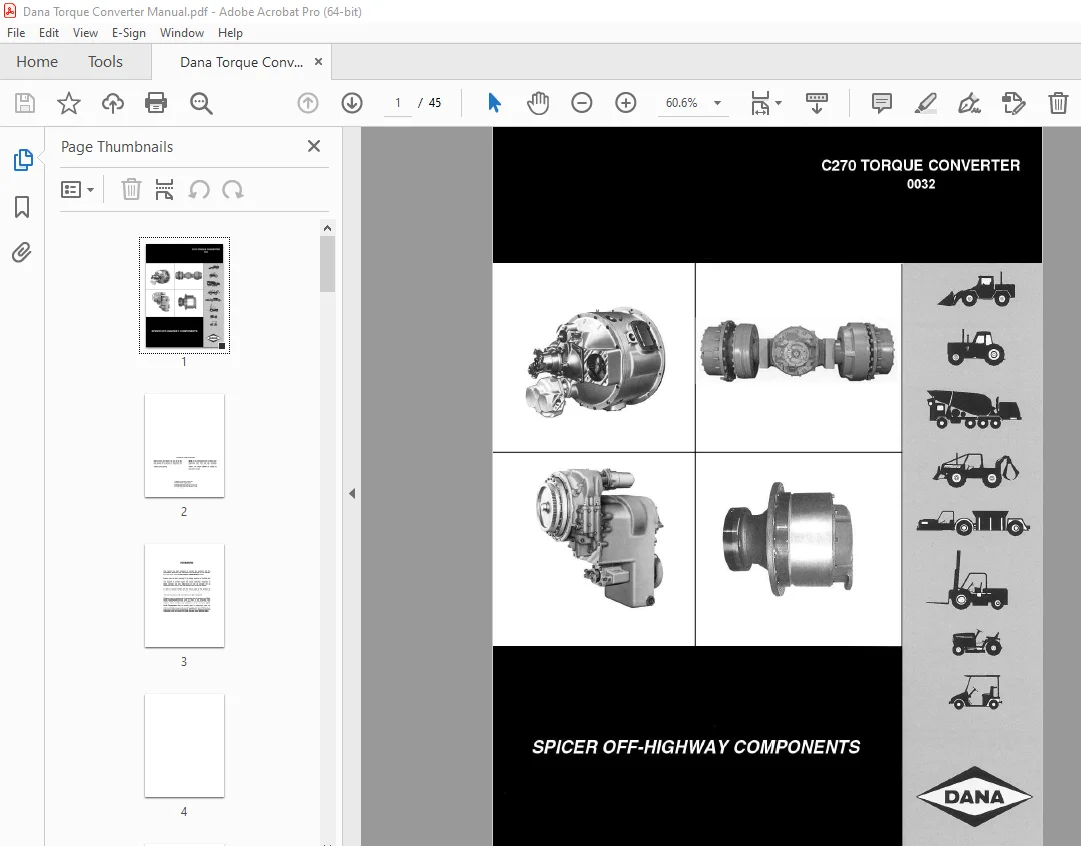

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Dana Spicer Off C270 Torque Converter Maintenance & Repair Manual – PDF DOWNLOADย
SECTIONAL VIEWS AND PARTS IDENTIFICATION
Torque Converter with Offset Output ะ
Torque Converter with lnline Output C
CONVERTER OIL FLOW DIAGRAM E
IRREGULARITIES IN PERFORMANCE F-G
GENERAL INFORMATION G
TRANSMISSION CLUTCH OIL PRESSURE G
OIL PRESSURE AND LUBRICATION RECOMMENDATIONS ะ
CONVERTER ASSEMBLY INSTRUCTIONS (lnline and Offset Output) I
DISASSEMBLY OF TORQUE CONVERTER 1
CLEANING AND INSPECTION 6
REASSEMBLY OF TOROUE CONVERTEA 7
RING GEAR INSTALLATION PAOCEDURE (16 screw) for lockwire procedure 13
RING GEAR INSTALLATION PROCEDURE (32 Screw) 14
CONVERTER ASSEMBLY INSTRUCTIONS (Lock-Up) 15
Torque Converter with Offset Output (Lock-Up) 16
DISASSEMBLY OF LOCK-UP 18
REASSEMBLY OF LOCK-UP 20
AUTOMATIC LOCK-UP ADAPTOR DISASSEMBLY AND REASSEMBLY 22
SPECIAL APPLICATION IMPELLER HUB BEARING 23
RING GEAR INSTALLATION PROCEDURE (16 Screw) 24
SPEED SENSOR INSTALLATION 26
DRIVE PLATE INSTALLATION INSTRUCTIONS , 27
S.V 08/12/24
